Knock Sensor: Service and Repair

Knock Sensor Replacement

Removal Procedure

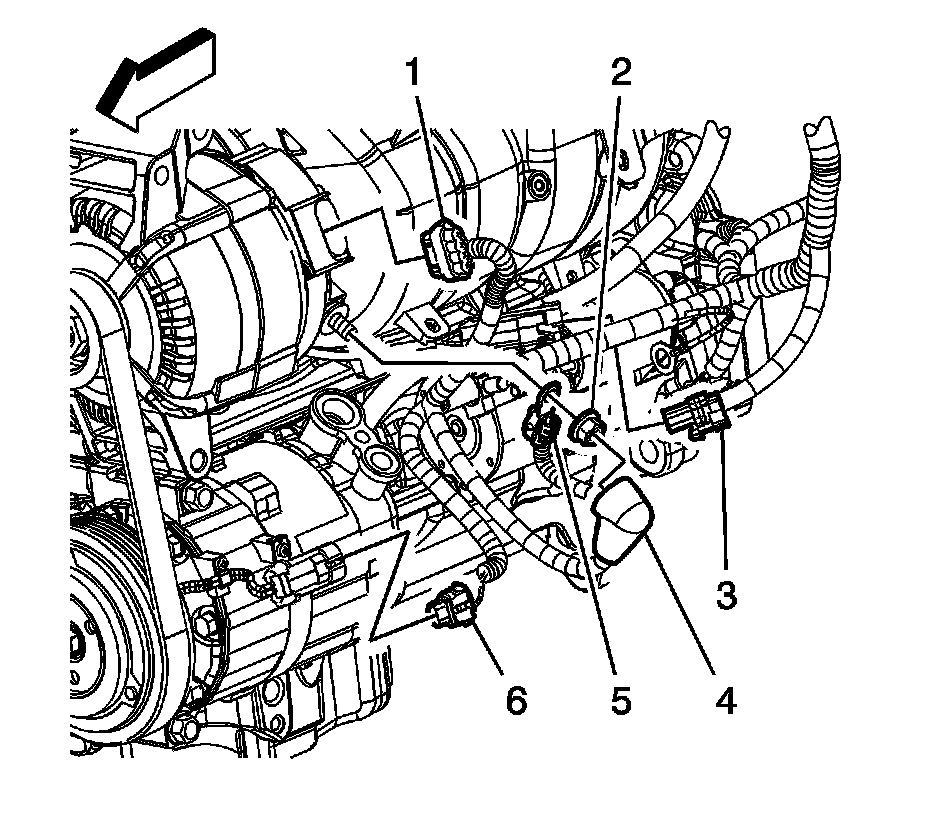

1. Disconnect the knock sensor (KS) electrical connector (3).
2. Remove the KS electrical connector clip from the oil level indicator tube bracket.




3. Remove the KS bolt.
4. Remove the KS.

Installation Procedure

Important: Rotate the pigtail 90 degrees from vertical before securing the fastener.




1. Install the KS.

Notice: Refer to Fastener Notice.

2. Install the KS bolt.

Tighten the bolt to 25 N.m (18 lb ft).




3. Disconnect the KS electrical connector (3).
4. Install the KS electrical connector clip to the oil level indicator tube bracket.
