Vehicle Speed Sensor: Locations

Engine Controls Component Views

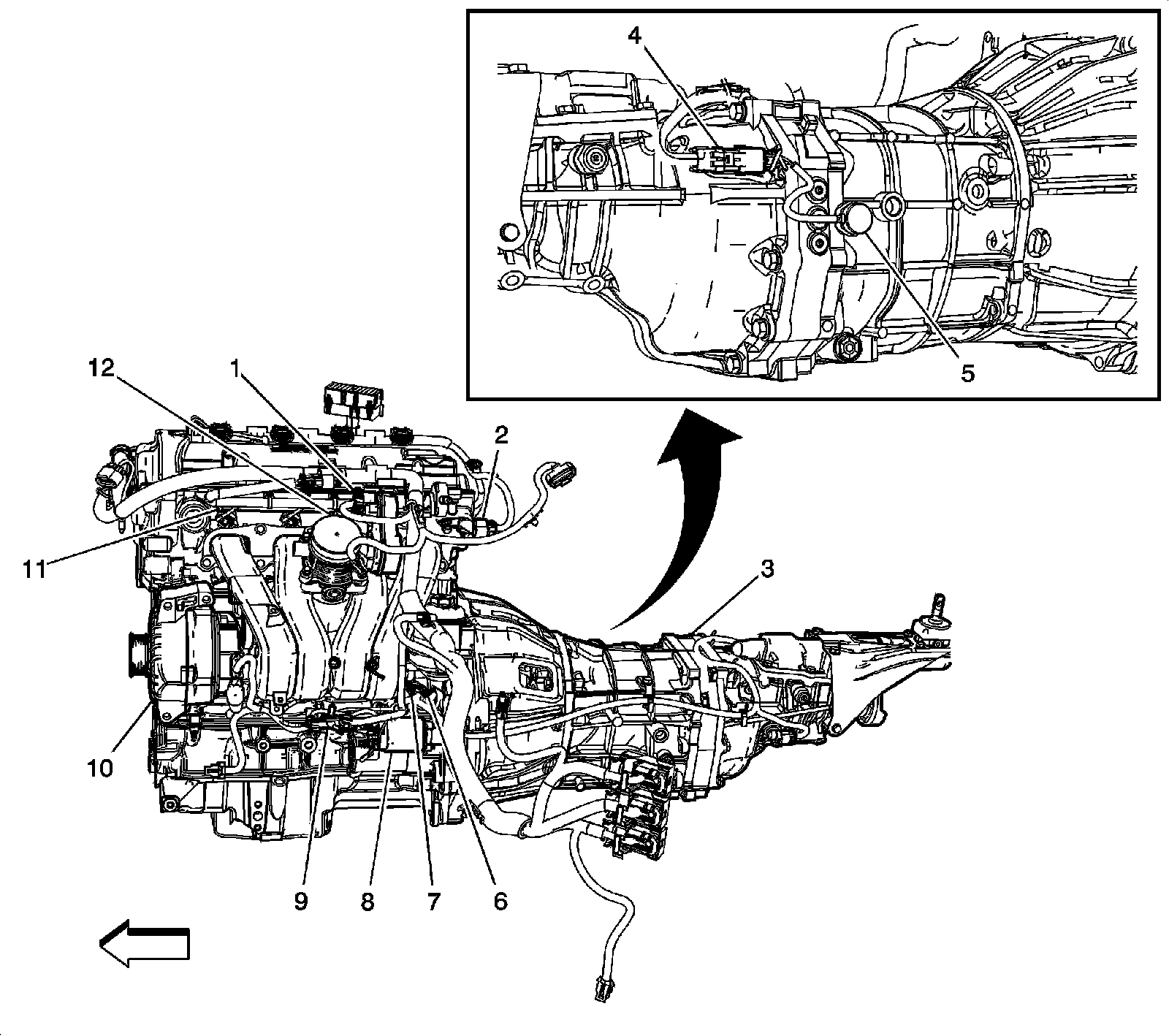

Engine Components - Left Side (MA5)




1 - Throttle Body
2 - Camshaft Position (CMP) Sensor 1 (Intake)
3 - Manual Transmission
4 - Vehicle Speed Sensor (VSS)
5 - Backup Lamp Switch
6 - Crankshaft Position (CKP) Sensor
7 - Engine Oil Pressure (EOP) Sensor
8 - Starter
9 - Knock Sensor Pigtail Connector
10 - Generator
11 - Fuel Injector Rail
12 - Manifold Absolute Pressure (MAP) Sensor
