Automatic Transmission Related Connector End Views



Automatic Transmission Related Connector End Views

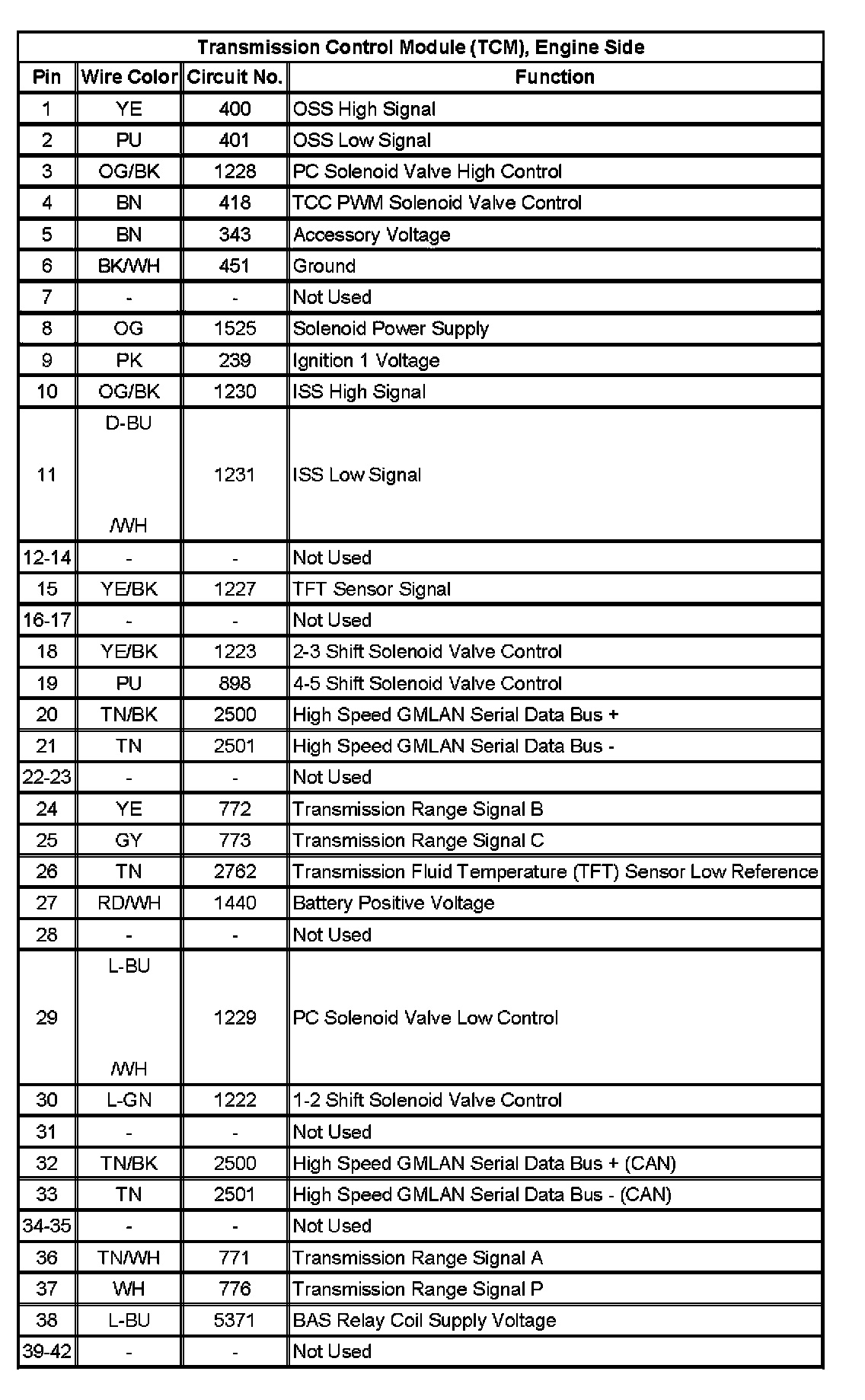

Transmission Control Module (TCM), Engine Side:
