Ignition Lock: Diagrams



Power and Grounding Connector End Views

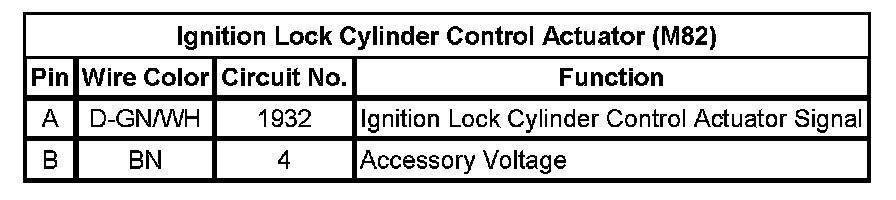

Ignition Lock Cylinder Control Actuator (M82)

A/T Shift Lock Control Solenoid:
