Body Control Module - C3

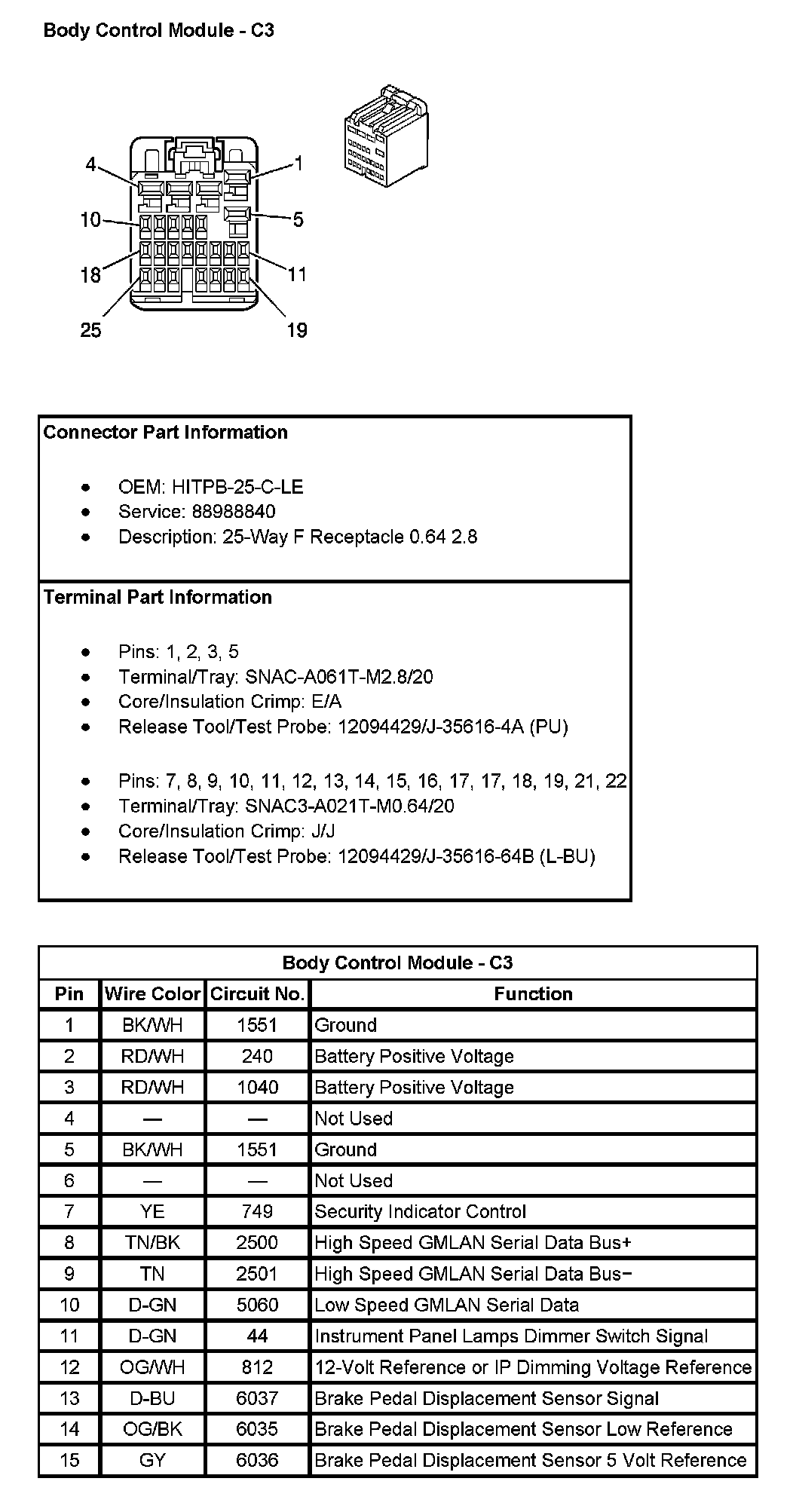

Body Control Module - C3 (Pin 1 To 15):

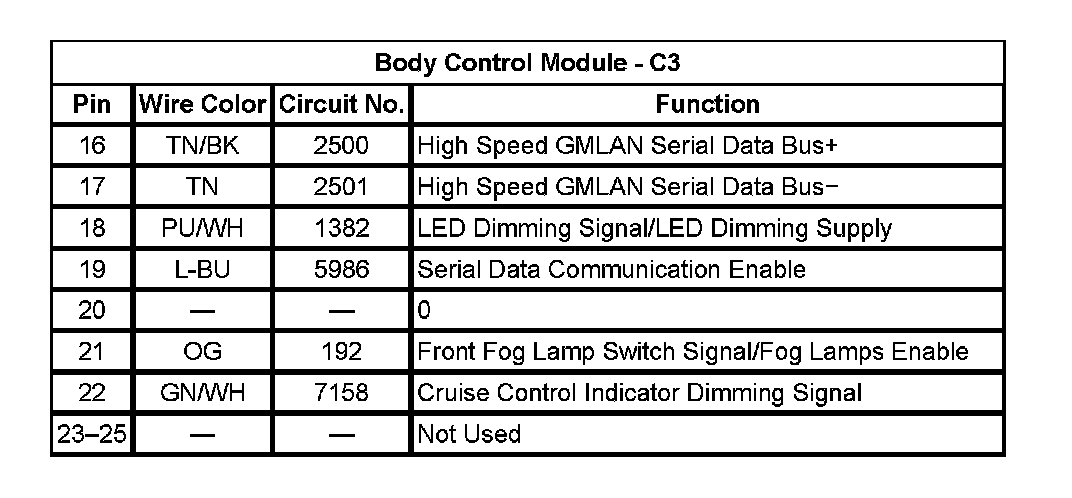

Body Control Module - C3 (Pin 16 To 25):
