Electronic Control Module (ECM) C1

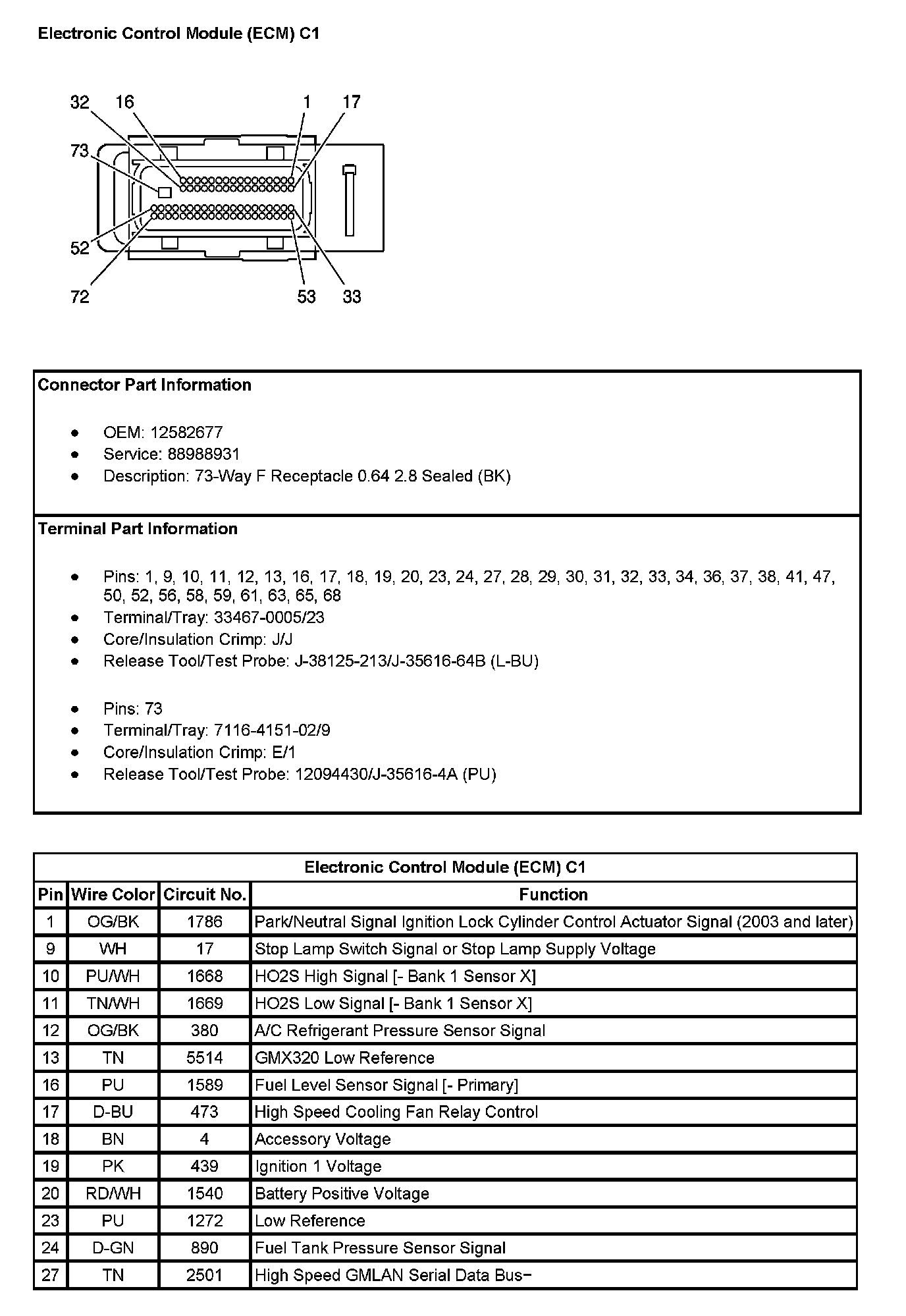

Electronic Control Module (ECM) C1 (Pin 1 To 27):

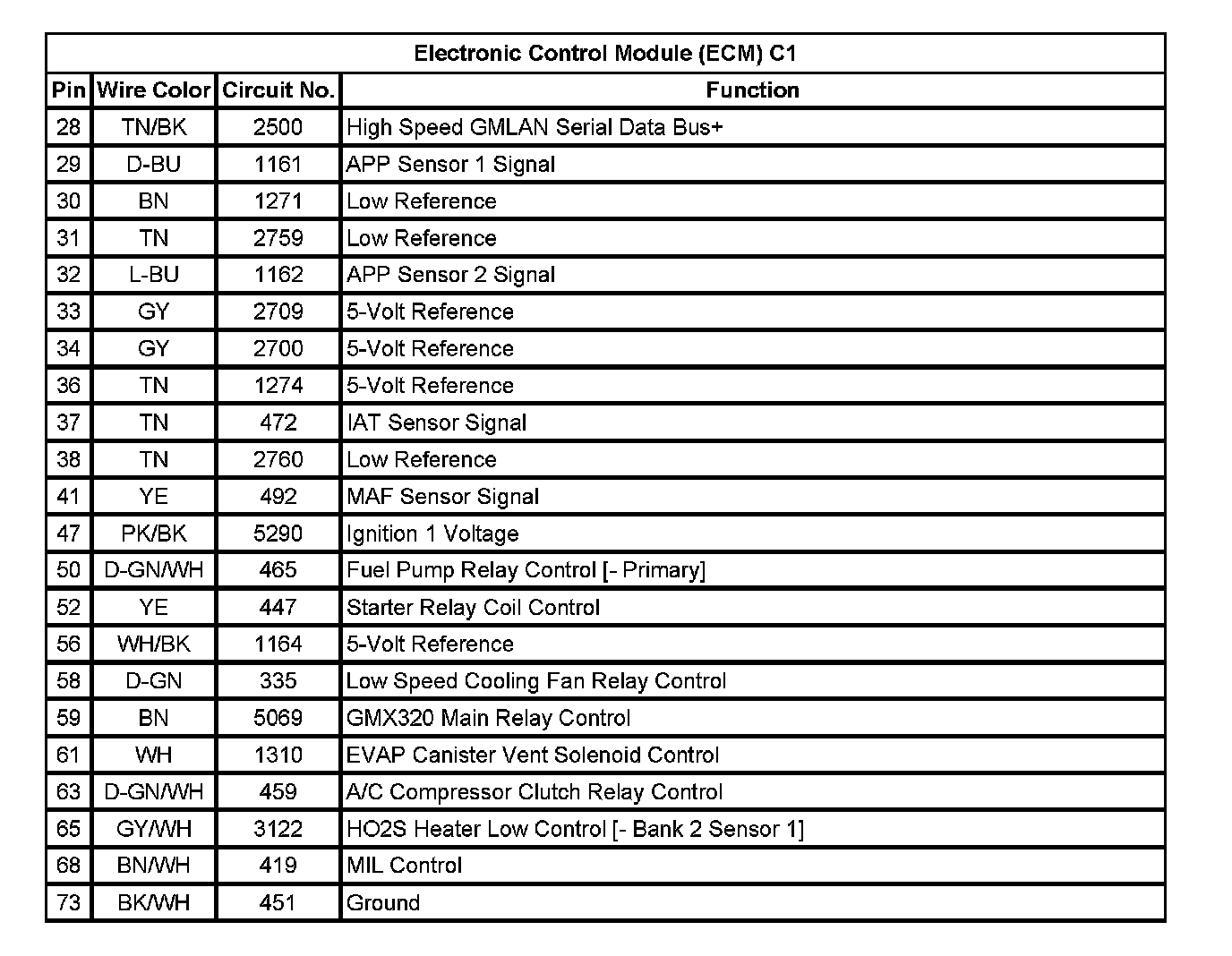

Electronic Control Module (ECM) C1 (Pin 28 To 73):
