Electronic Control Module (ECM) C2

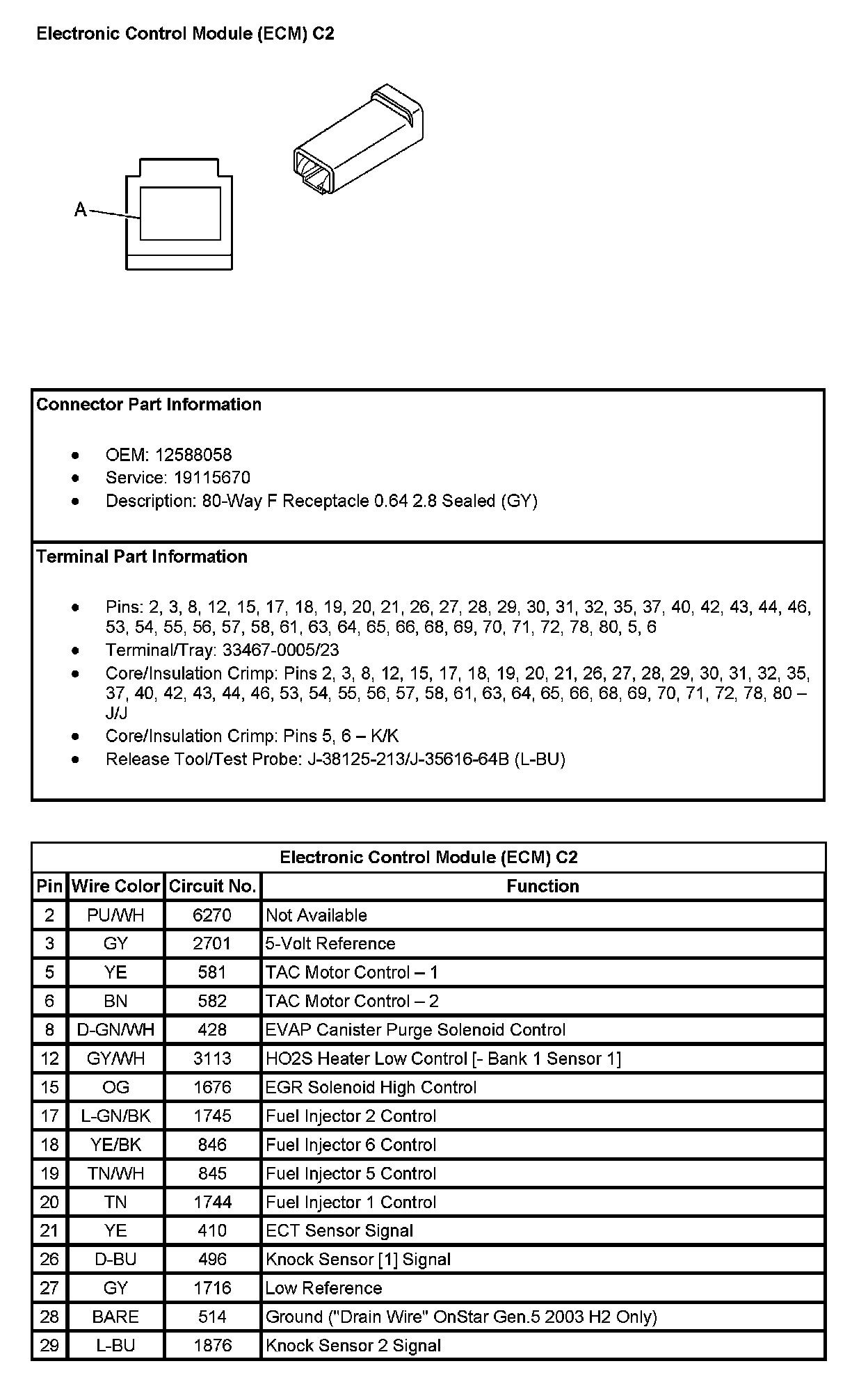

Electronic Control Module (ECM) C2 (Pin 2 To 29):

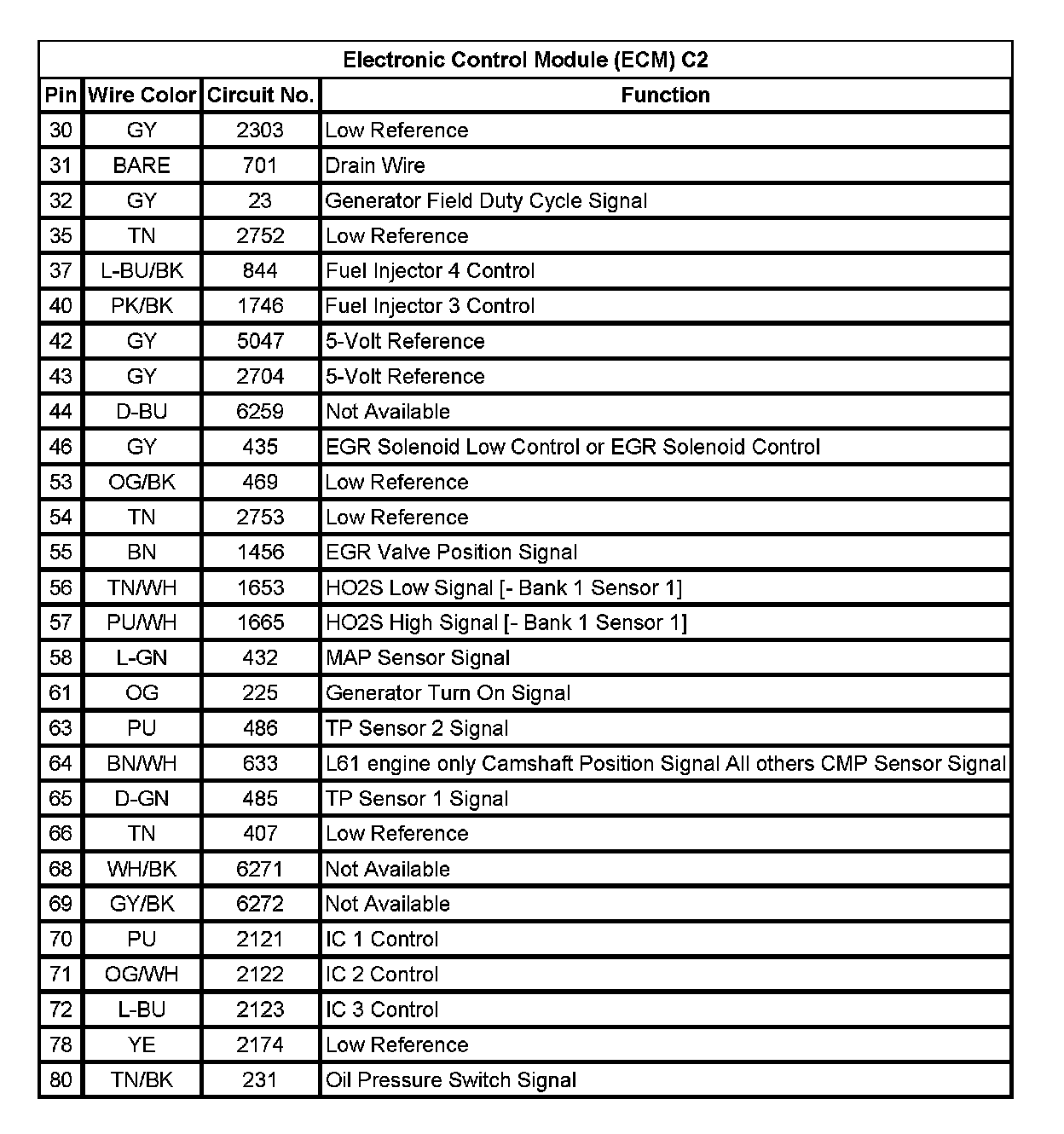

Electronic Control Module (ECM) C2 (Pin 30 To 80):
