Front Carrier Sun Assembly

Disassembled Views - continued

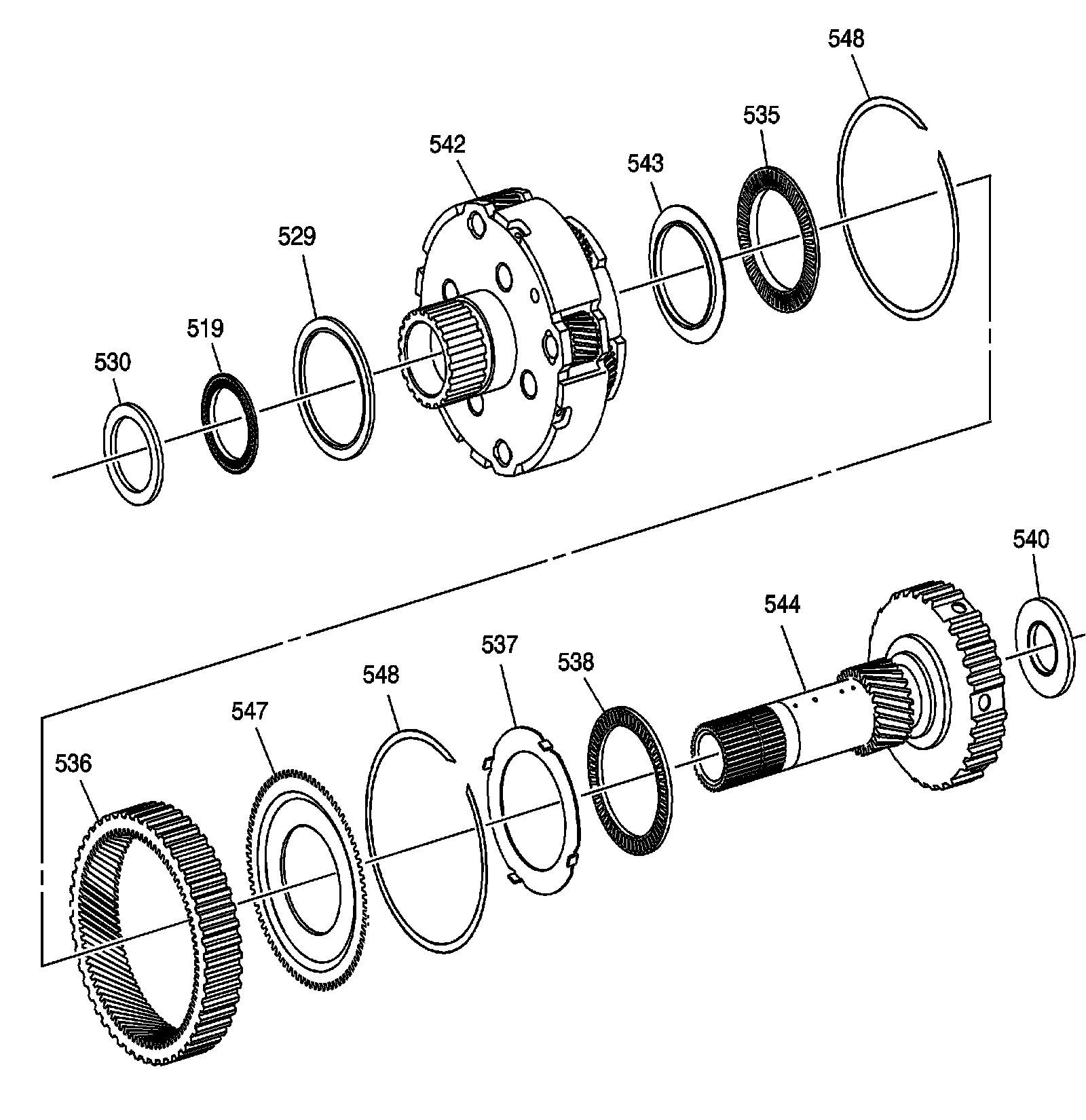

Front Carrier Sun Assembly

Front Carrier Sun Assembly:

519 - Front Internal Gear Thrust Bearing Assembly
529 - Front Internal Gear Thrust Bearing Assembly
530 - Front Internal Gear Thrust Washer Race
535 - Rear Internal Gear Thrust Bearing Assembly
536 - Rear Internal Gear
537 - Rear Sun Gear Thrust Bearing Race
538 - Rear Sun Gear Thrust Bearing Assembly
540 - Input Shaft Thrust Bearing Assembly
542 - Front Carrier Assembly
543 - Front Carrier Thrust Bearing Race
544 - Front Sun Gear
547 - Rear Internal Gear Flange
548 - Rear Internal Gear Flange Retaining Ring (2)
