Control Module HVAC: Diagrams

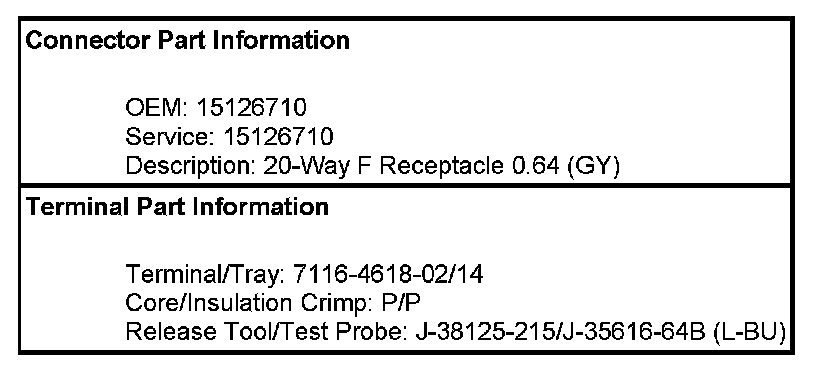

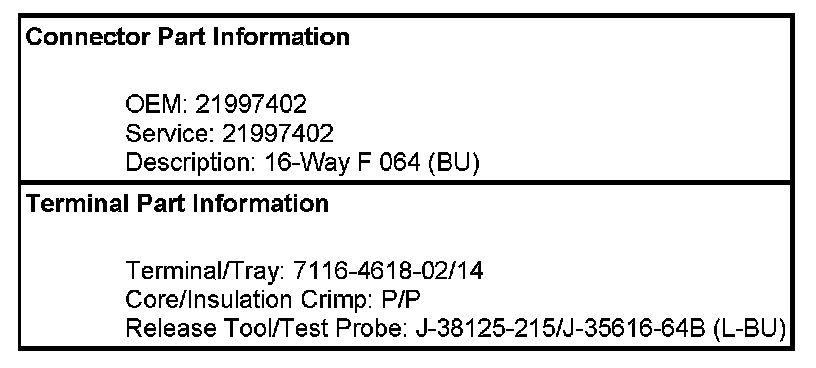

HVAC Connector End Views

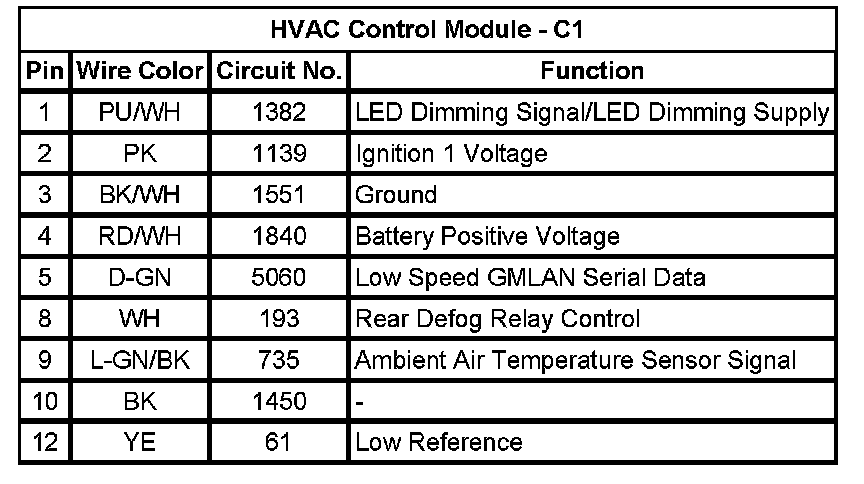

HVAC Control Module - C1

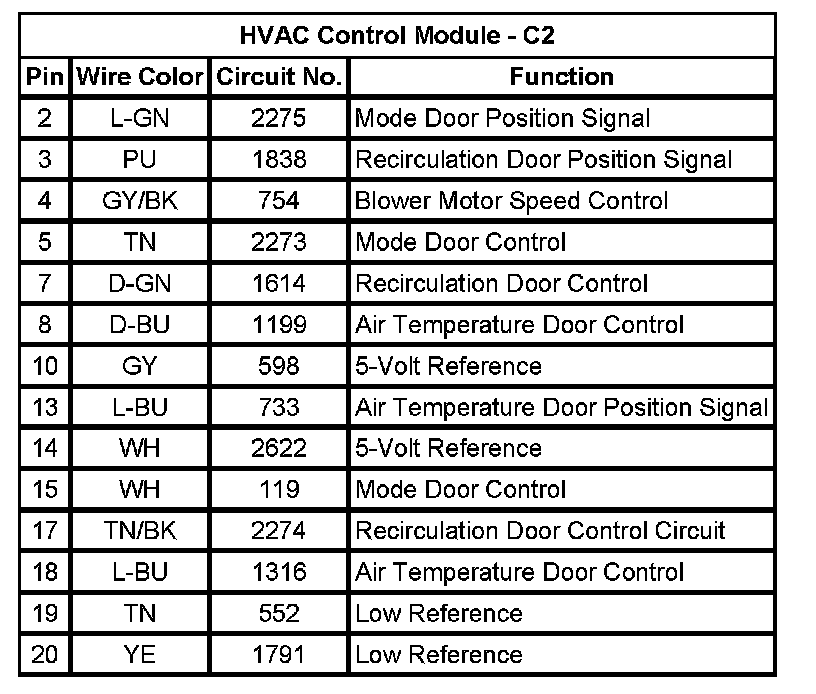

HVAC Control Module - C2
