Connector Views

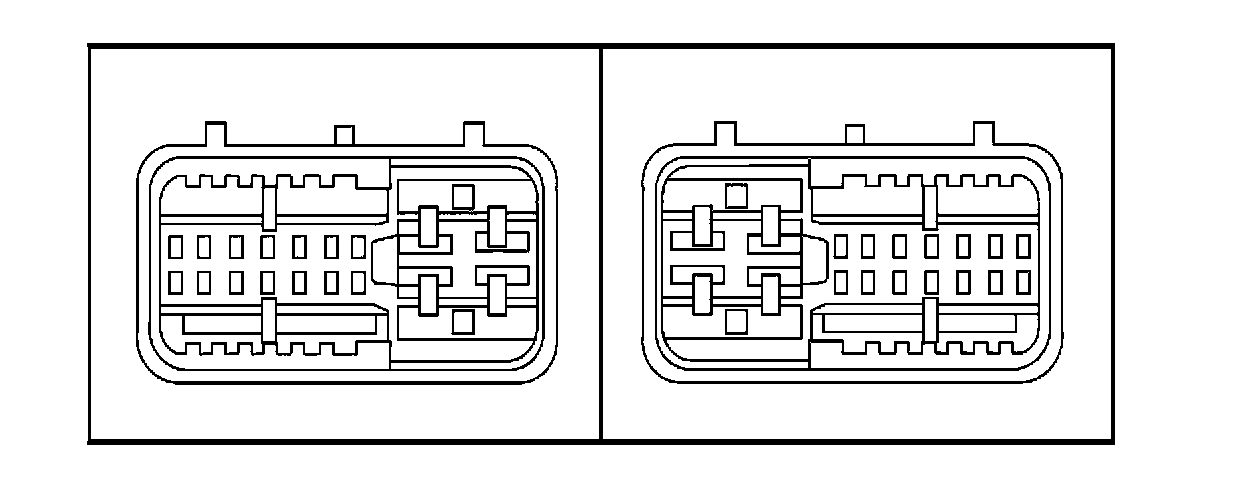

Automatic Transmission Inline Harness Connector End View

C1 Wiring Harness Side to Transmission Side

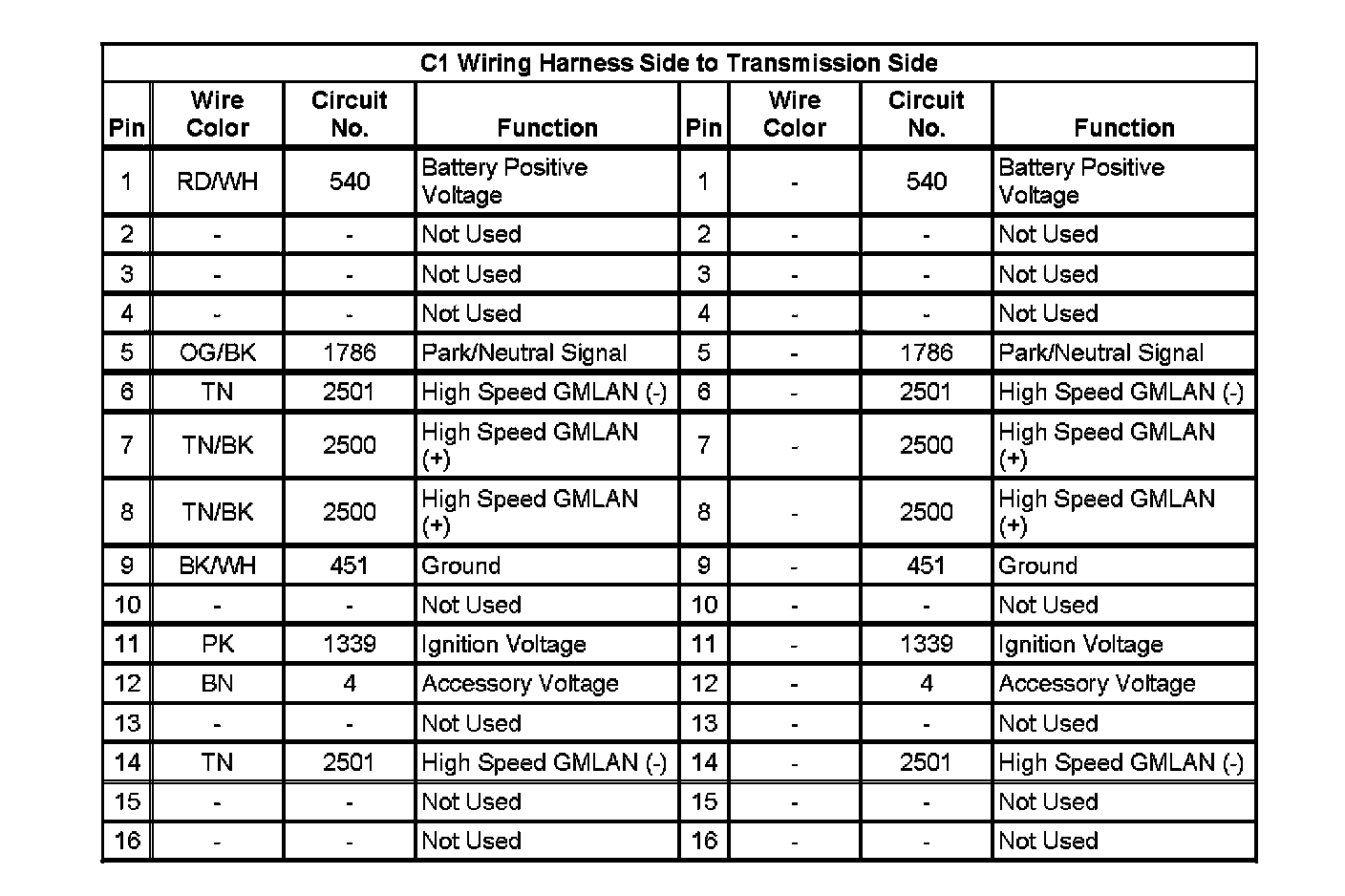

C1 Wiring Harness Side To Transmission Side:
