Ignition Coil/Control Module Replacement



IGNITION COIL/CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the injector sight shield.

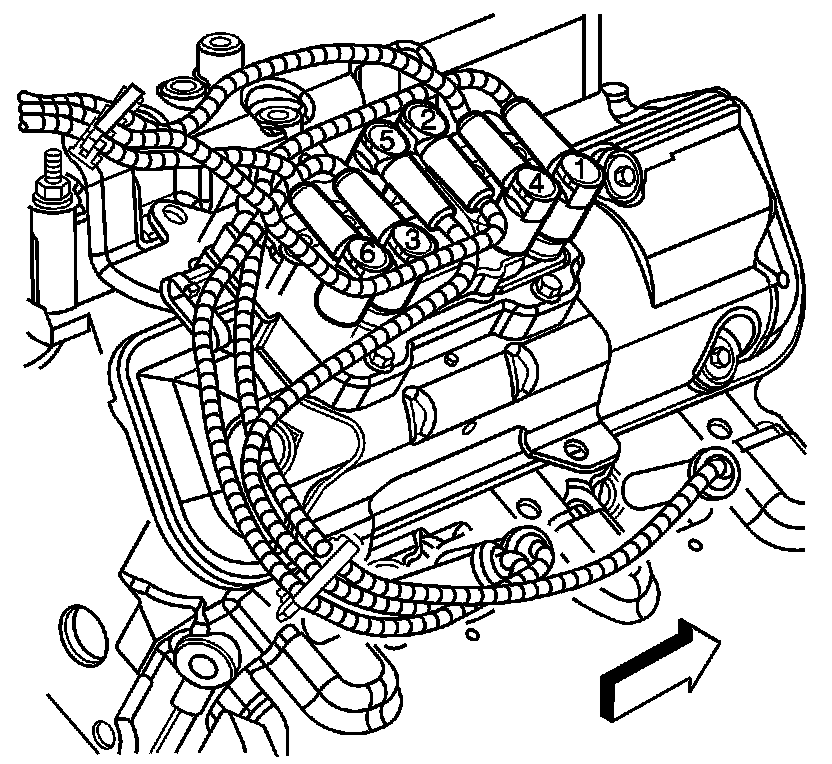

2. Disconnect the spark plug wires. Note the position from which the wires are removed.
3. Disconnect the ignition coil/control module electrical connectors.
4. Remove the 4 bolts securing the ignition coil/control module to the ignition control module bracket.
5. Remove the ignition coil/control module.

INSTALLATION PROCEDURE




1. Install the ignition coil/control module to the ignition control module bracket.

2. NOTE: Refer to Fastener Notice.

Install the 4 bolts securing the ignition coil/control module to the ignition control module bracket.

Tighten the bolts to 4.5 N.m (40 lb in).

3. Connect the ignition coil/control module electrical connectors.
4. Connect the spark plug wires.
5. Install the injector sight shield.
