Shim Size Specifications



Shim Size Specifications

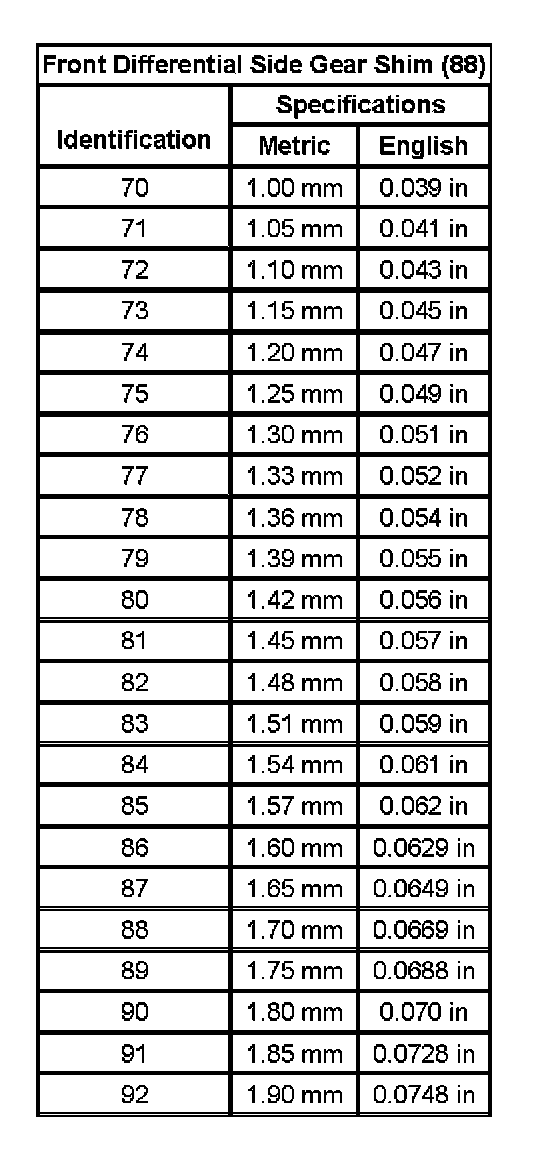

Front Differential Side Gear Shim (88):

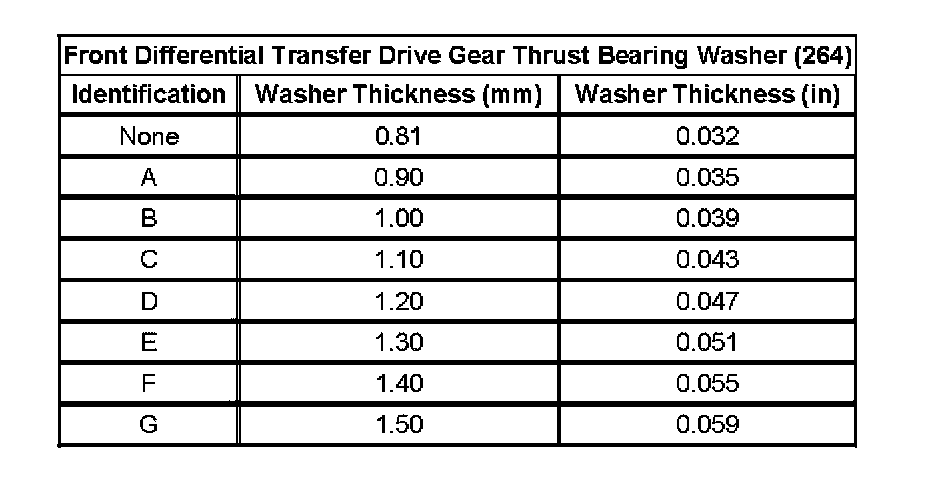

Front Differential Transfer Drive Gear Thrust Bearing Washers (264):

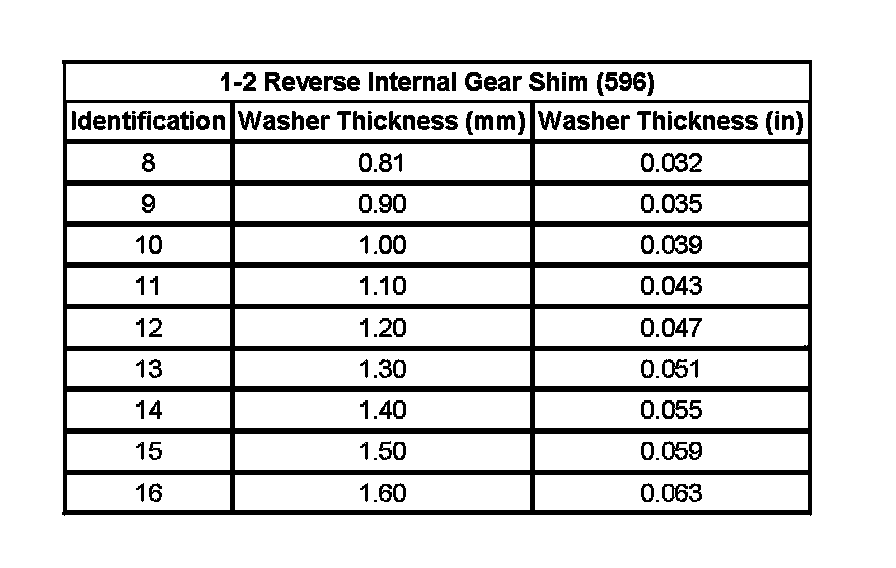

1-2 Reverse Internal Gear Shim (596):

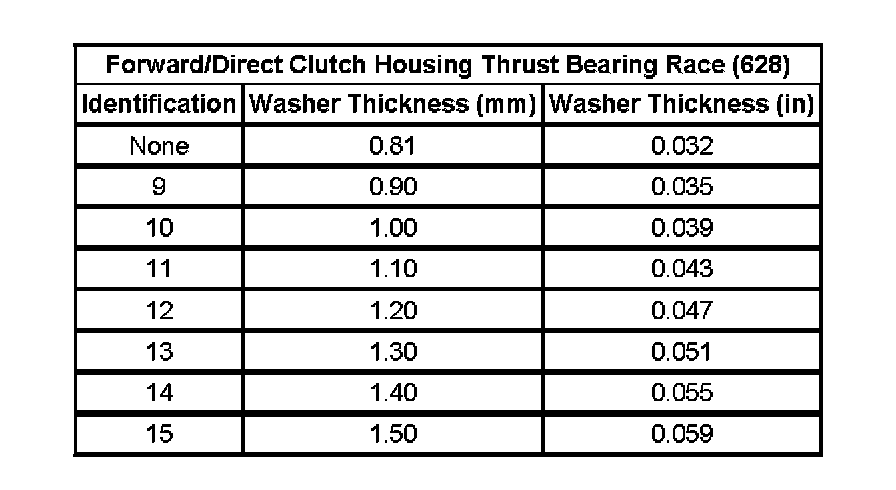

Forward/Direct Clutch Housing Thrust Bearing Race (628):
