Antilock Brake System Component Views

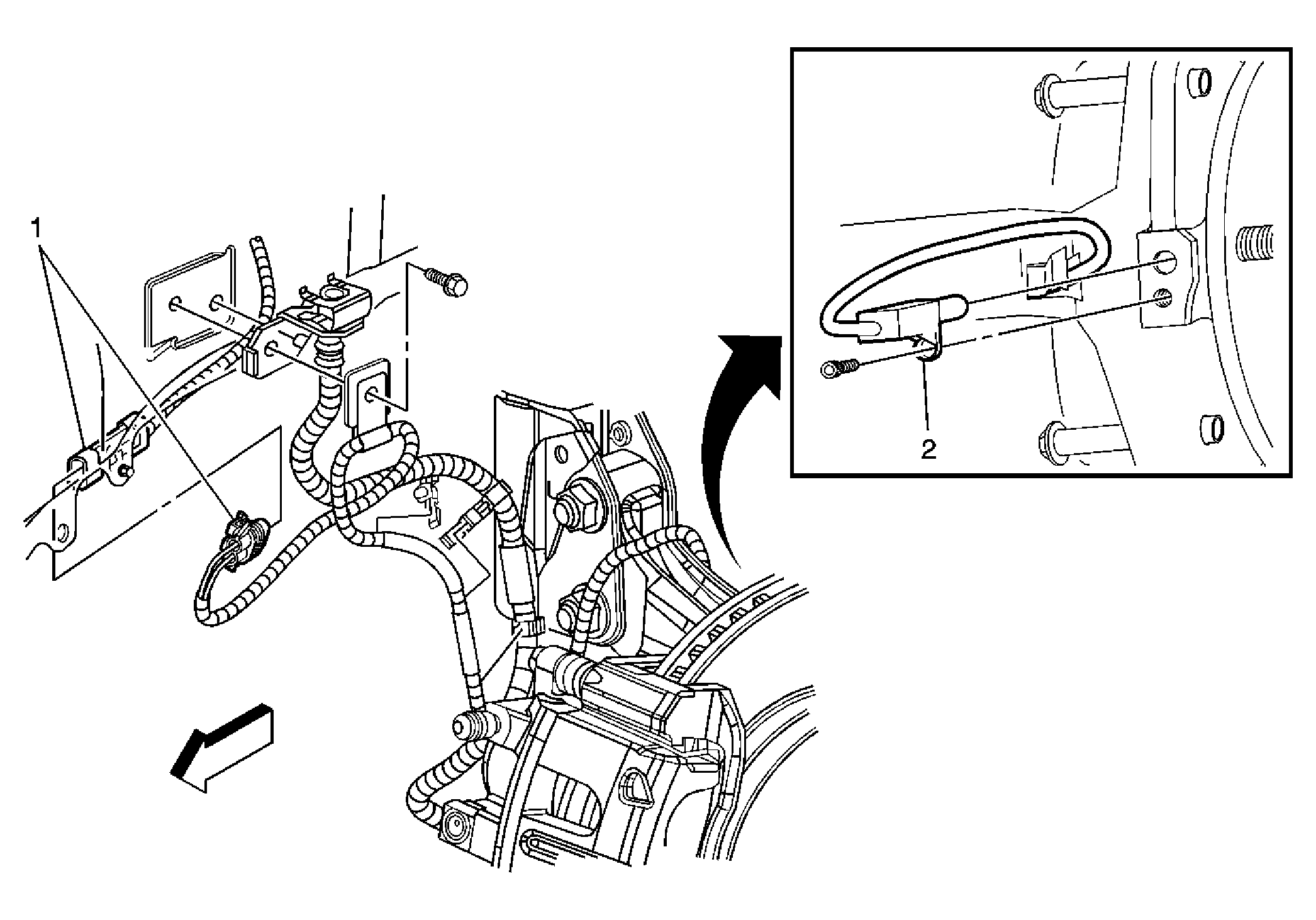

Fig 1: View of LF Suspension Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C104 Left Shown, C105 Right Similar
2	Wheel Speed Sensor (WSS) - LF, RF Similar

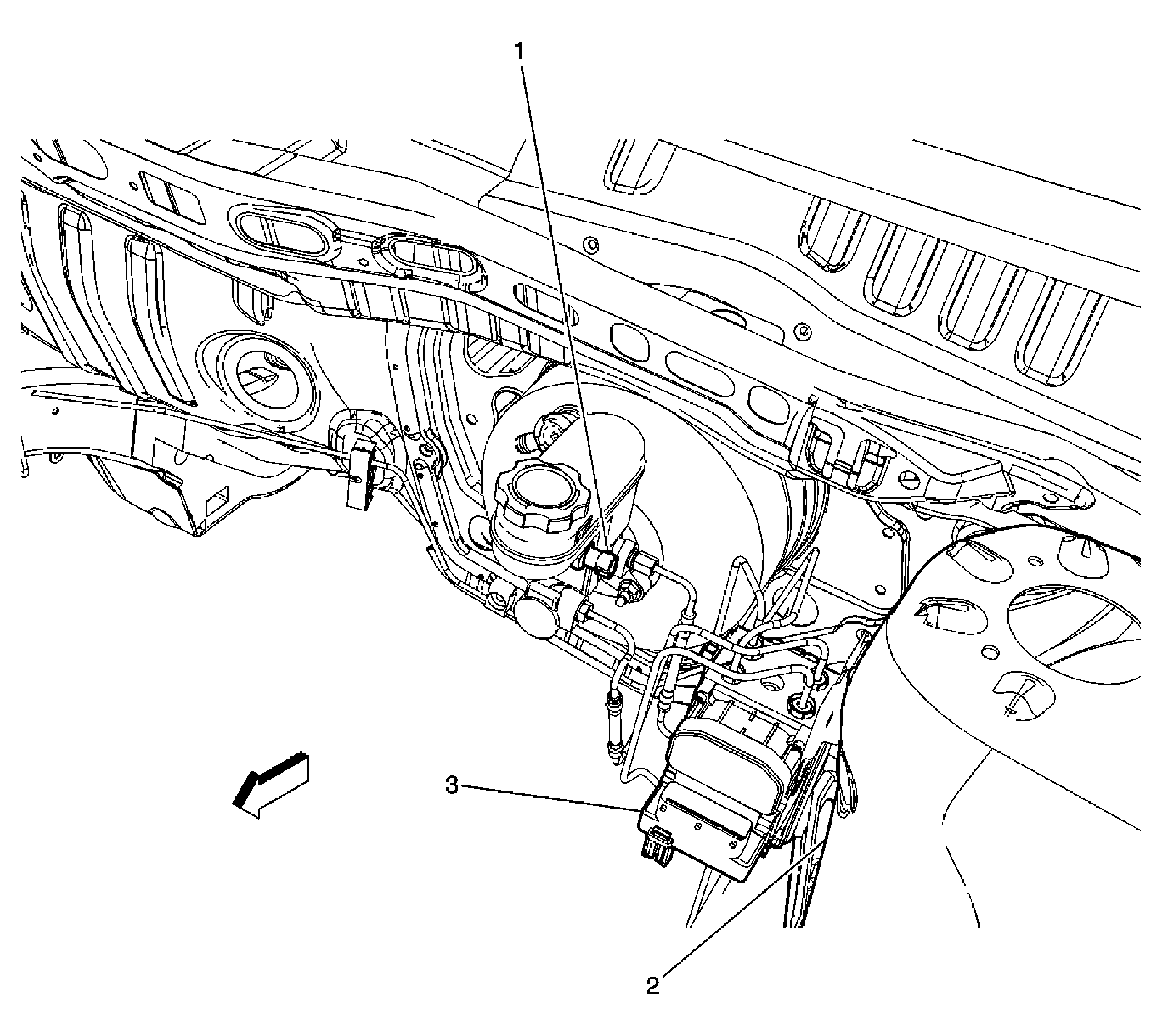

Fig 2: View Near Brake Booster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	LF Strut Tower
3	Electronic Brake Control Module (EBCM)

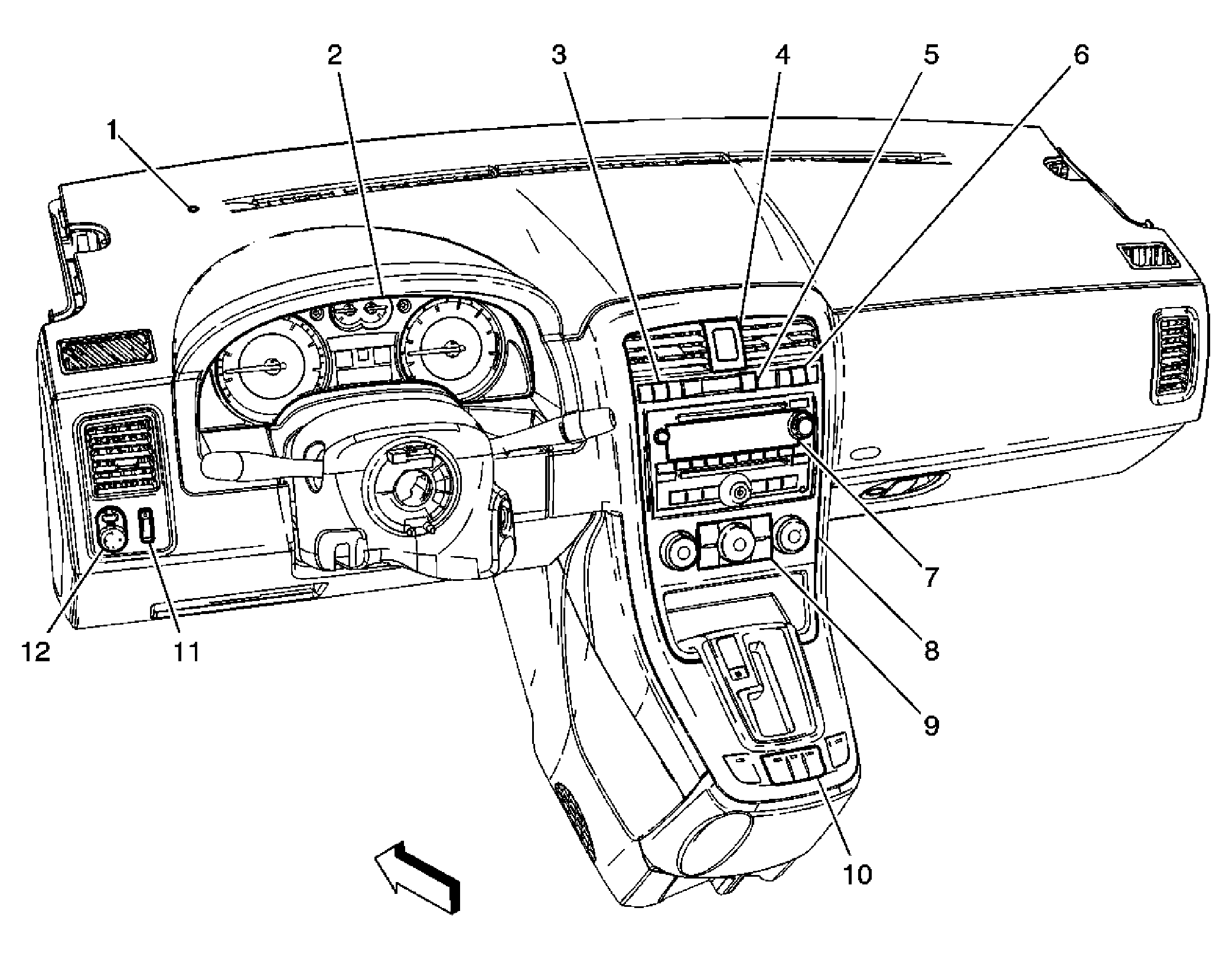

Fig 3: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Switch
5	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6	Rear Wiper/Washer Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switches
10	Power Window Switch - Main
11	Traction Control Switch
12	Dimmer Switch
13	Outside Rear View Mirror Switch

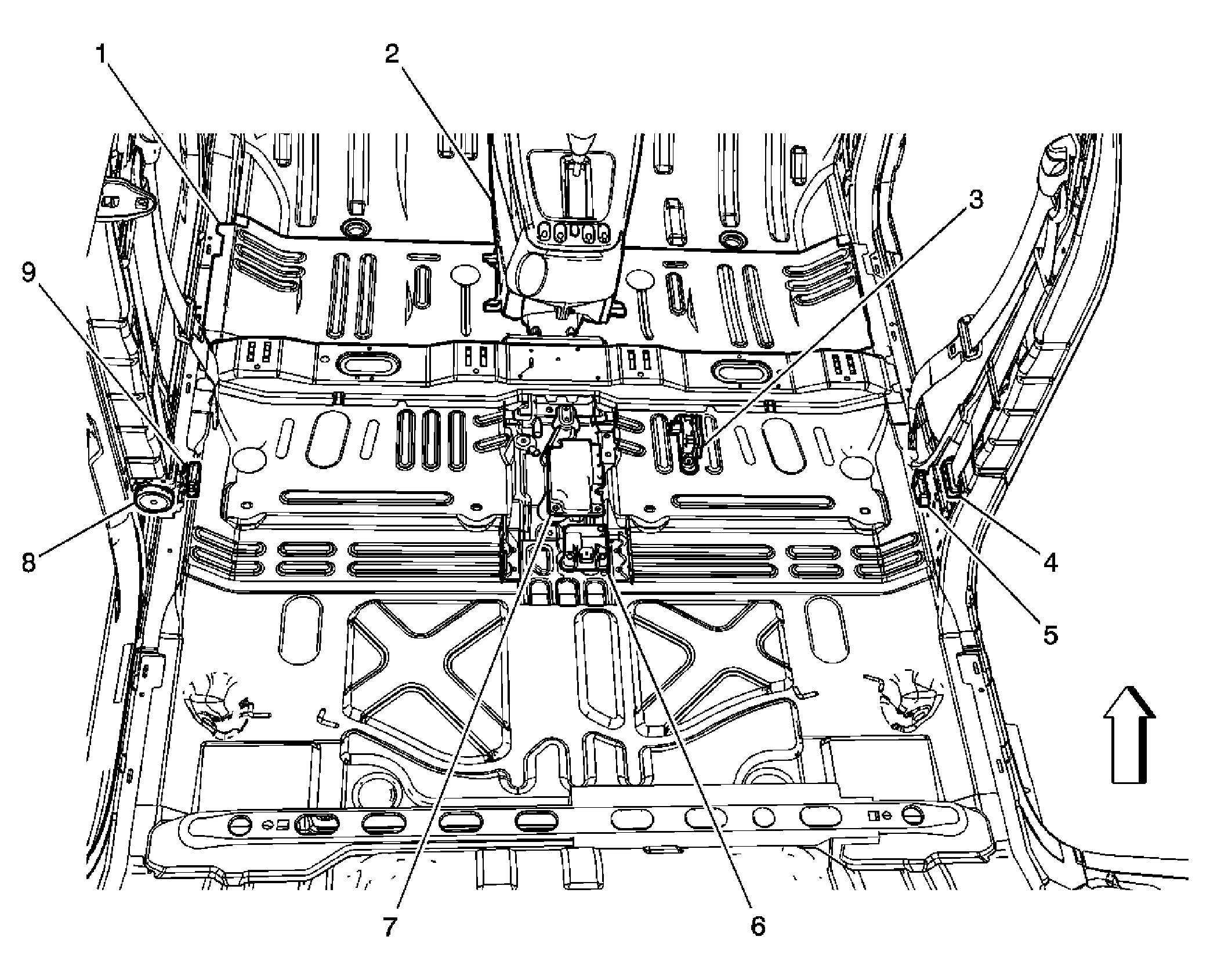

Fig 4: Center Of Floor View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	Console
3	YAW Rate and Lateral Acceleration Sensor
4	Seat Belt Pretensioner - Right
5	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6	Inflatable Restraint Vehicle Rollover Sensor
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Seat Belt Pretensioner - Left
9	Inflatable Restraint side Impact Sensor (SIS) - Left (ASF)

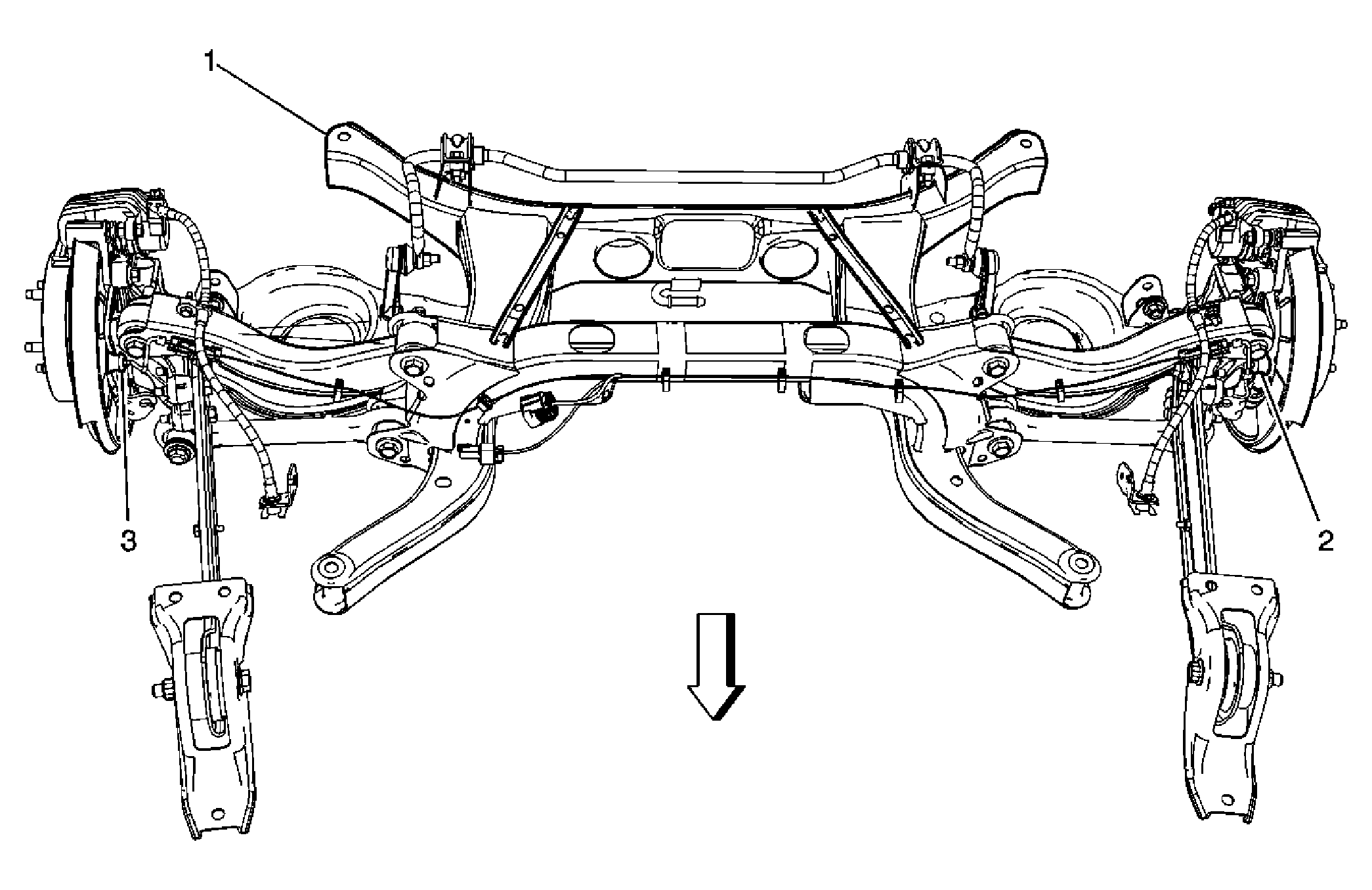

Fig 5: View Of Rear ABS Sensors

Courtesy of GENERAL MOTORS CORP.
