Yaw Rate Sensor Replacement

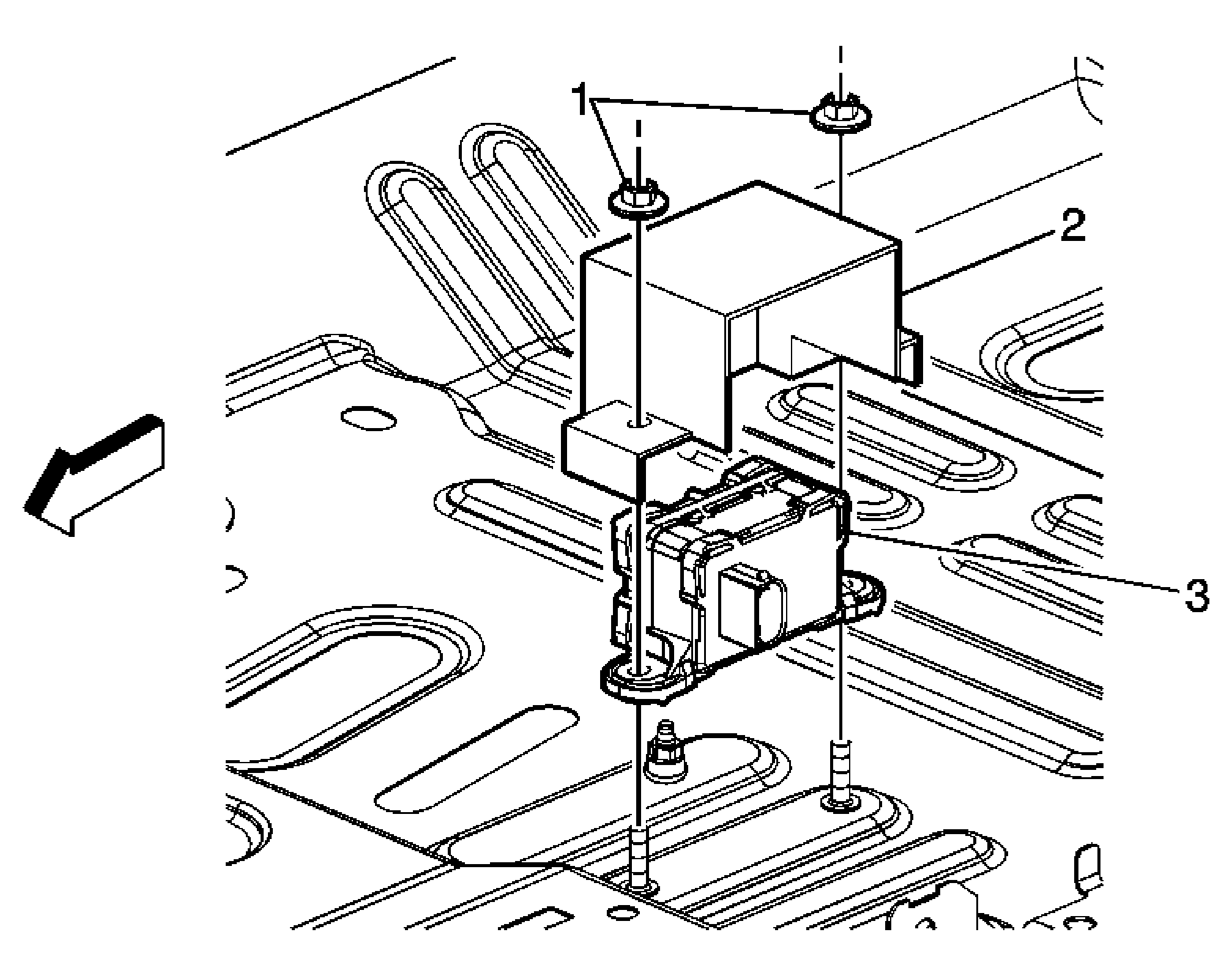

Fig 1: View Of Yaw Rate Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right front seat. Refer to Front Seat Replacement - Bucket . Remove the right front carpet retainer and reposition the carpet to access the yaw rate sensor. Refer to Front Carpet Retainer Replacement . Disconnect the yaw rate sensor electrical connector.
1	Yaw Rate Sensor Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Yaw Rate Sensor Cover
3	Yaw Rate Sensor
