Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

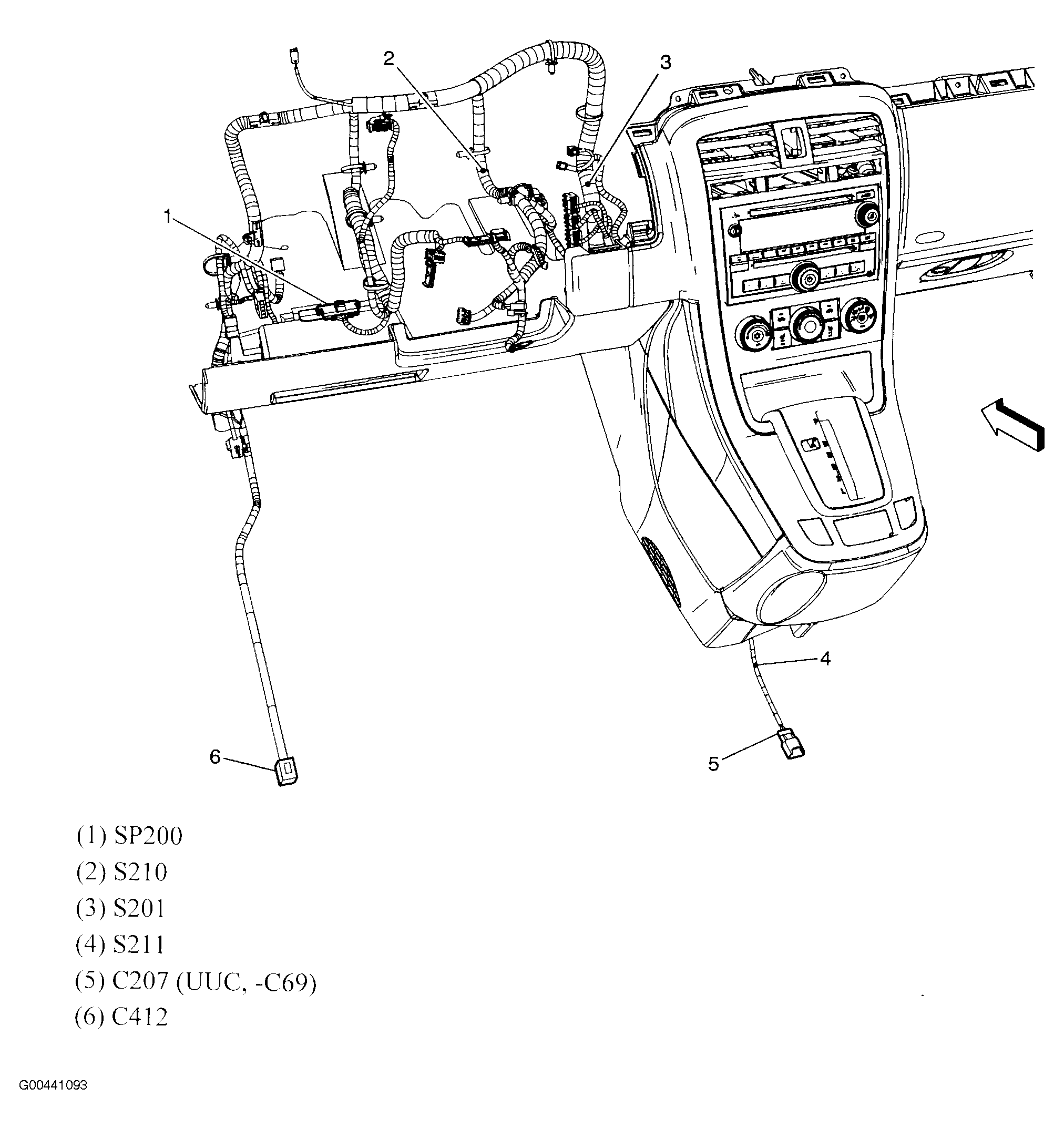

| SP200 | Near base of steering column. See Figure. |
| S100 | In engine harness, 28cm from C102 and A/T C2 breakouts. See Figure. |

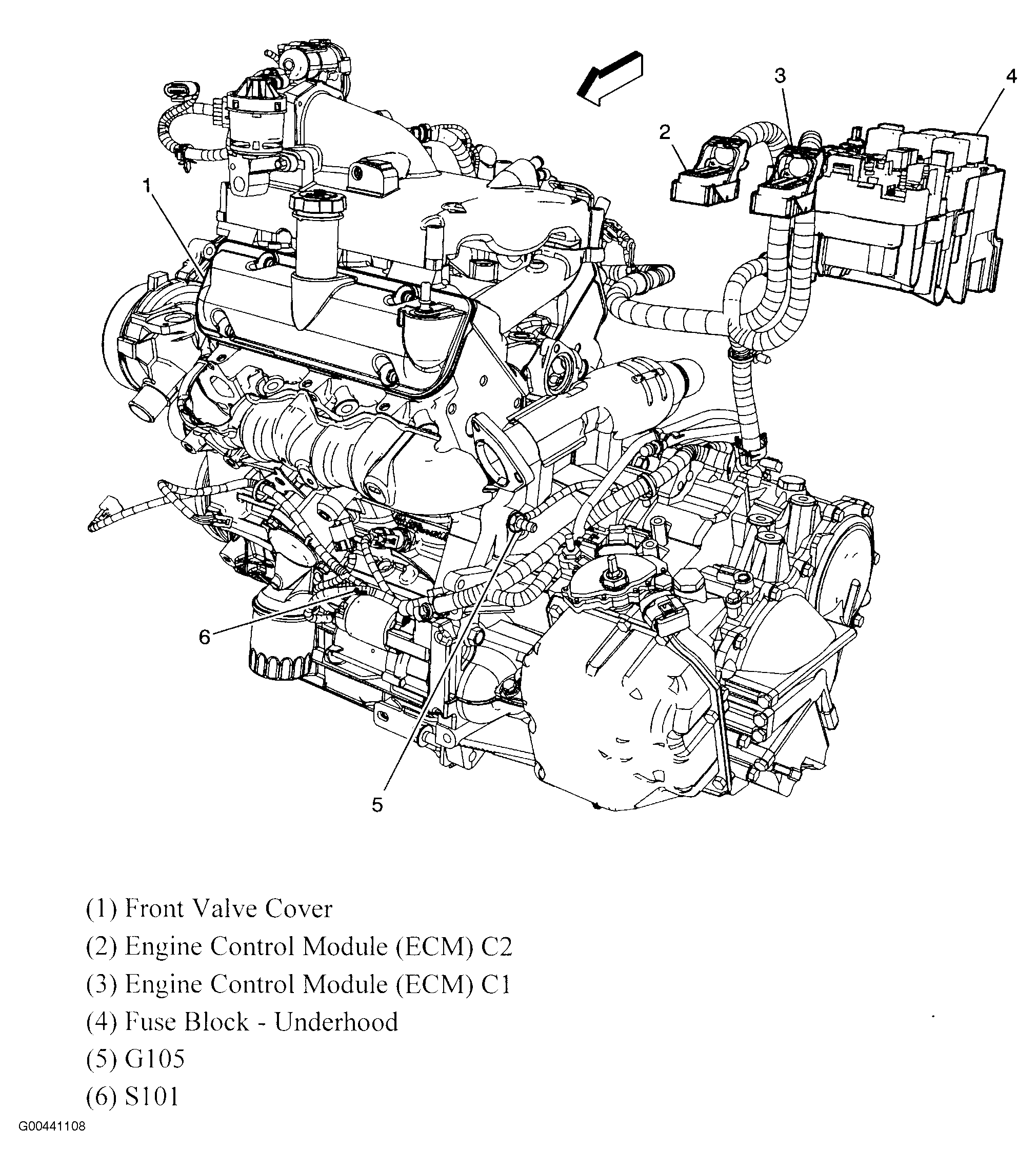

| S101 | In engine harness, 10 cm from the TCM and ECM C1 breakout. See Figure. |
| S103 | In fuel injector harness, between fuel injector 1 and 2 breakouts. |
| S104 | In fuel injector harness, between fuel injector 3 and 4 breakouts. |
| S200 | In body harness, 7 cm from C210 breakout. See Figure. |
| S201 | In I/P harness, 10 cm from acceleration pedal position (APP) sensor breakout. See Figure. |
| S202 | In body harness, 6 cm from C210 breakout. See Figure. |
| S203 | In HVAC harness, 34 cm from C216. |
| S204 | In body harness, 12 cm from C210 breakout. See Figure. |
| S210 | In I/P harness 8.5 cm from the inside air temperature sensor breakout. See Figure. |
| S211 | In I/P harness, 3.5 cm from C207. See Figure. |

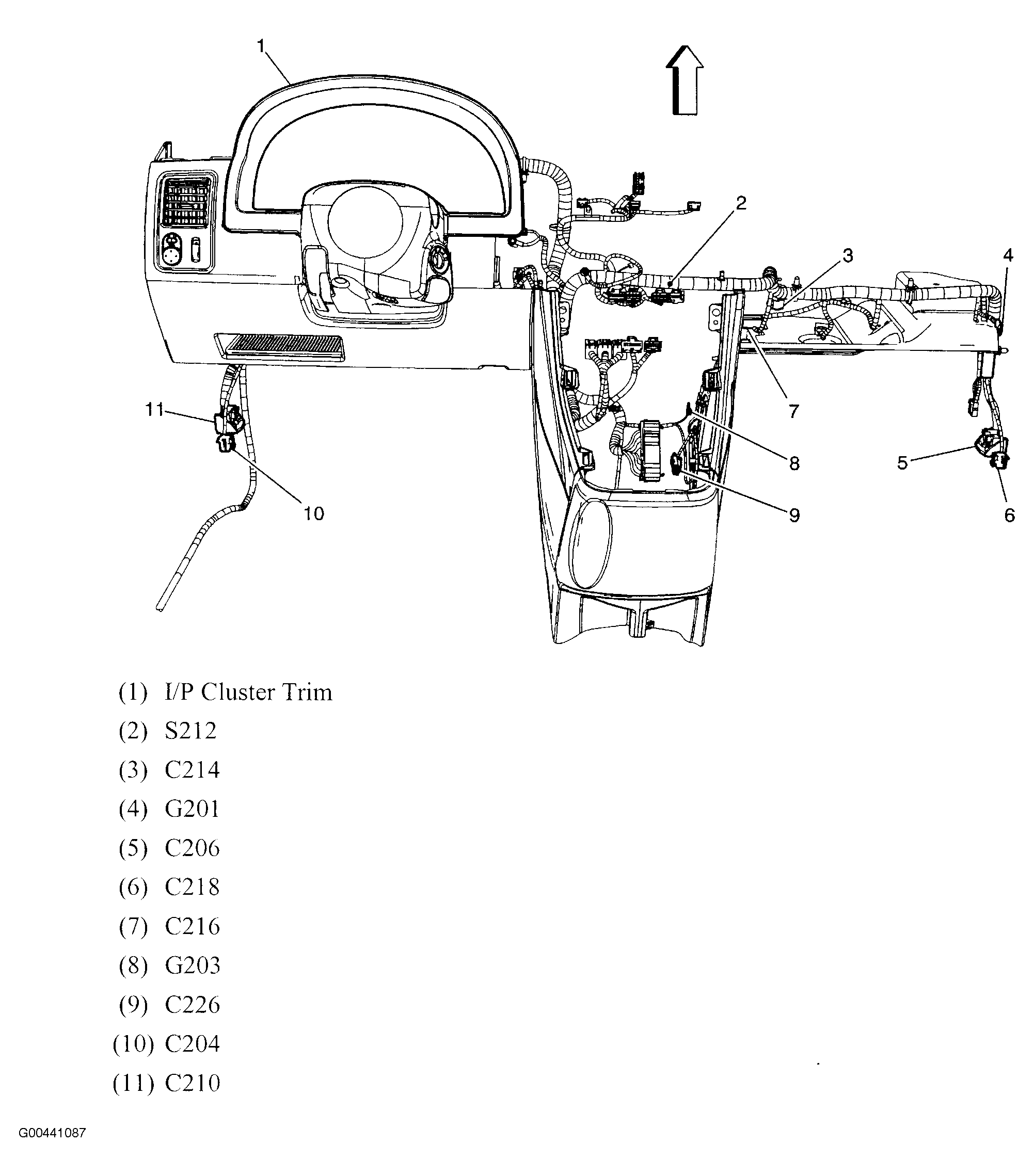

| S212 | In I/P harness, 10 cm from radio breakout. See Figure. |
| S214 | In HVAC harness, 39 cm from C216. |
| S224 | In HVAC harness, 5 cm from air temperature actuator breakout. |

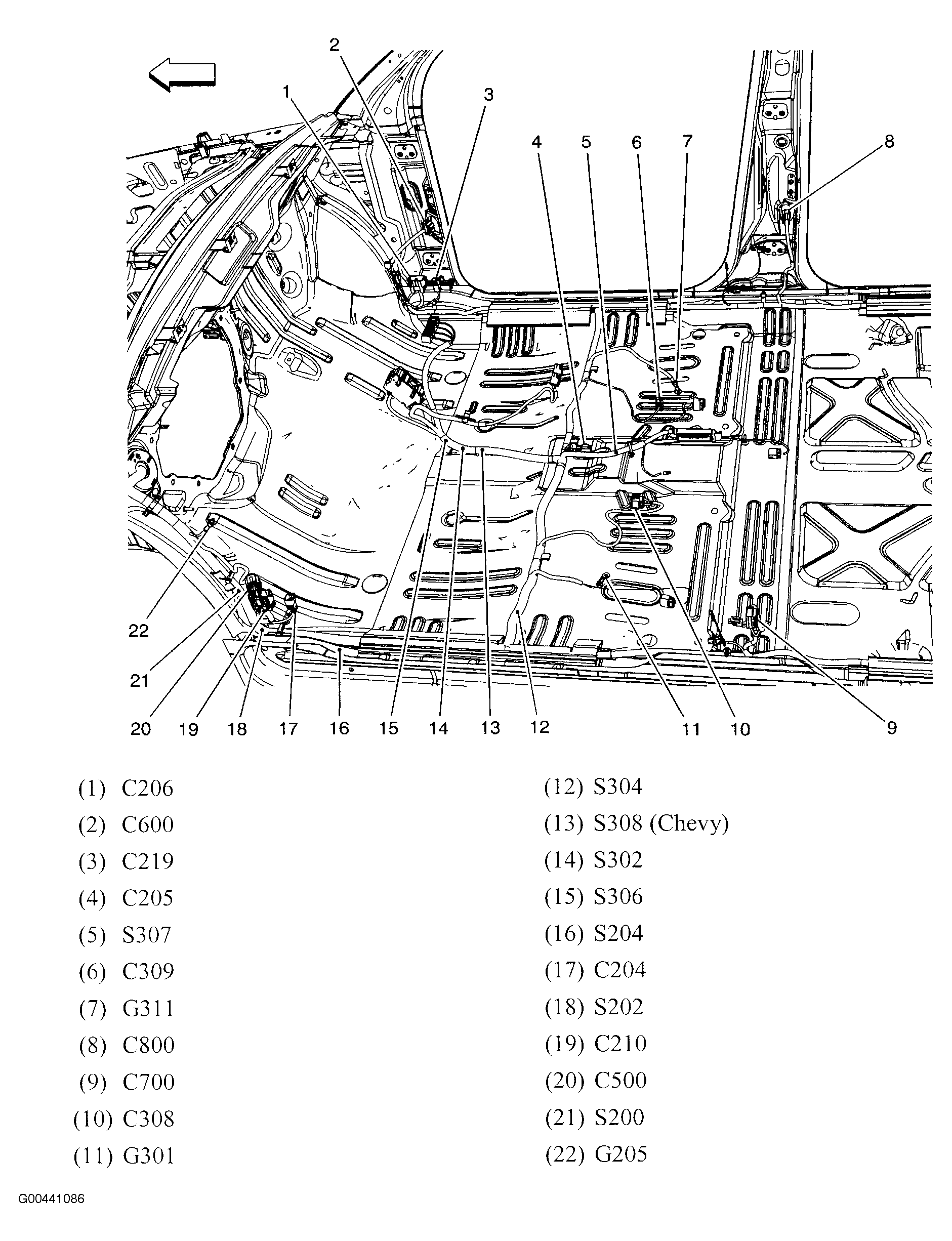

| S302 | In body harness, 33 cm from I/P fuse block breakout. See Figure. |
| S304 | In body harness,19 cm from G301 breakout. See Figure. |
| S305 | In headliner harness, 8 cm from rear dome lamp breakout. See Figure. |
| S306 | In body harness, 18 cm from I/P fuse block breakout. See Figure. |
| S307 | In body harness, 8 cm from C305 breakout. See Figure. |
| S310 | In headliner harness, 16 cm from rear dome lamp breakout. See Figure. |
| S311 | In headliner harness, 8 cm from front dome lamp breakout. See Figure. |
| S312 | In headliner harness, 8 cm from rear dome lamp breakout. See Figure. |
| S313 | In sunshade harness. |
| S314 | In sunshade harness. |
| S401 | In fuel level sender harness, 13 cm from C310. |
| S403 | In left taillight harness. |
| S404 | In left taillight harness. |
| S405 | In right taillight harness. |
| S406 | In right taillight harness. |
| S409 | In body harness, 6 cm to amplifier breakout. See Figure. |

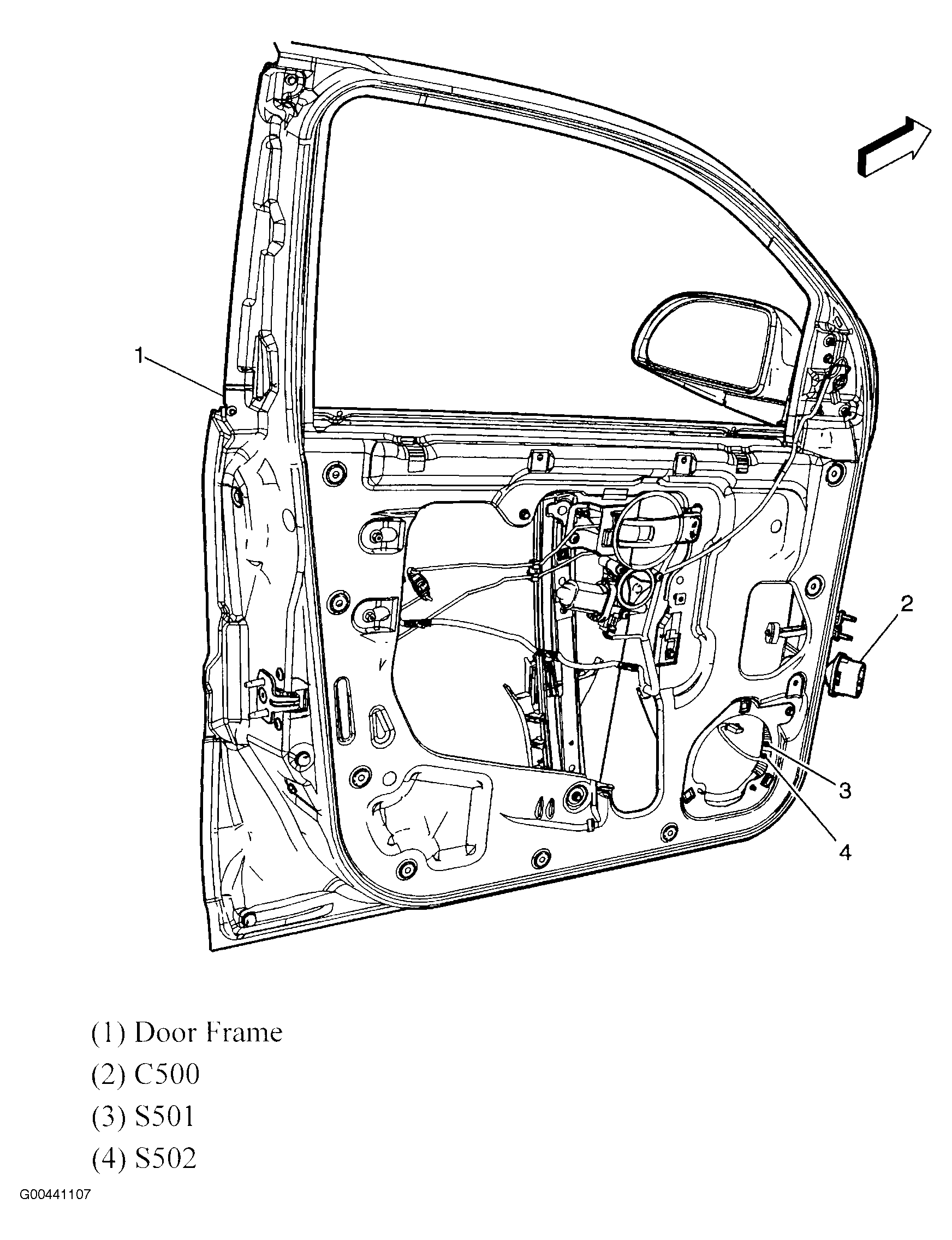

| S501 | In left front door harness, 3.8 cm from left front speaker breakout. See Figure. |
| S502 | In left front door harness, 3.8 cm from left front speaker breakout. See Figure. |

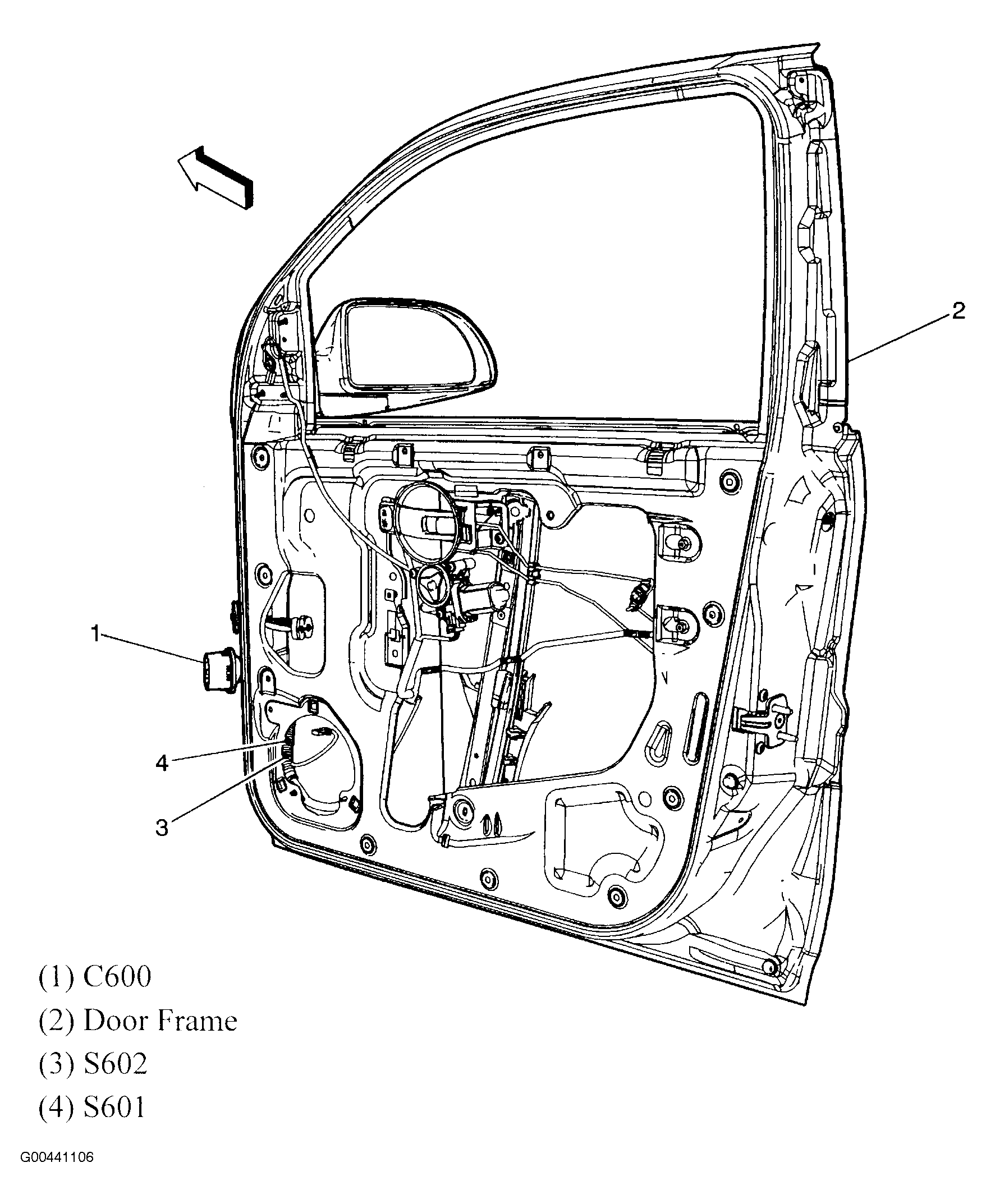

| S601 | In right front door harness, 3.8 cm from right front speaker breakout. See Figure. |
| S602 | In right front door harness, 3.8 cm from right front speaker breakout. See Figure. |
| S900 | In liftgate harness, between breakout for license lamp connectors breakout. See Figure. |
| S901 | In liftgate harness, 35 cm from right license lamp connector breakout. See Figure. |
| S902 | In liftgate harness, 22.5 cm from defogger breakout. See Figure. |
