Installation Procedure
WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
- Remove any dirt, grease, or other contaminants from the mounting surface.

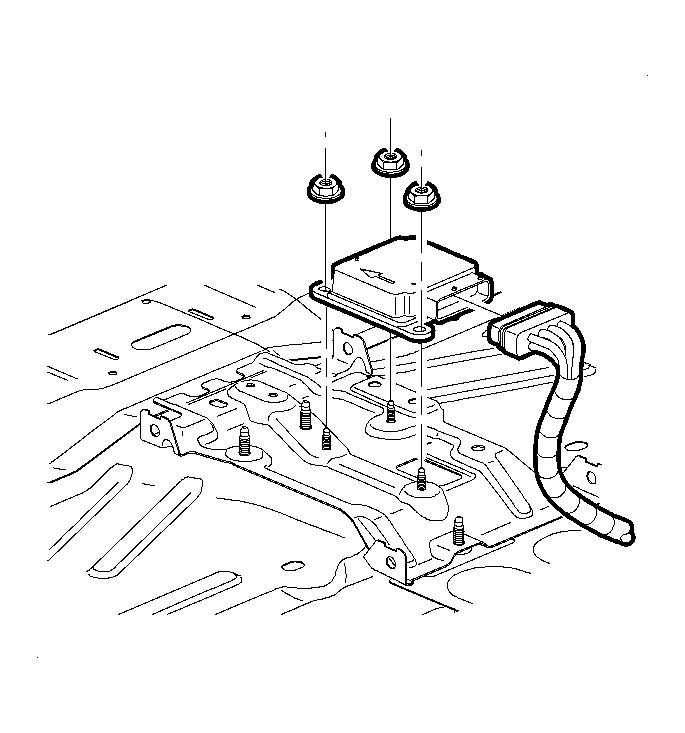

- Install the SDM to the vehicle with the nuts.
Tighten: Tighten the nuts to 10 N.m (89 lb in).
- Install the console assembly. Refer to Console Replacement in Instrument Panel, Gages, and Console.
- Enable the SIR system. Refer to SIR Disabling and Enabling Zone 8 .
- Reprogram the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
IMPORTANT:
If you do NOT perform the BCM programming procedure, the vehicle option content information which is read by the BCM may be incorrect and a DTC B1001 Option Configuration Error will set in both the SDM and the BCM. This will illuminate the AIR BAG telltale.
