Power Steering Control Module (PSCM) C2

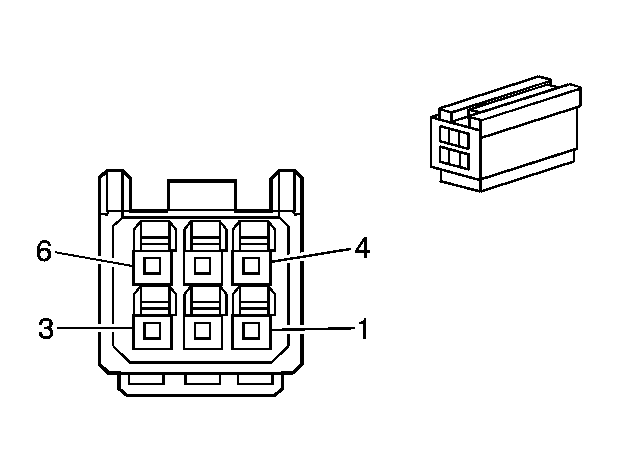

Fig 1: Power Steering Control Module (PSCM) C2 Connector End View
GM1881393Courtesy of GENERAL MOTORS CORP.
Power Steering Control Module (PSCM) C2 Connector Parts Information

Connector Part Information
  • OEM: 1747085-1
  • Service: 19168086
  • Description: 6-Way F 0.64 Series (NA)
Terminal Part Information
  • Pins: 1, 2
  • Terminal/Tray: See Catalog
  • Core/Insulation Crimp: See Catalog
  • Release Tool/Test Probe: See Catalog
Power Steering Control Module (PSCM) C2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 RD - Rotational Sensor Exciting
2 - - Not Used
3 BK - Rotational Sensor Exciting GND
4 - - Not Used
5 D-BU - Rotational Sensor COS
6 YE - Rotational Sensor SN
