Power Steering Control Module (PSCM) C4
Power Steering Control Module (PSCM) C4 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

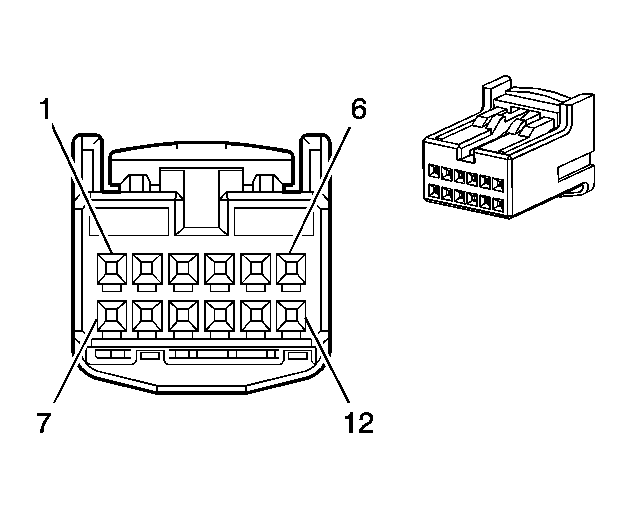

Power Steering Control Module (PSCM) C4 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus+ |
| 2 | TN/BK | 2500 | High Speed GMLAN Serial Data Bus+ |
| 3-5 | - | - | Not Used |
| 6 | L-BU | 5986 | Serial Data Communications Enable |
| 7 | L-BU | 2501 | High Speed GMLAN Serial Data Bus- |
| 8 | YE | 2501 | High Speed GMLAN Serial Data Bus- |
| 9-12 | - | - | Not Used |
