Electronic Power Steering Motor Control Module Replacement

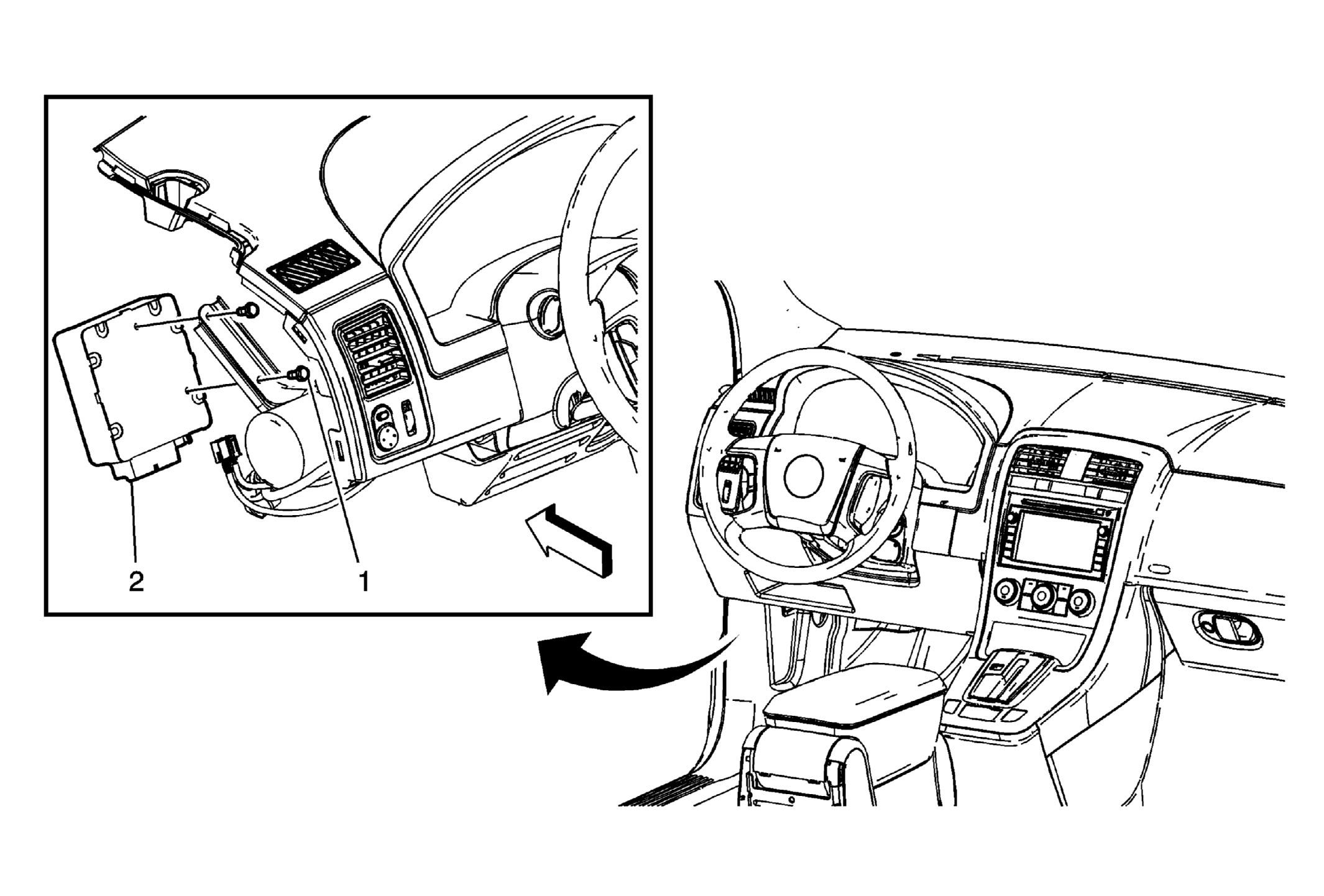

Fig 1: View Of Electronic Power Steering Motor Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the left side instrument panel outer trim cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT - LEFT SIDE . Remove the left side instrument panel insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE . Remove the driver knee bolster reinforcement. Refer to DRIVER KNEE BOLSTER REINFORCEMENT REPLACEMENT .
1	Electronic Power Steering Motor Control Module Bolt (Qty: 2) NOTE: Refer to FASTENER NOTICE . Tighten: 11.5 N.m (102 lb in)
2	Electronic Power Steering Motor Control Module Procedure: Disconnect any electrical connectors as needed. After repairs, perform the proper programming and calibration procedures. Refer to POWER STEERING CONTROL MODULE PROGRAMMING AND SETUP .
