Power Steering Assist Motor Replacement

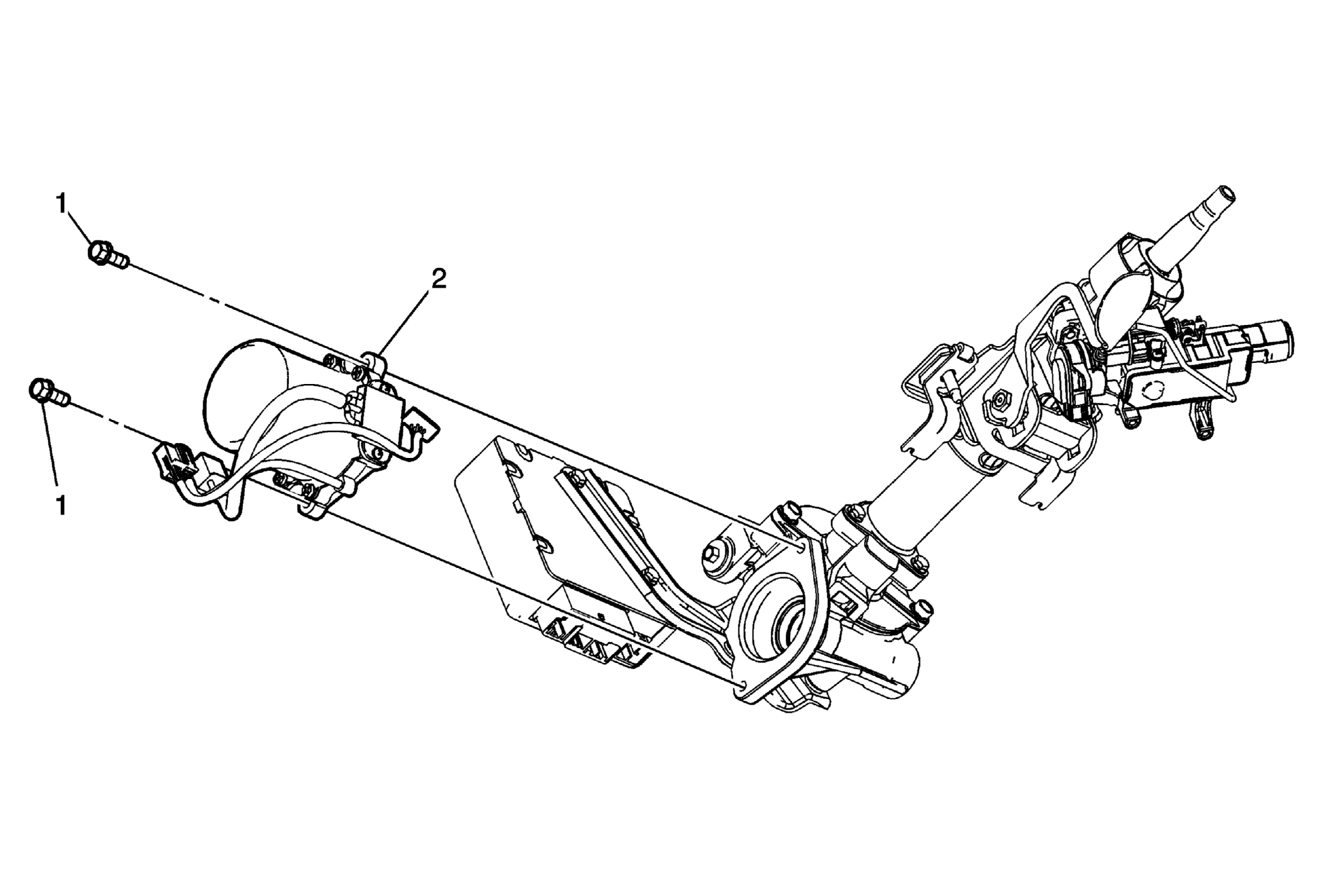

Fig 1: View Of Power Steering Assist Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the left side instrument panel outer trim cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT - LEFT SIDE . Remove the left side instrument panel insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE . Remove the driver knee bolster reinforcement. Refer to DRIVER KNEE BOLSTER REINFORCEMENT REPLACEMENT .
1	Power Steering Assist Motor Bolt (Qty: 2) NOTE: Refer to FASTENER NOTICE . Tighten: 18 N.m (13 lb ft)
2	Power Steering Assist Motor Front Seat Head Restraint Guides Procedure: Disconnect any electrical connectors as needed.
