Remote Control Door Lock Receiver Replacement

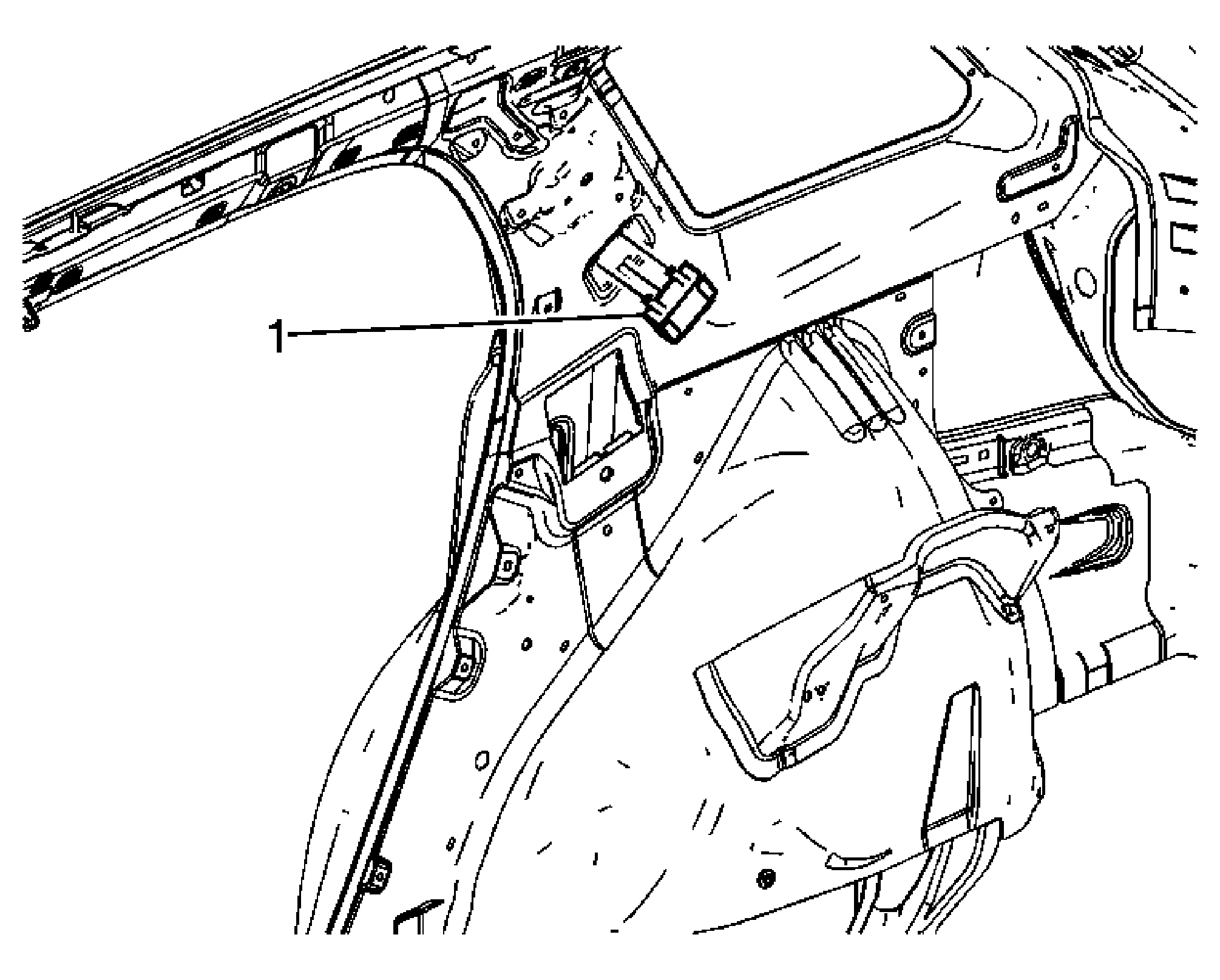

Fig 1: Locating Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the right side lock pillar upper garnish molding. Refer to Lock Pillar Upper Garnish Molding Replacement .
1	Remote Control Door Lock Receiver Tip: Push in on the upper two integral tabs to release the receiver from the body side.
