Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

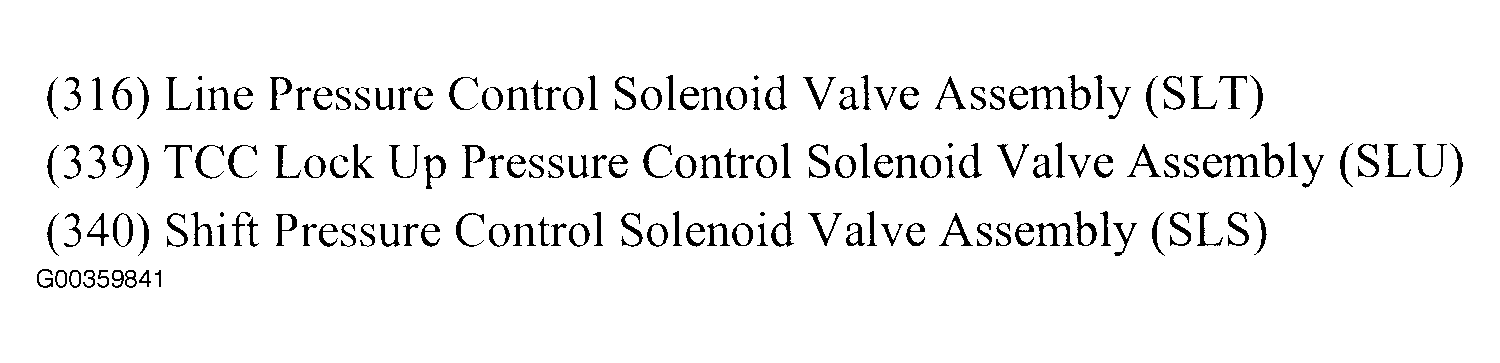

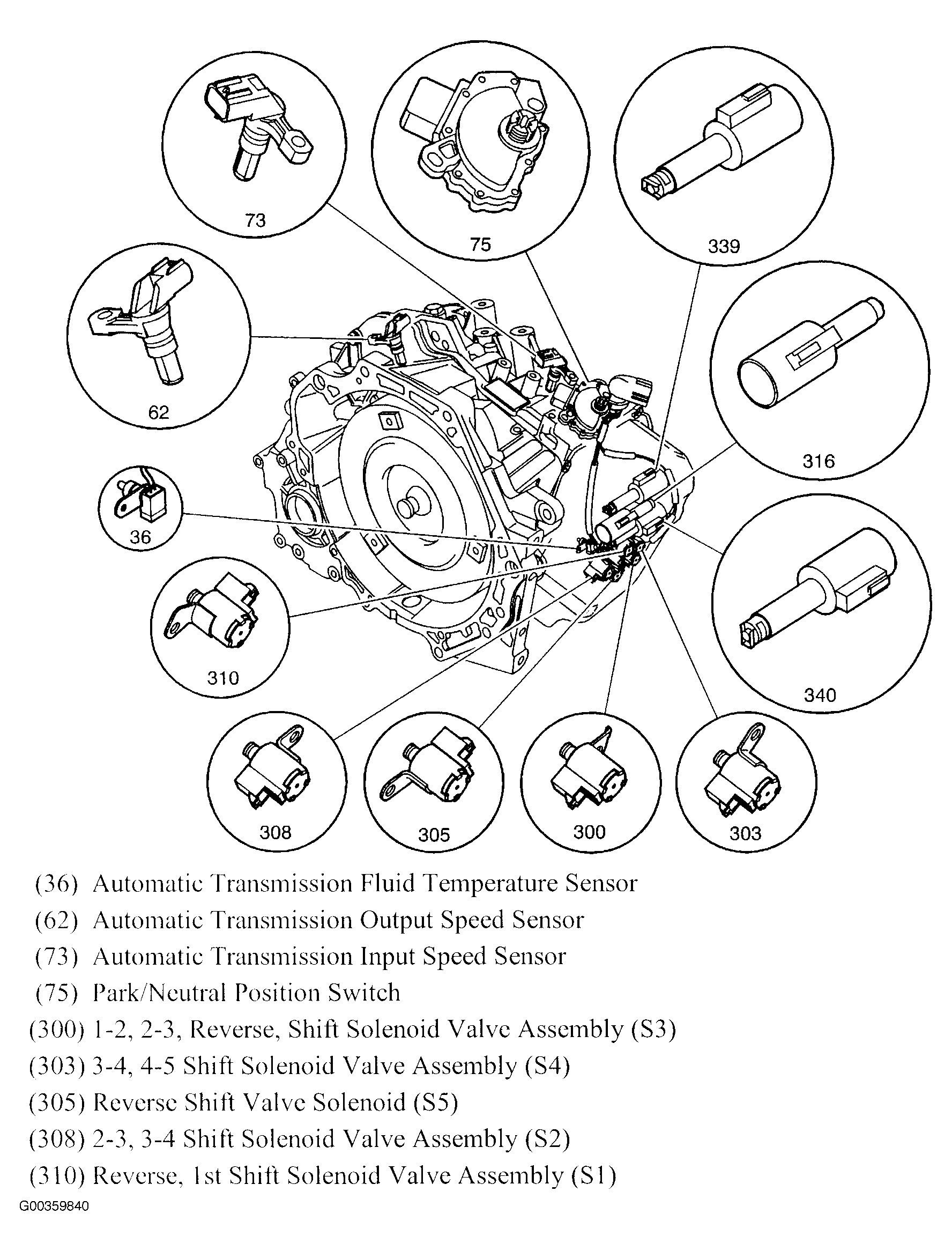

Fig 1: Automatic Transmission Electronic Components Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Automatic Transmission Electronic Components Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

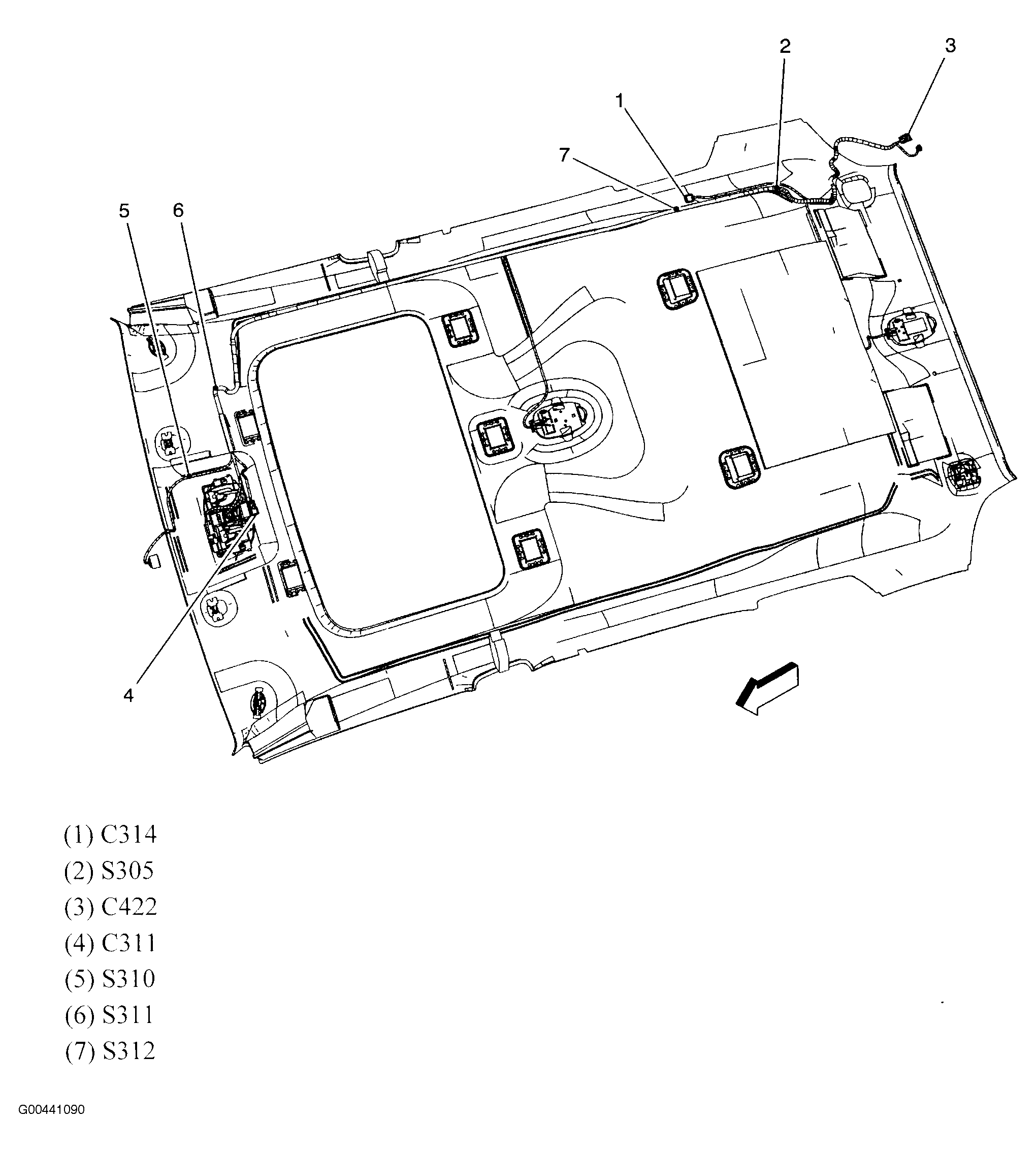

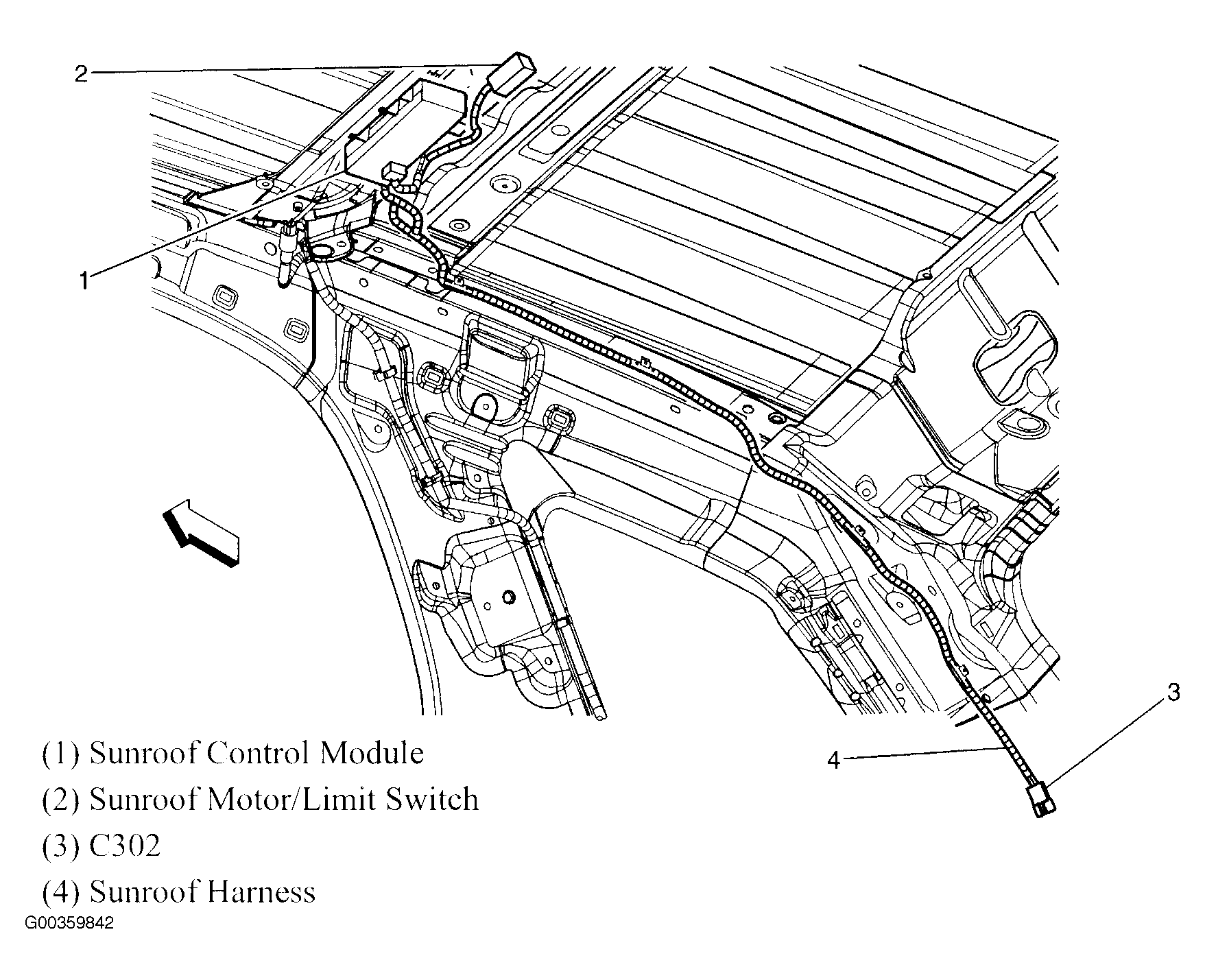

Fig 3: Under Right Side Of Headliner
Courtesy of GENERAL MOTORS CORP.

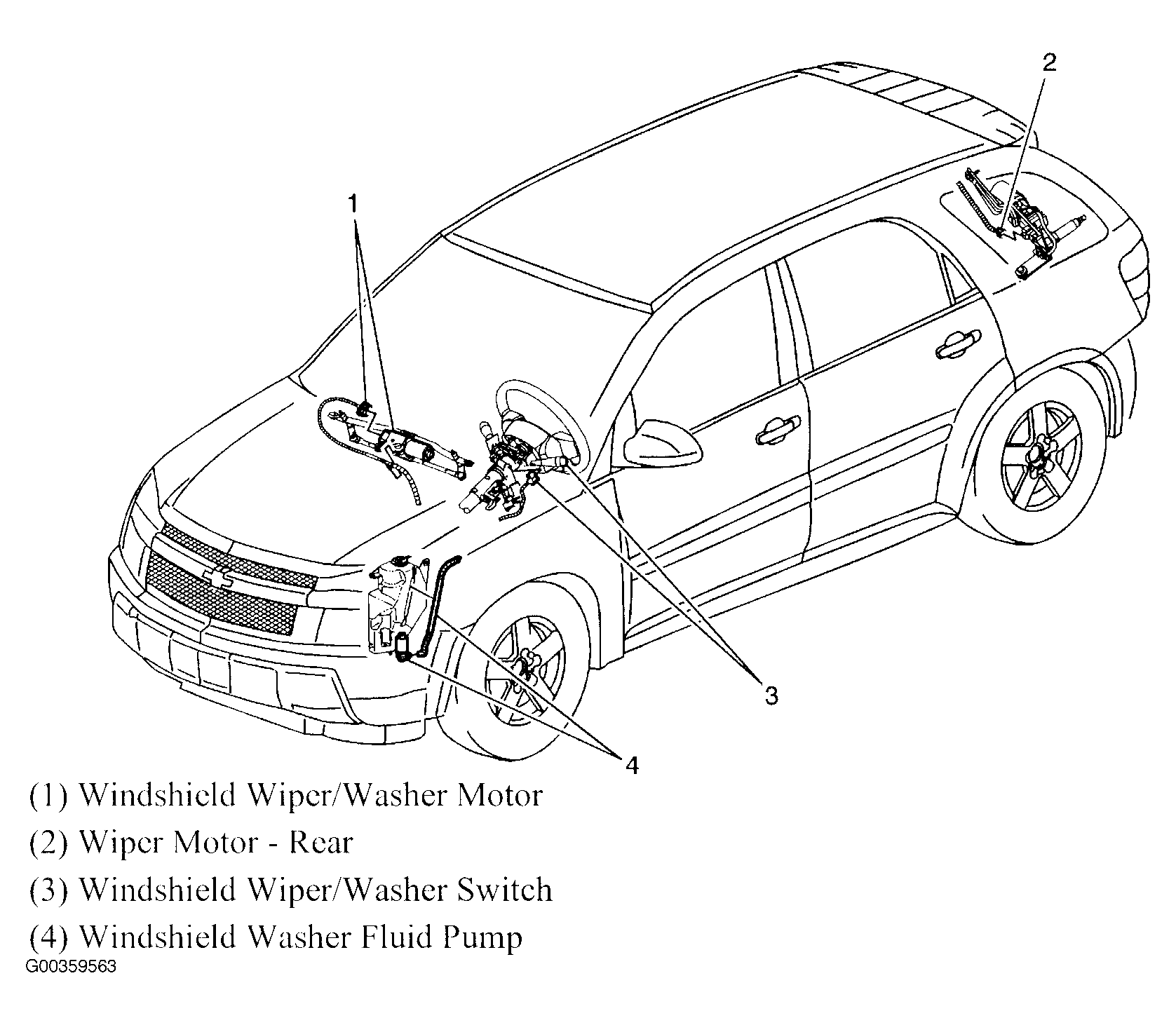

Fig 4: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

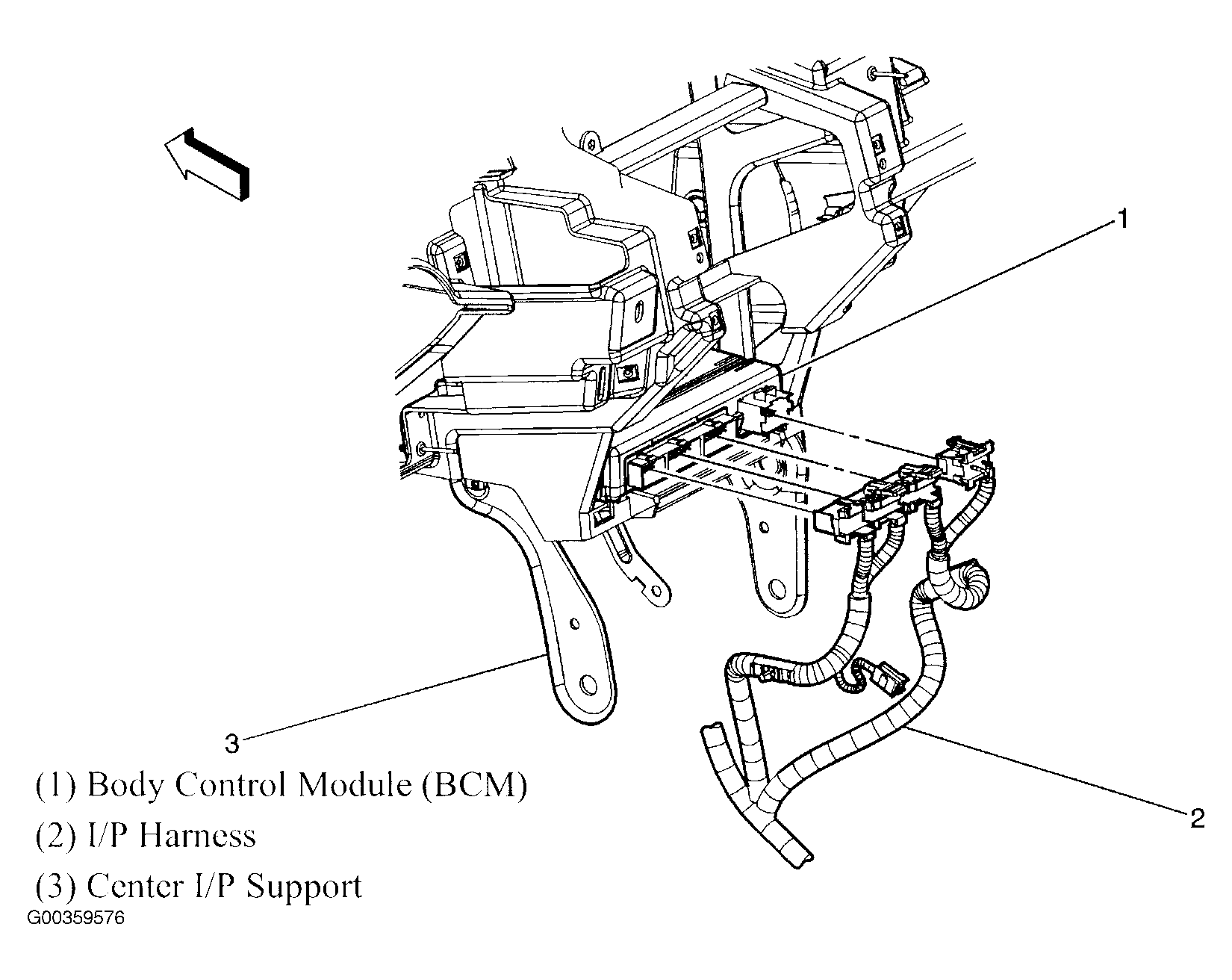

Fig 5: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

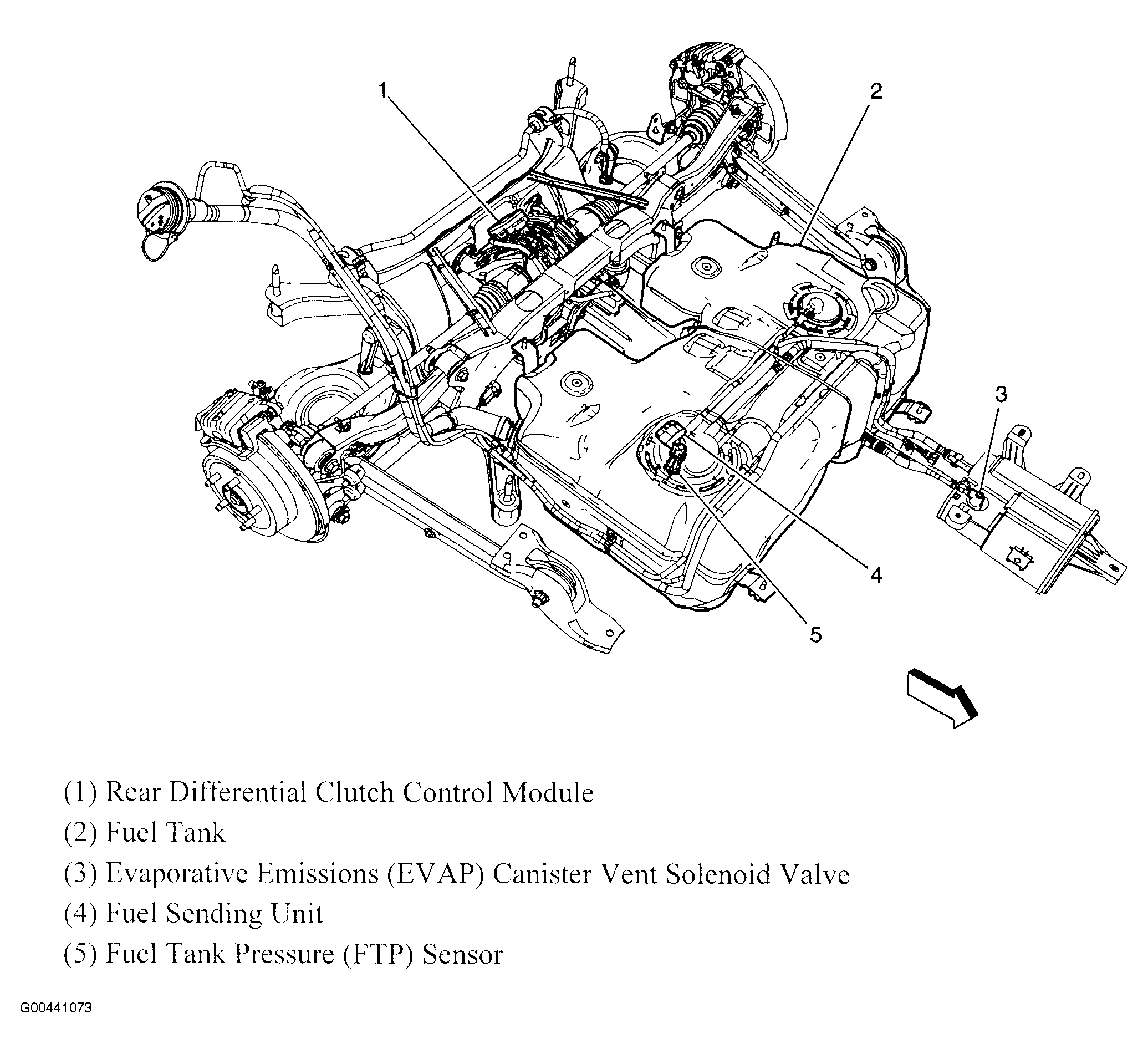

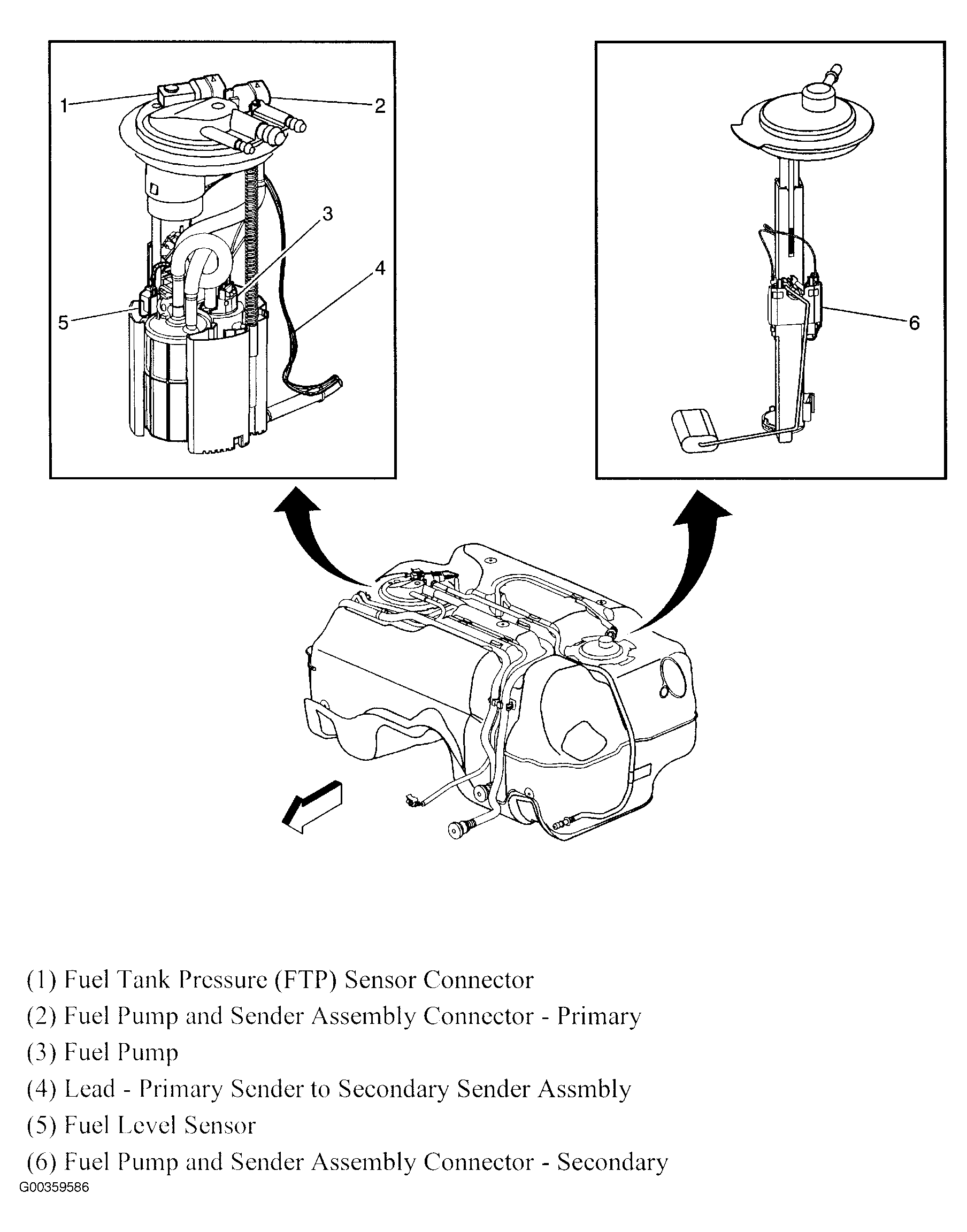

Fig 6: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

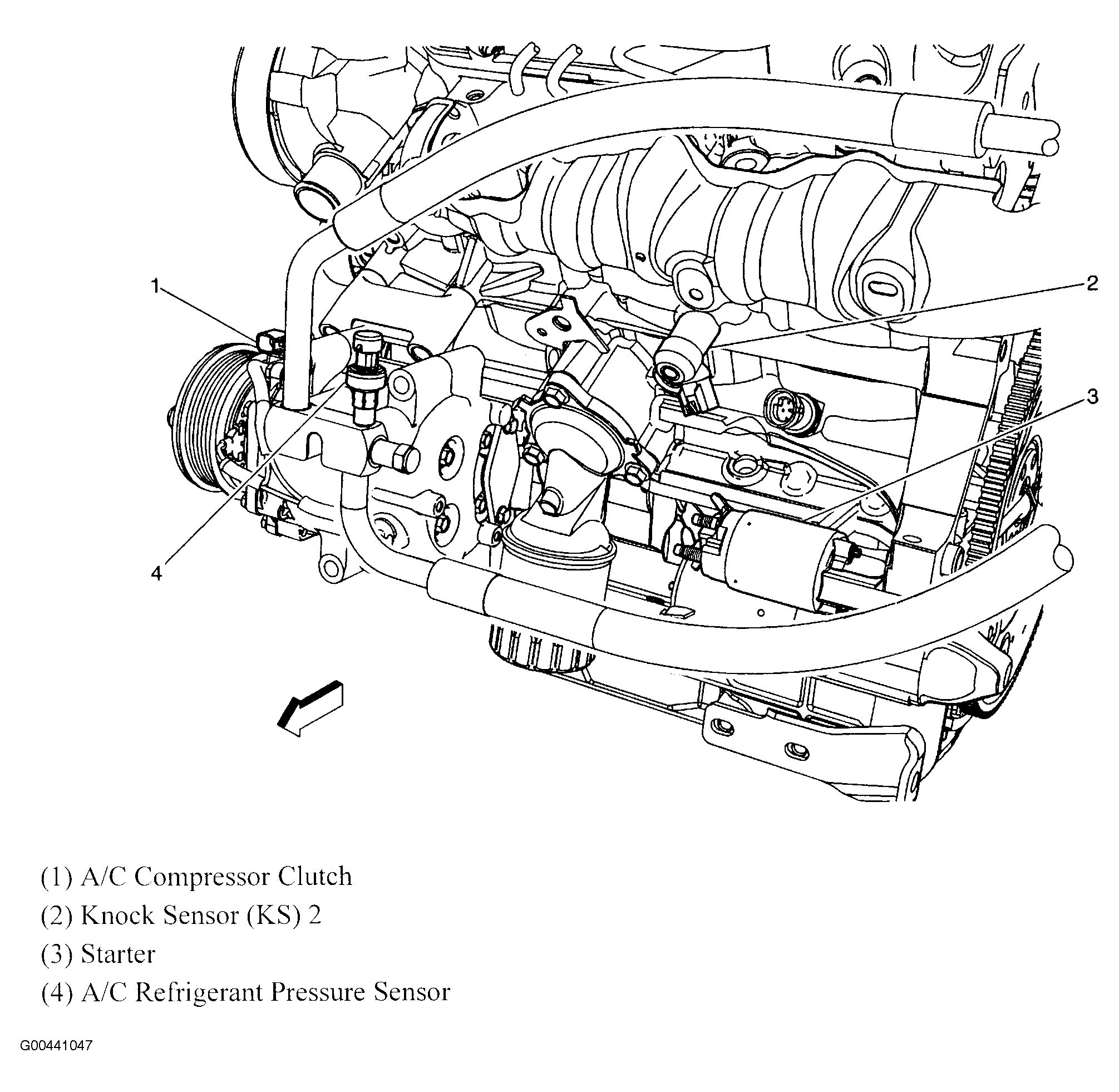

Fig 7: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

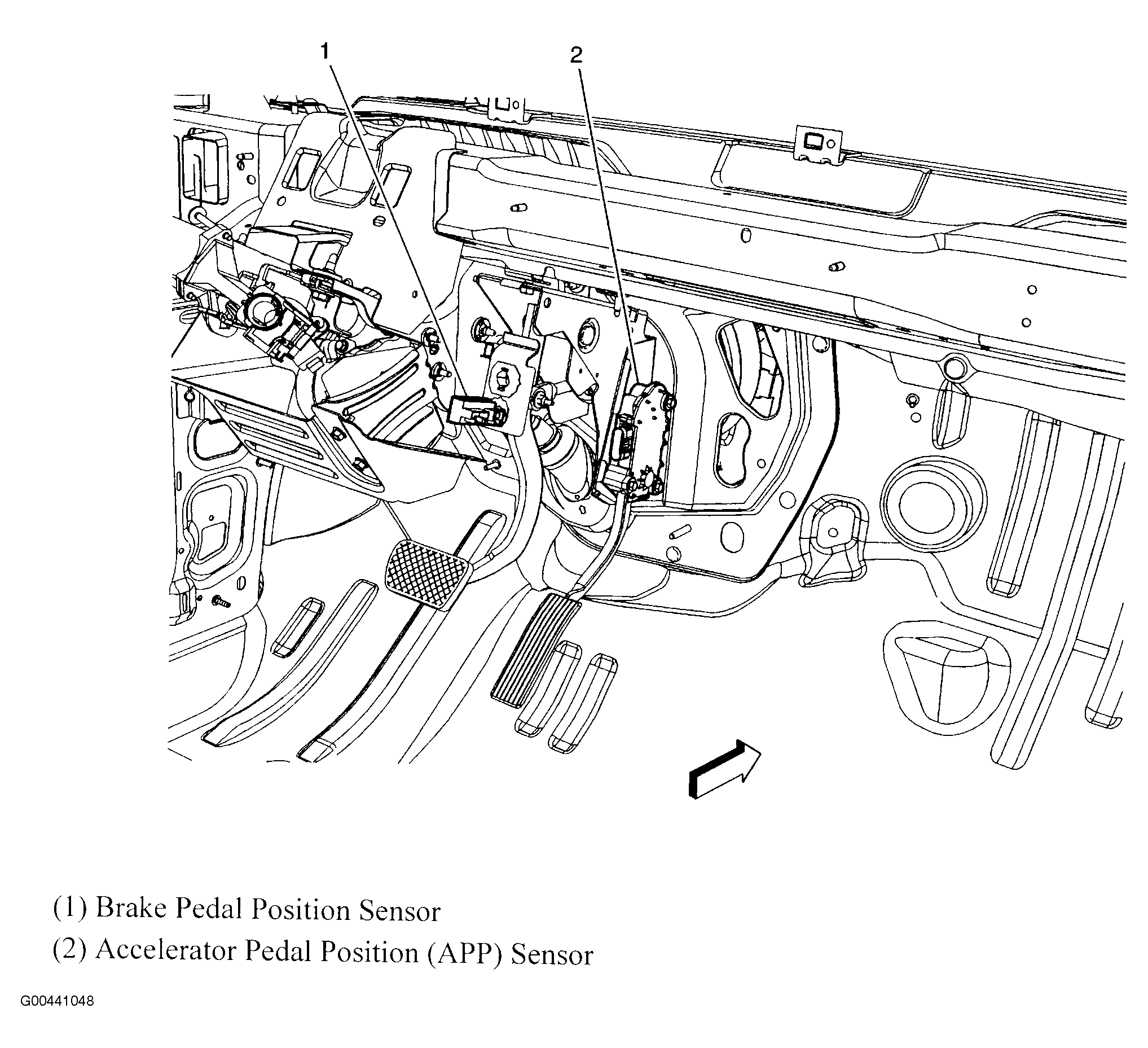

Fig 8: Pedal Assemblies
Courtesy of GENERAL MOTORS CORP.

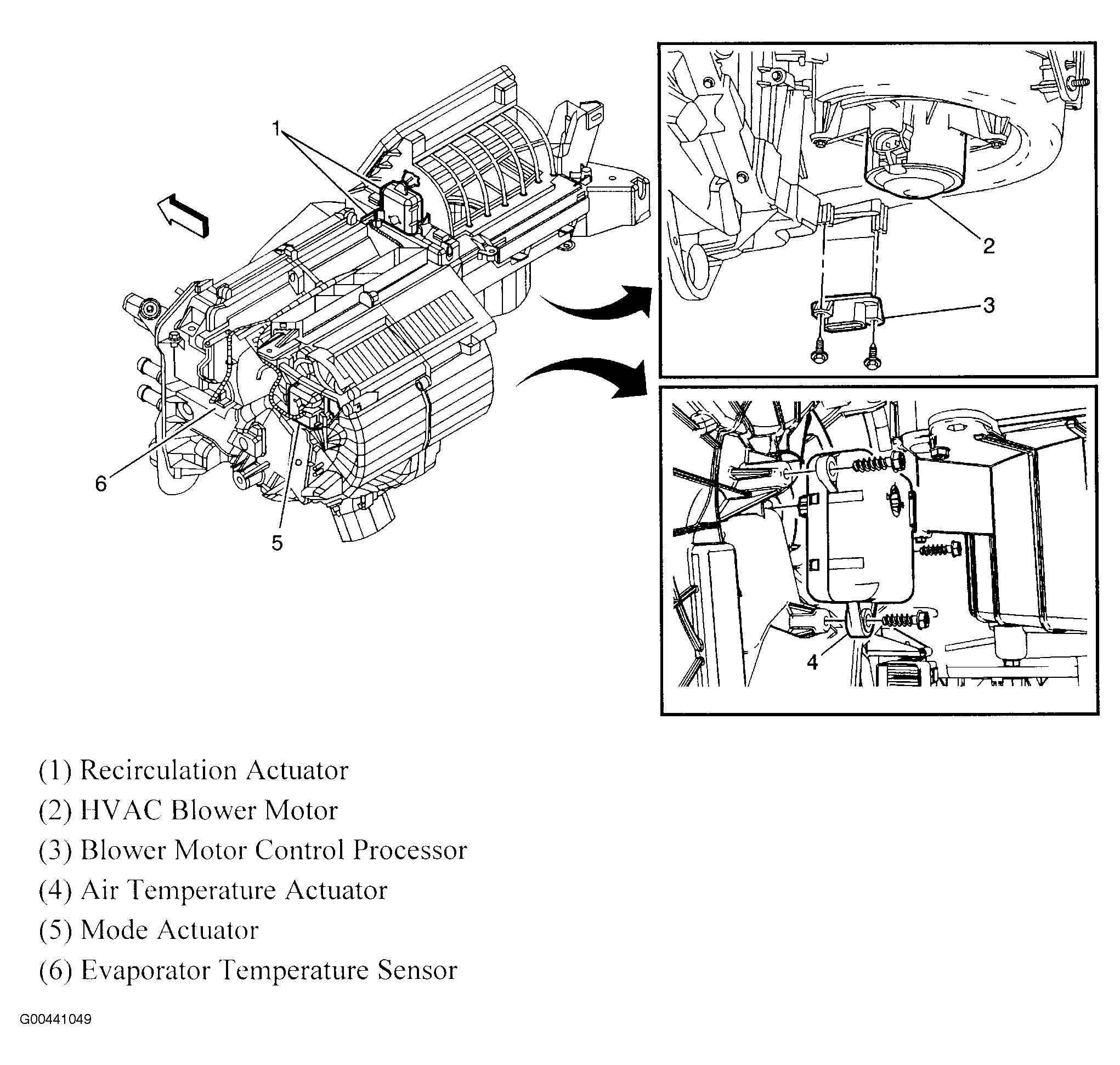

Fig 9: HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.

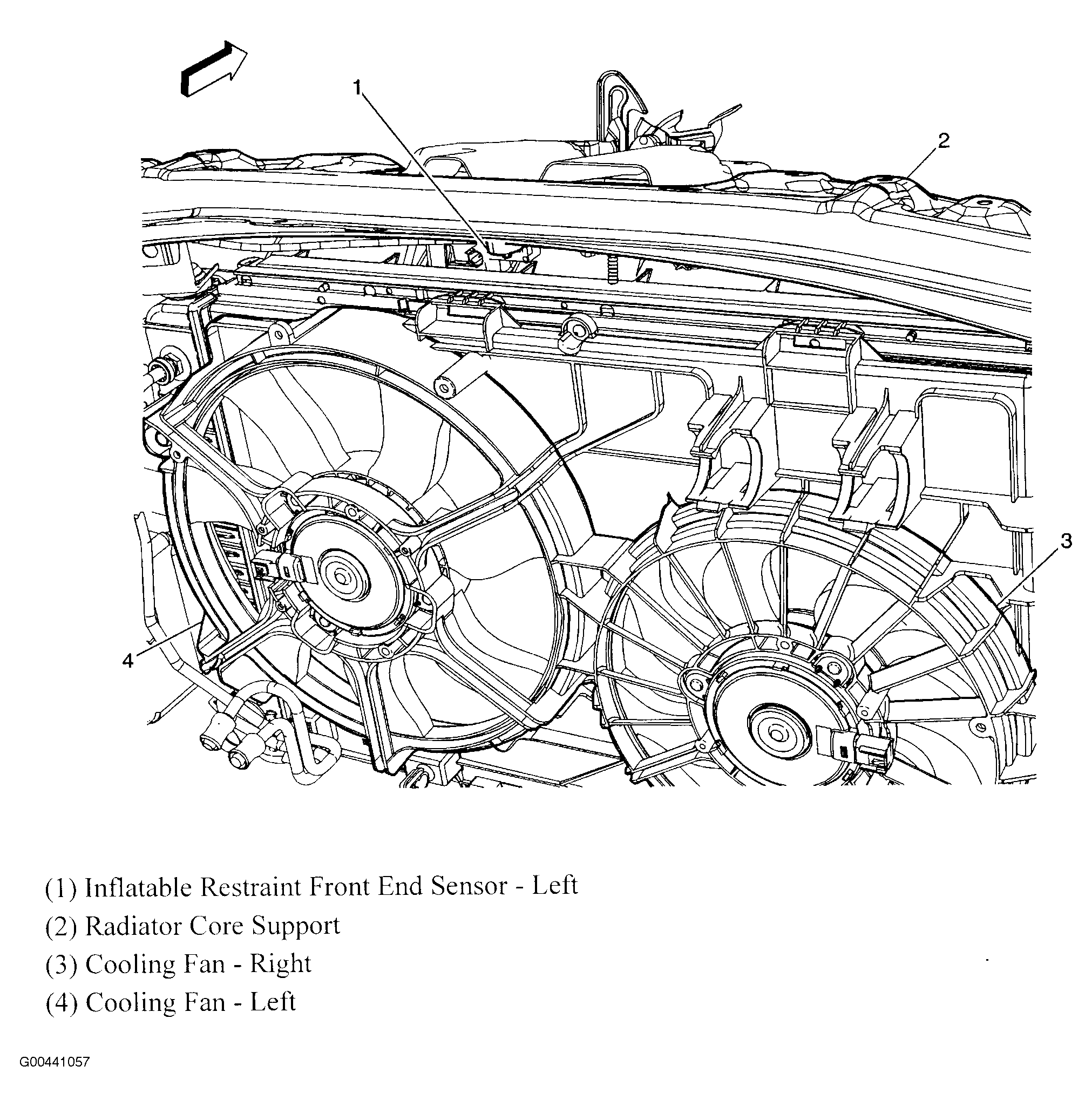

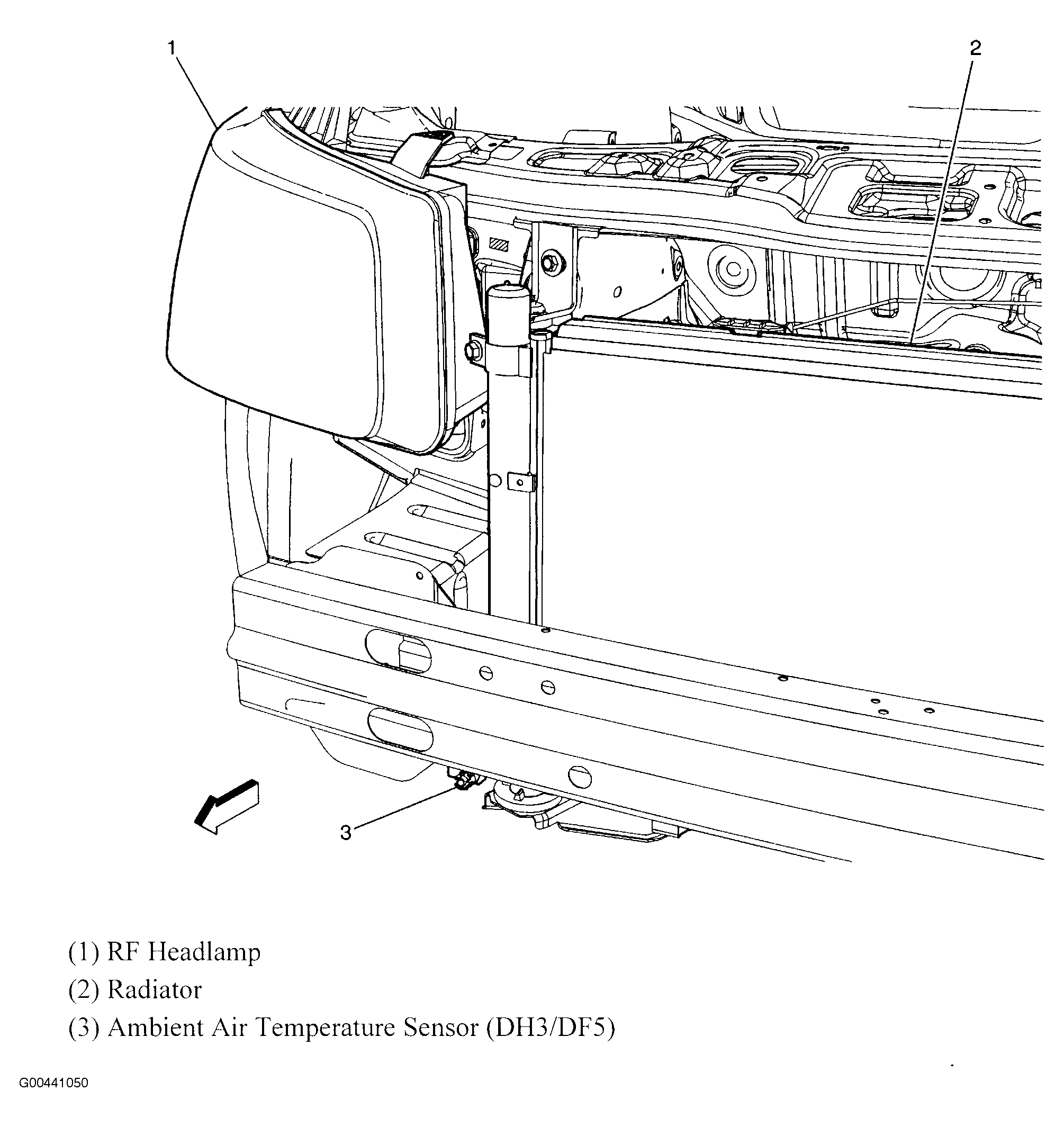

Fig 10: Below Front Impact Bar
Courtesy of GENERAL MOTORS CORP.

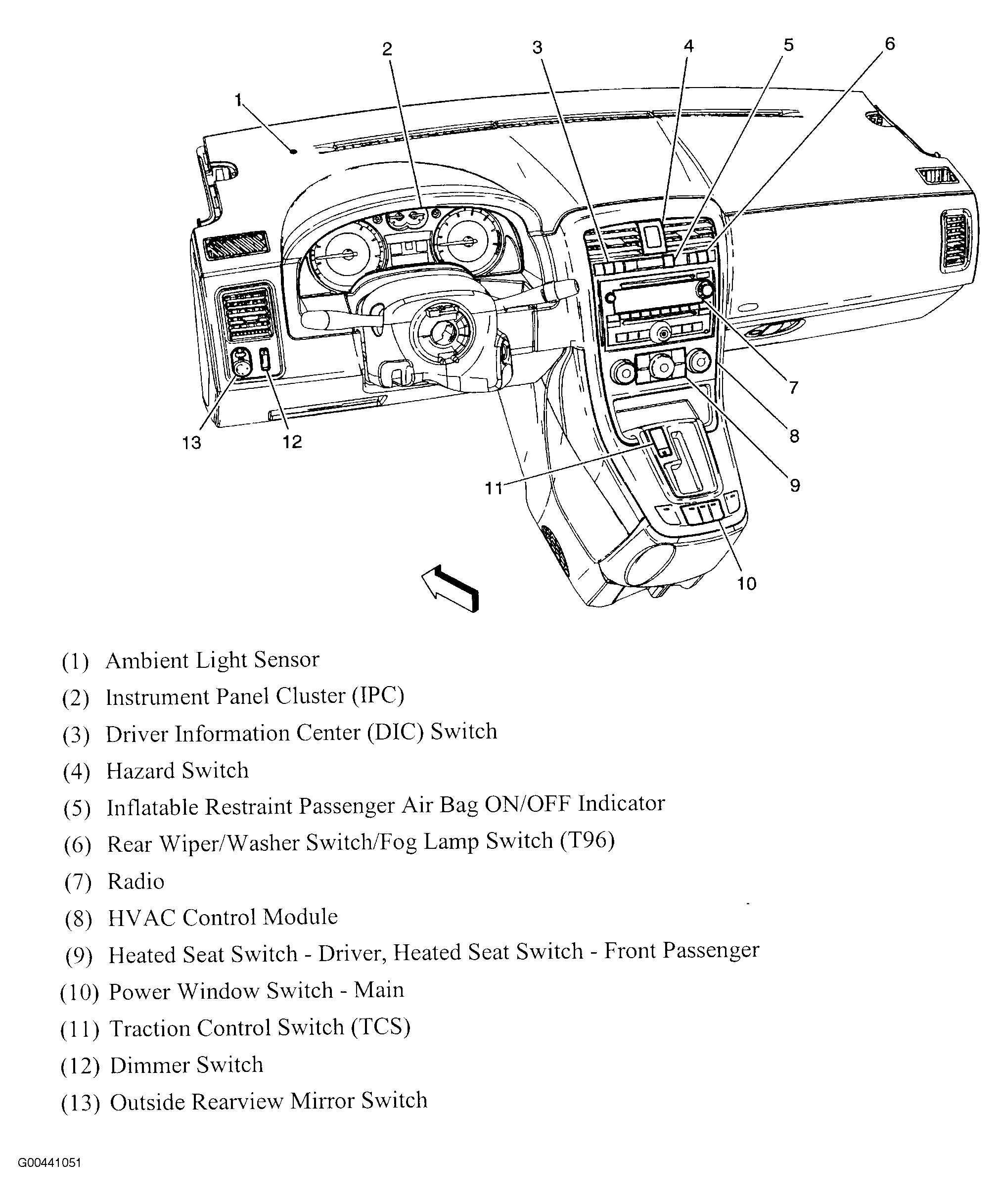

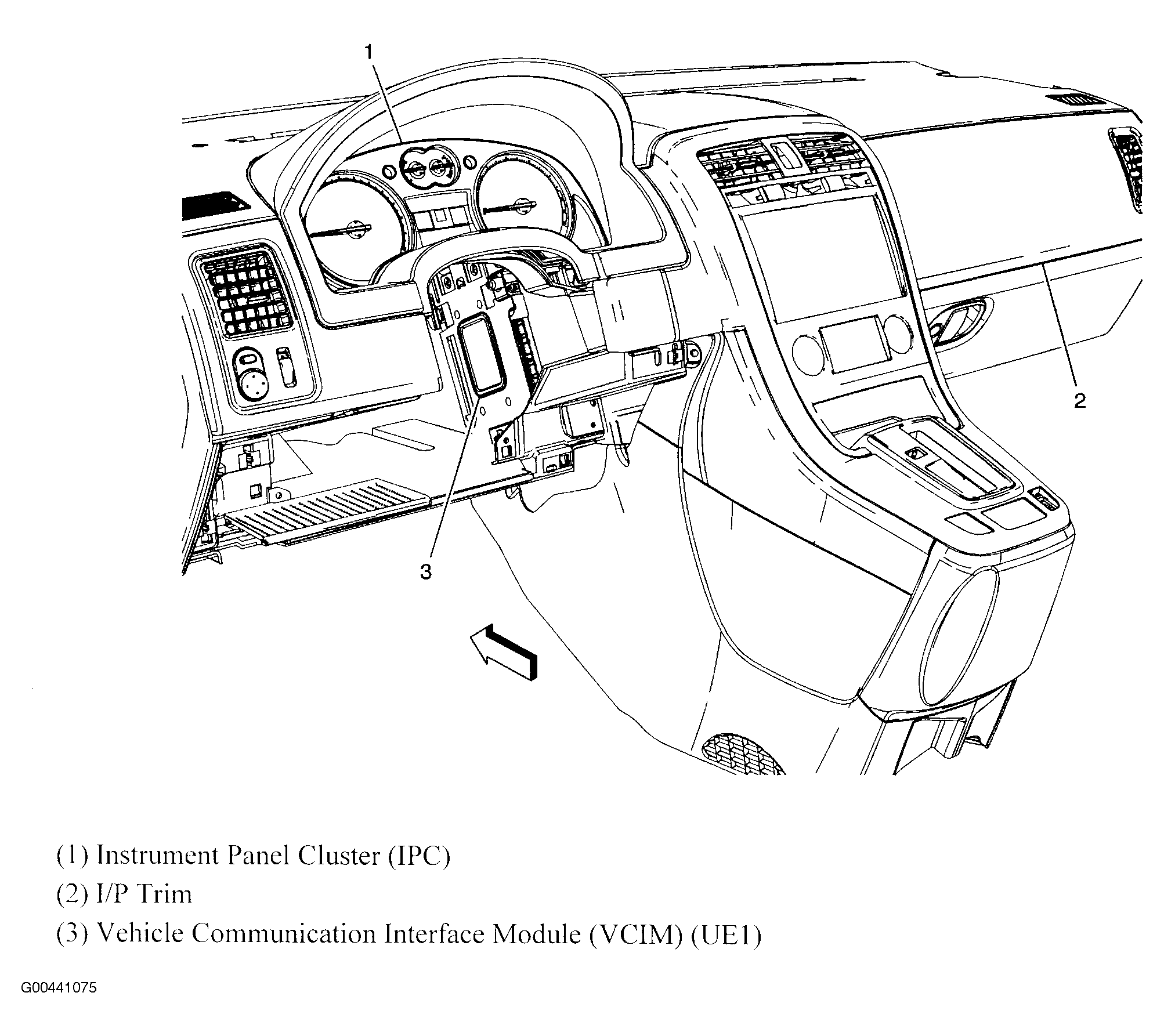

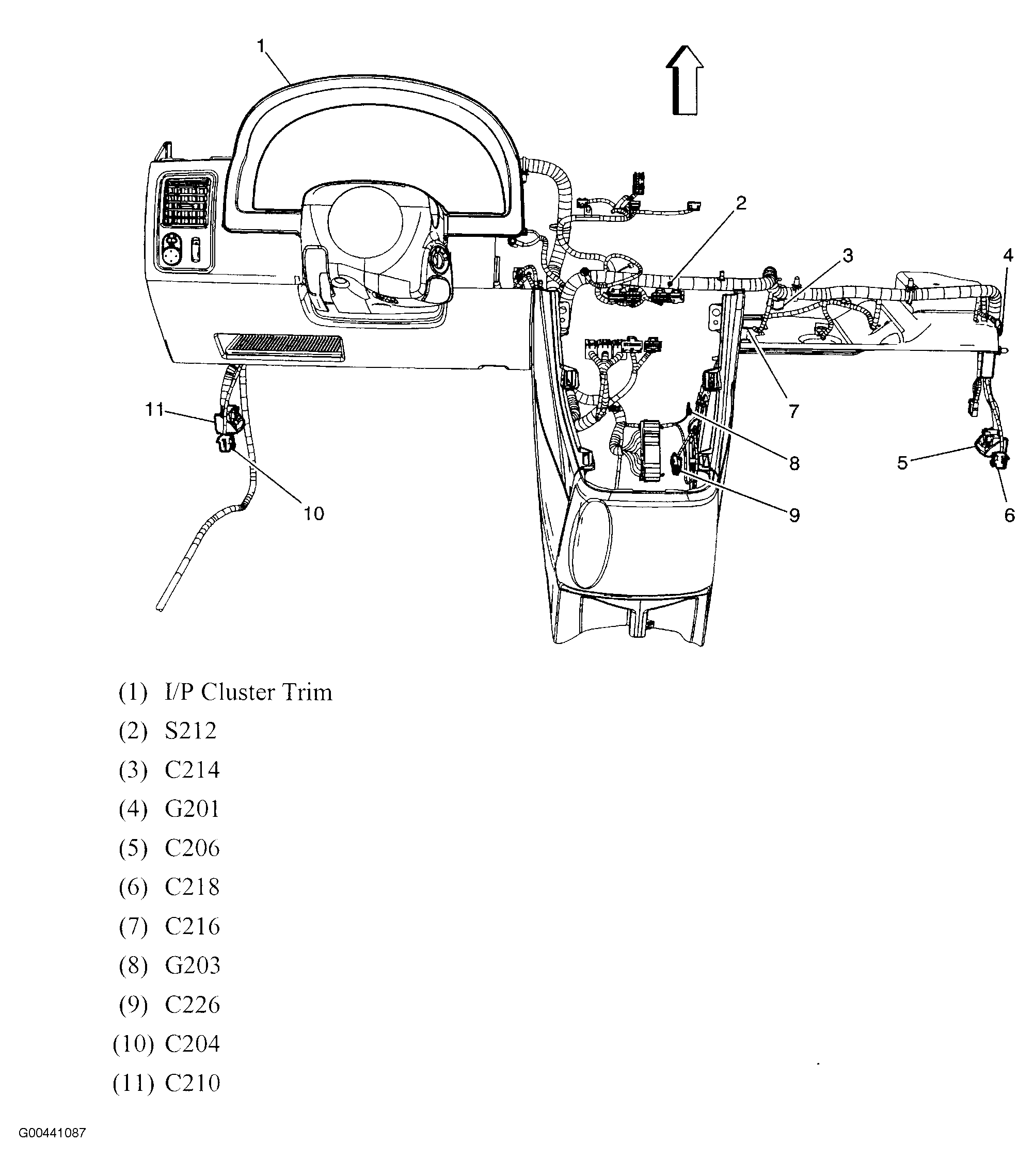

Fig 11: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

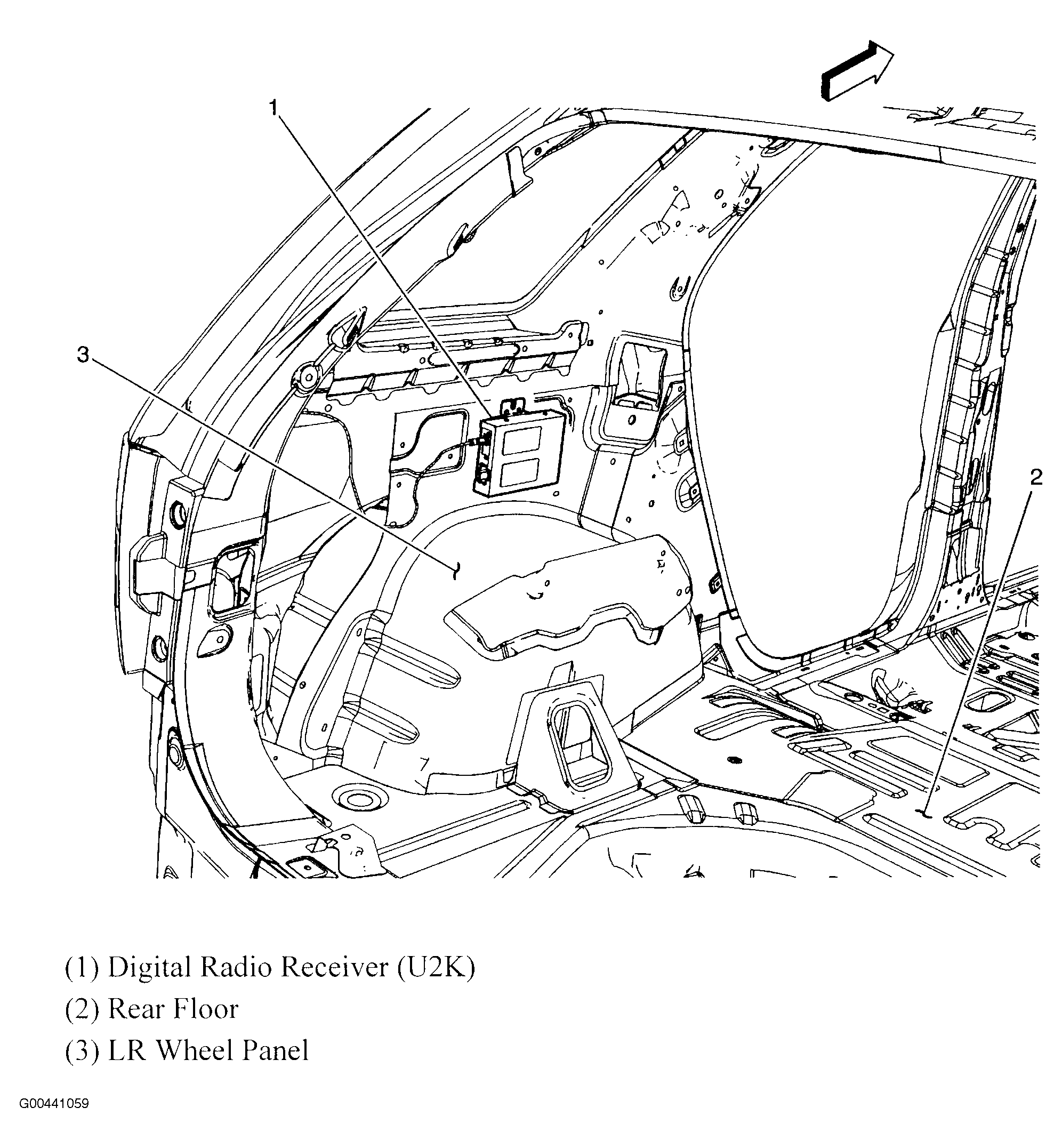

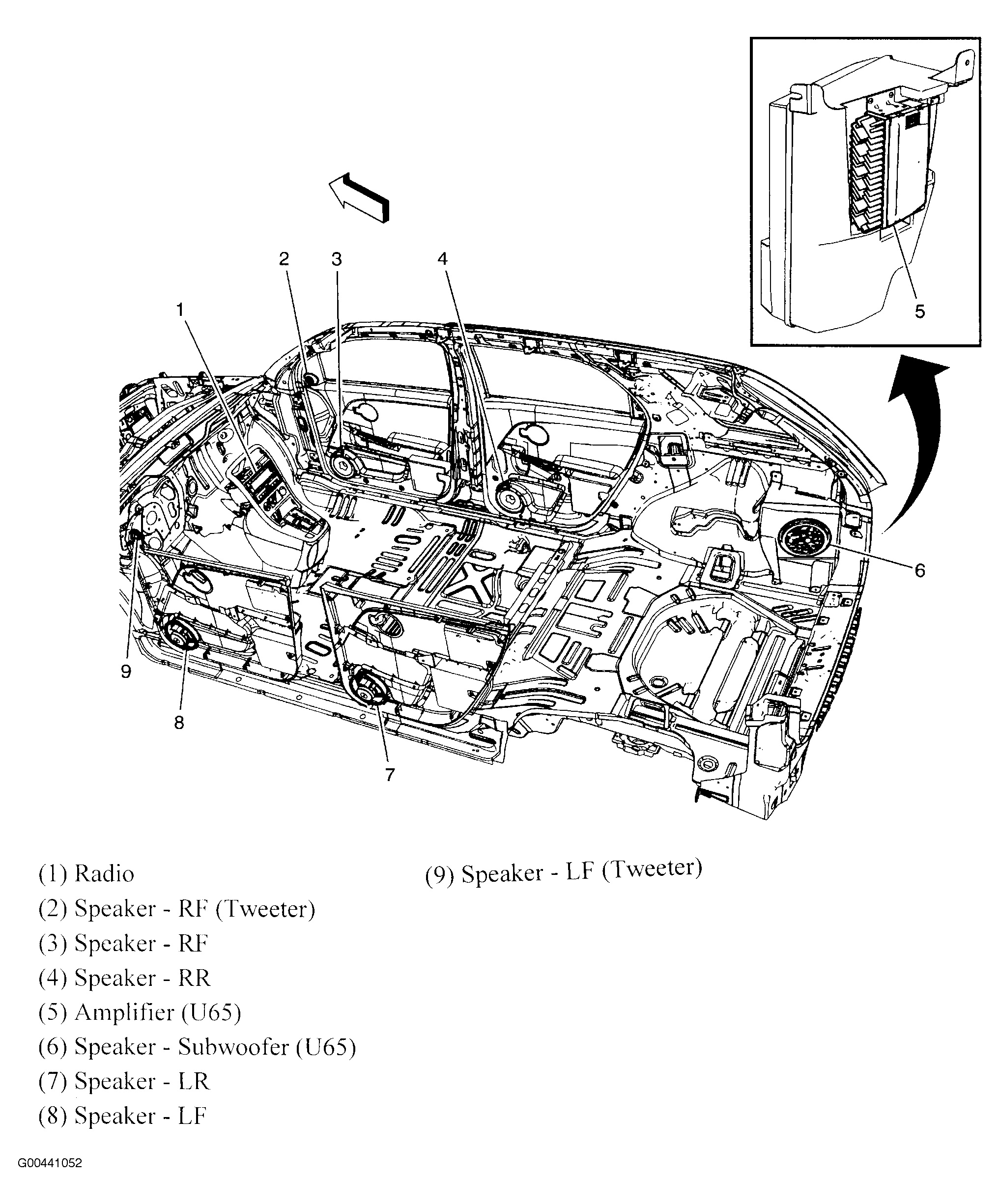

Fig 12: Audio Components
Courtesy of GENERAL MOTORS CORP.

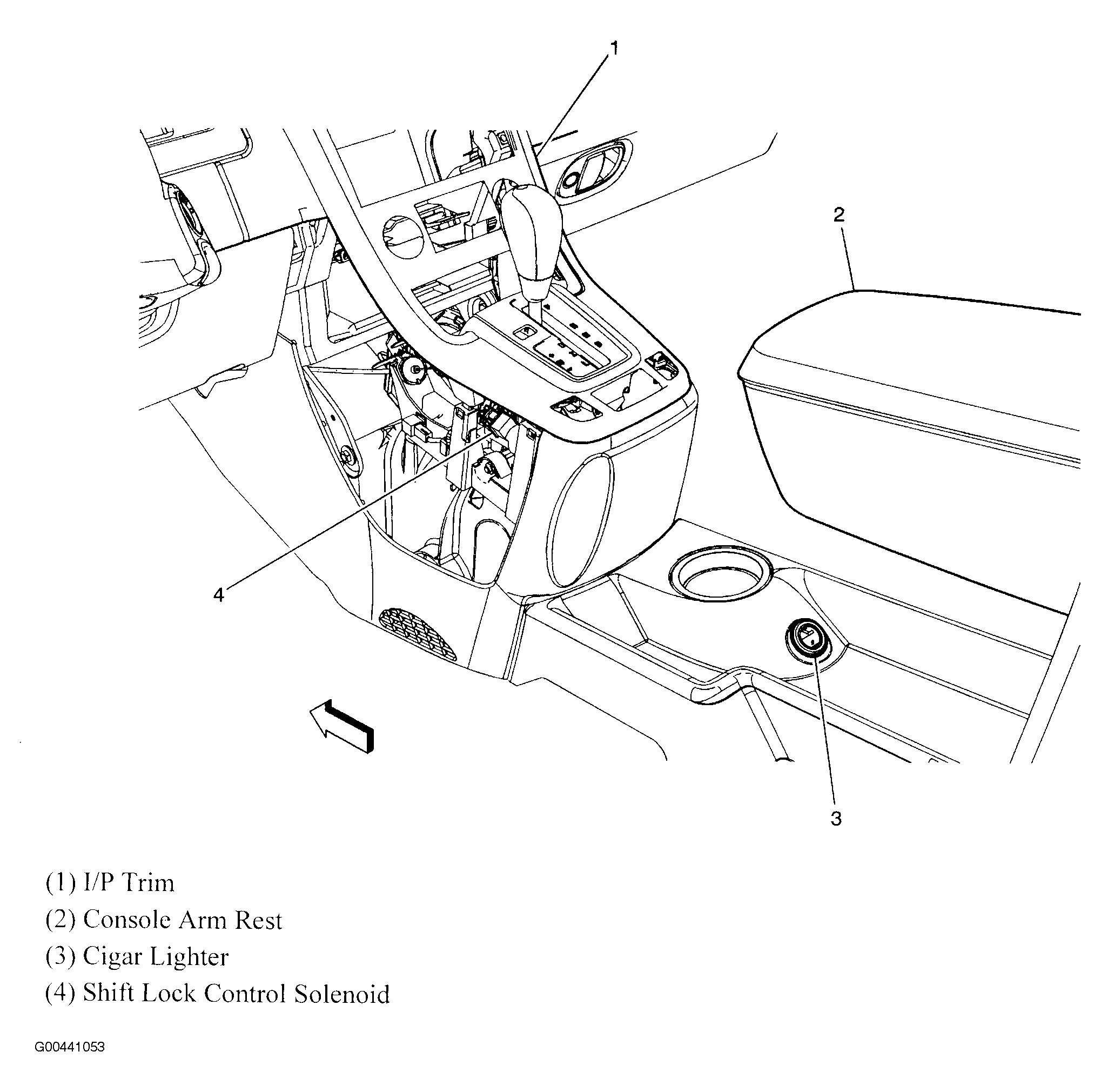

Fig 13: Below Shifter
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

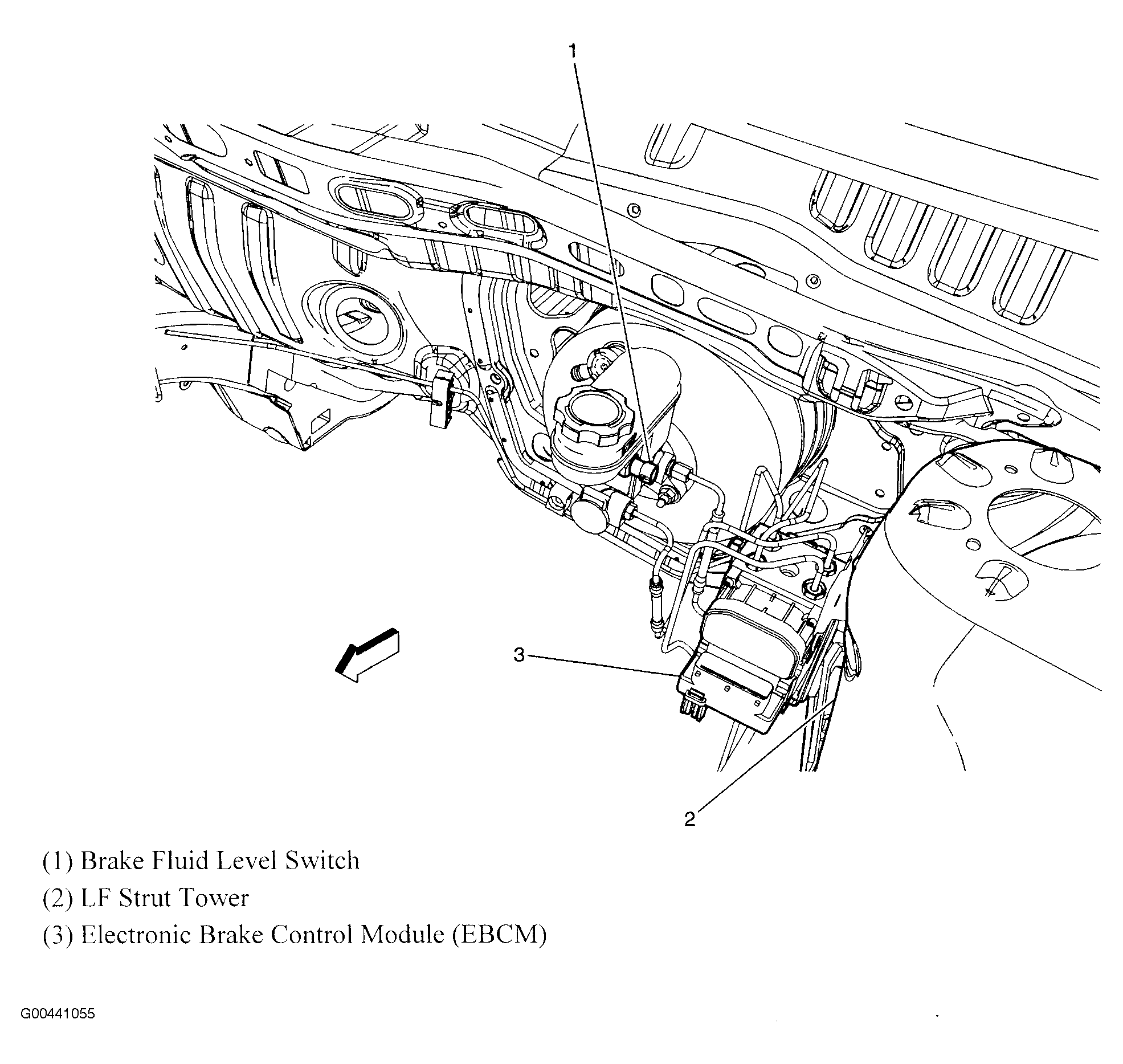

Fig 15: Near Brake Booster
Courtesy of GENERAL MOTORS CORP.

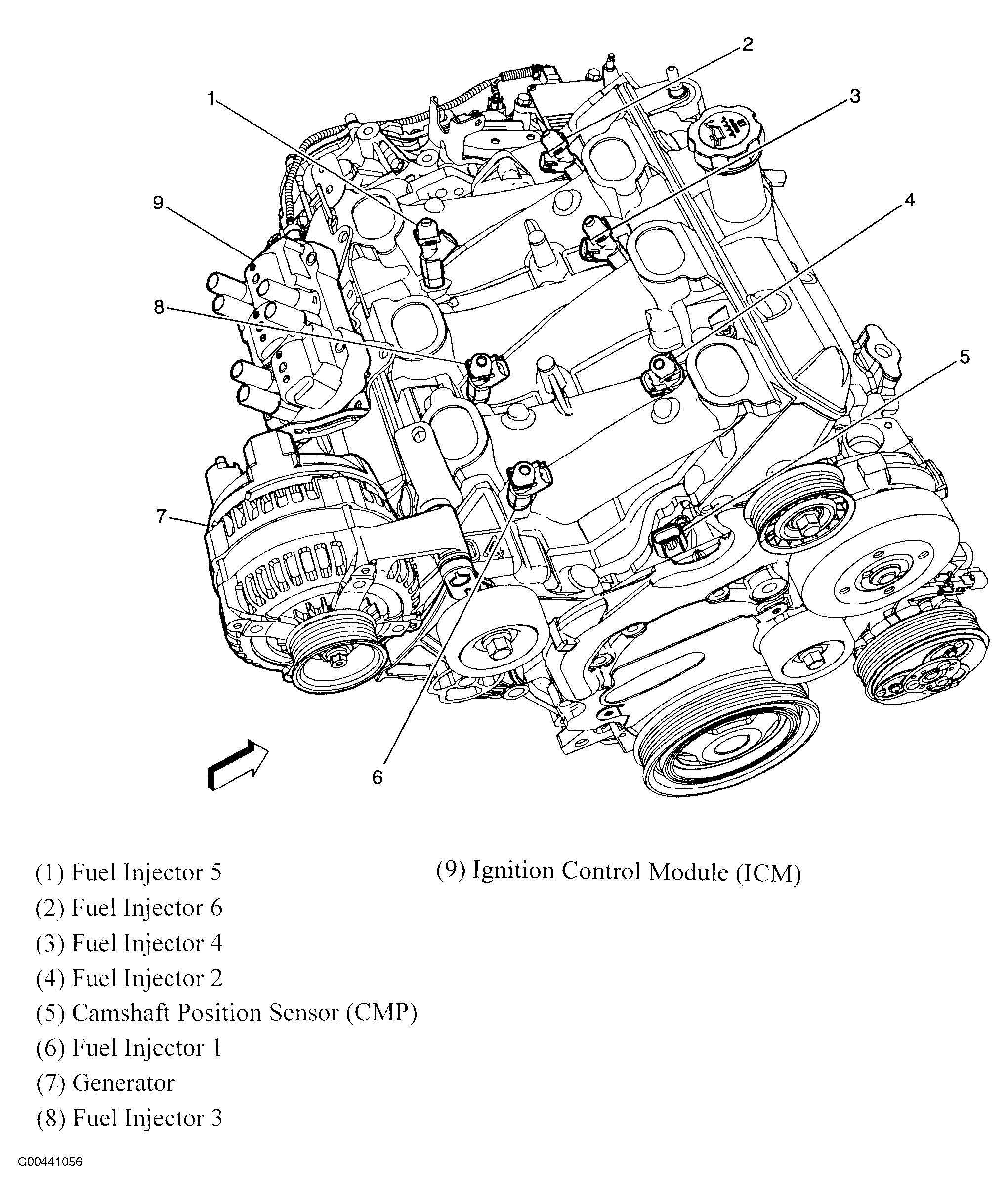

Fig 16: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Near Hood Latch
Courtesy of GENERAL MOTORS CORP.

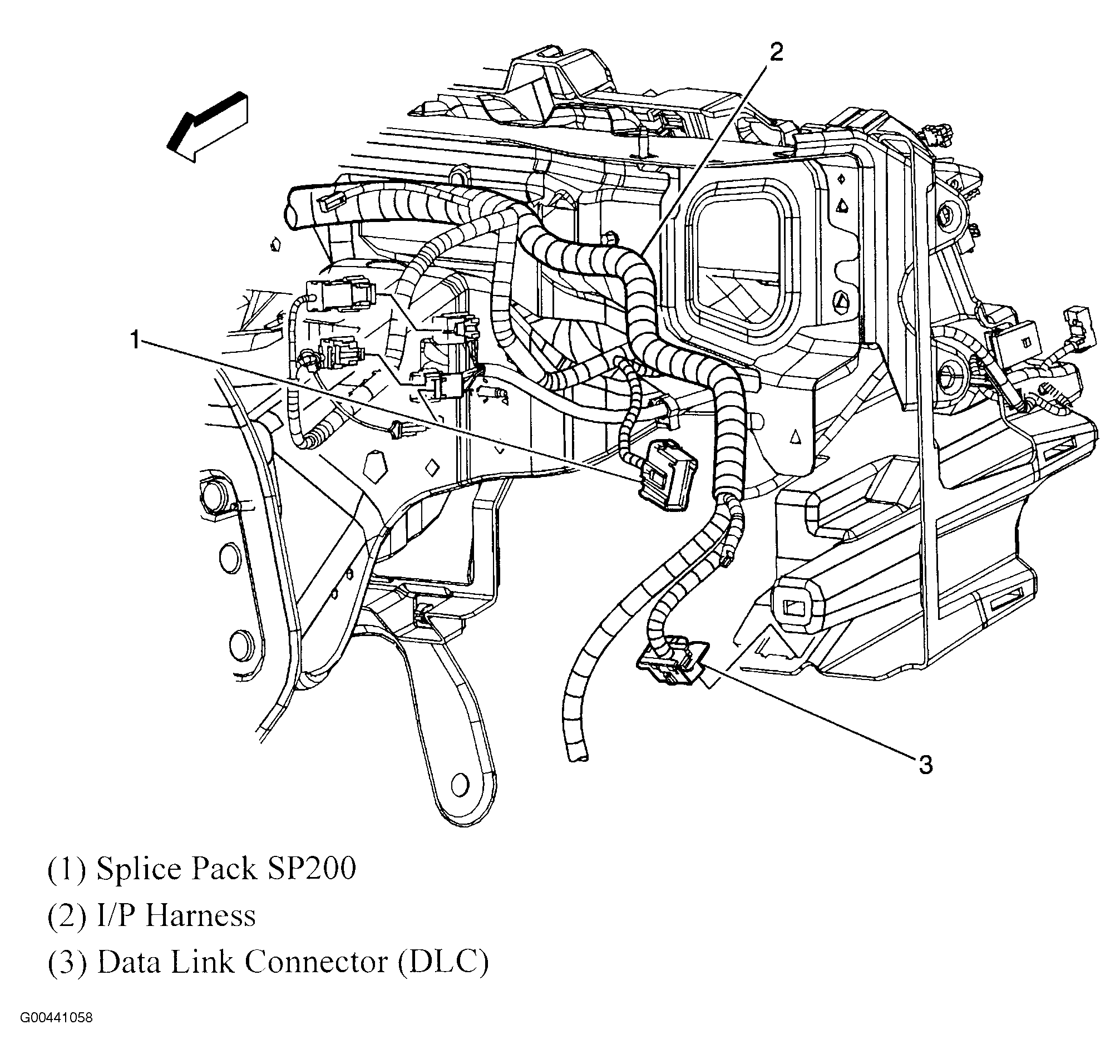

Fig 18: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

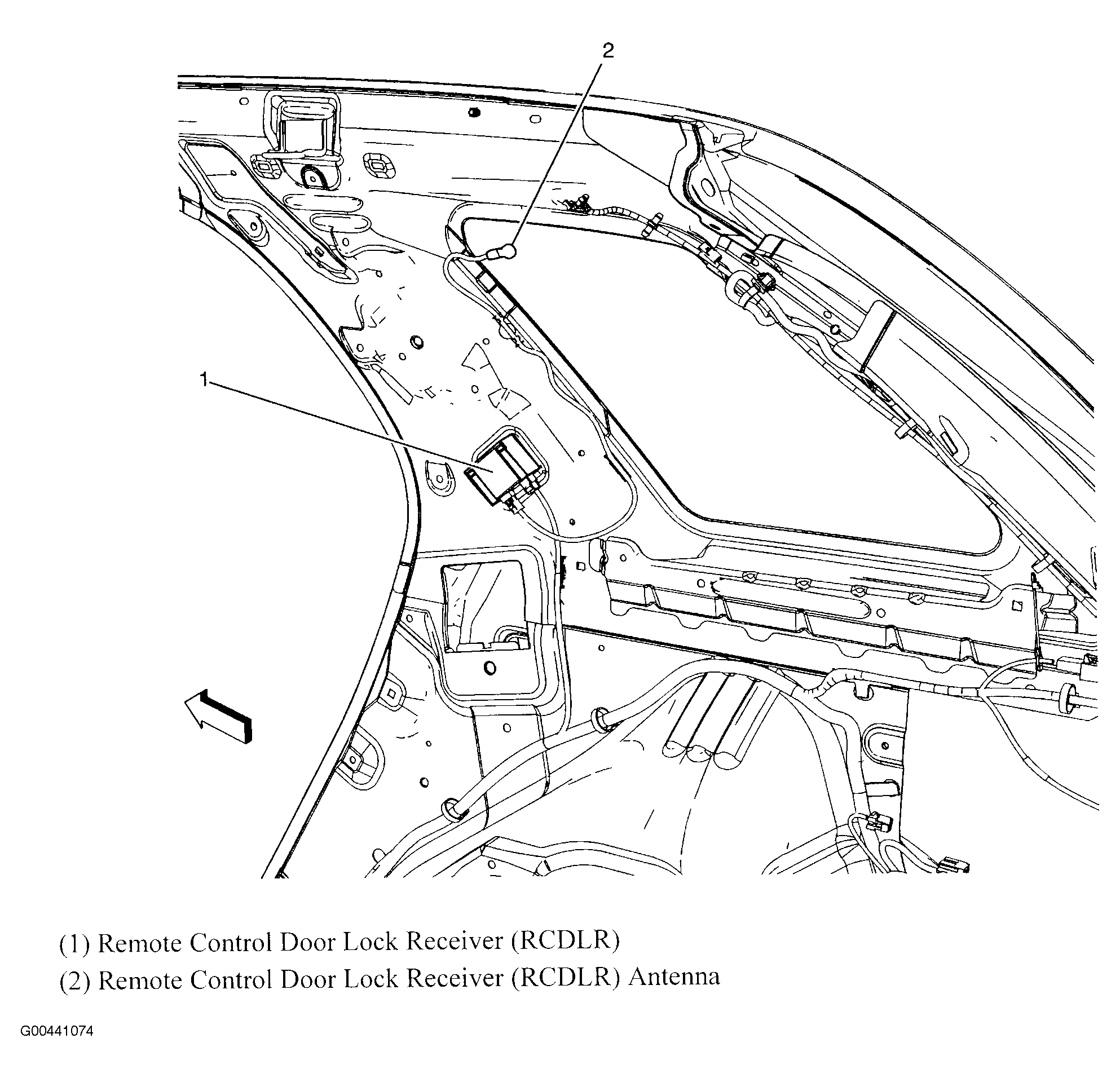

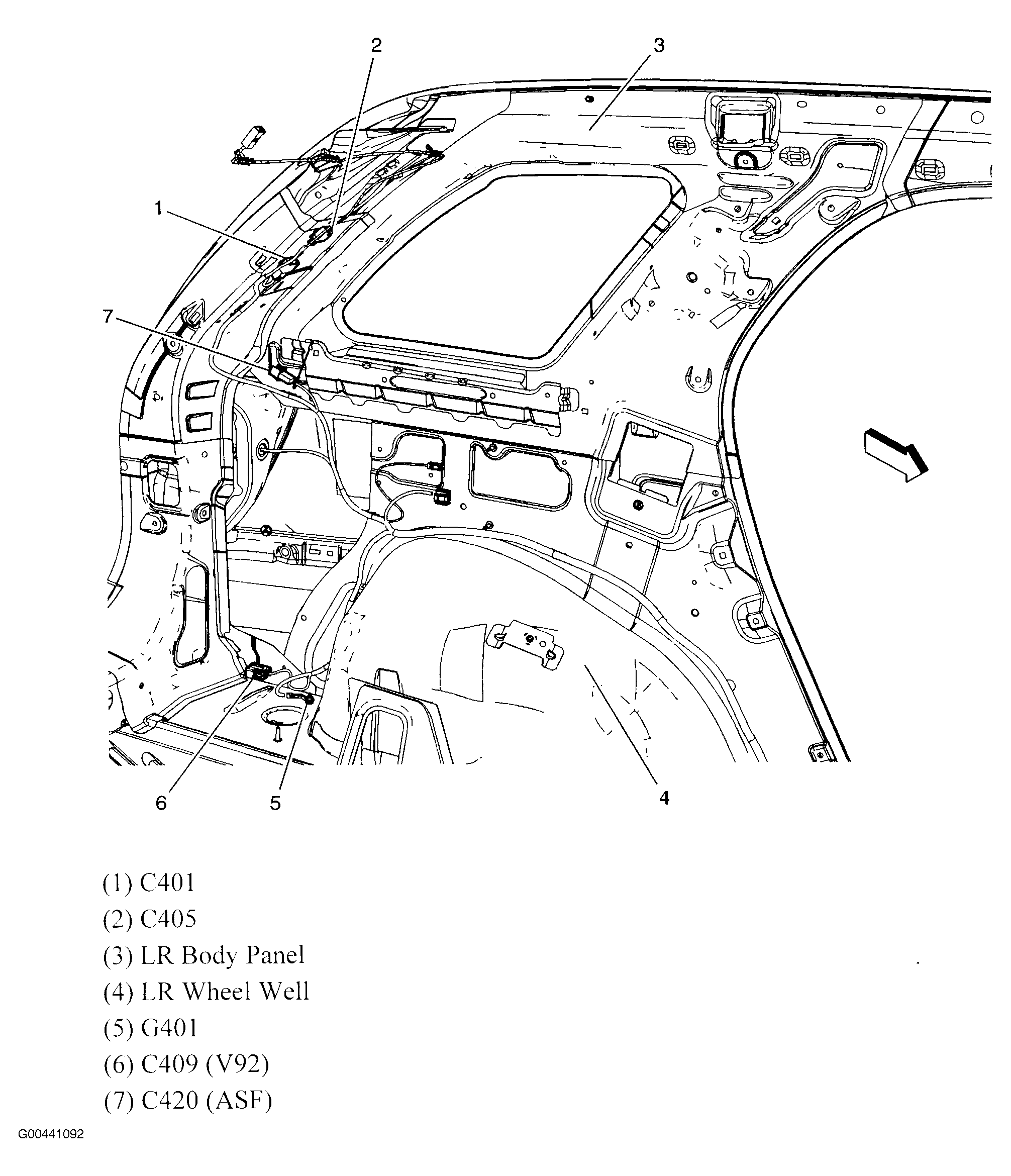

Fig 19: Below Left Rear Window
Courtesy of GENERAL MOTORS CORP.

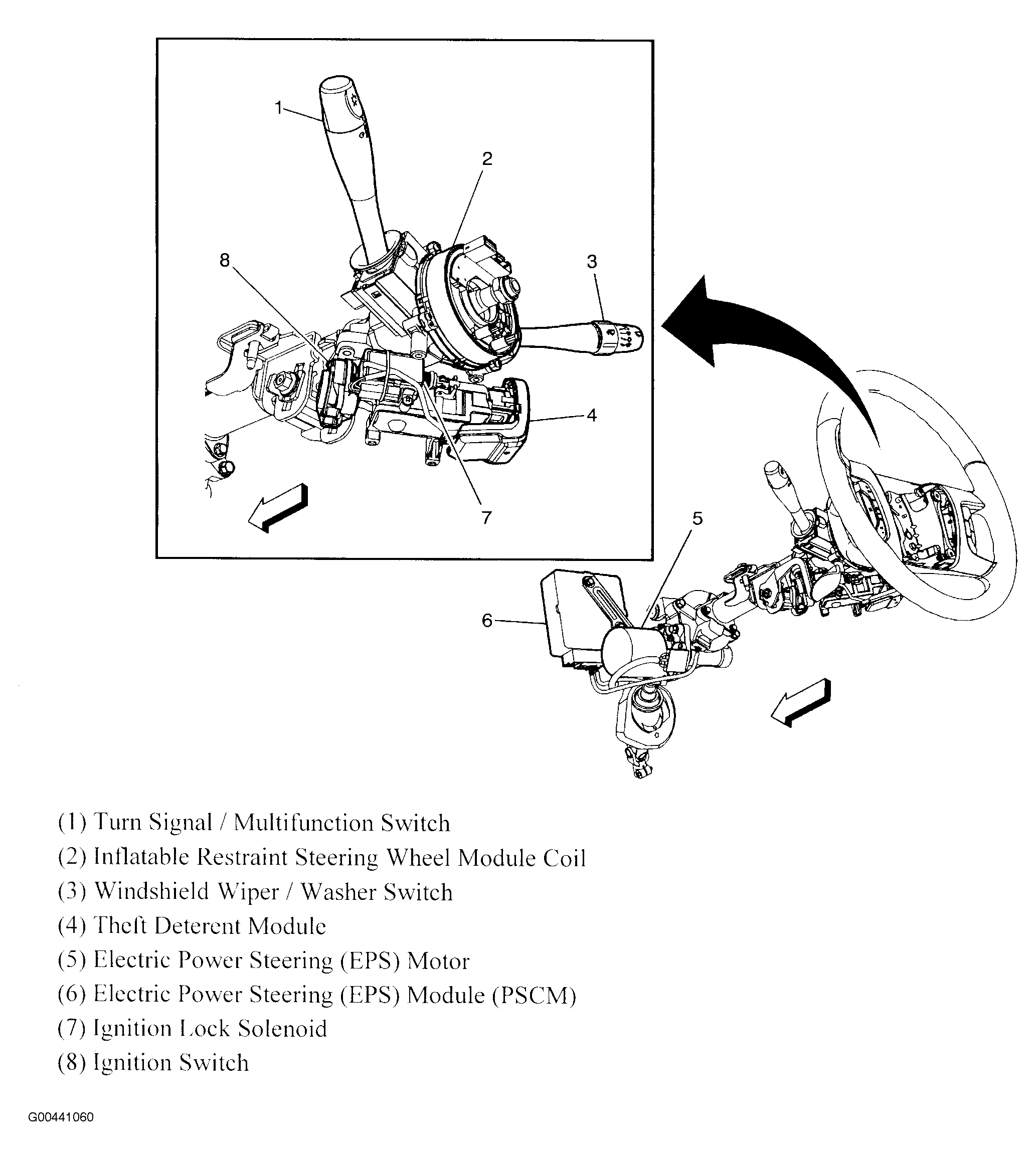

Fig 20: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 21: Above Battery
Courtesy of GENERAL MOTORS CORP.

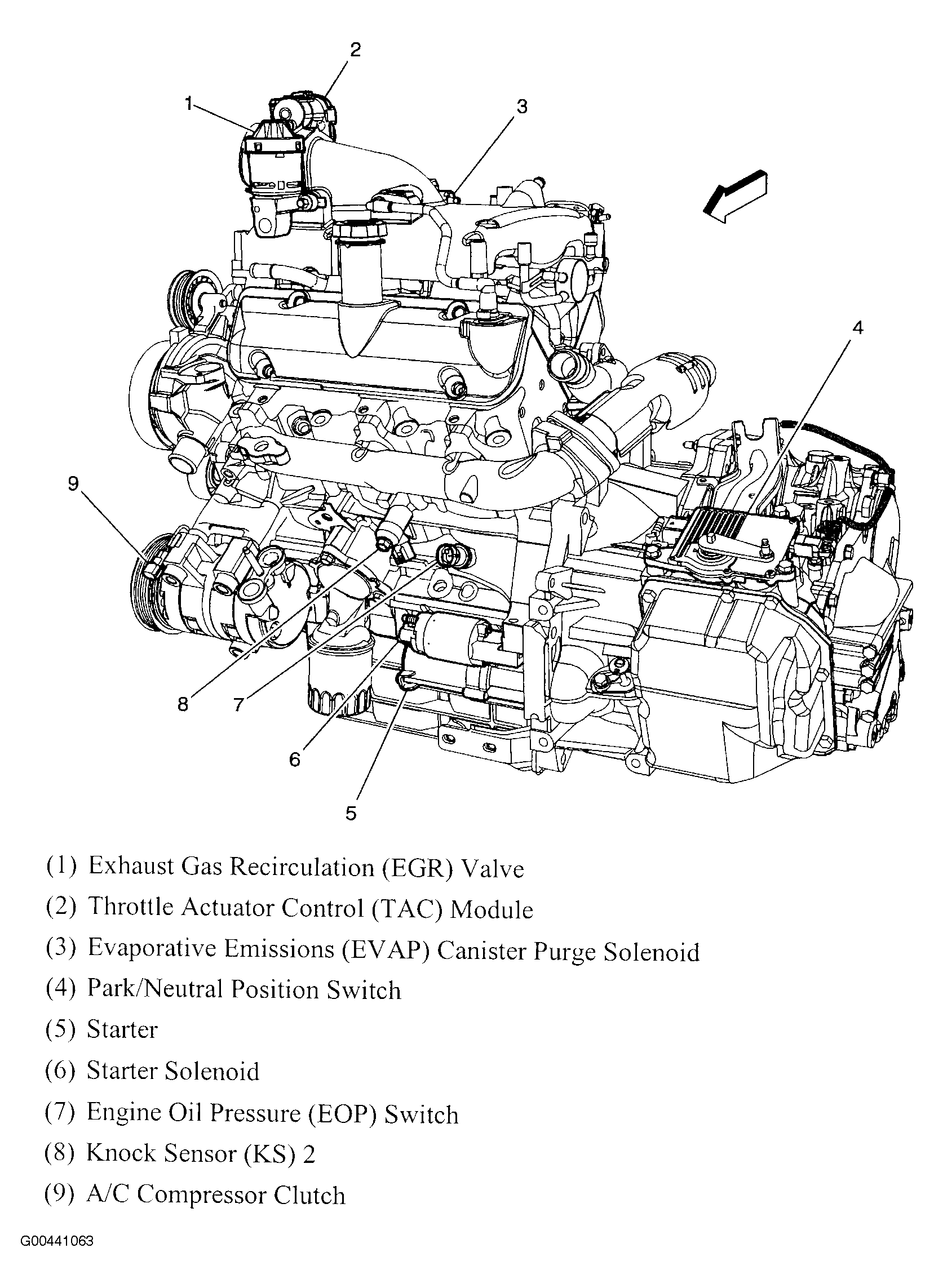

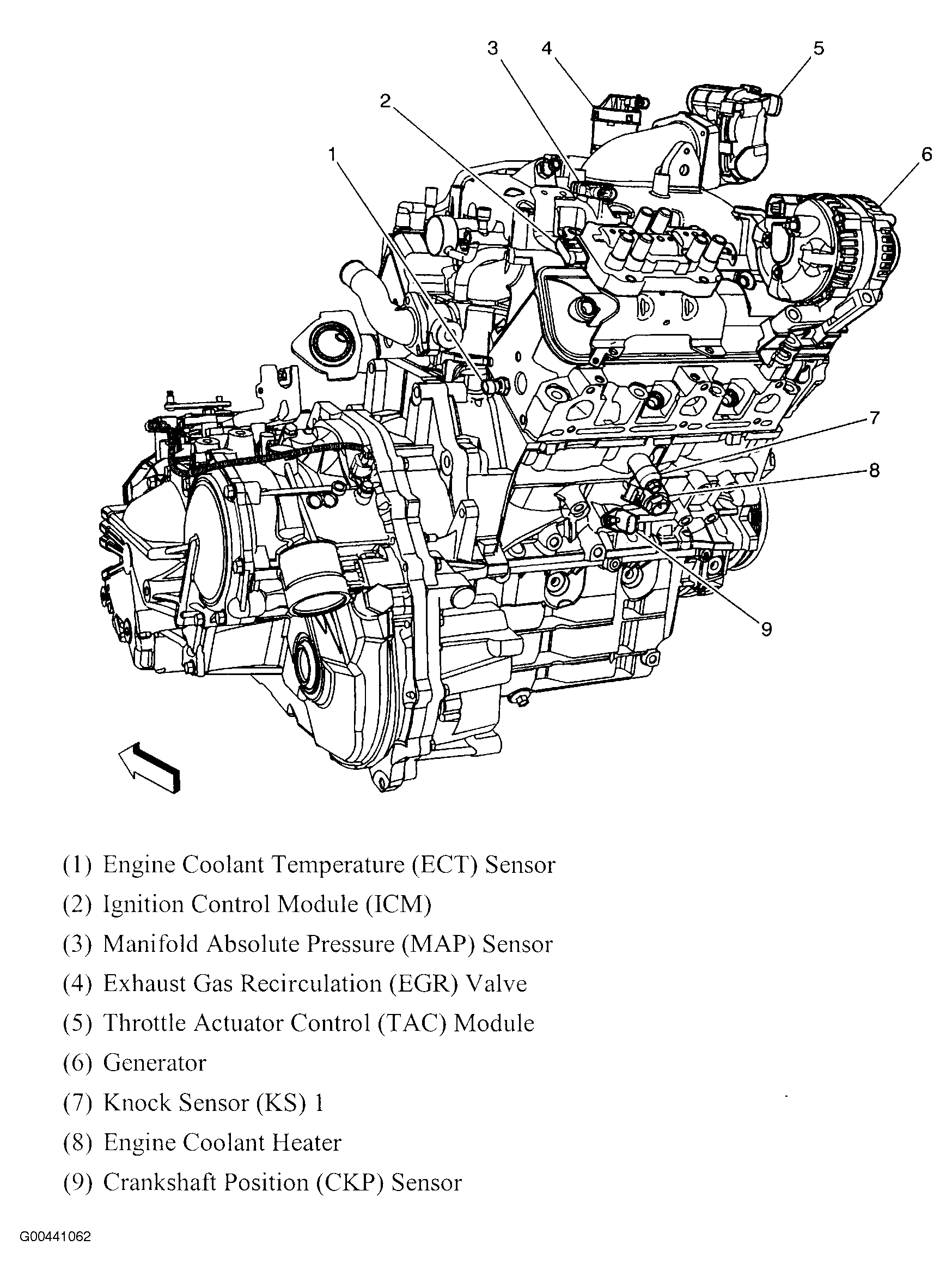

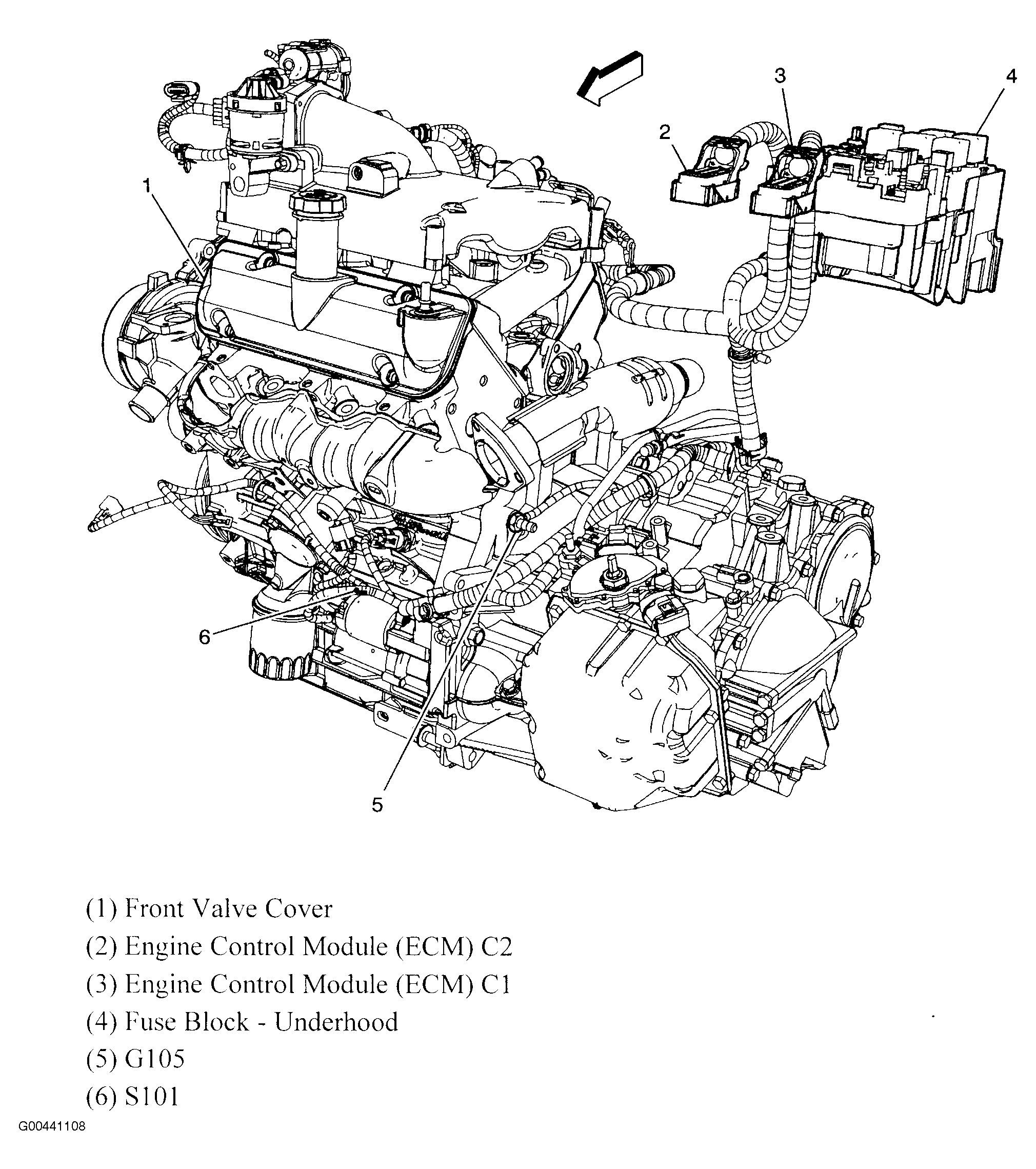

Fig 22: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 23: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

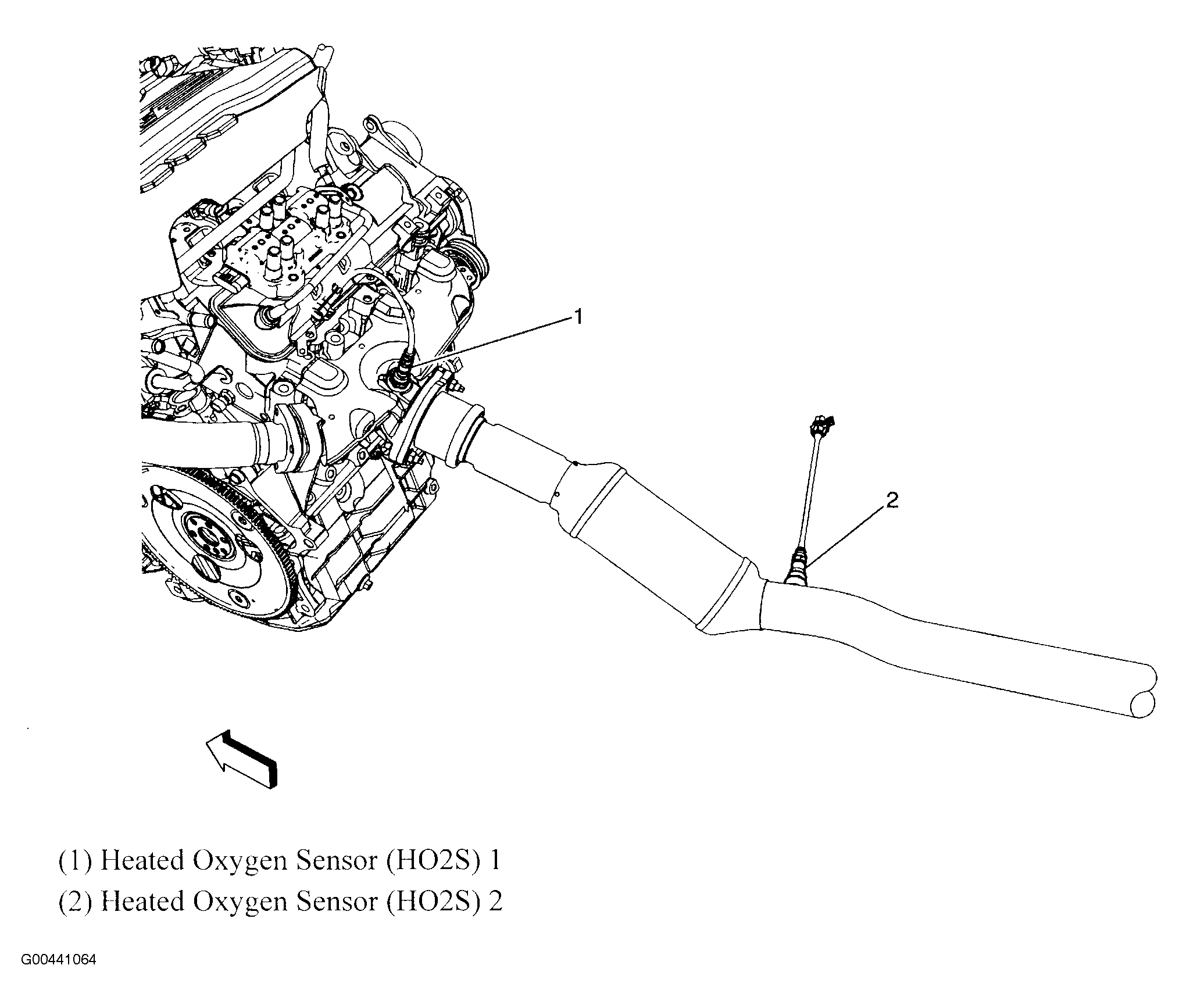

Fig 24: Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.

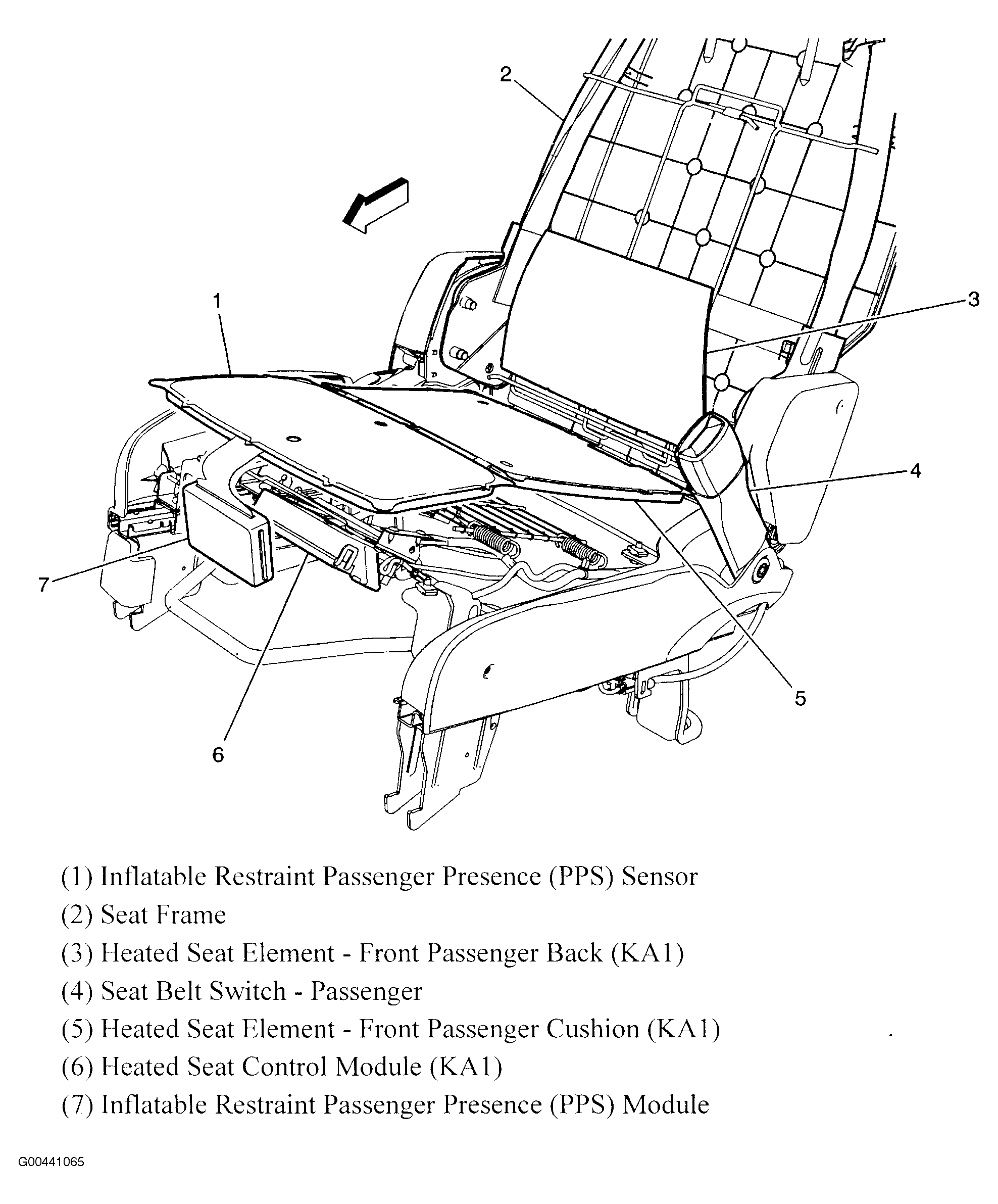

Fig 25: Passenger Seat (Manual)
Courtesy of GENERAL MOTORS CORP.

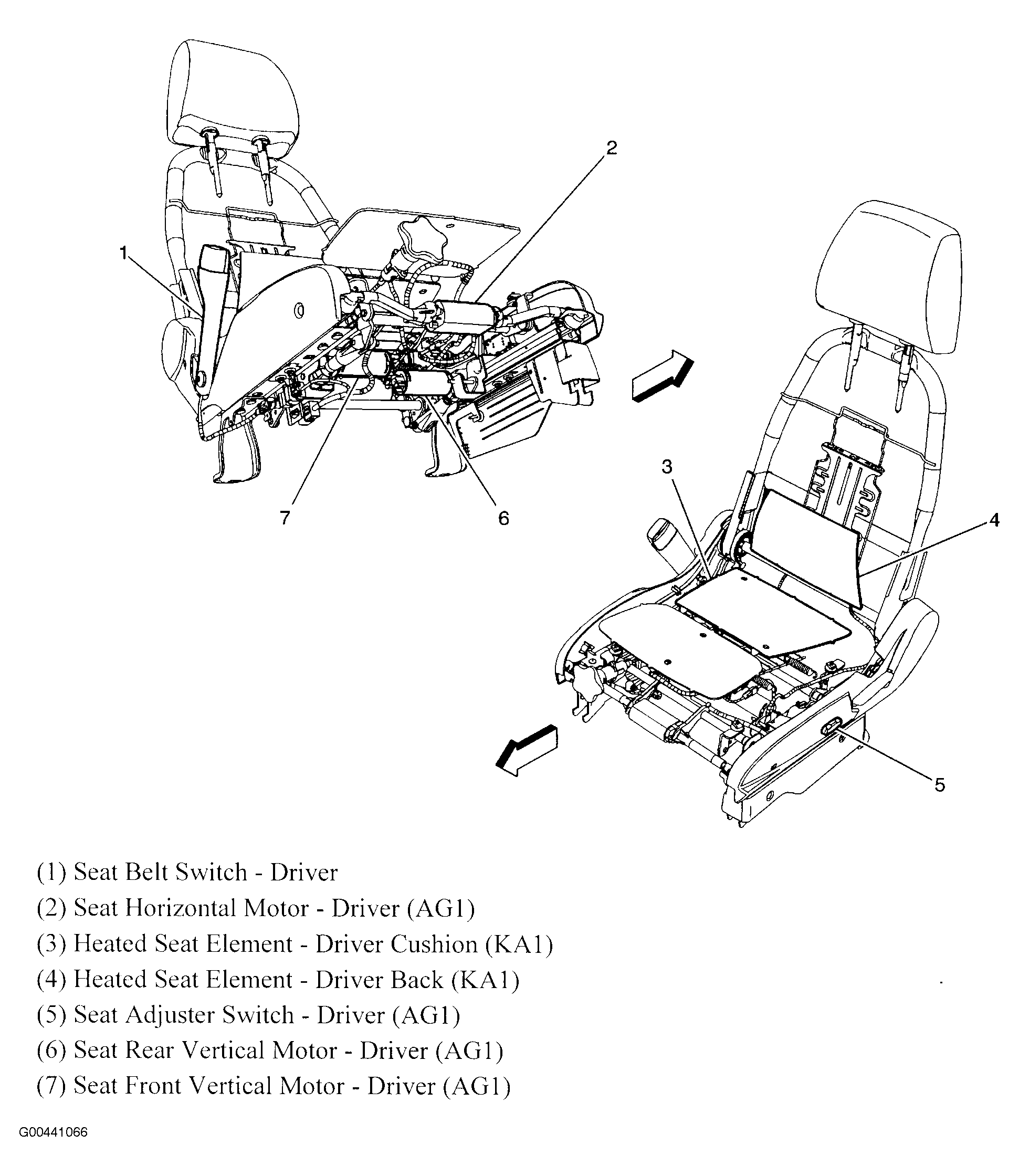

Fig 26: Driver Seat
Courtesy of GENERAL MOTORS CORP.

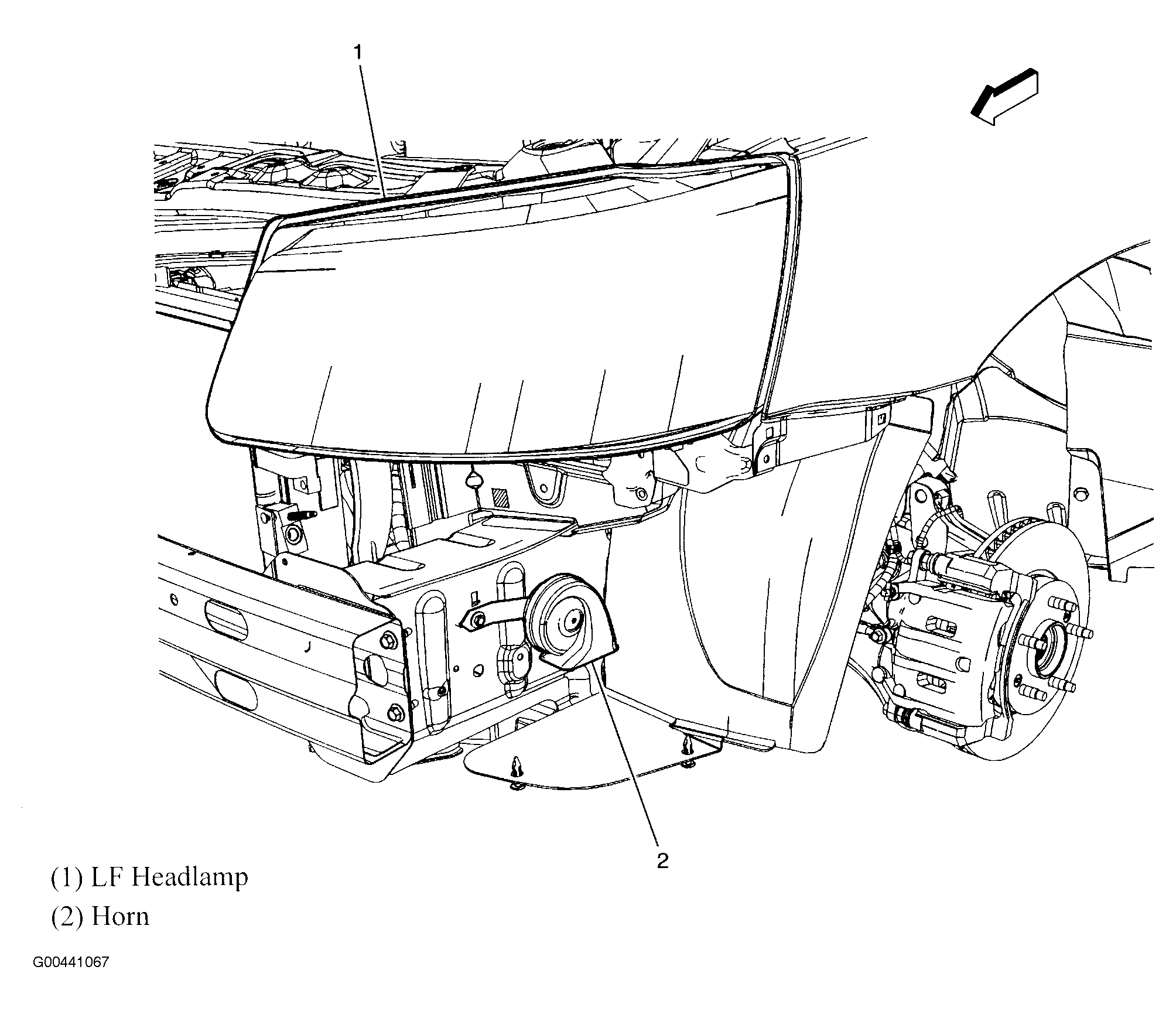

Fig 27: Below Left Front Headlamp
Courtesy of GENERAL MOTORS CORP.

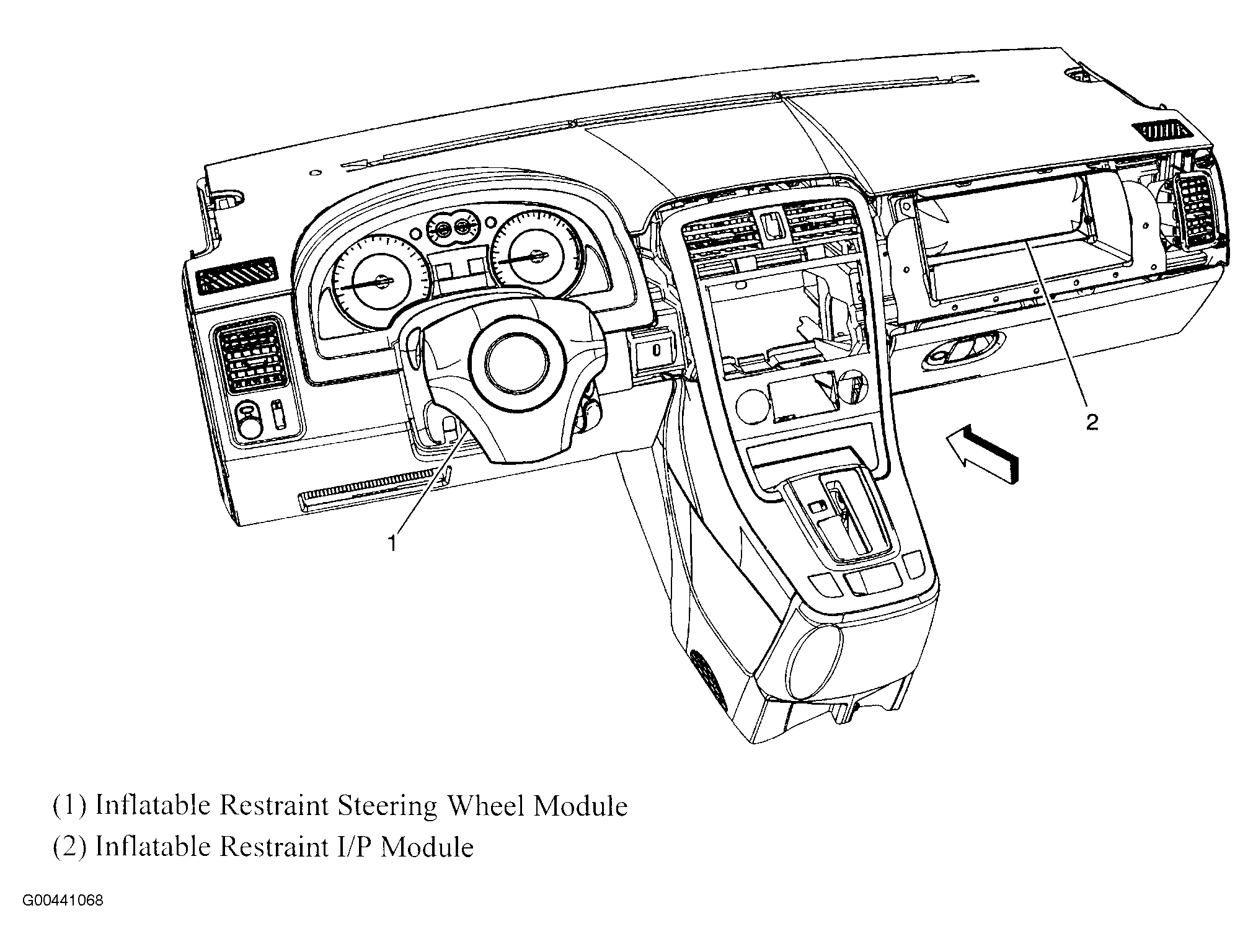

Fig 28: Front Air Bags
Courtesy of GENERAL MOTORS CORP.

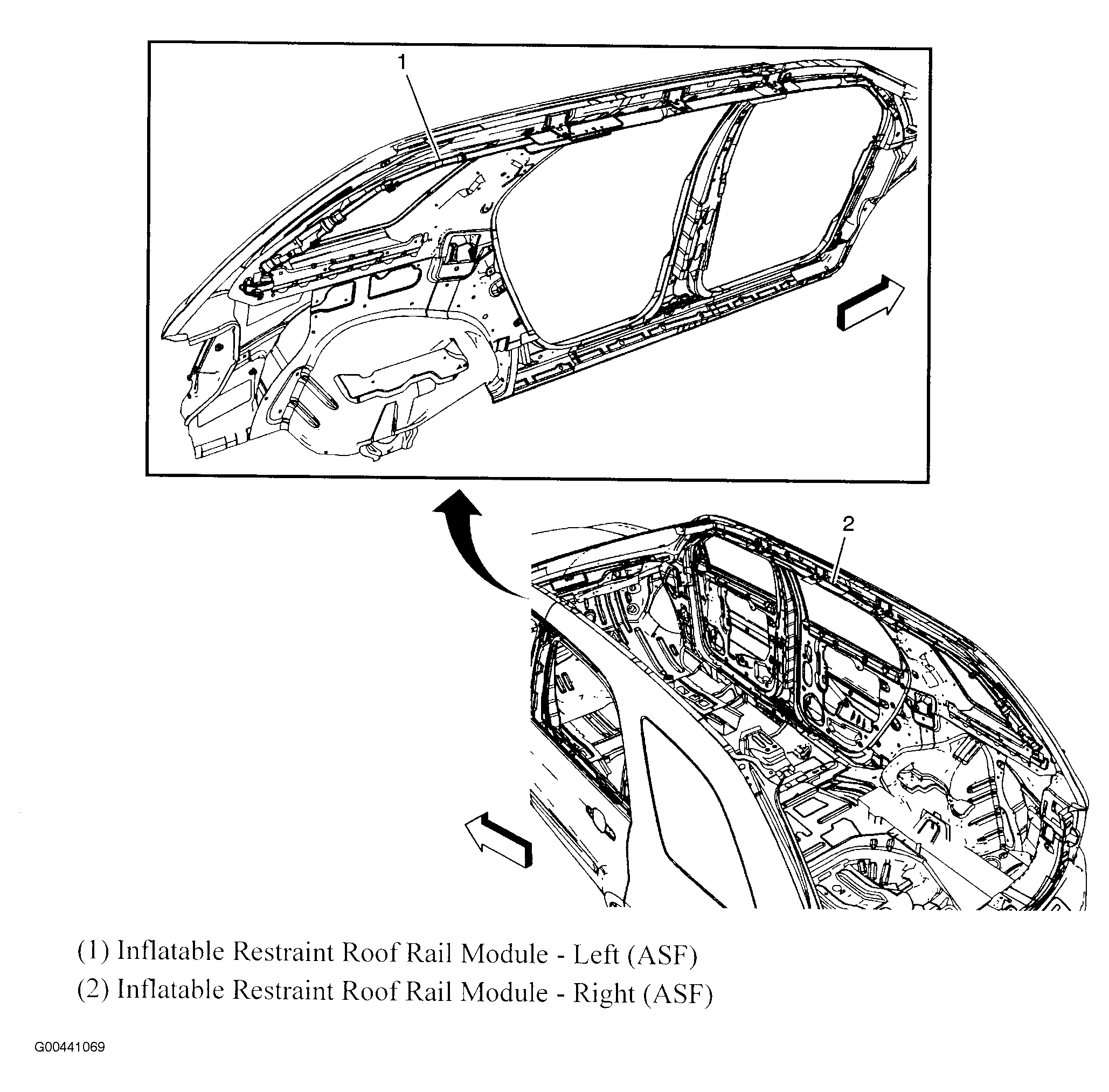

Fig 29: Roof Rail Air Bags
Courtesy of GENERAL MOTORS CORP.

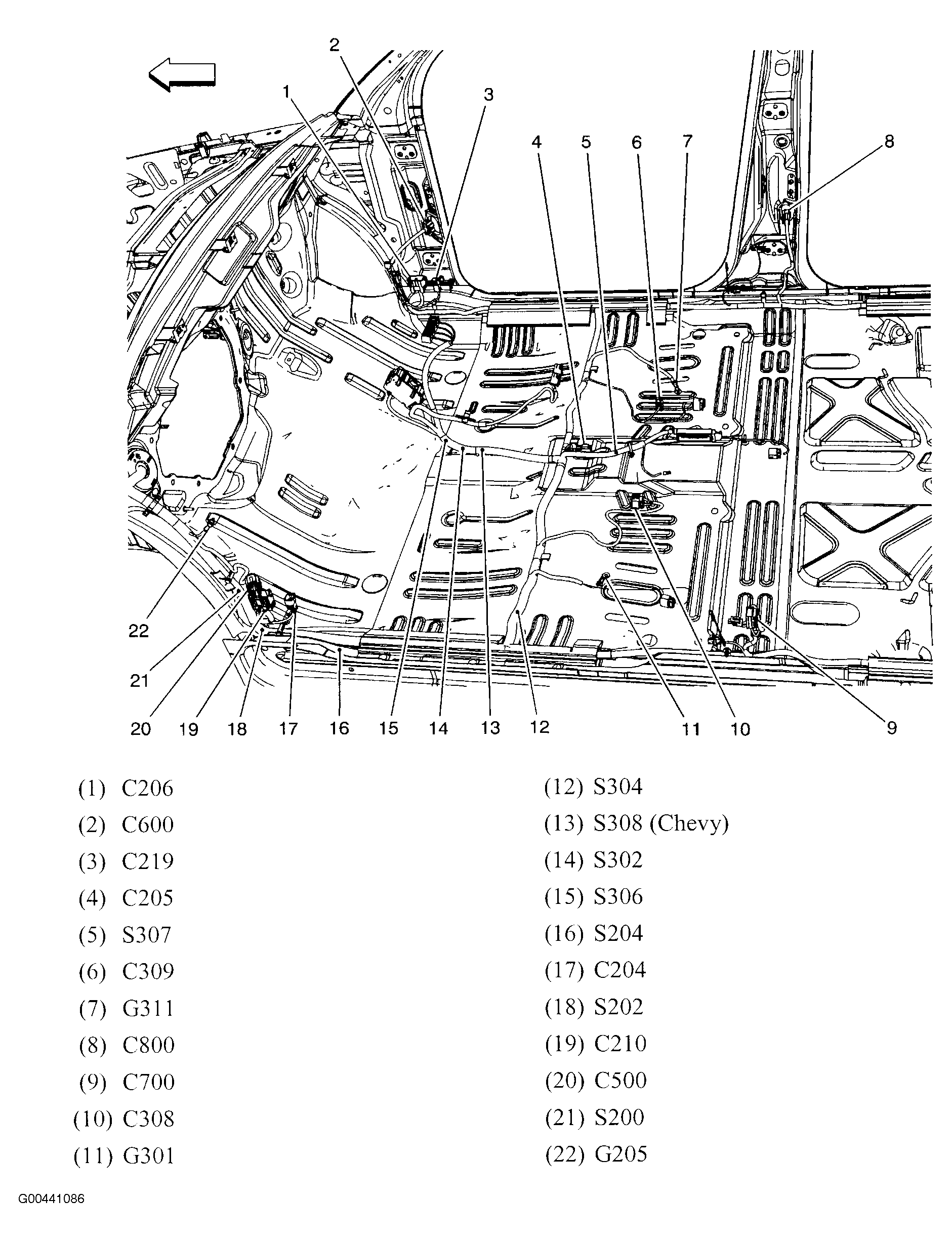

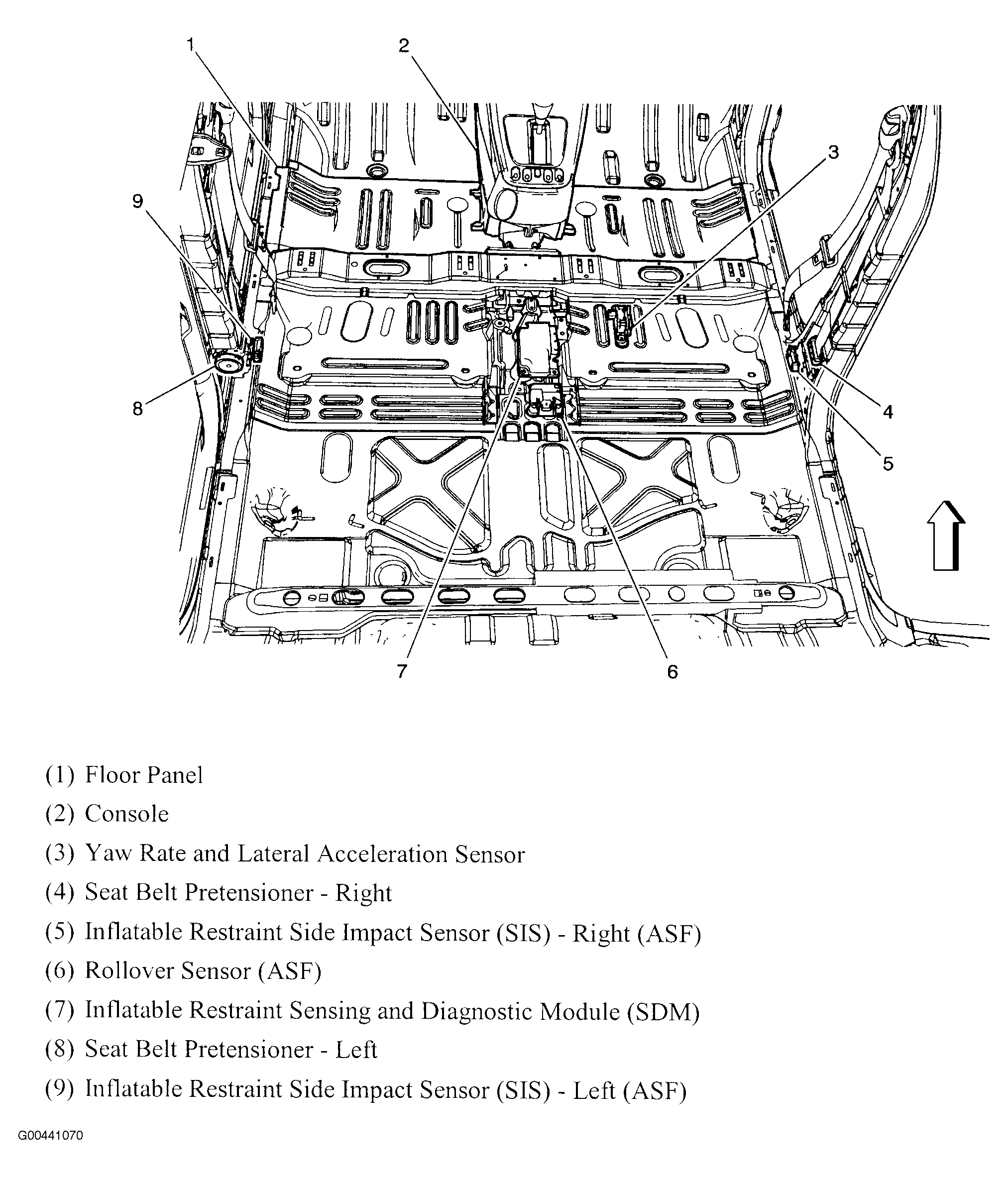

Fig 30: Center Of Floor
Courtesy of GENERAL MOTORS CORP.

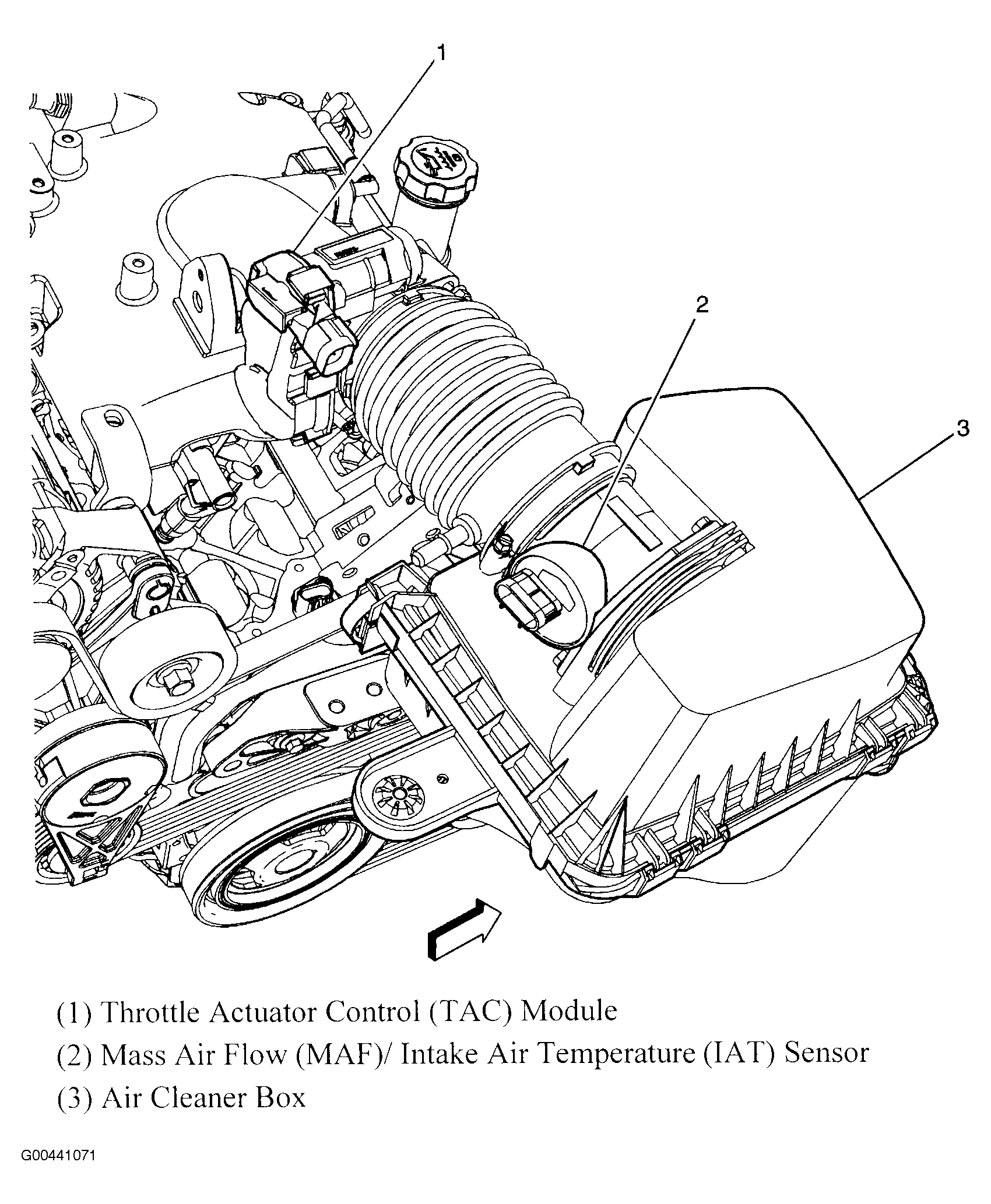

Fig 31: Air Induction Components
Courtesy of GENERAL MOTORS CORP.

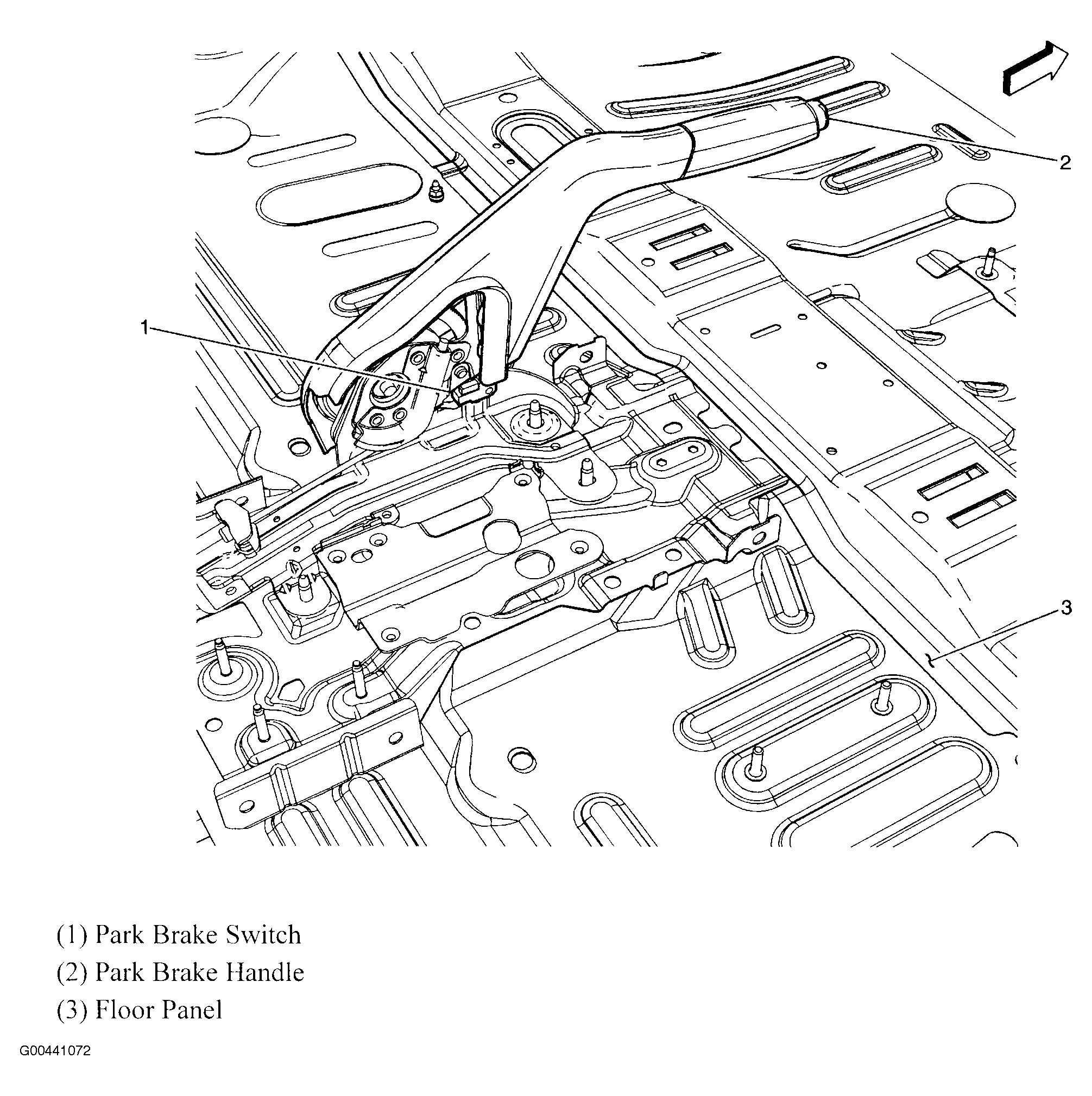

Fig 32: Park Brake Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 33: Near Rear Differential
Courtesy of GENERAL MOTORS CORP.

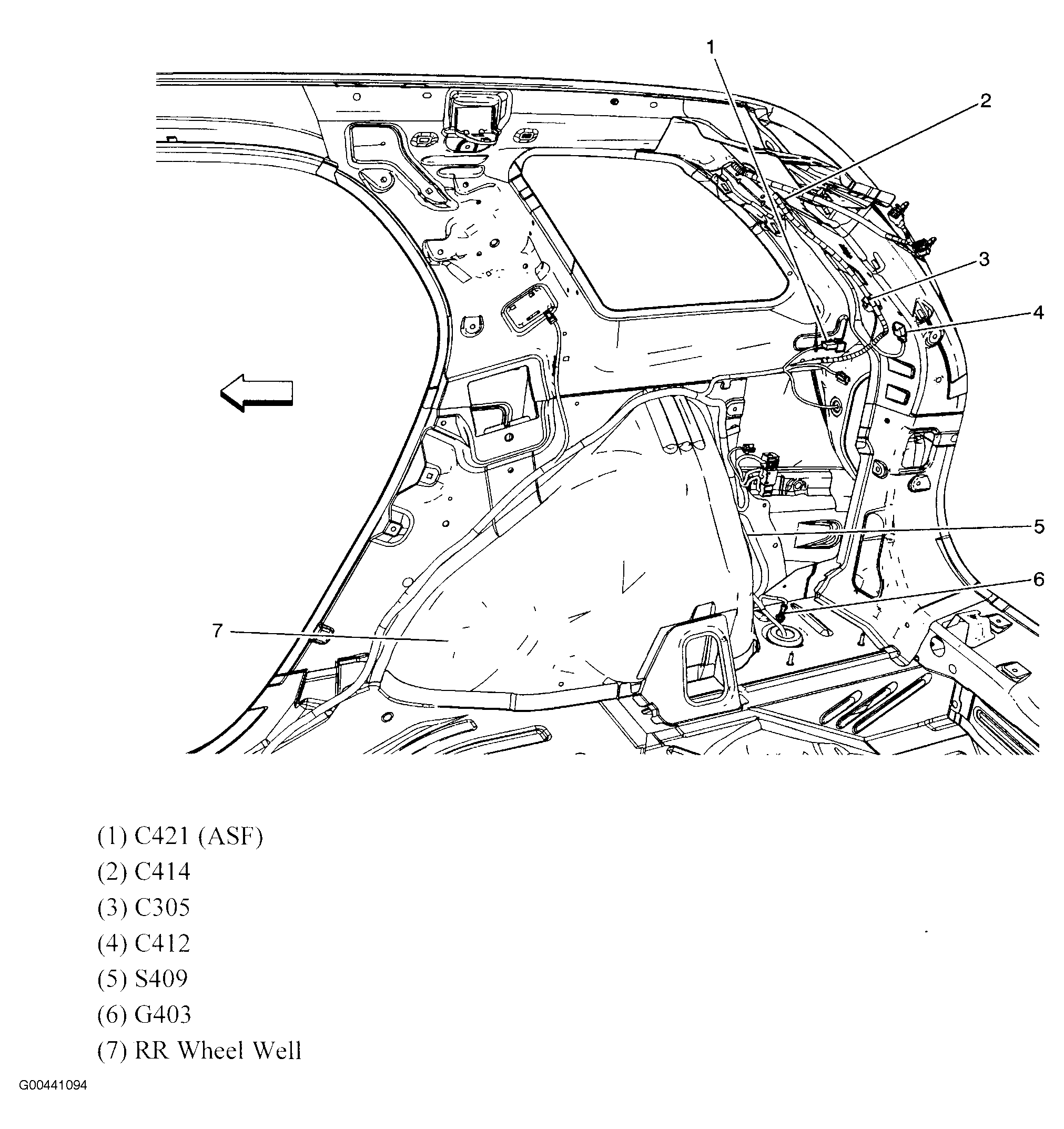

Fig 34: Below Right Rear Window
Courtesy of GENERAL MOTORS CORP.
Fig 35: Behind Dash
Courtesy of GENERAL MOTORS CORP.

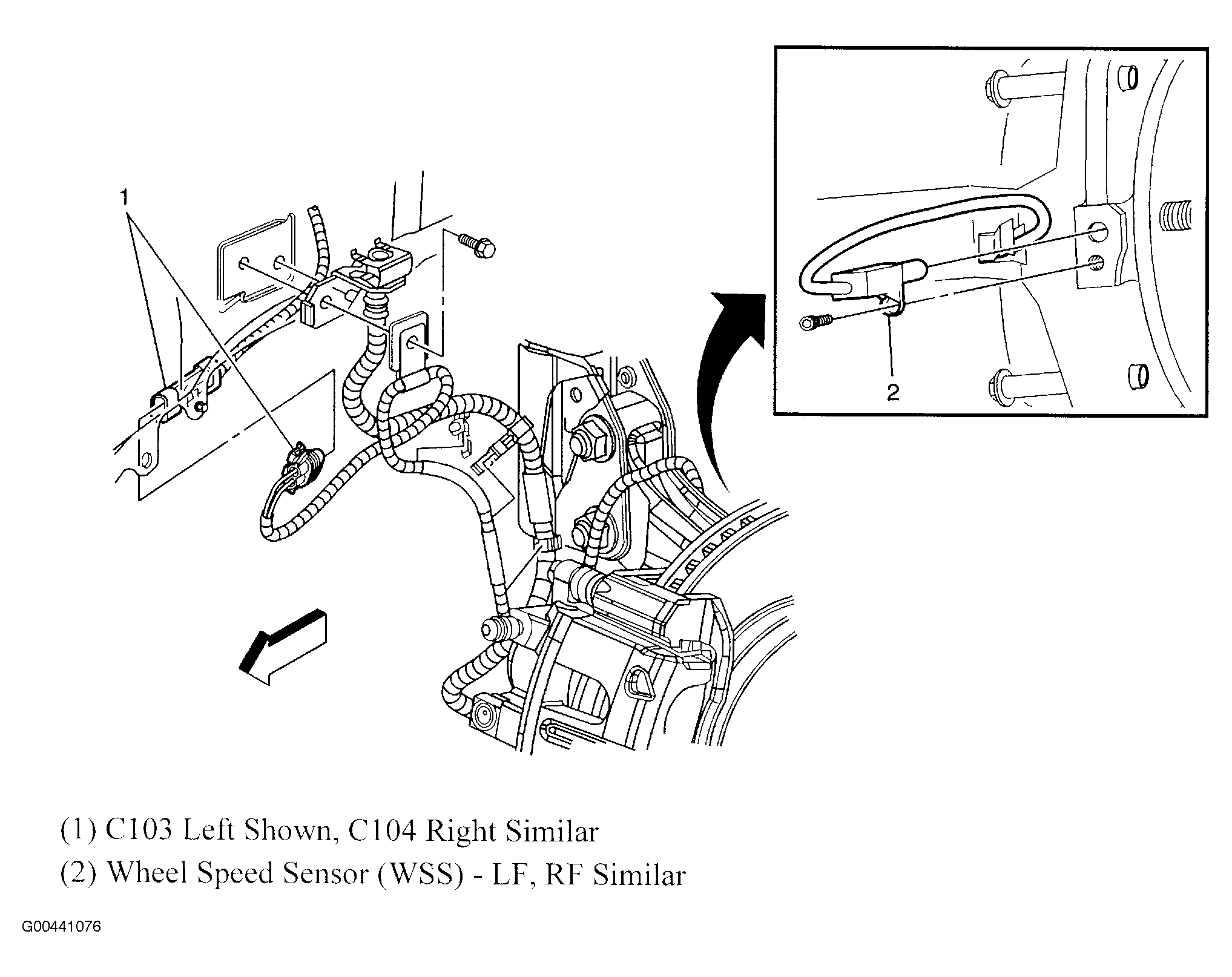

Fig 36: Left Front Suspension
Courtesy of GENERAL MOTORS CORP.

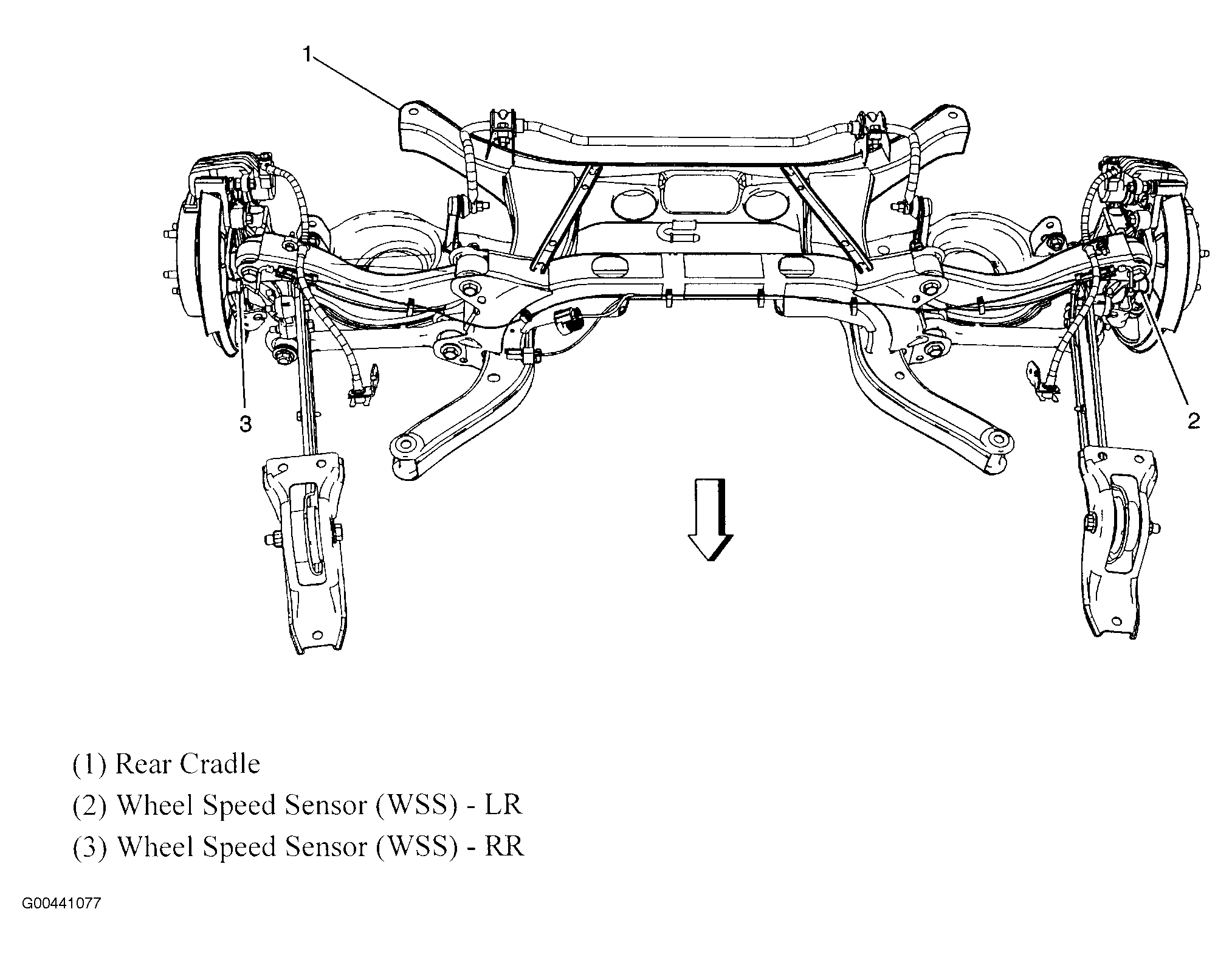

Fig 37: Rear ABS Sensors
Courtesy of GENERAL MOTORS CORP.

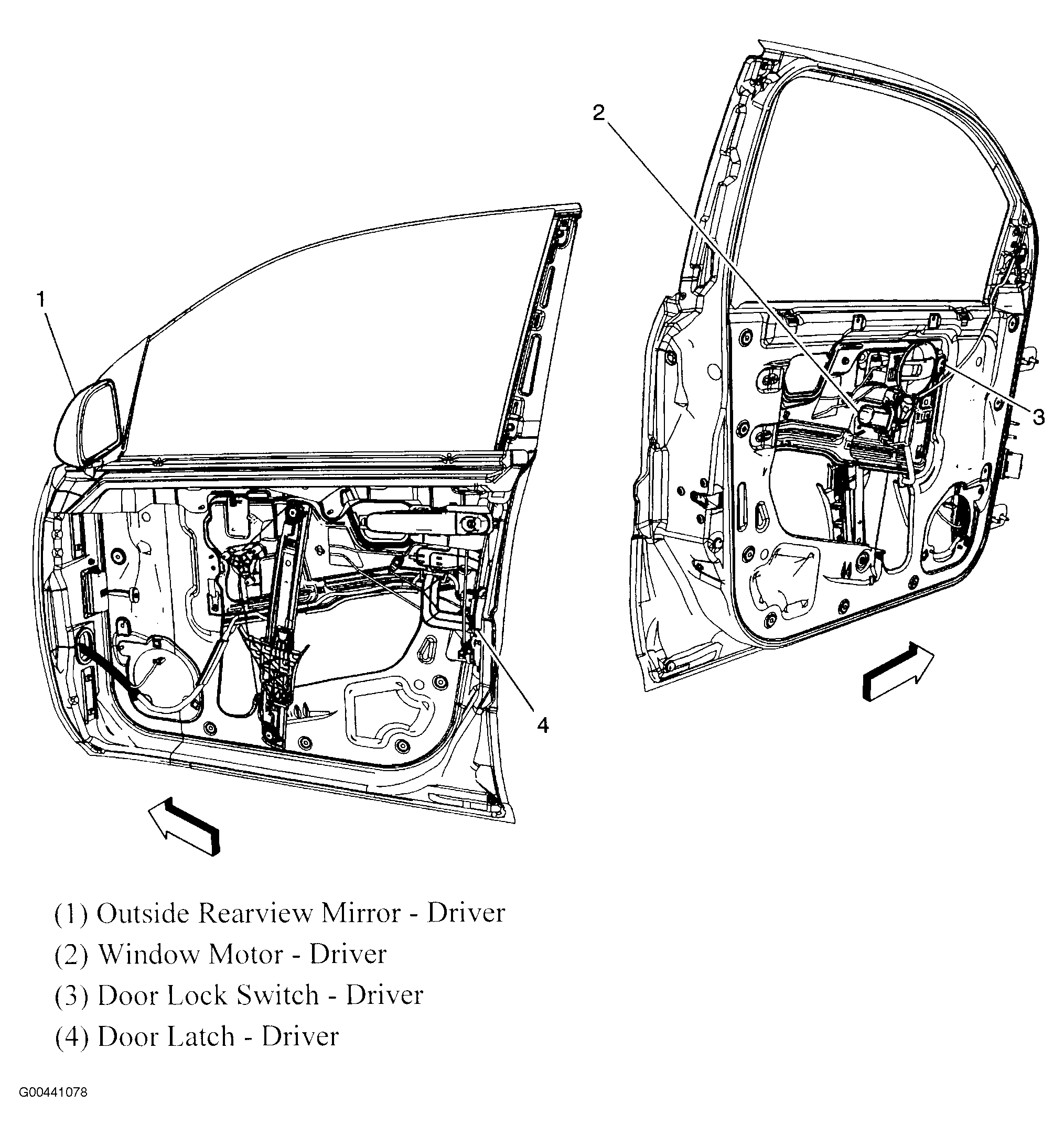

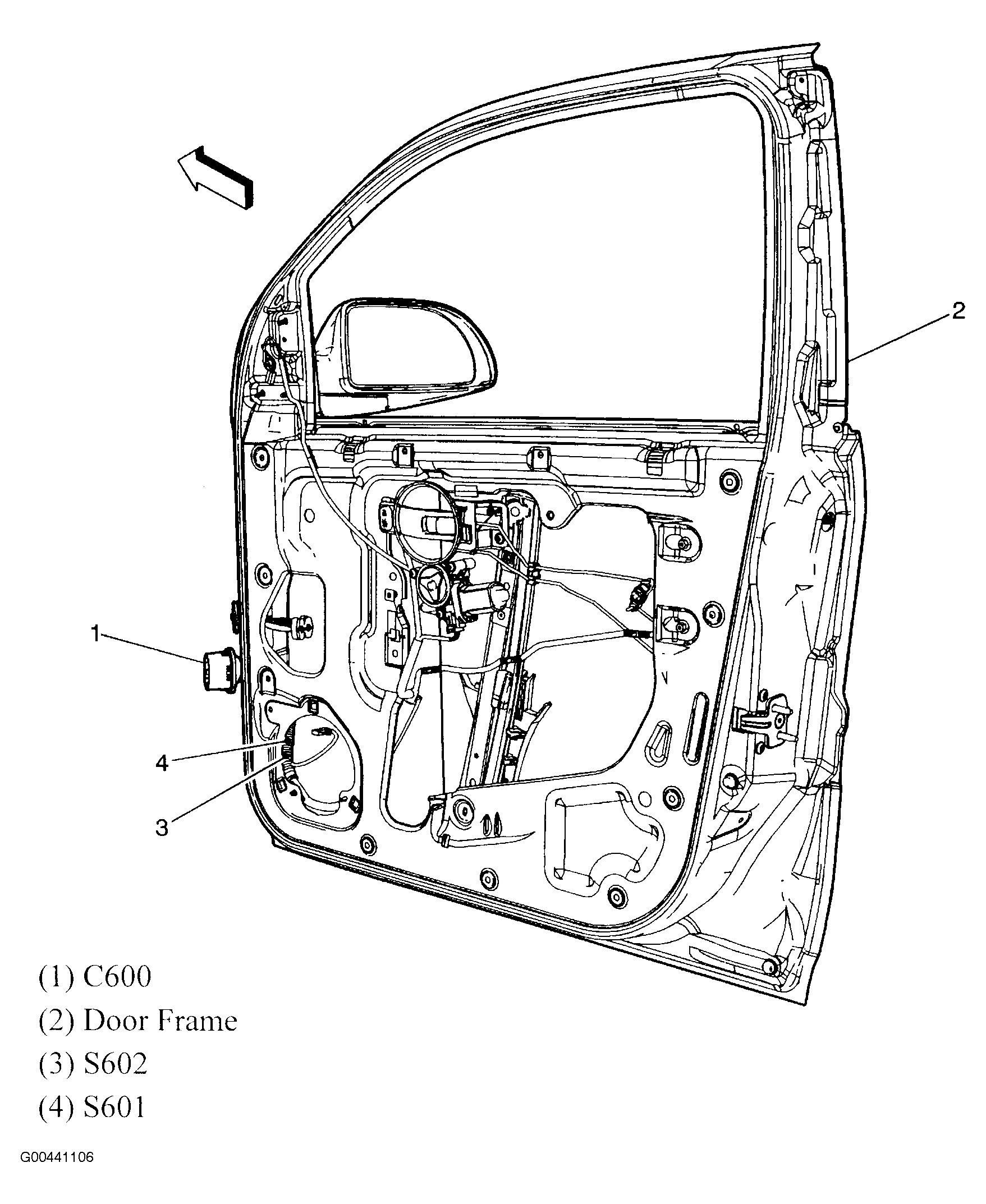

Fig 38: Driver Door
Courtesy of GENERAL MOTORS CORP.

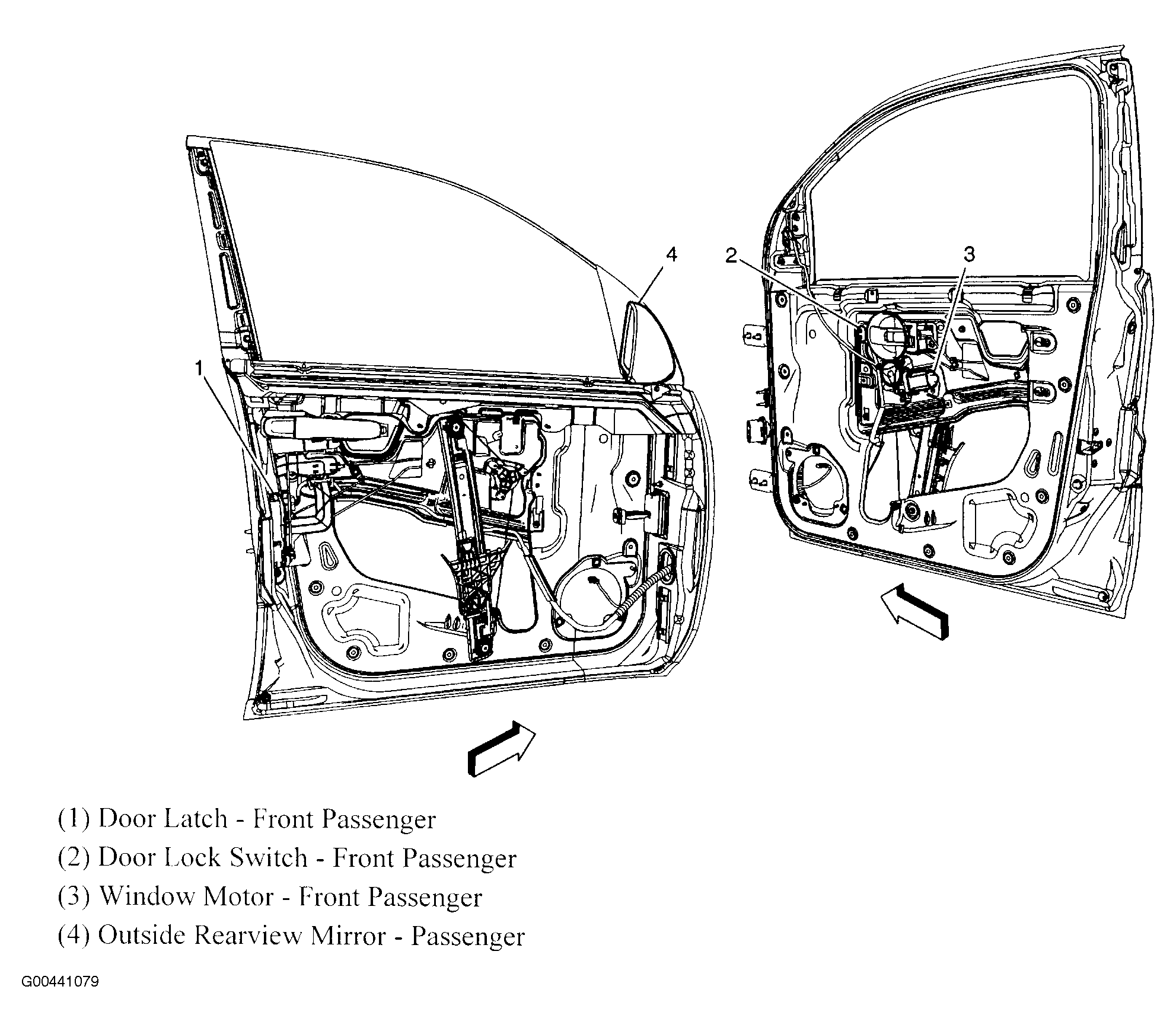

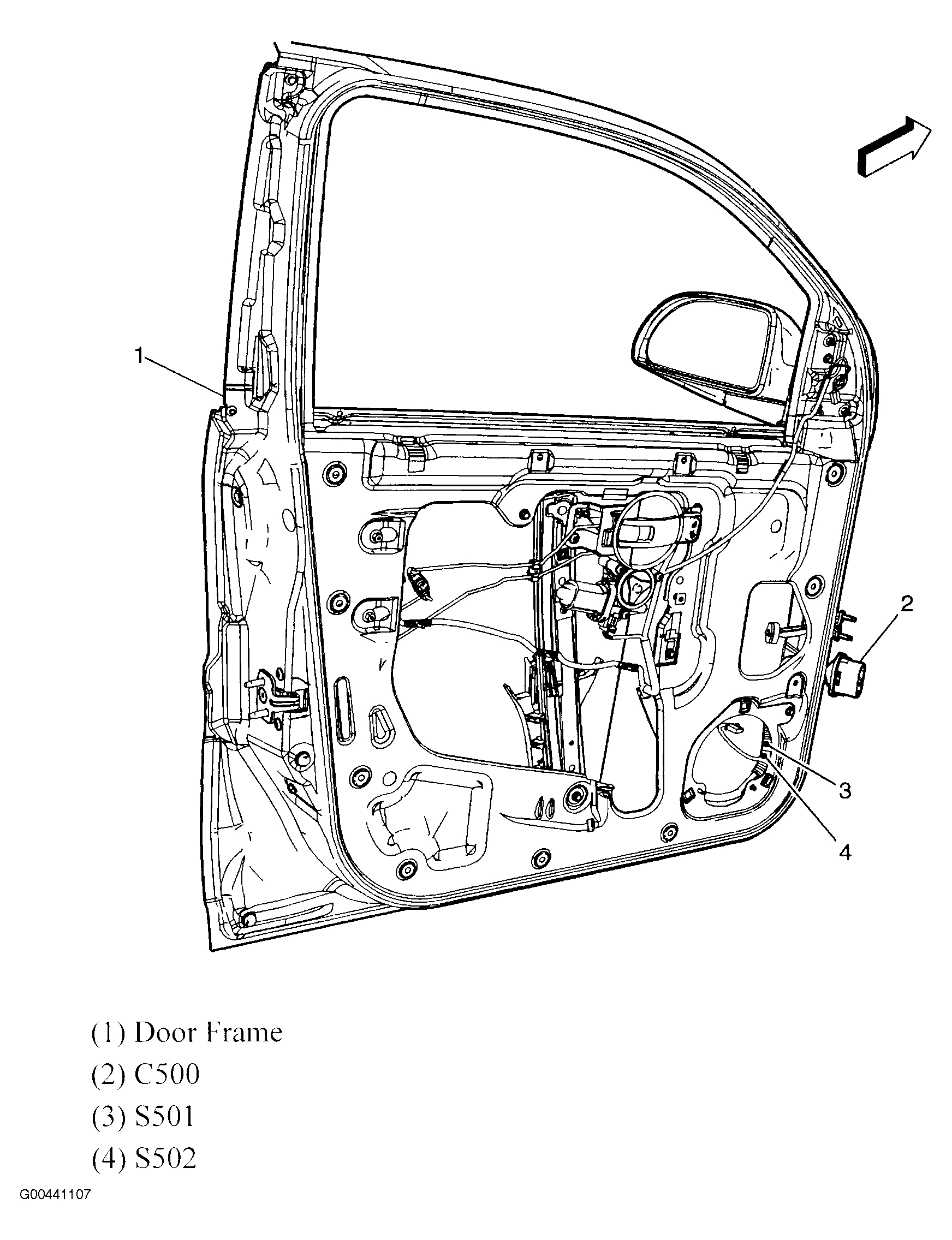

Fig 39: Passenger Door
Courtesy of GENERAL MOTORS CORP.

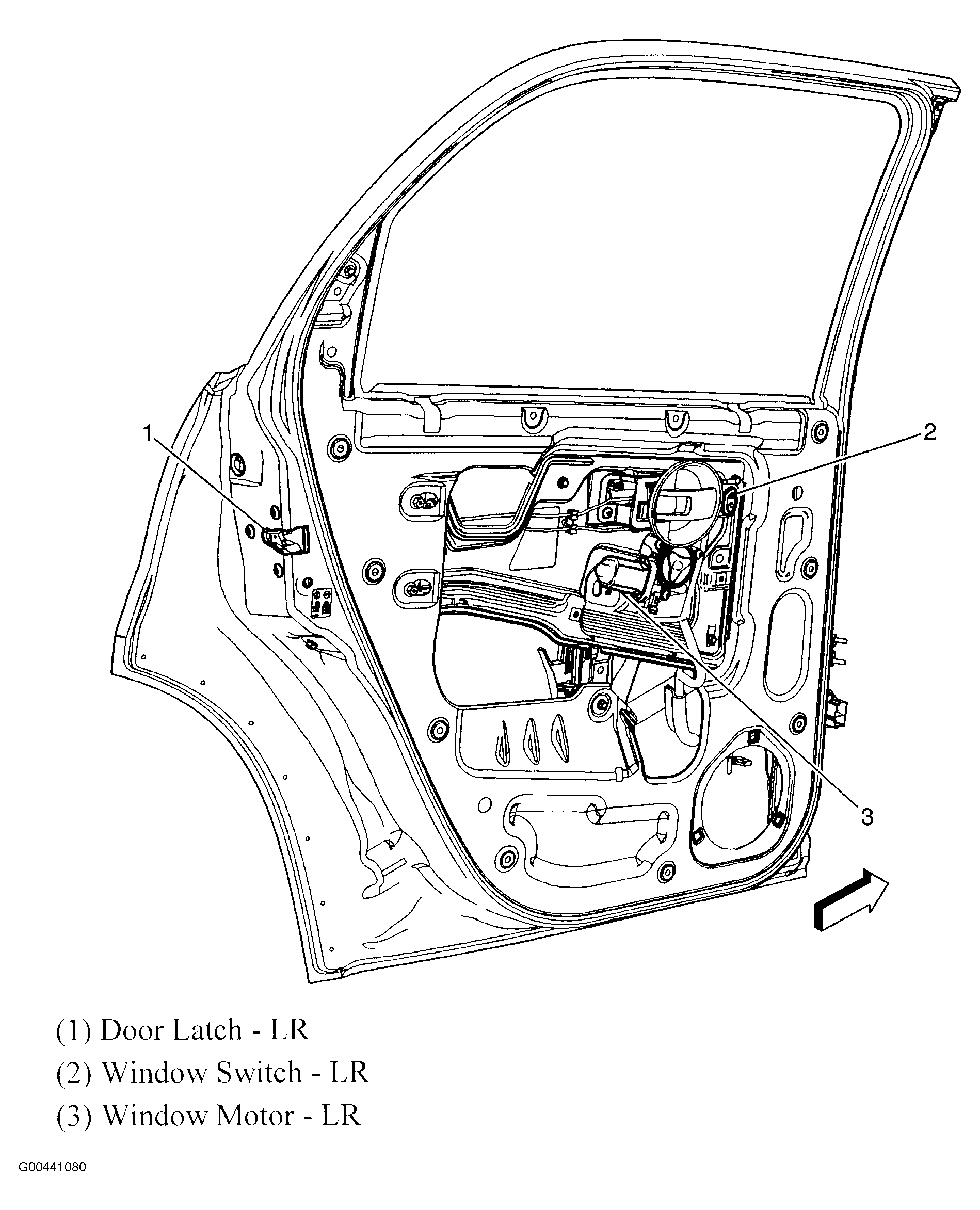

Fig 40: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

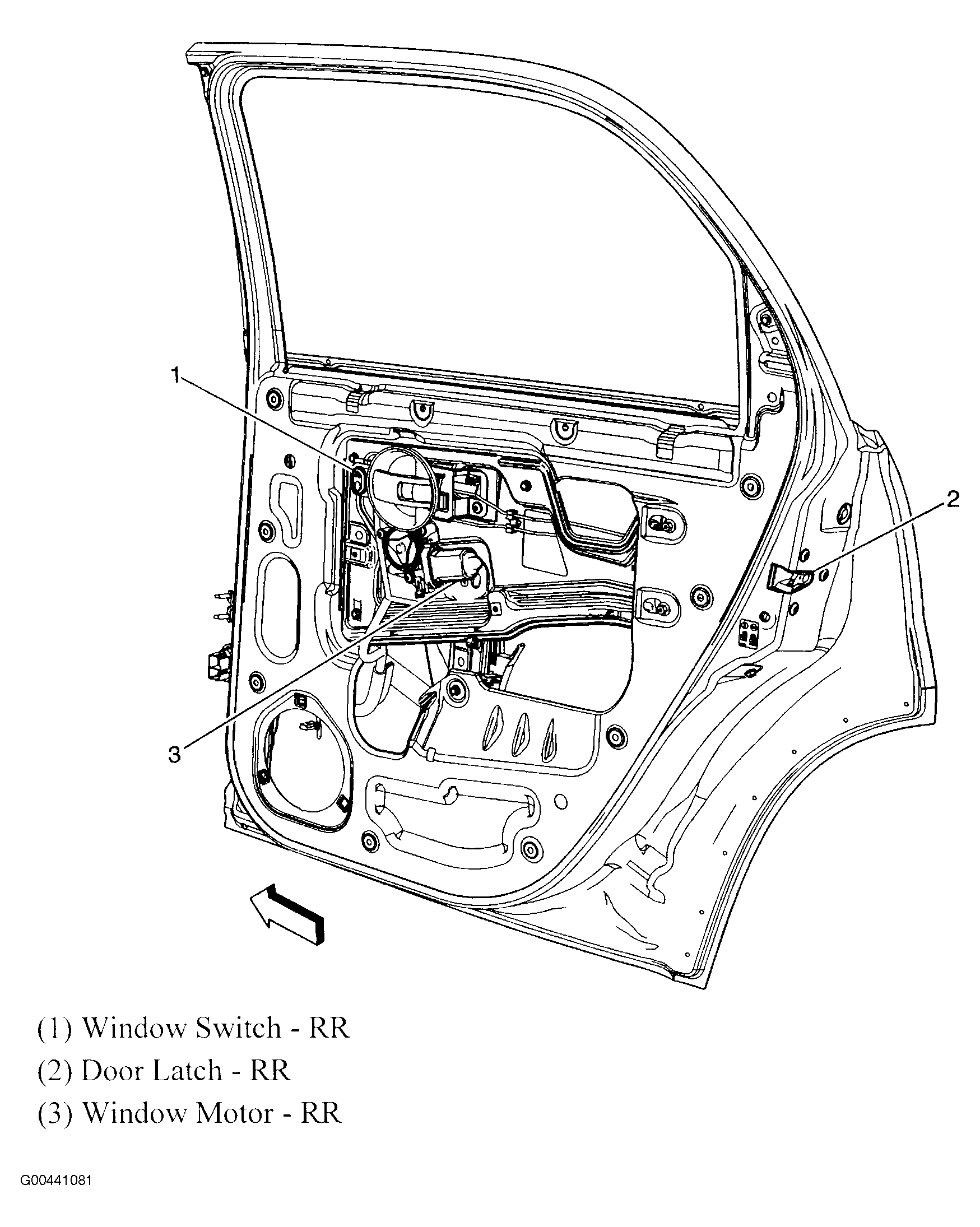

Fig 41: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 42: Forward Lamp Harness (Chevy)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Forward Lamp Harness (Pontiac)
Courtesy of GENERAL MOTORS CORP.

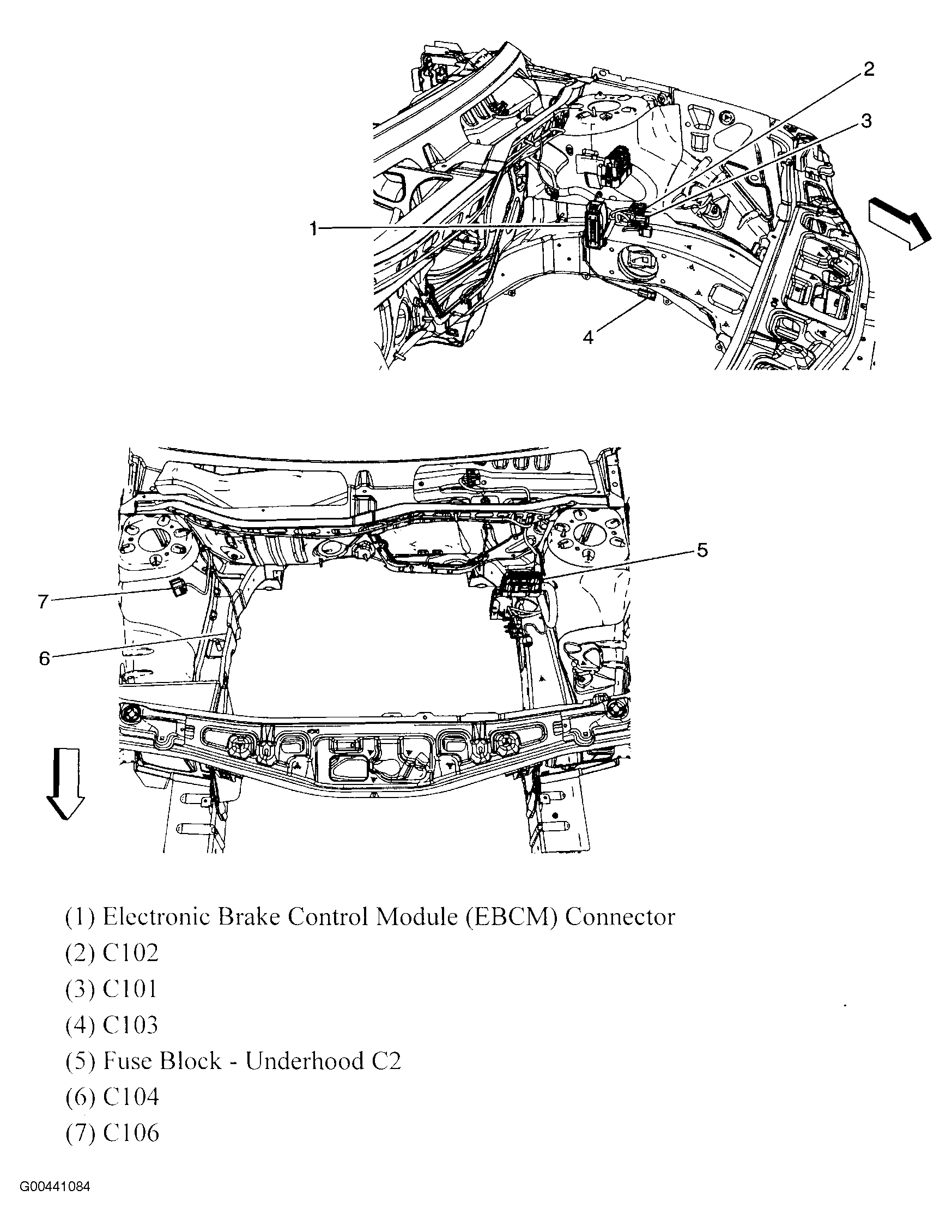

Fig 44: Front Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 45: Rear Engine Harness
Courtesy of GENERAL MOTORS CORP.
Fig 46: Passenger Compartment Body Harness
Courtesy of GENERAL MOTORS CORP.

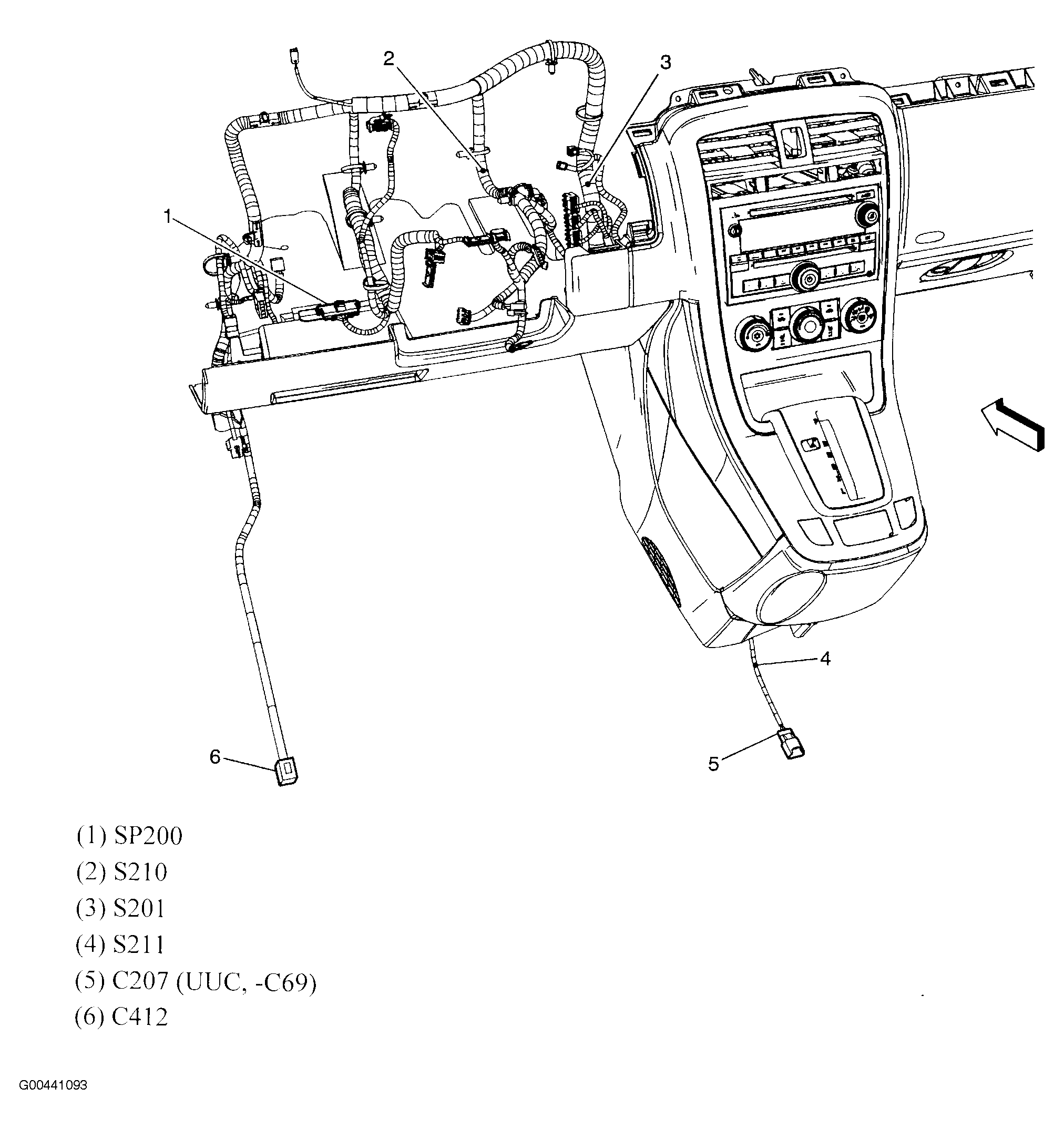

Fig 47: Passenger Side Dash Harness
Courtesy of GENERAL MOTORS CORP.

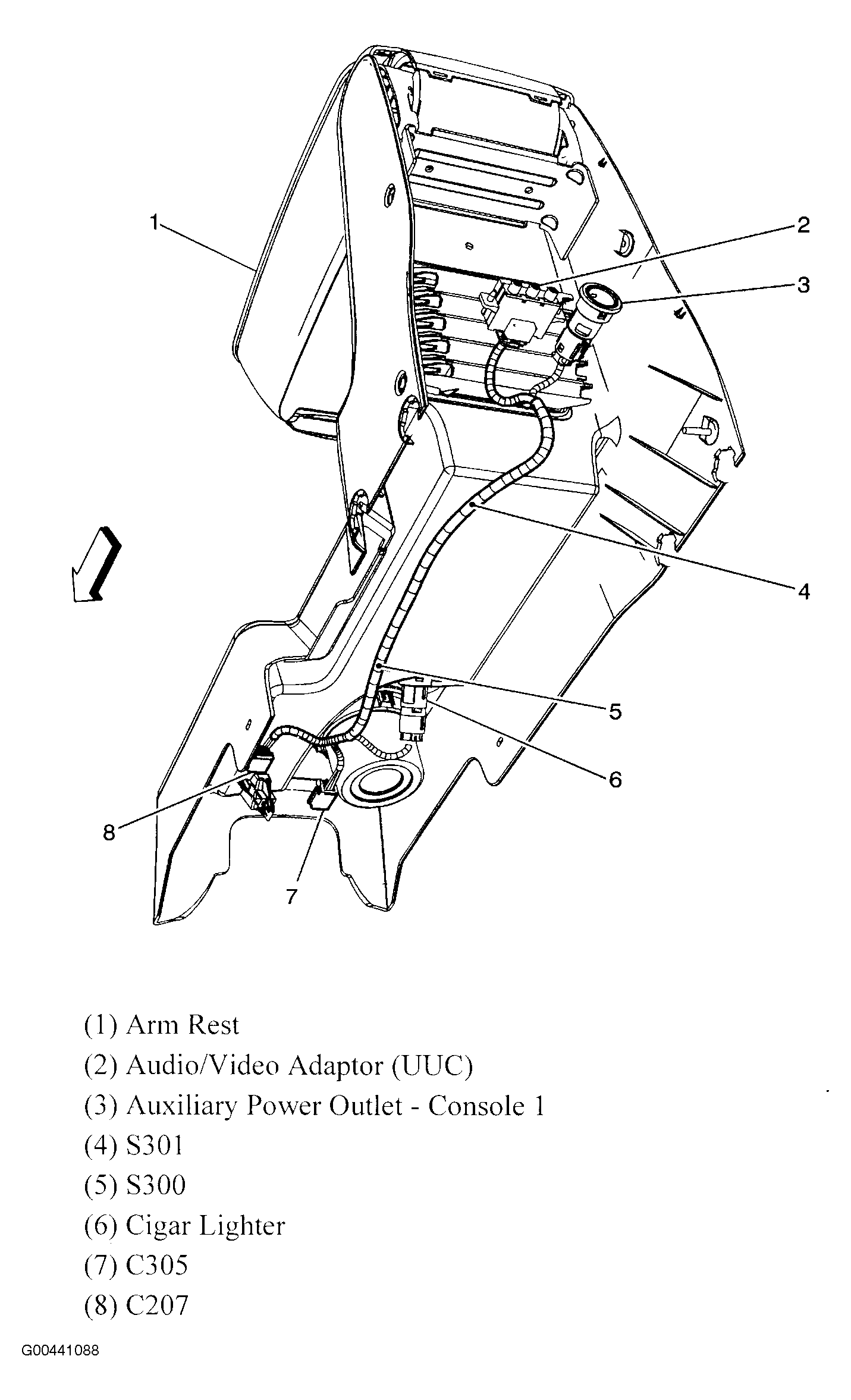

Fig 48: Console Harness
Courtesy of GENERAL MOTORS CORP.

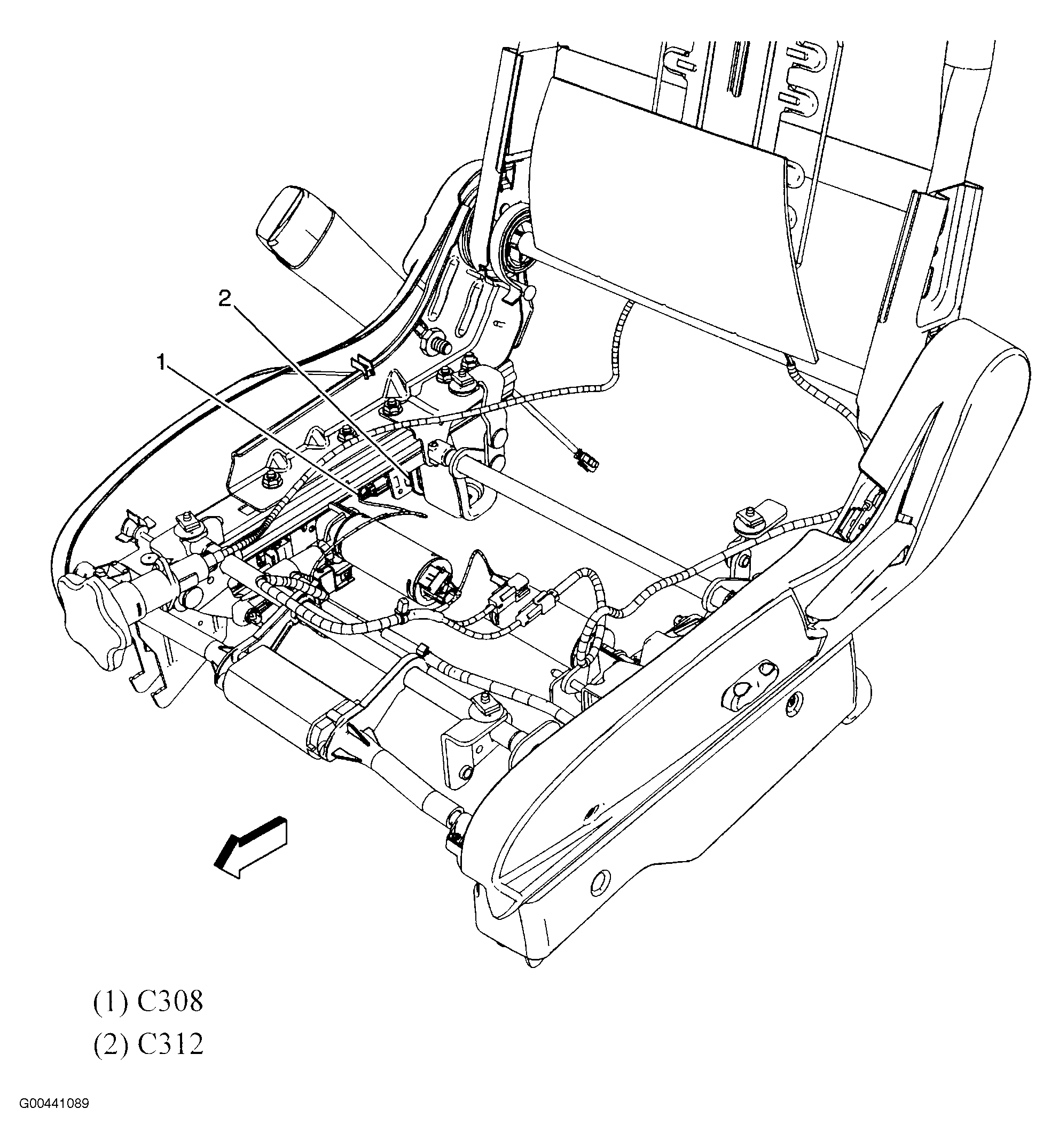

Fig 49: Driver Seat Harness
Courtesy of GENERAL MOTORS CORP.
Fig 50: Headliner Harness
Courtesy of GENERAL MOTORS CORP.

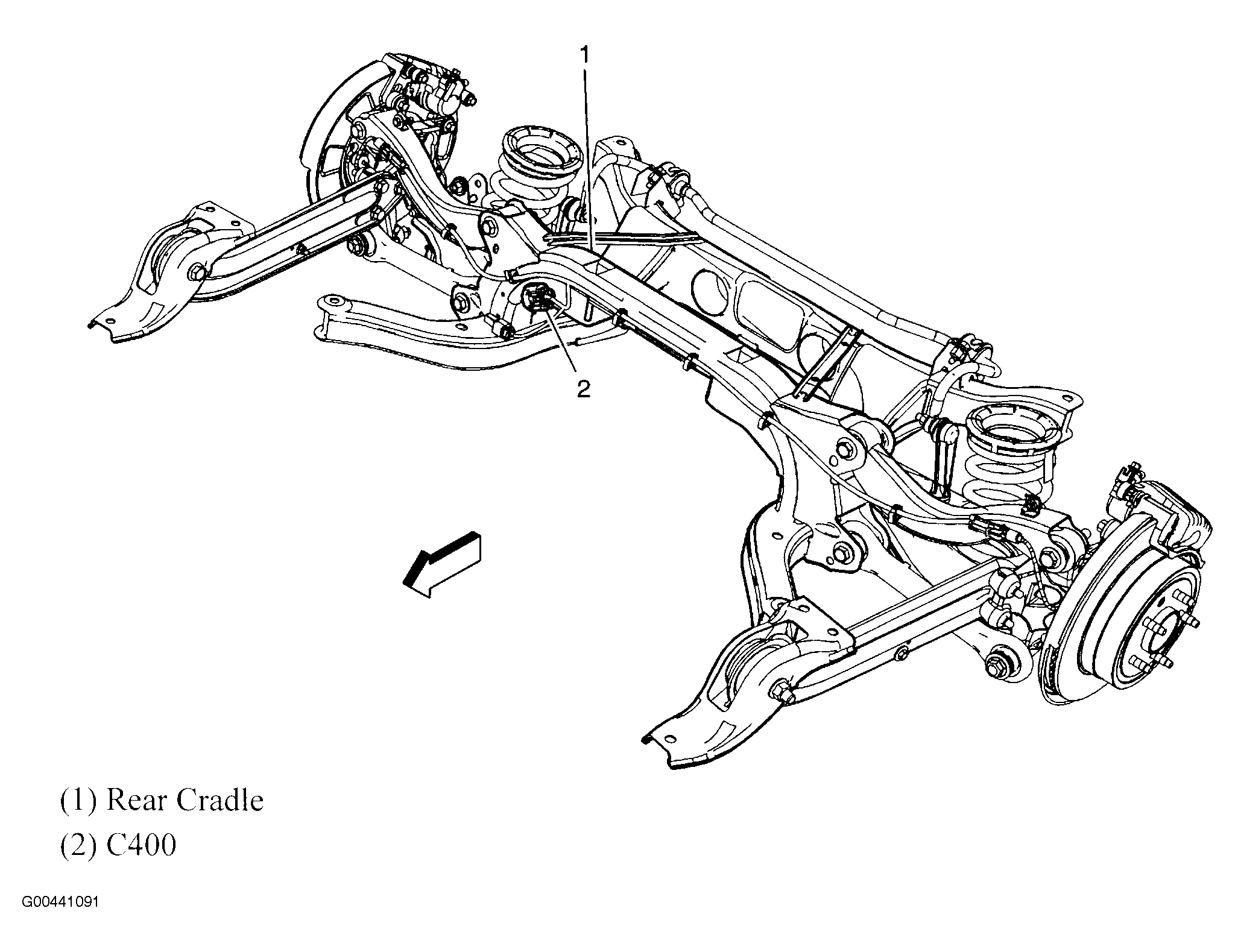

Fig 51: Chassis Harness
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Rear Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 53: Driver Side Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Rear Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 55: Trailer Harness
Courtesy of GENERAL MOTORS CORP.

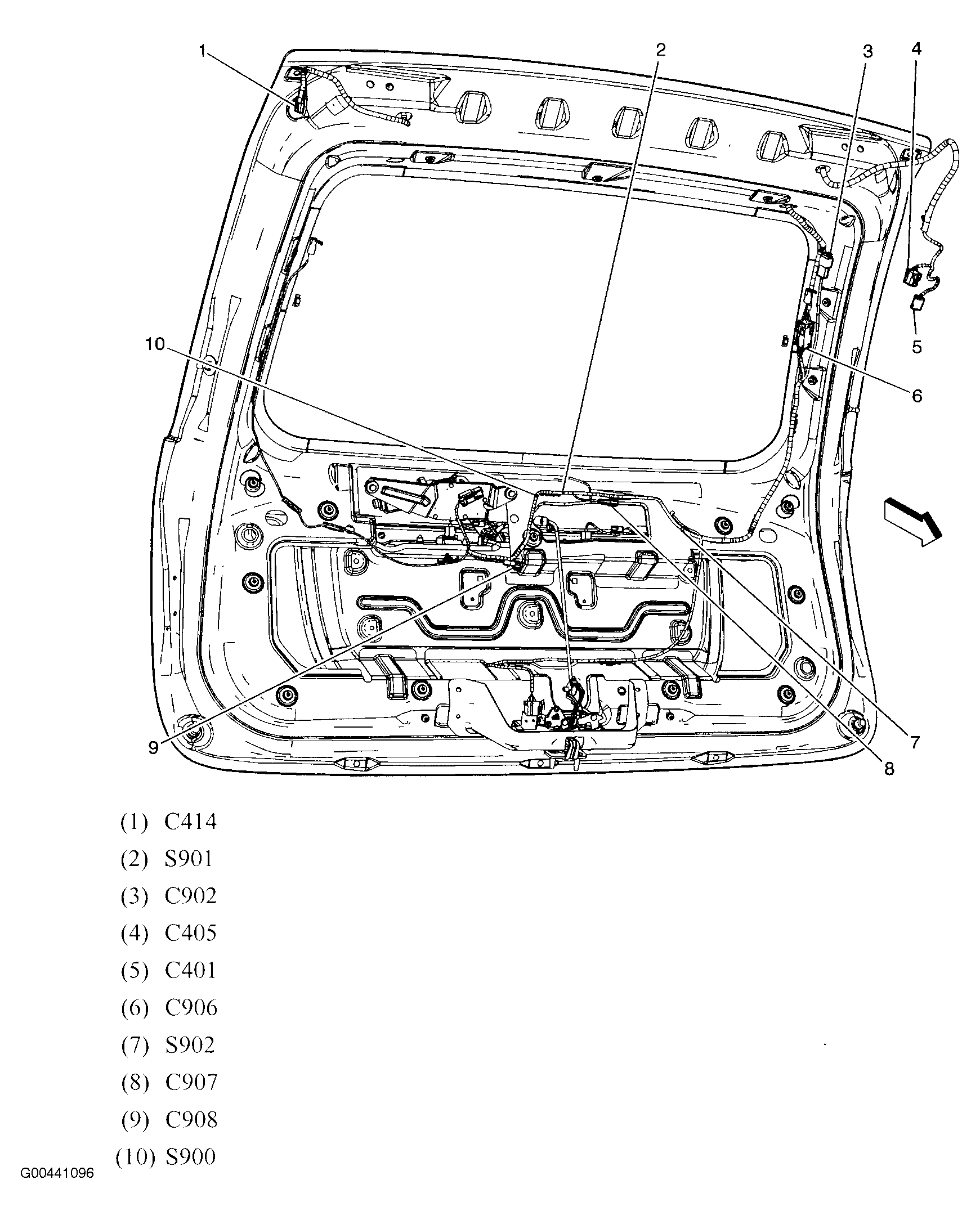

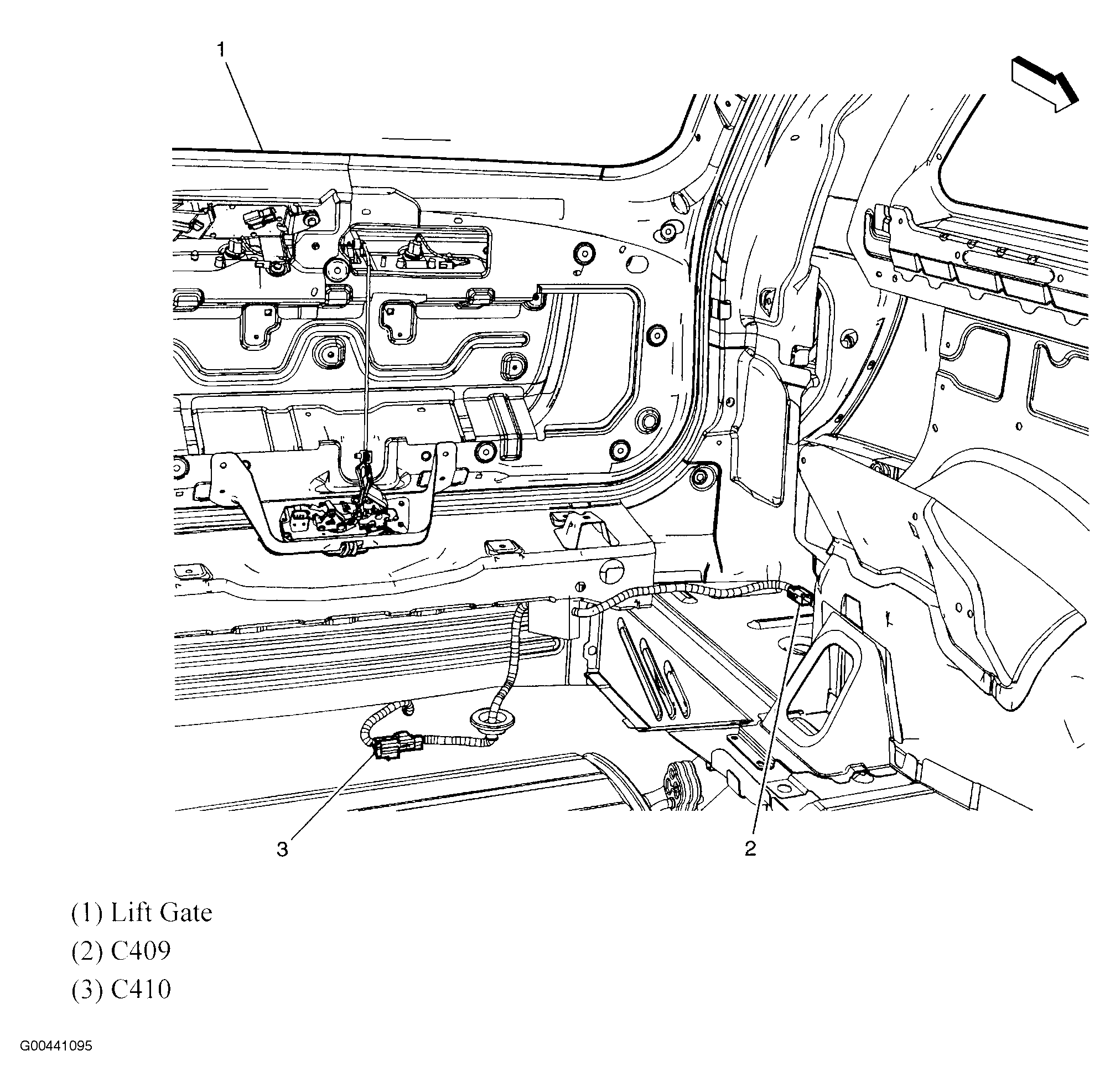

Fig 56: Liftgate Harness
Courtesy of GENERAL MOTORS CORP.

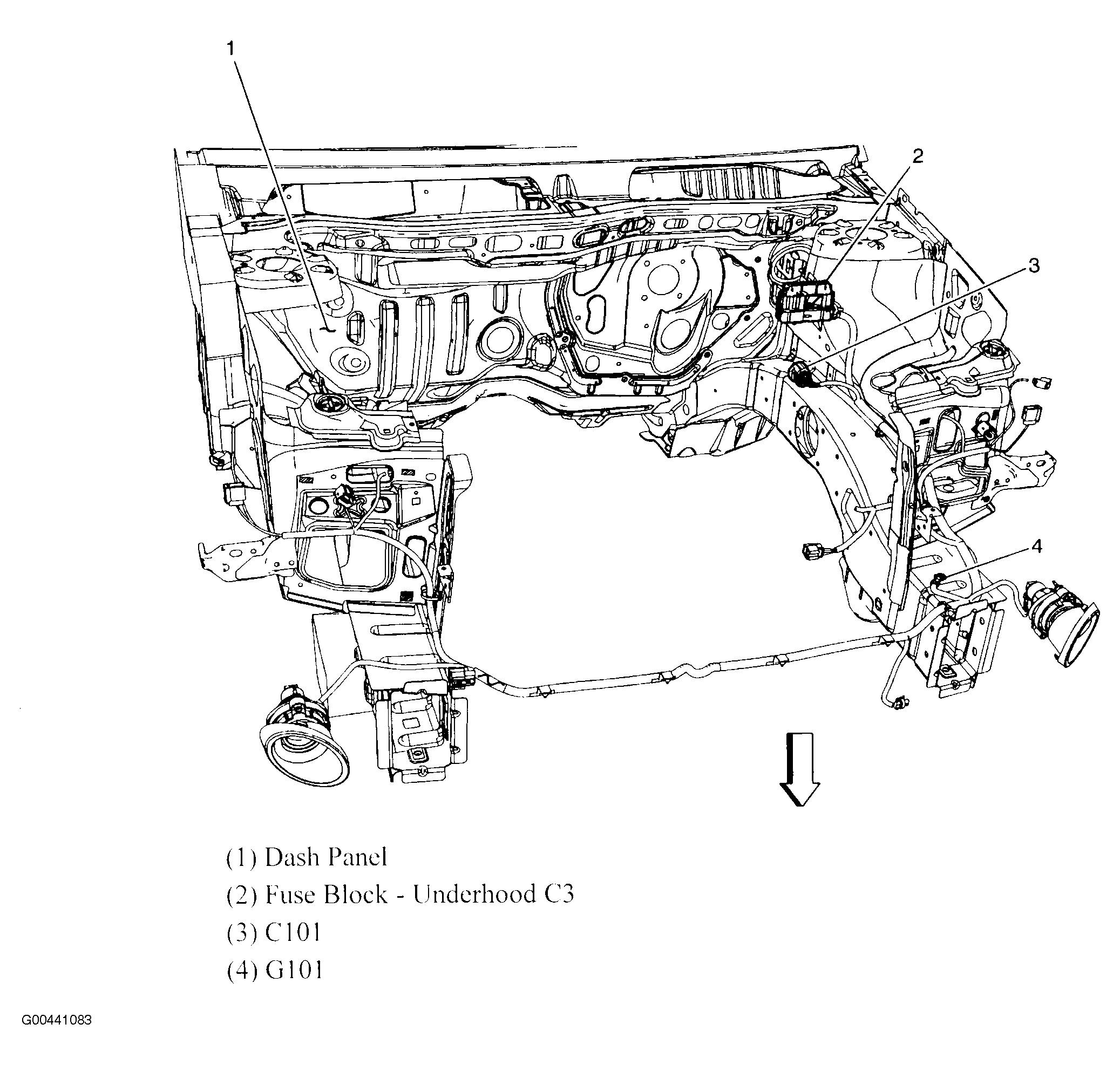

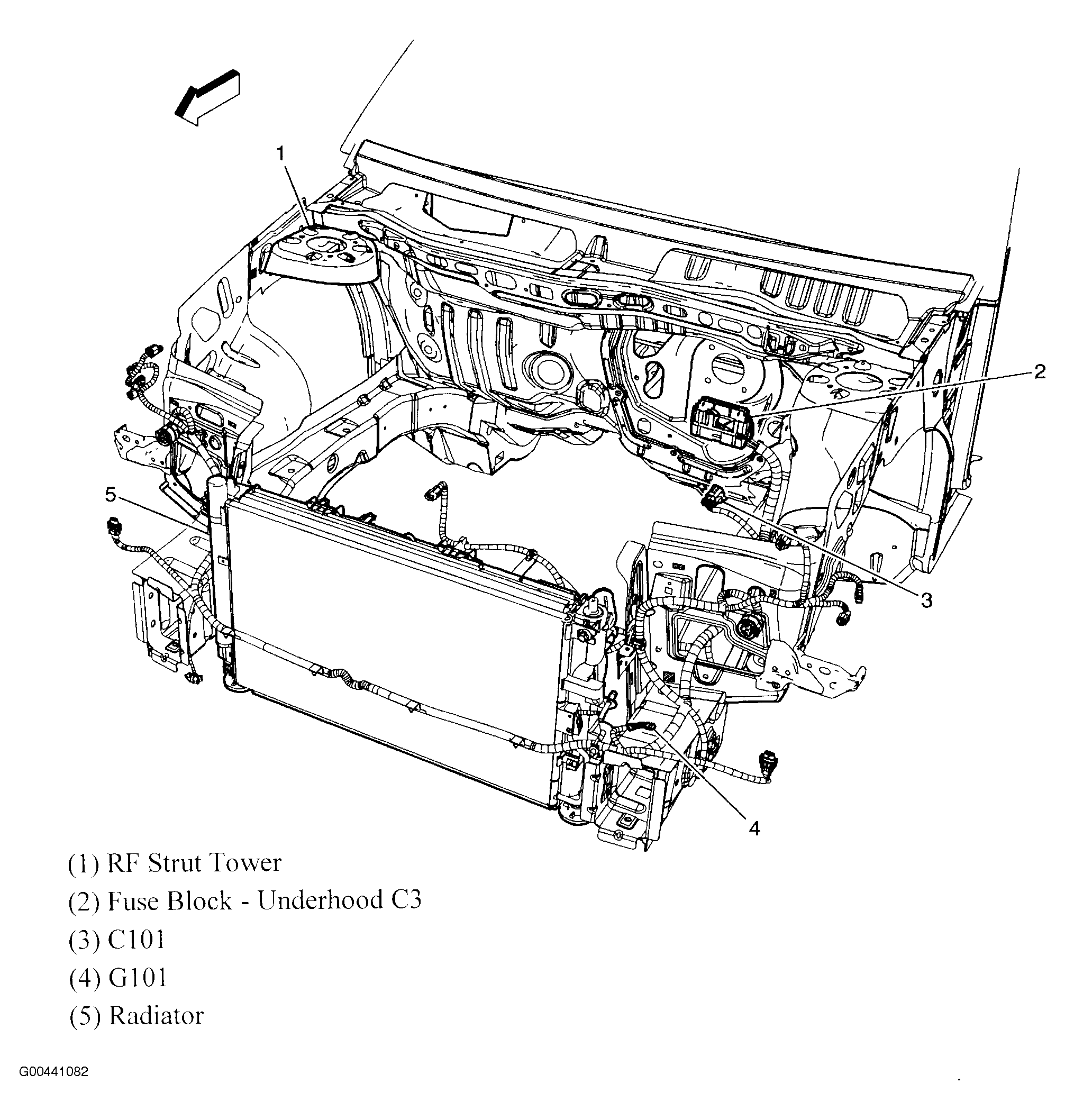

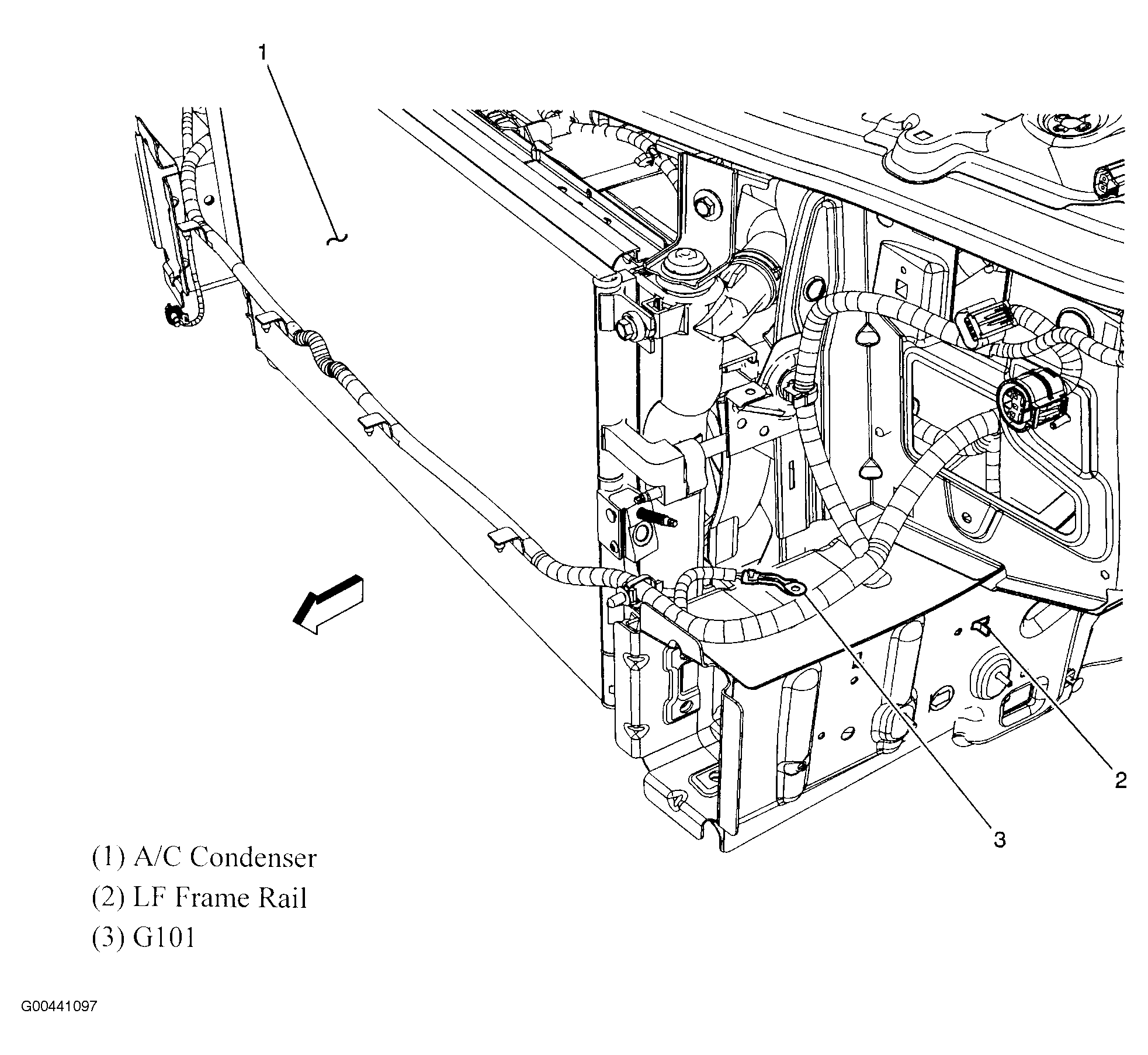

Fig 57: Ground G101
Courtesy of GENERAL MOTORS CORP.

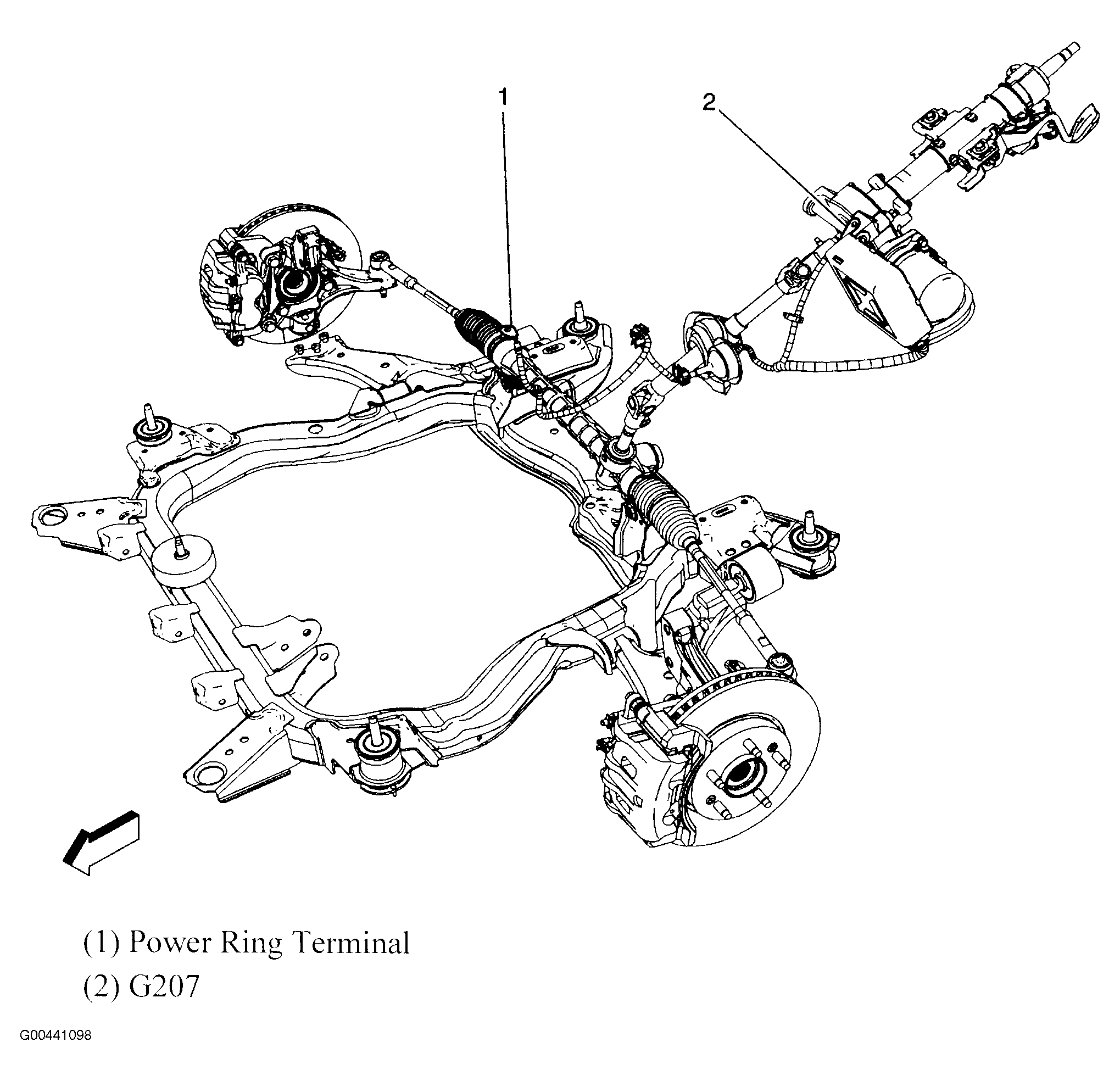

Fig 58: Power Steering Harness
Courtesy of GENERAL MOTORS CORP.

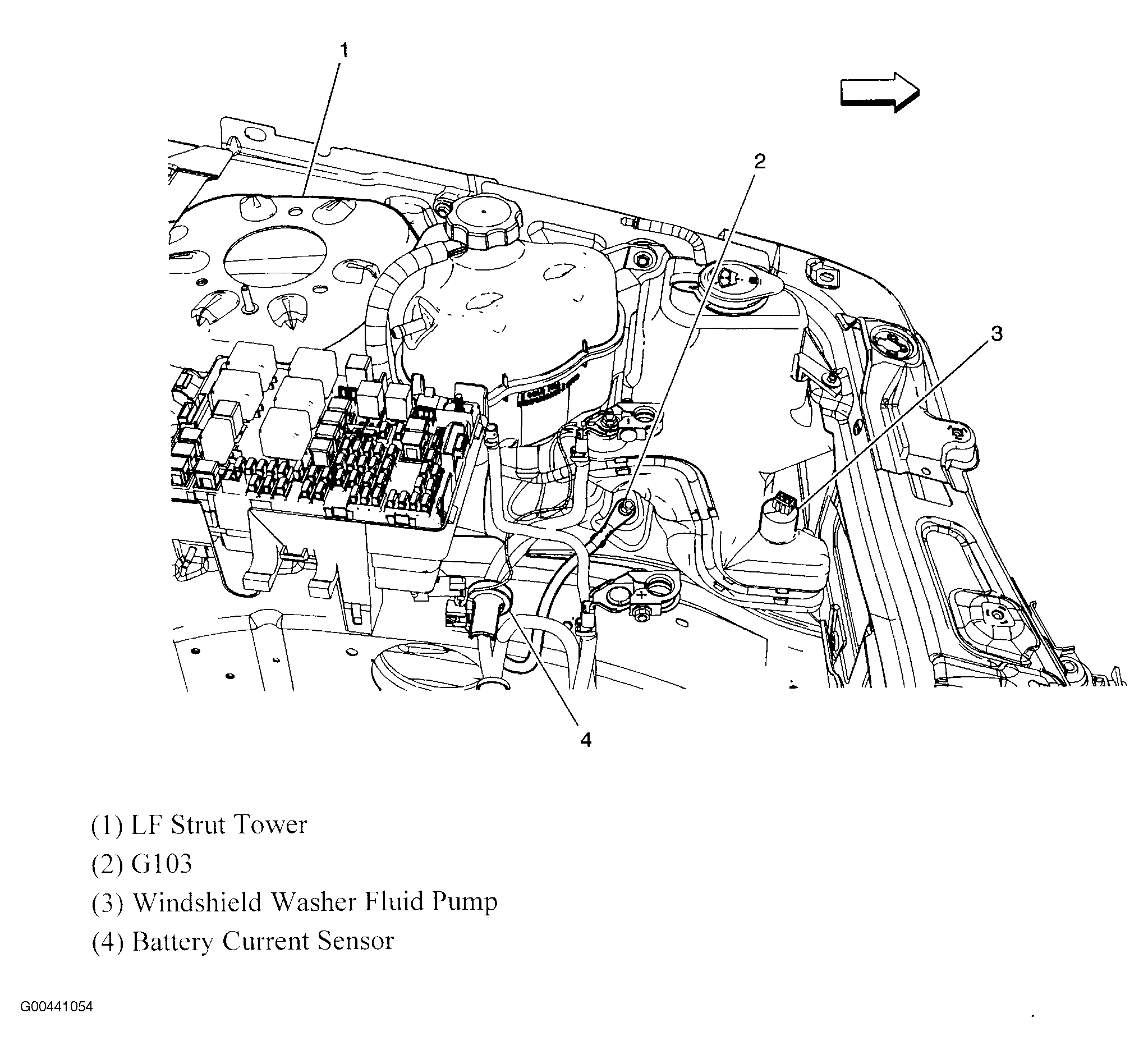

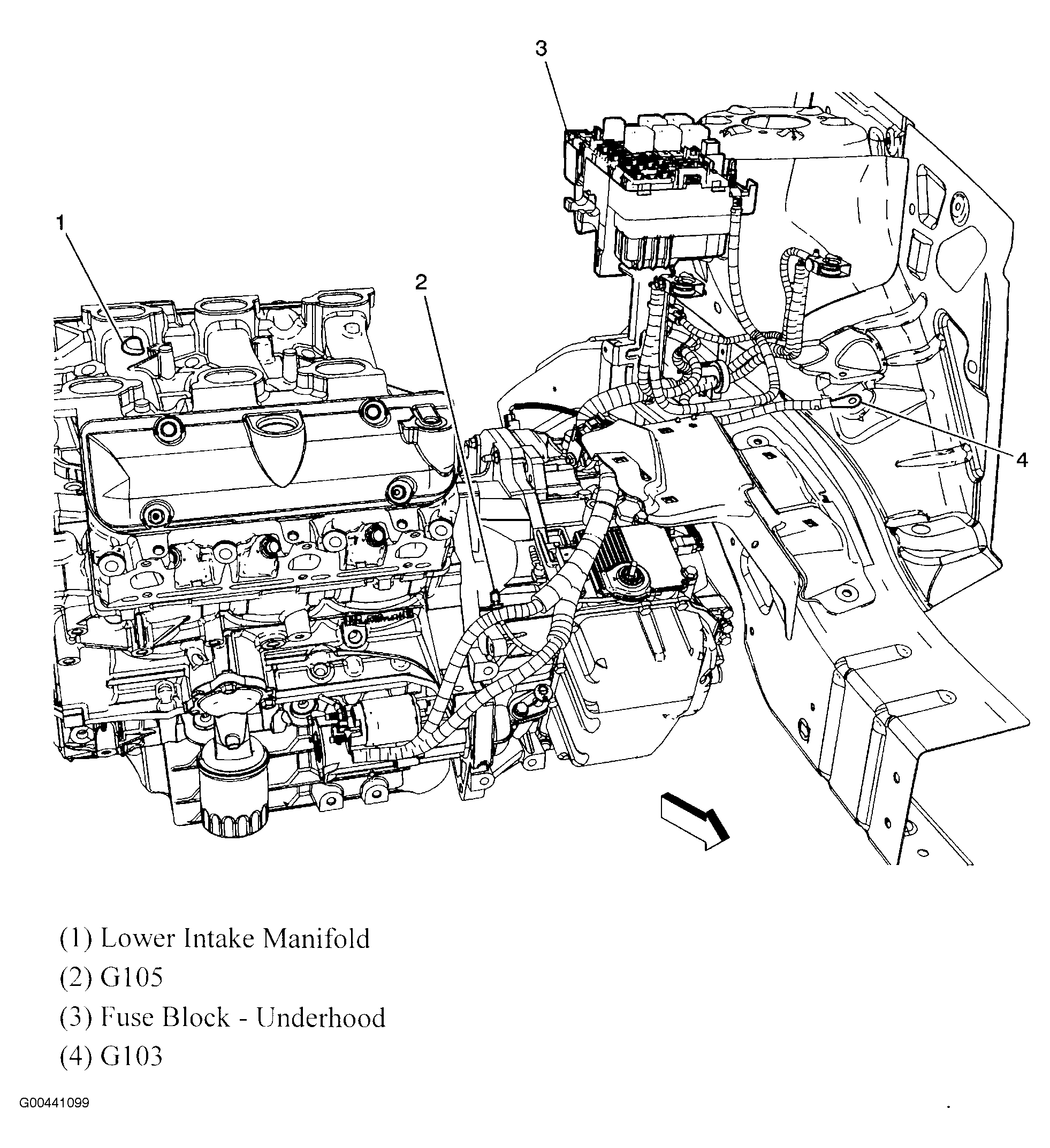

Fig 59: Ground G103 & G105
Courtesy of GENERAL MOTORS CORP.

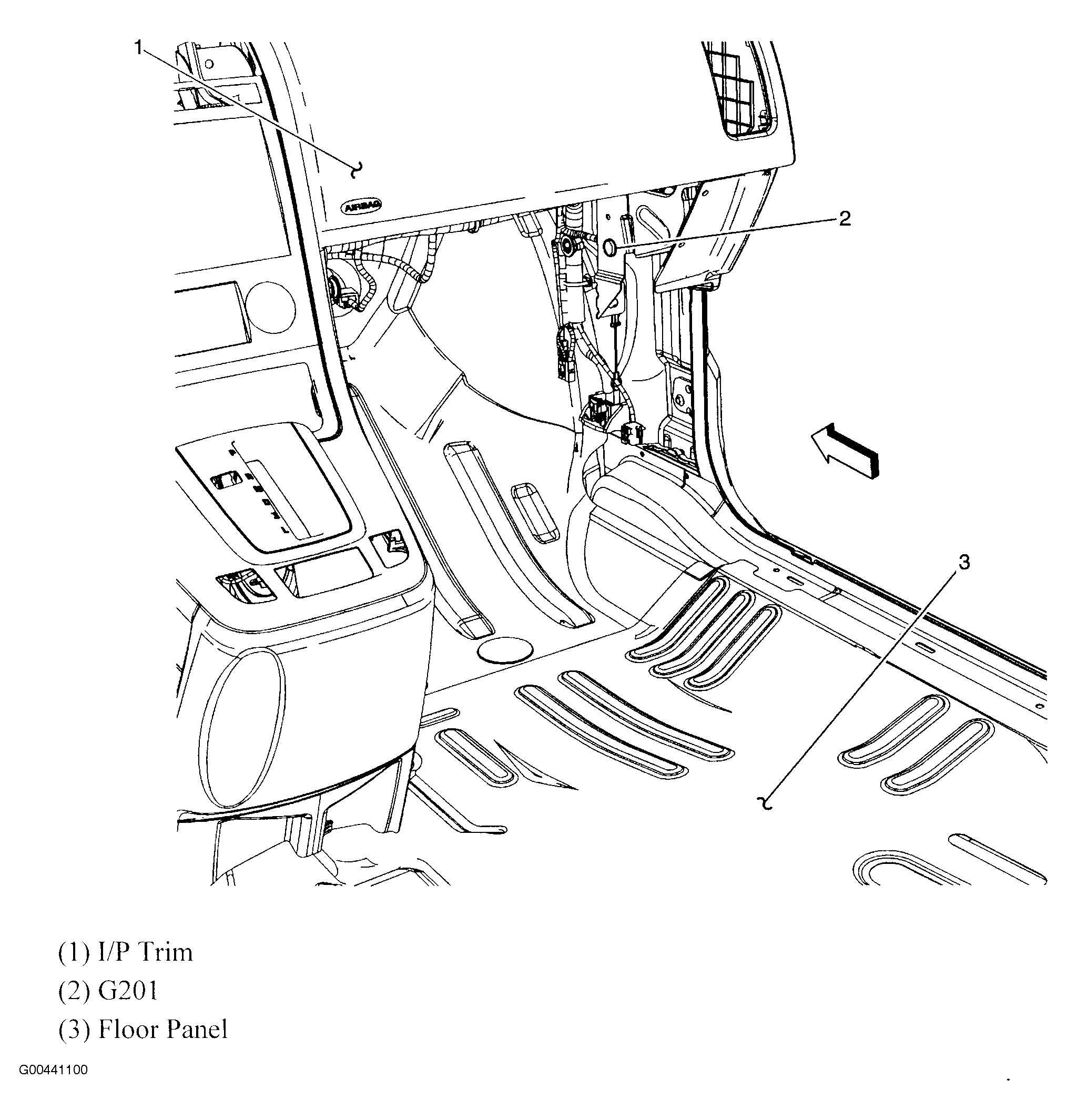

Fig 60: Ground G201
Courtesy of GENERAL MOTORS CORP.

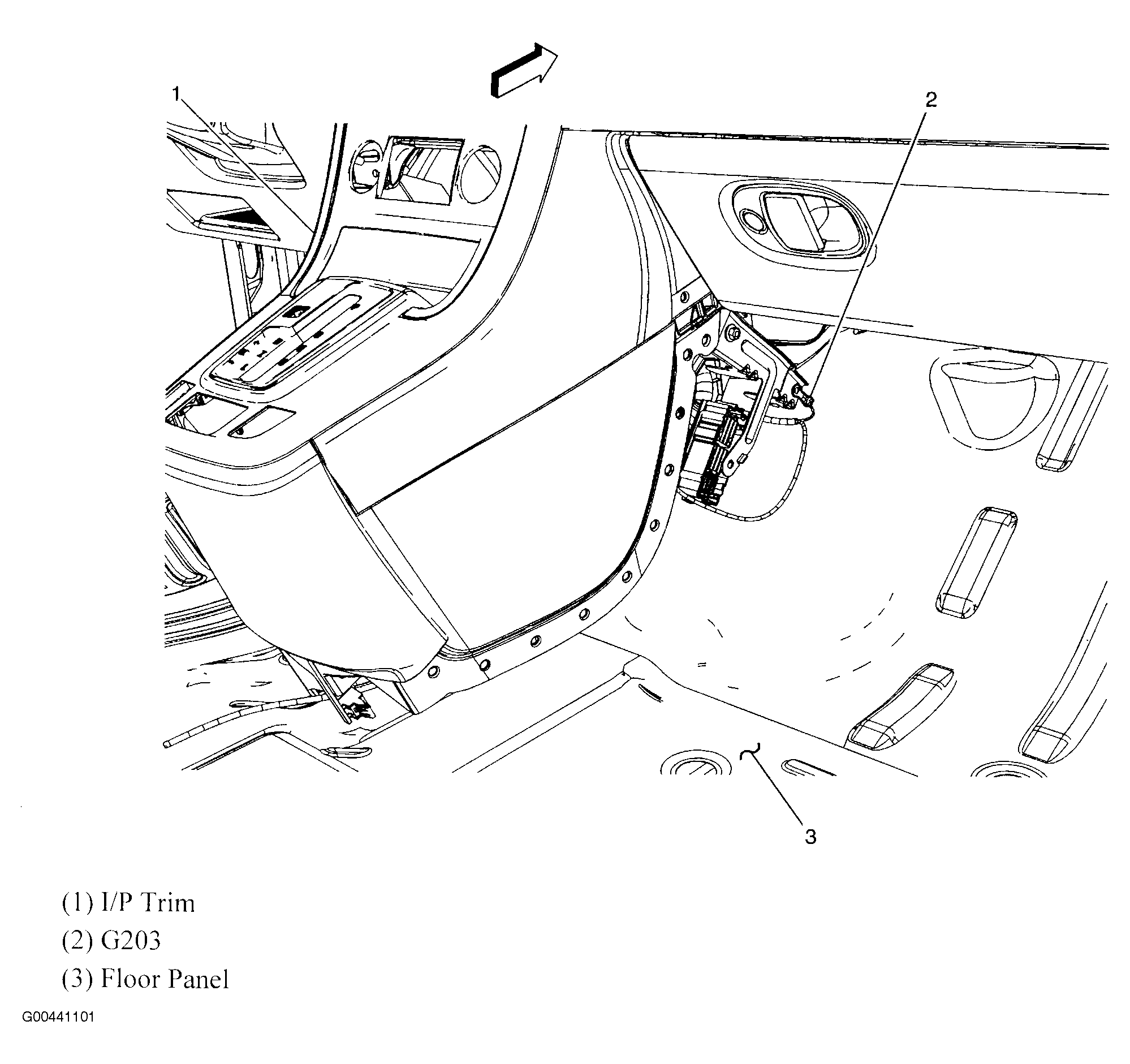

Fig 61: Ground G203
Courtesy of GENERAL MOTORS CORP.

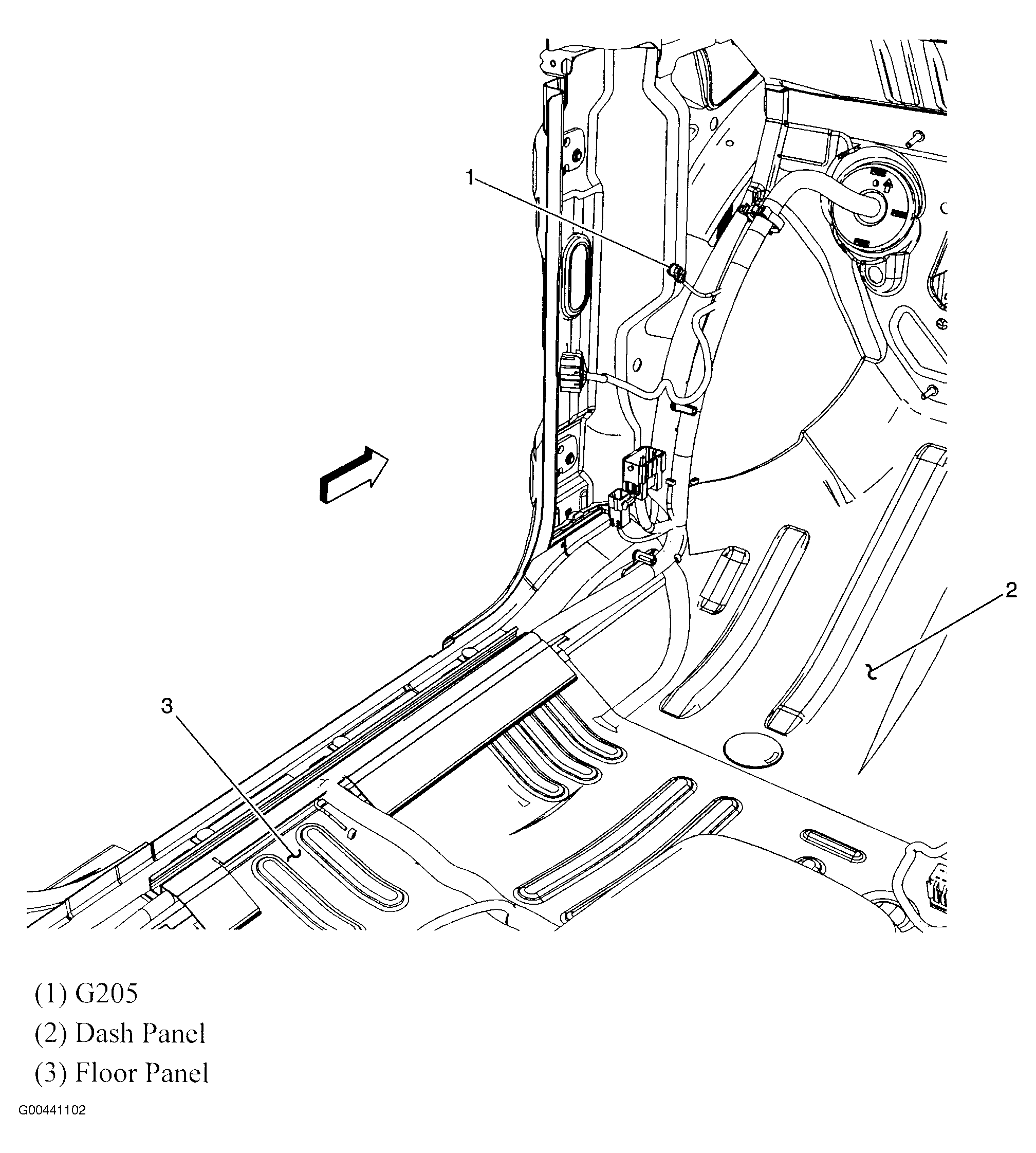

Fig 62: Ground G205
Courtesy of GENERAL MOTORS CORP.

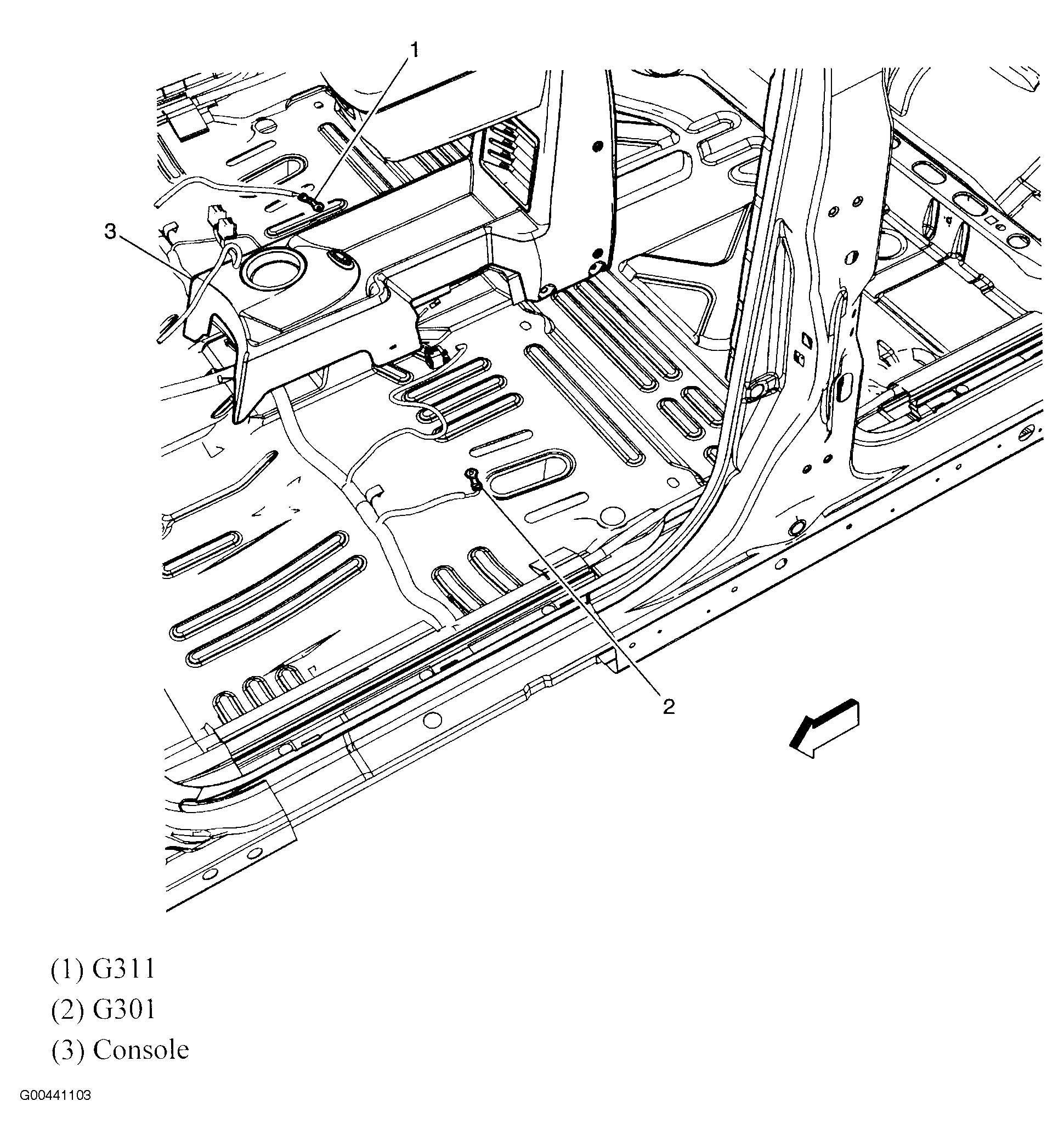

Fig 63: Ground G301 & G311
Courtesy of GENERAL MOTORS CORP.

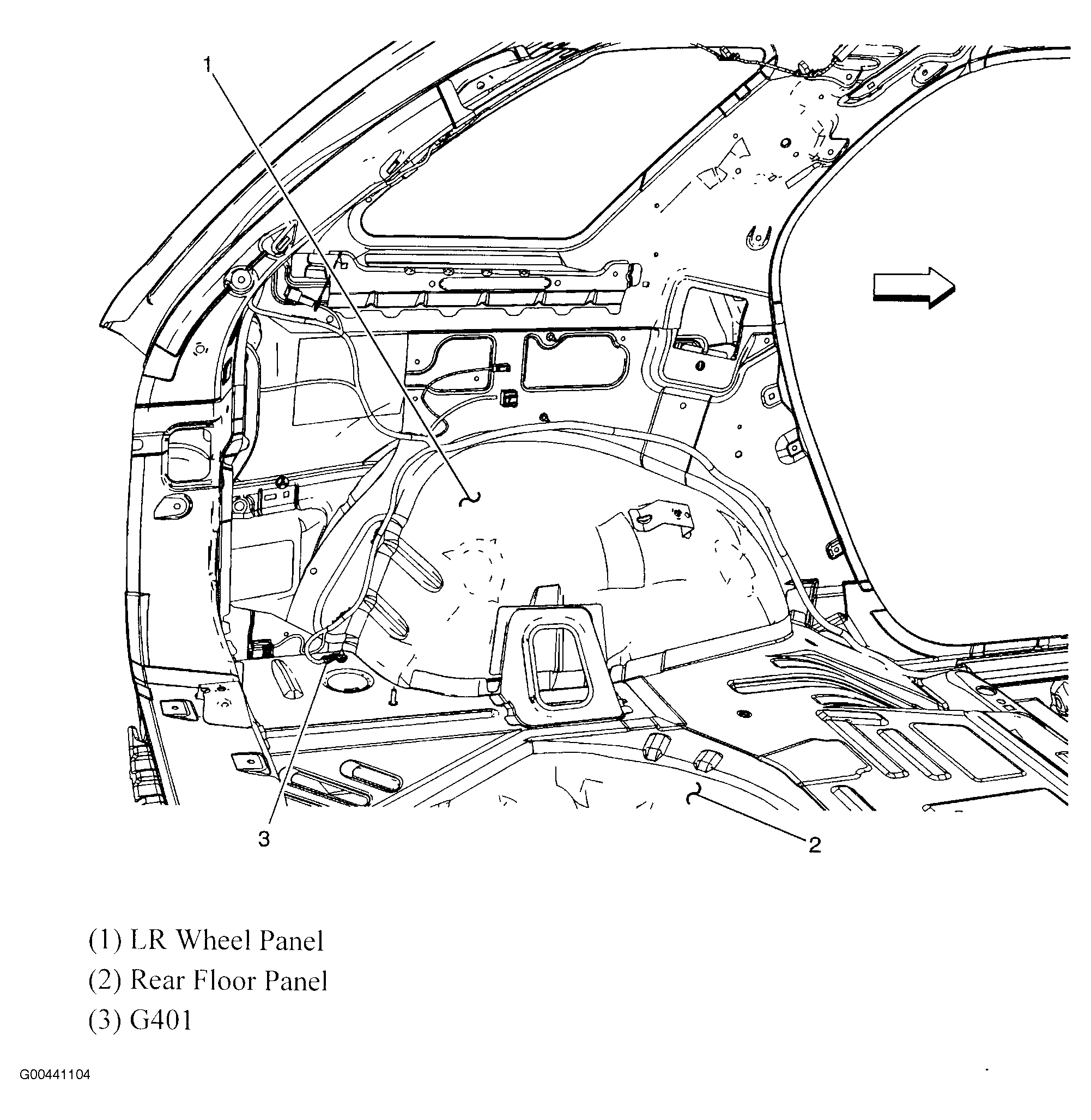

Fig 64: Ground G401
Courtesy of GENERAL MOTORS CORP.

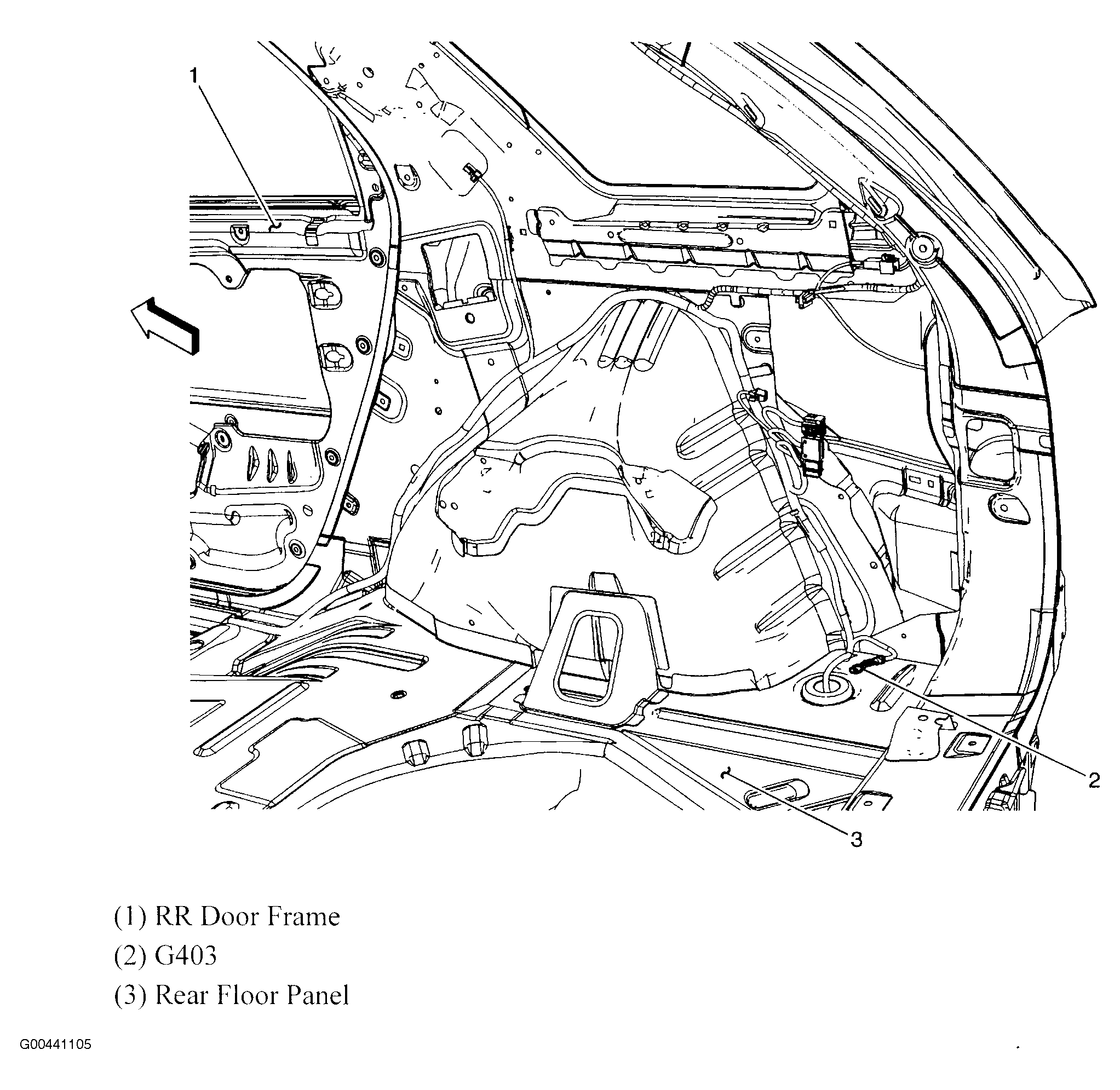

Fig 65: Ground G403
Courtesy of GENERAL MOTORS CORP.
Fig 66: Passenger Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 67: Driver Door Harness
Courtesy of GENERAL MOTORS CORP.

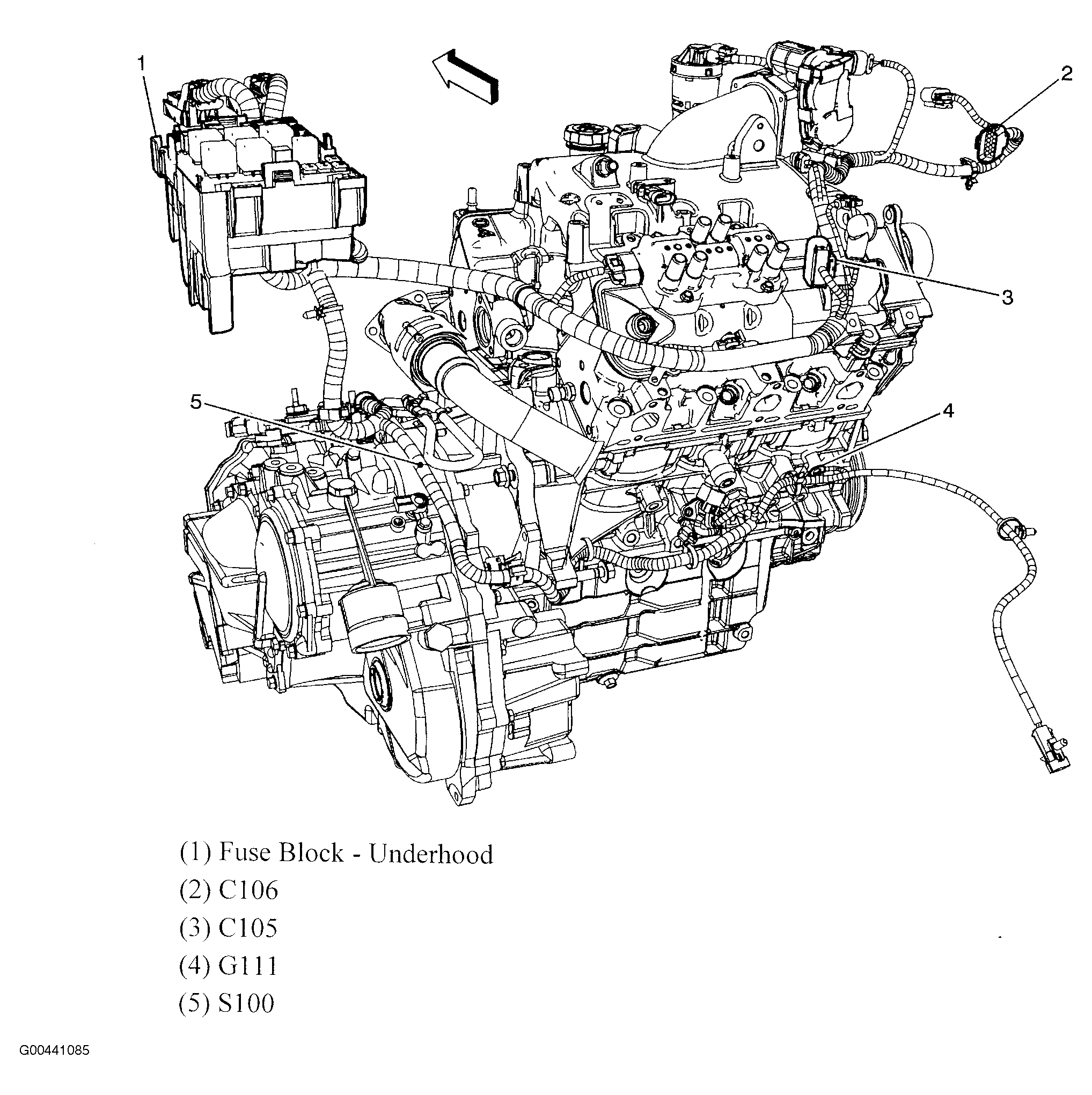

Fig 68: Front Engine Harness
Courtesy of GENERAL MOTORS CORP.

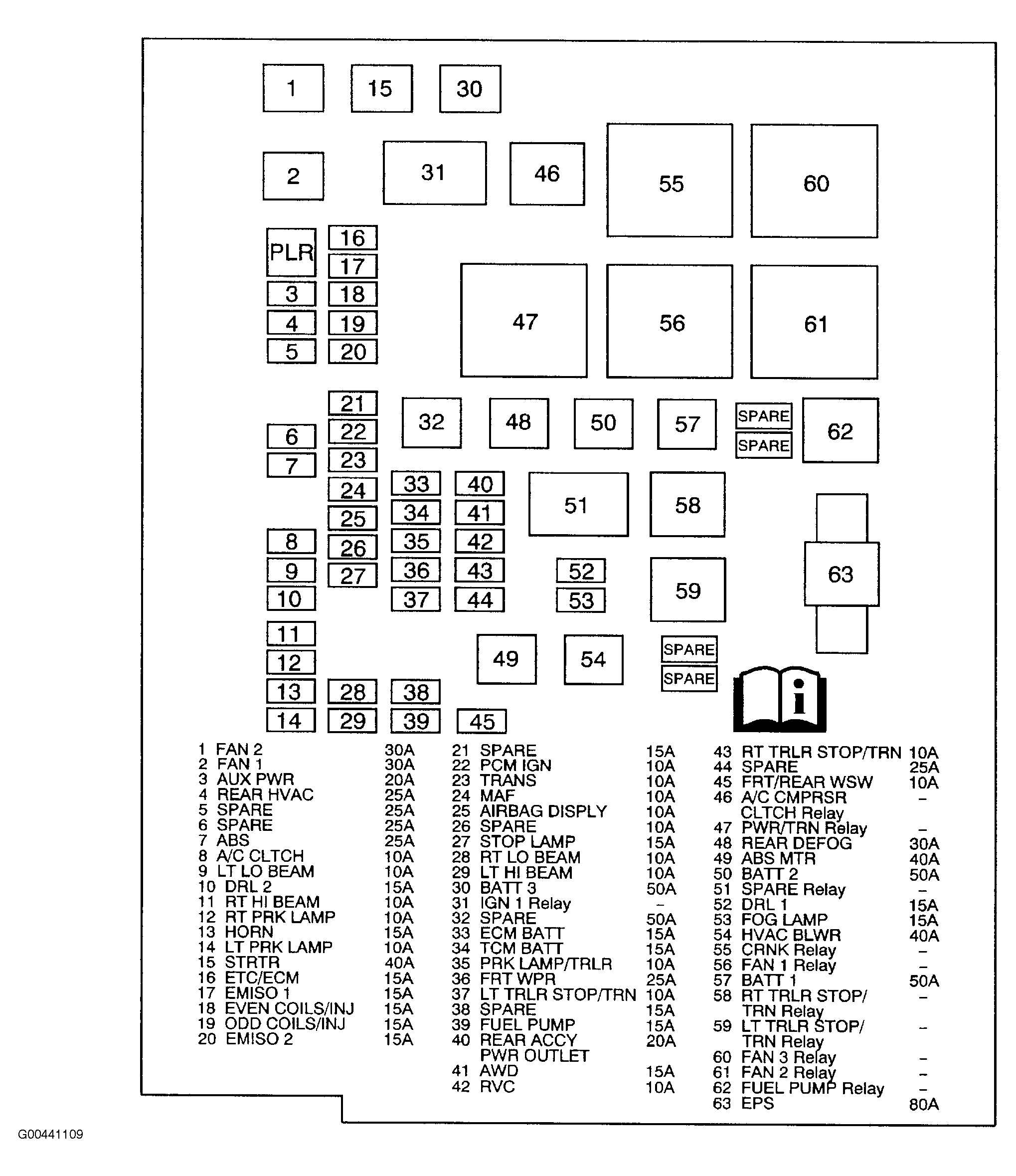

Fig 69: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

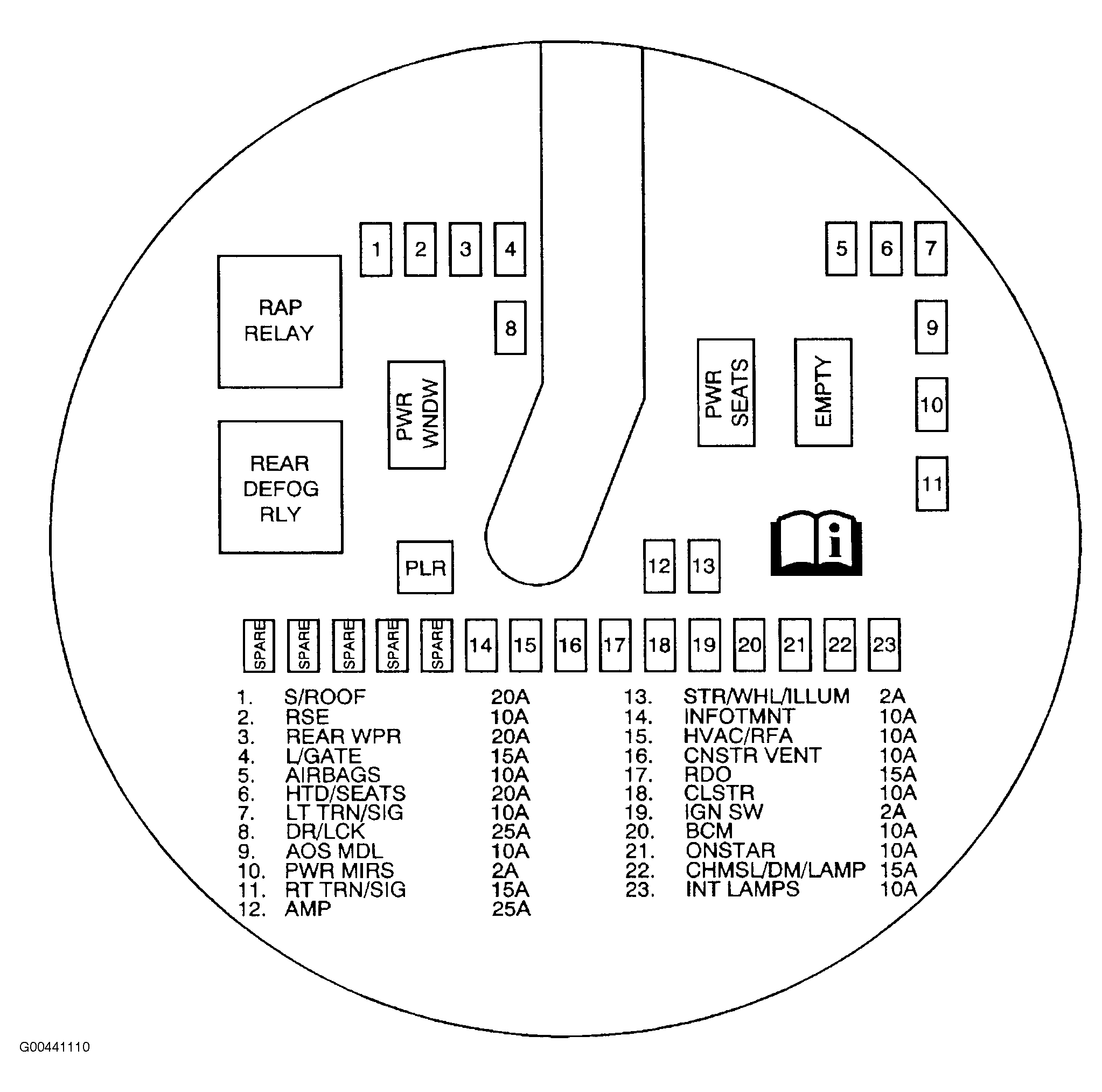

Fig 70: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
