Seat Belt Component Views

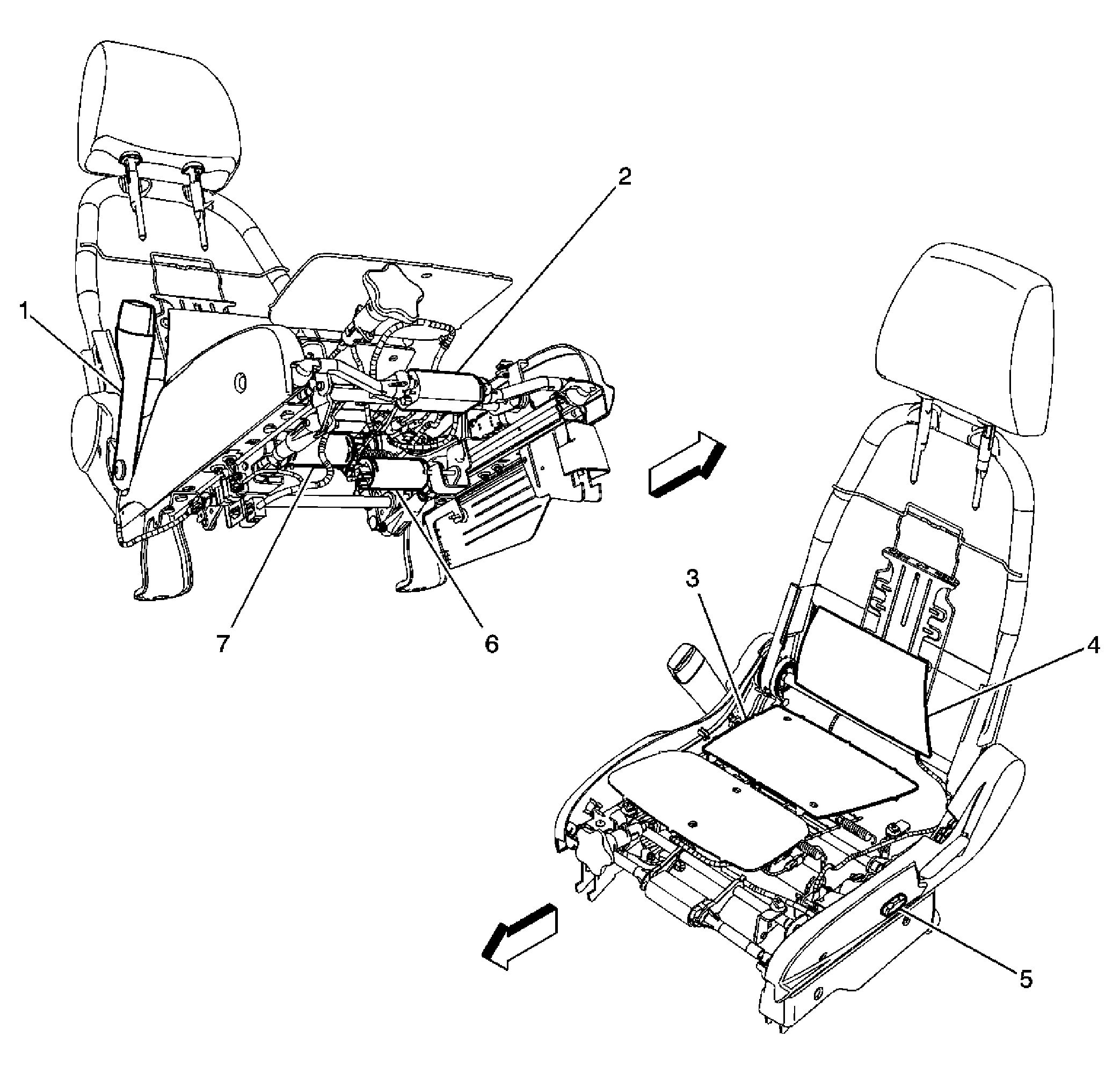

Fig 1: View Of Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Driver
2	Seat Horizontal Motor - Driver (AG1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Heated Seat Element - Driver Back (KA1)
5	Seat Adjuster Switch - Driver (AG1)
6	Seat Rear Vertical Motor - Driver (AG1)
7	Seat Front Vertical Motor - Driver (AG1)

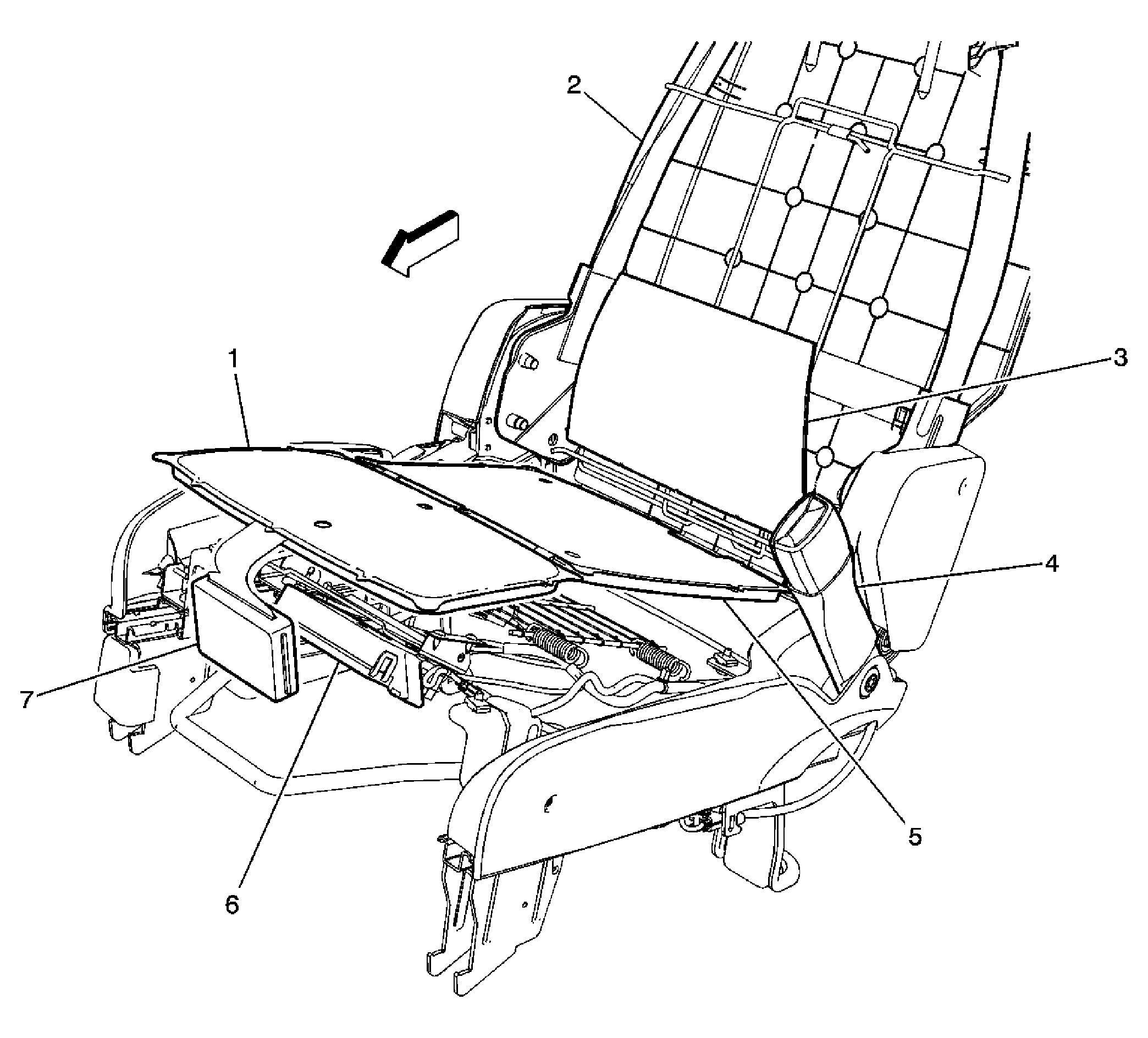

Fig 2: View Of Passenger Seat Components (Manual)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Front Passenger Cushion (KA1)
2	Seat Frame
3	Heated Seat Element - Front Passenger Back (KA1)
4	Seat Belt Switch - Passenger
5	Inflatable Restraint Passenger Presence (PPS) Module
6	Heated Seat Control Module - Passenger (KA1)
7	Inflatable Restraint Passenger Presence (PPS) Module
