Remote Function Component Views

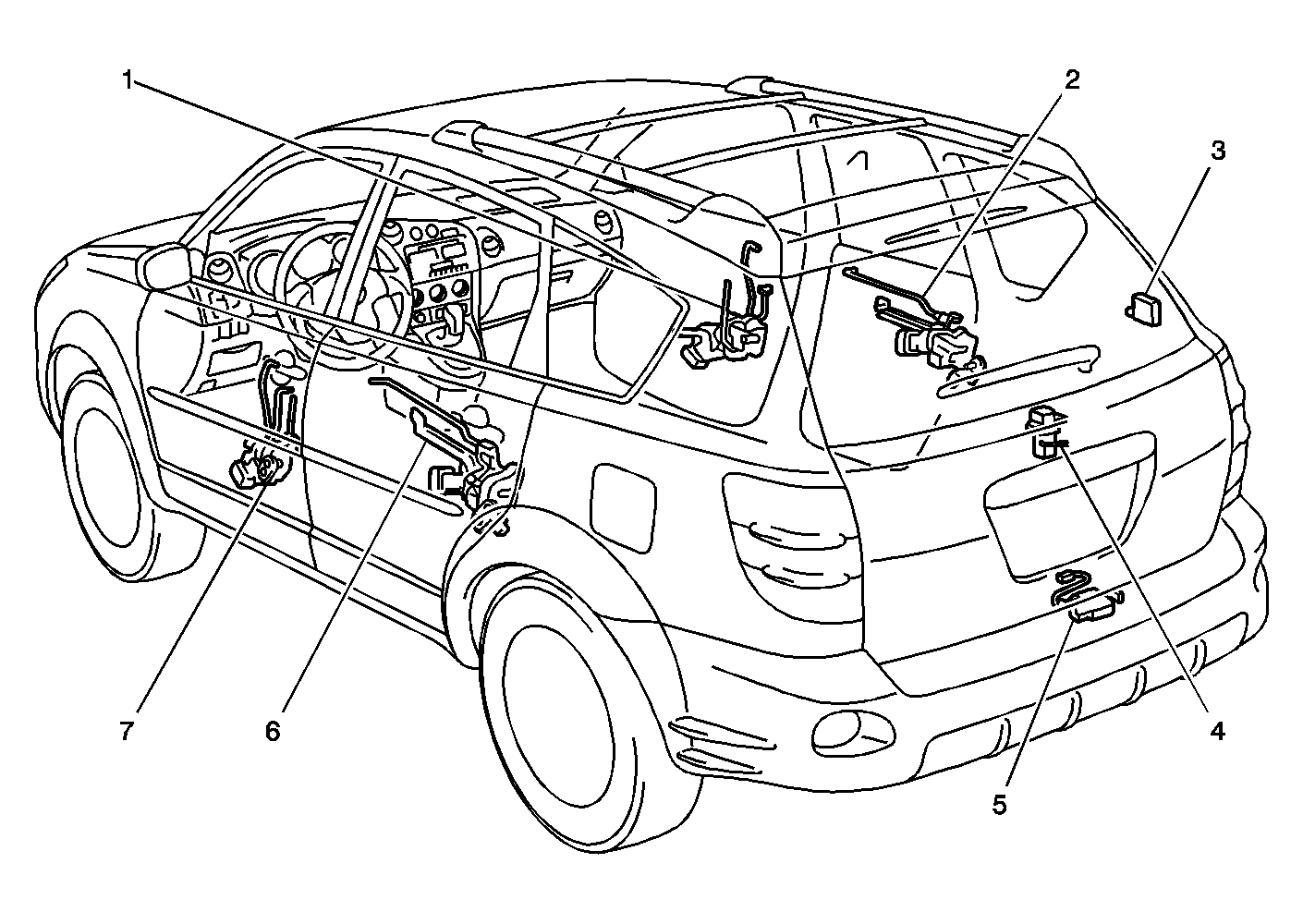

Fig 1: Keyless Entry Component Views
GM865613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Front Door Lock Assembly
2 Right Rear Door Lock Assembly
3 Keyless Entry Reciever
4 Glass Hatch Lock Assembly
5 Tailgate Lock Assembly
6 Left Rear Door Lock Assembly
7 Drivers Door Lock Assembly
