Installation Procedure

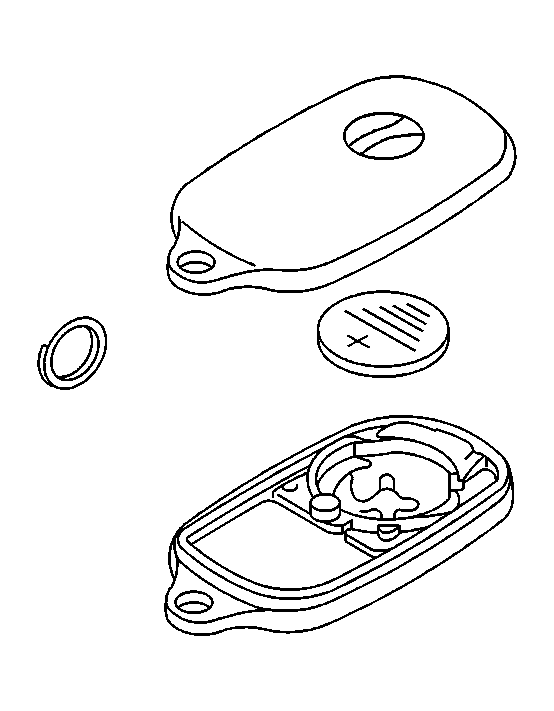

    Fig 1: Transmitter Battery, Halves And Seal
    GM245093Courtesy of GENERAL MOTORS CORP.
  1. Install the new battery with the positive (+) side facing up.
  2. Inspect that the seal is properly positioned.
  3. Snap the two halves together.
  4. Verify that the remote control door lock receiver transmitter is functional. If not, refer to Transmitter Programming .
