Shift Lock Control Component Views

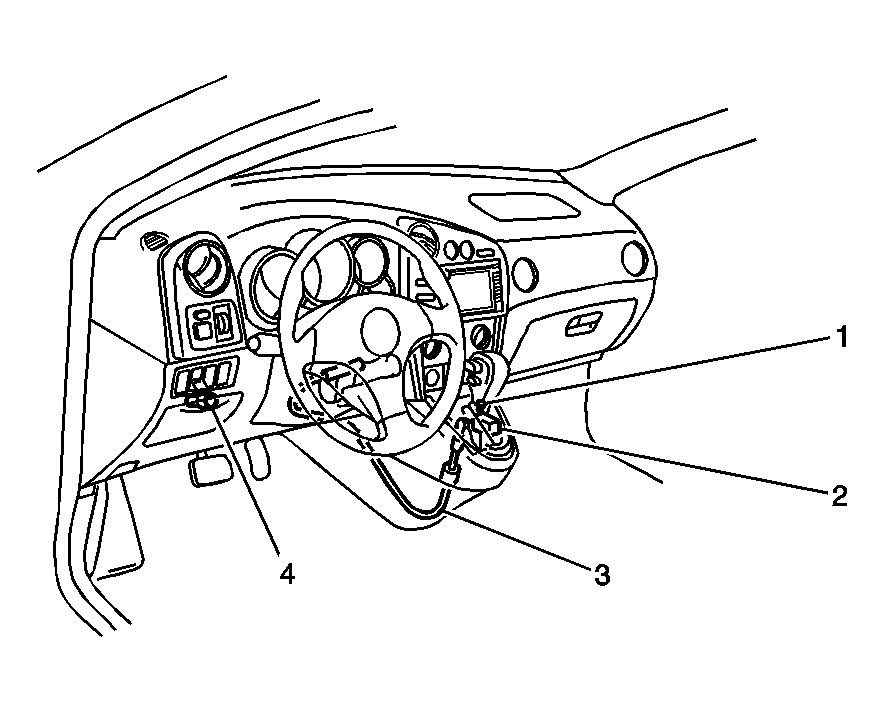

Fig 1: Shift Lock Control Component View
GM854183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Overdrive Switch
2 Shift Lock Solenoid and Shift Lock Control Module
3 Shift Lock Cable
4 Stop Lamp Switch
