Installation Procedure

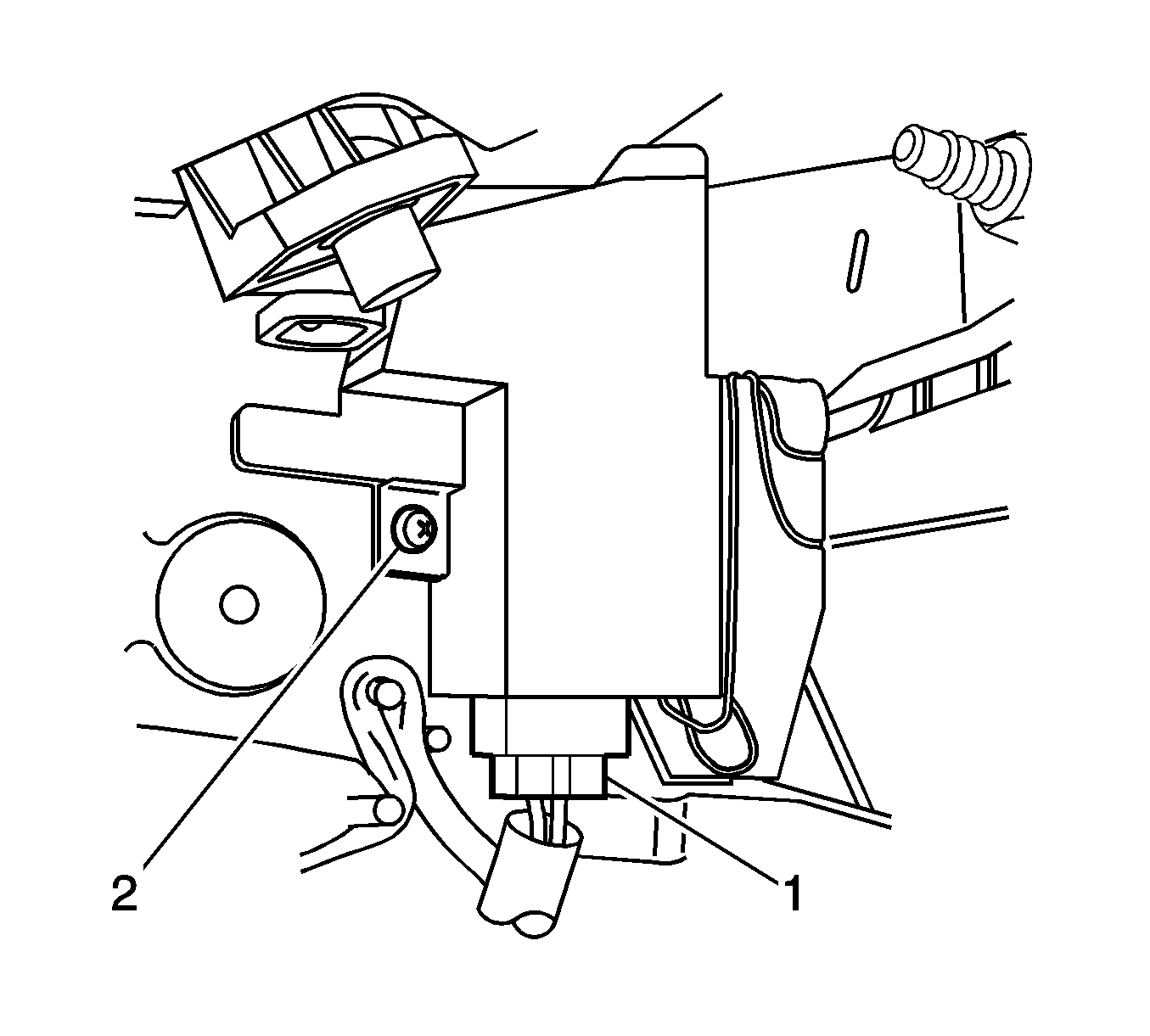

    Fig 1: Electrical Connector And Retaining Screw
    GM882531Courtesy of GENERAL MOTORS CORP.
  1. Install the Shift Lock Control Module/Shift Lock Solenoid assembly, then the retaining screw (2).
  2. Connect the electrical connector (1).
  3. Install the front floor console. Refer to Front Floor Console Replacement .
  4. Connect the negative battery cable.
