Remote Function Schematics

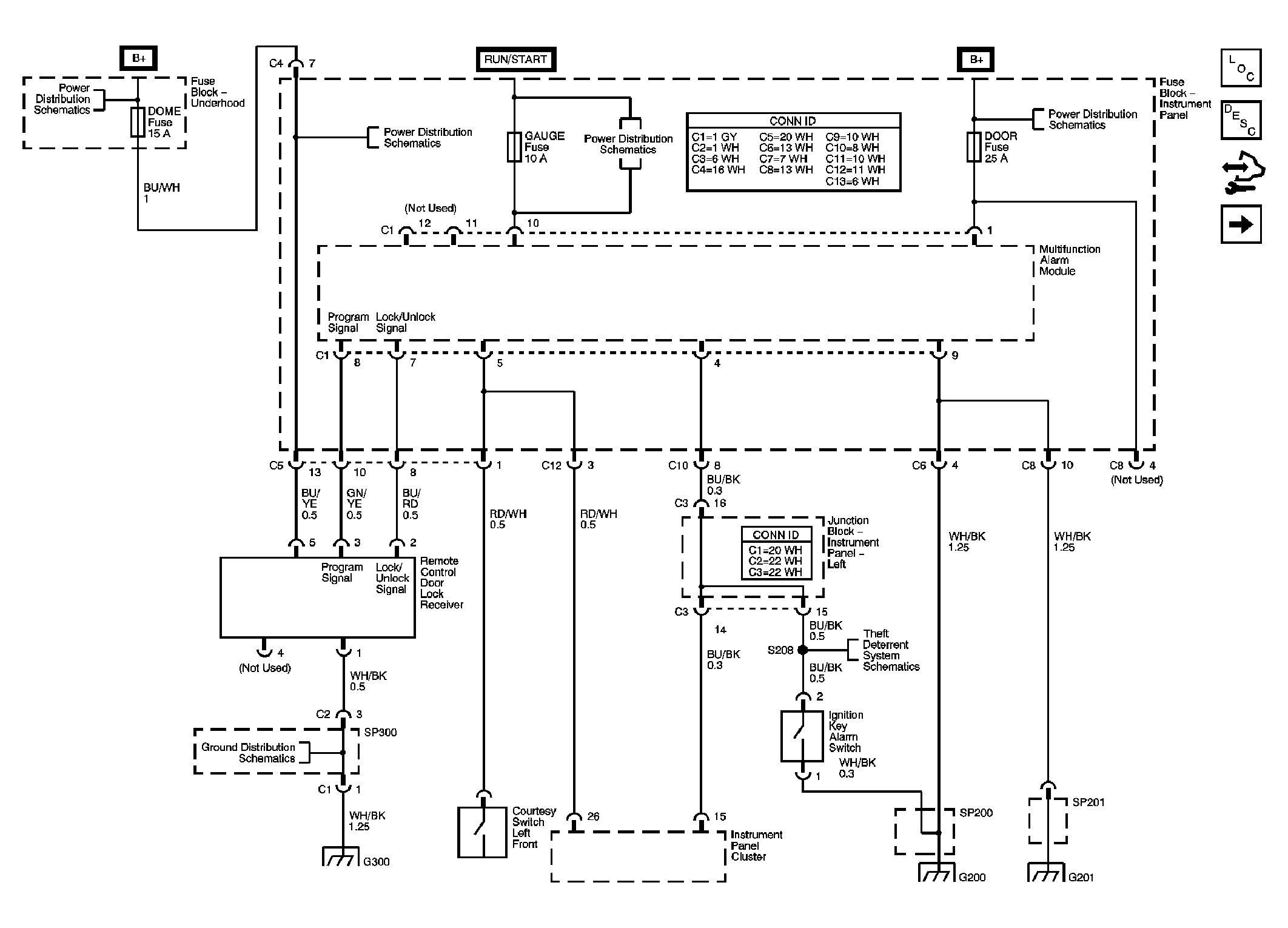

Fig 1: Multifunction Alarm Module, Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

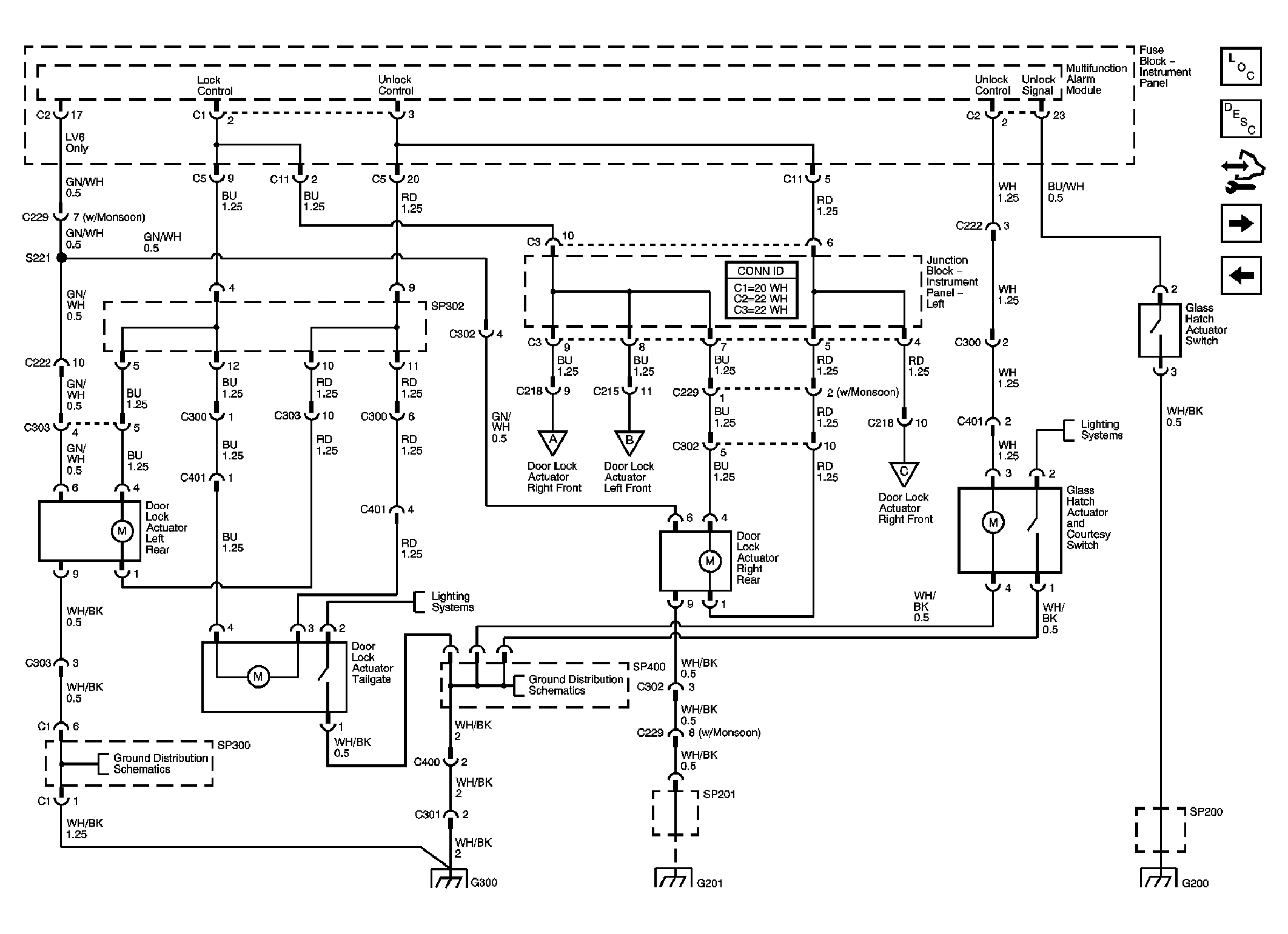

Fig 2: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators

Courtesy of GENERAL MOTORS CORP.

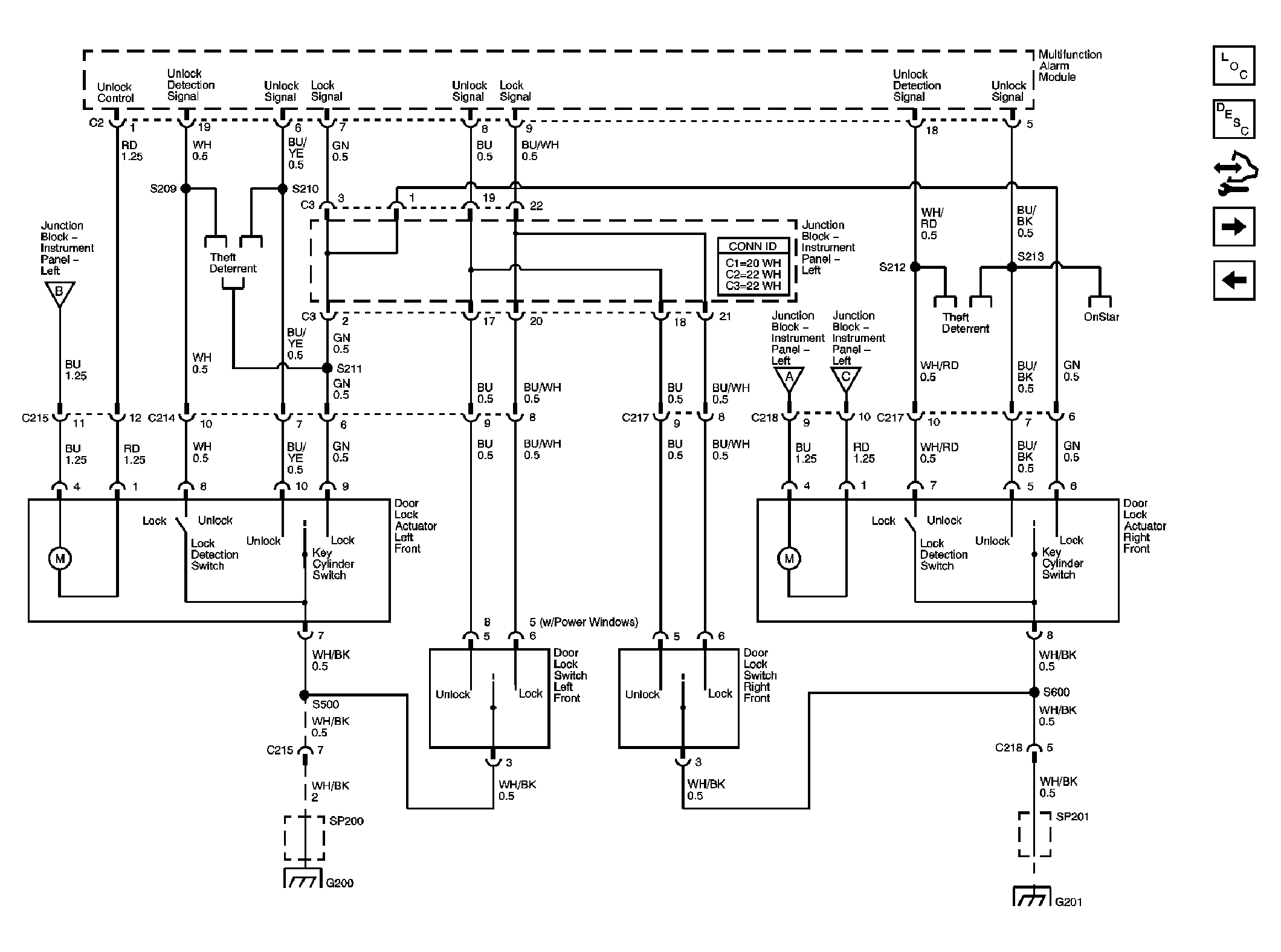

Fig 3: Door Lock Switches and Front Door Lock Actuators

Courtesy of GENERAL MOTORS CORP.

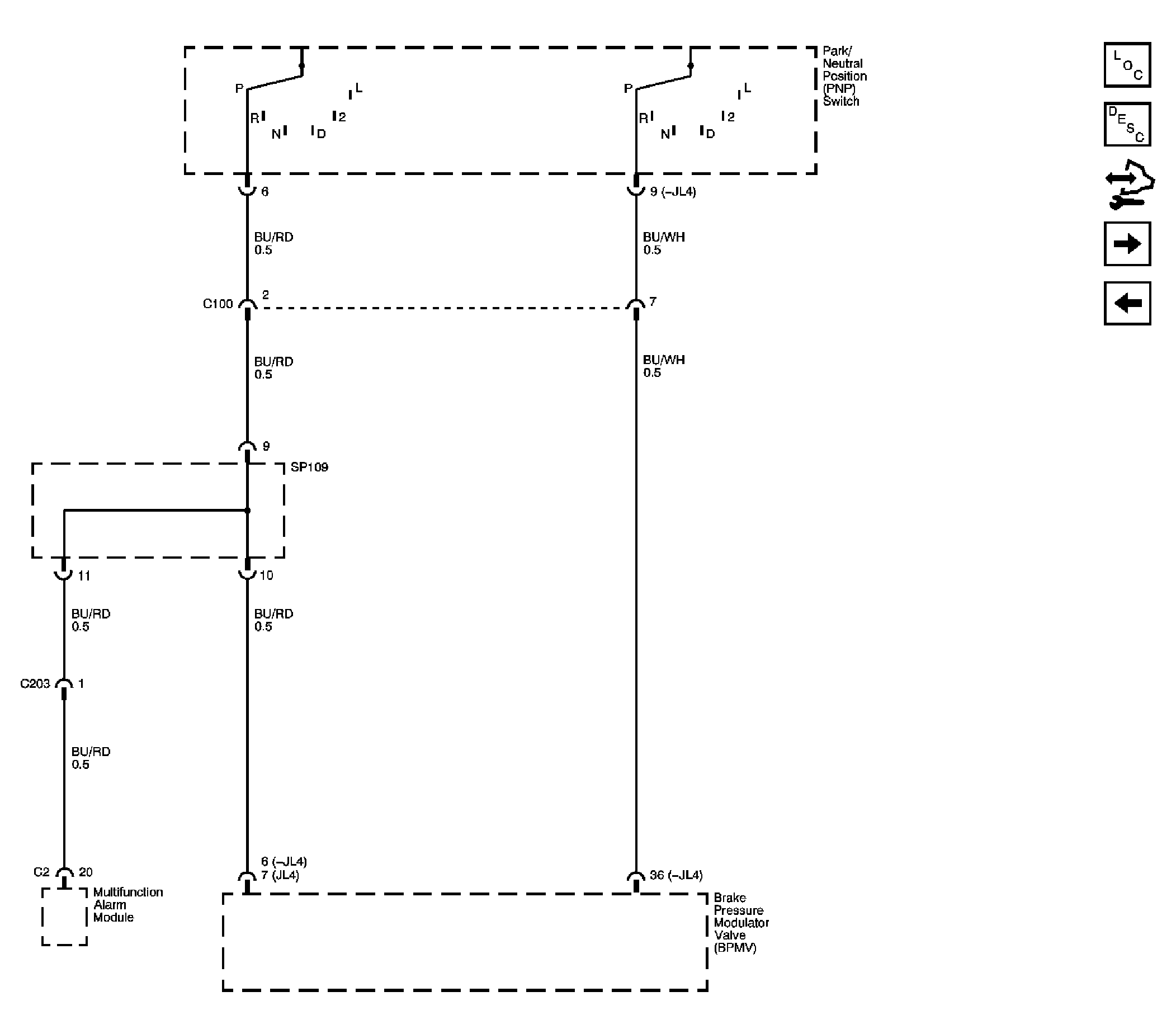

Fig 4: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

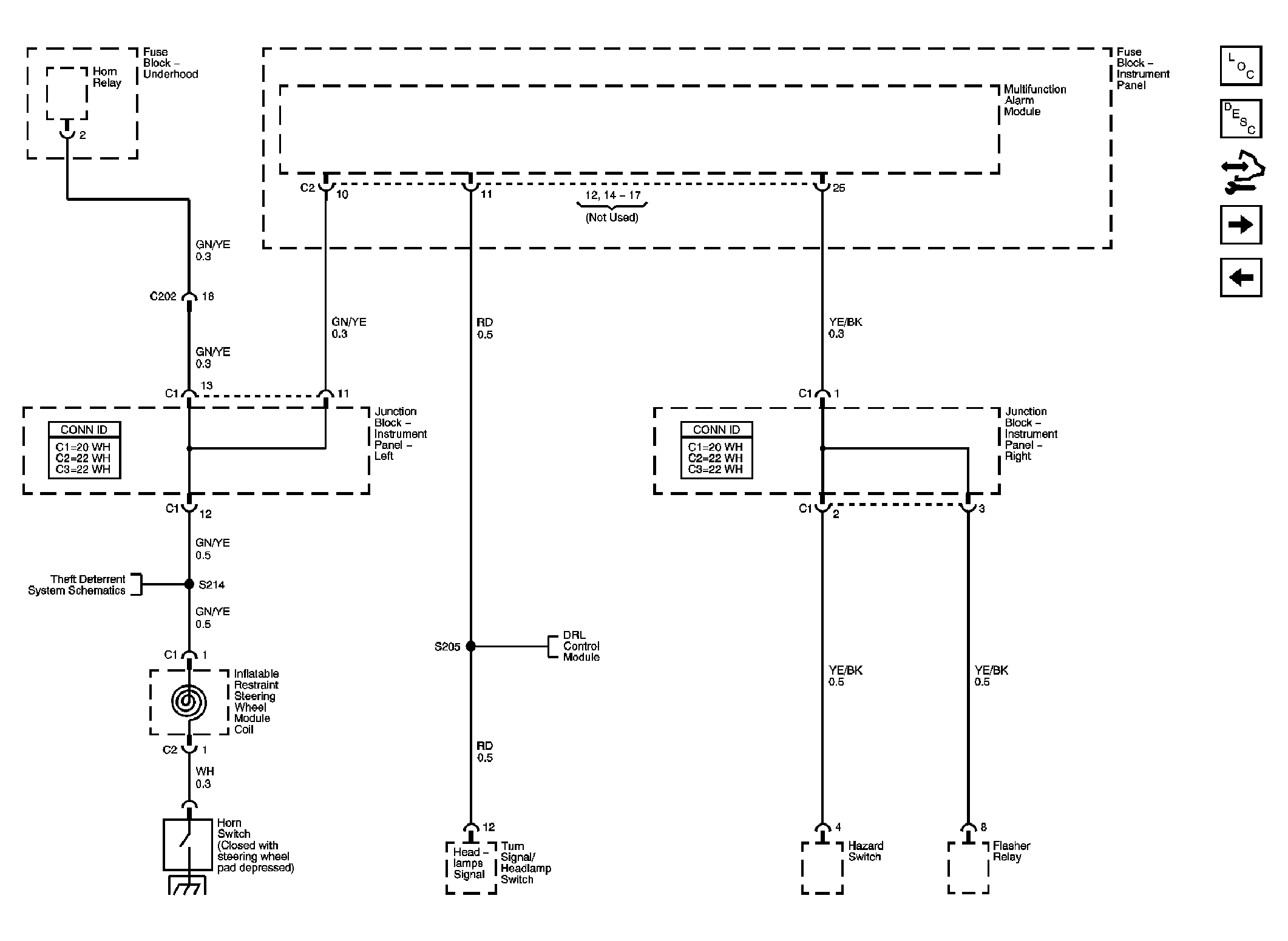

Fig 5: Multifunction Alarm Module, Horn, Hazard, Turn Signal/Headlamp Switches

Courtesy of GENERAL MOTORS CORP.

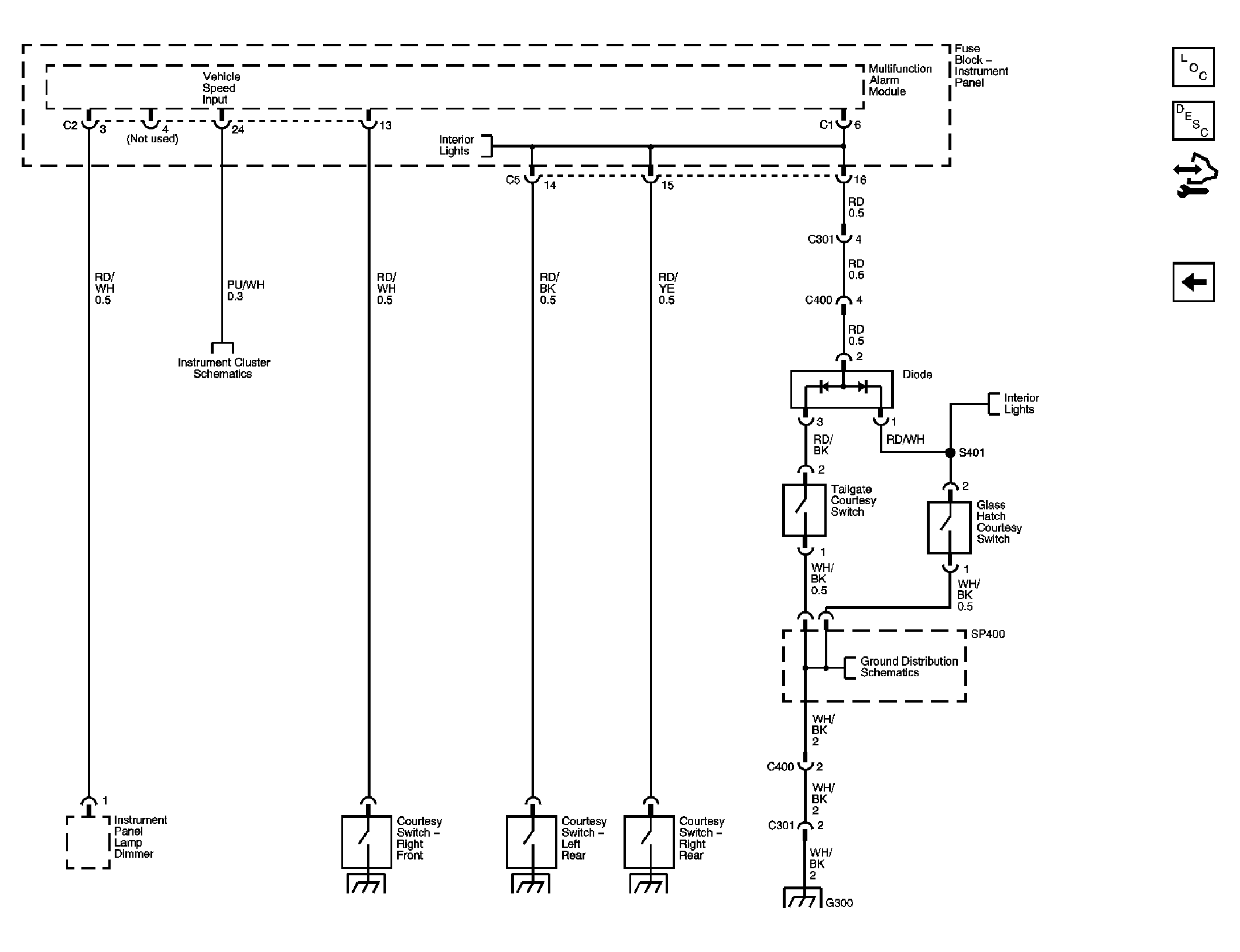

Fig 6: Multifunction Alarm Module and Courtesy Switches

Courtesy of GENERAL MOTORS CORP.
