Alarm Module, (Vehicle Antitheft)

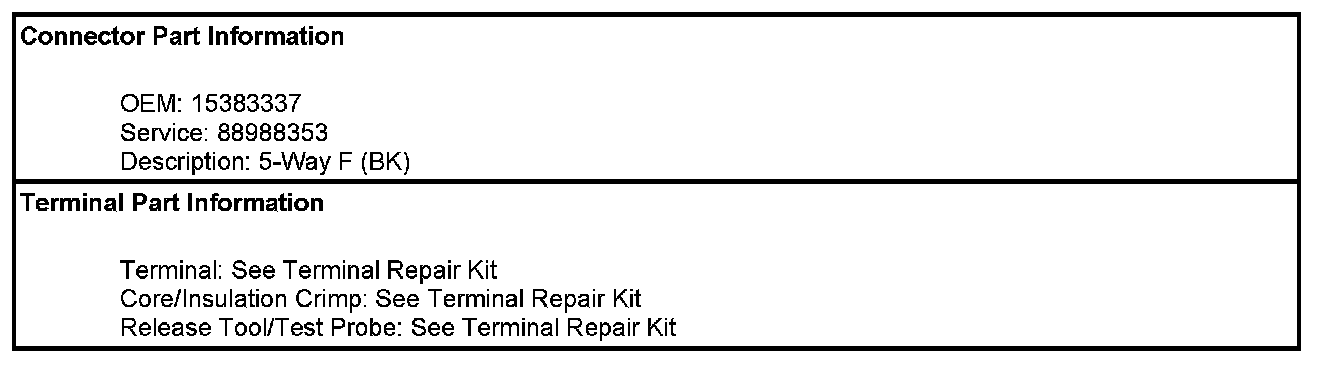

Component Connector End Views - Continued

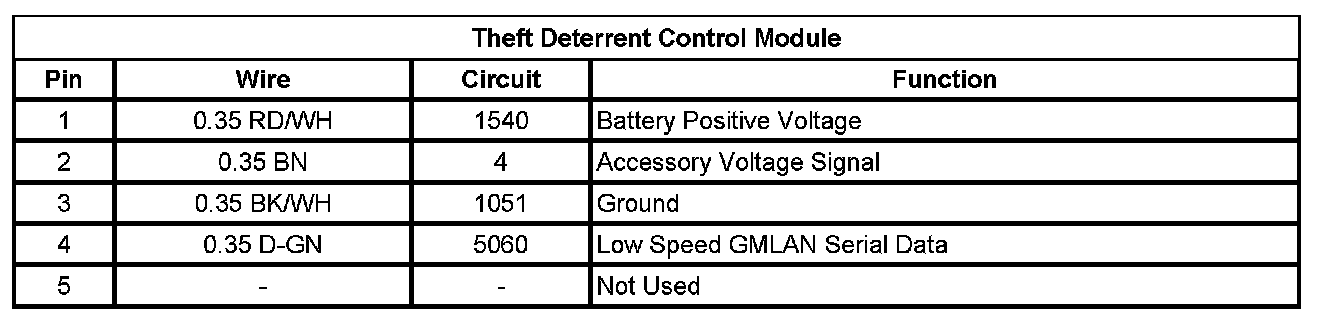

Theft Deterrent Control Module
