Control Module, A/T



Component Connector End Views - Continued

Transmission Control Module (TCM) (MN5/MX0)

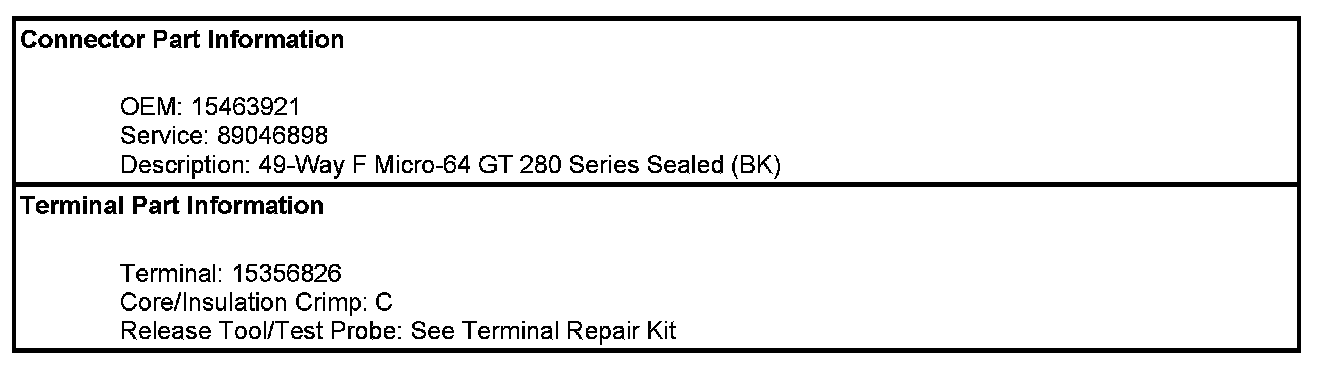

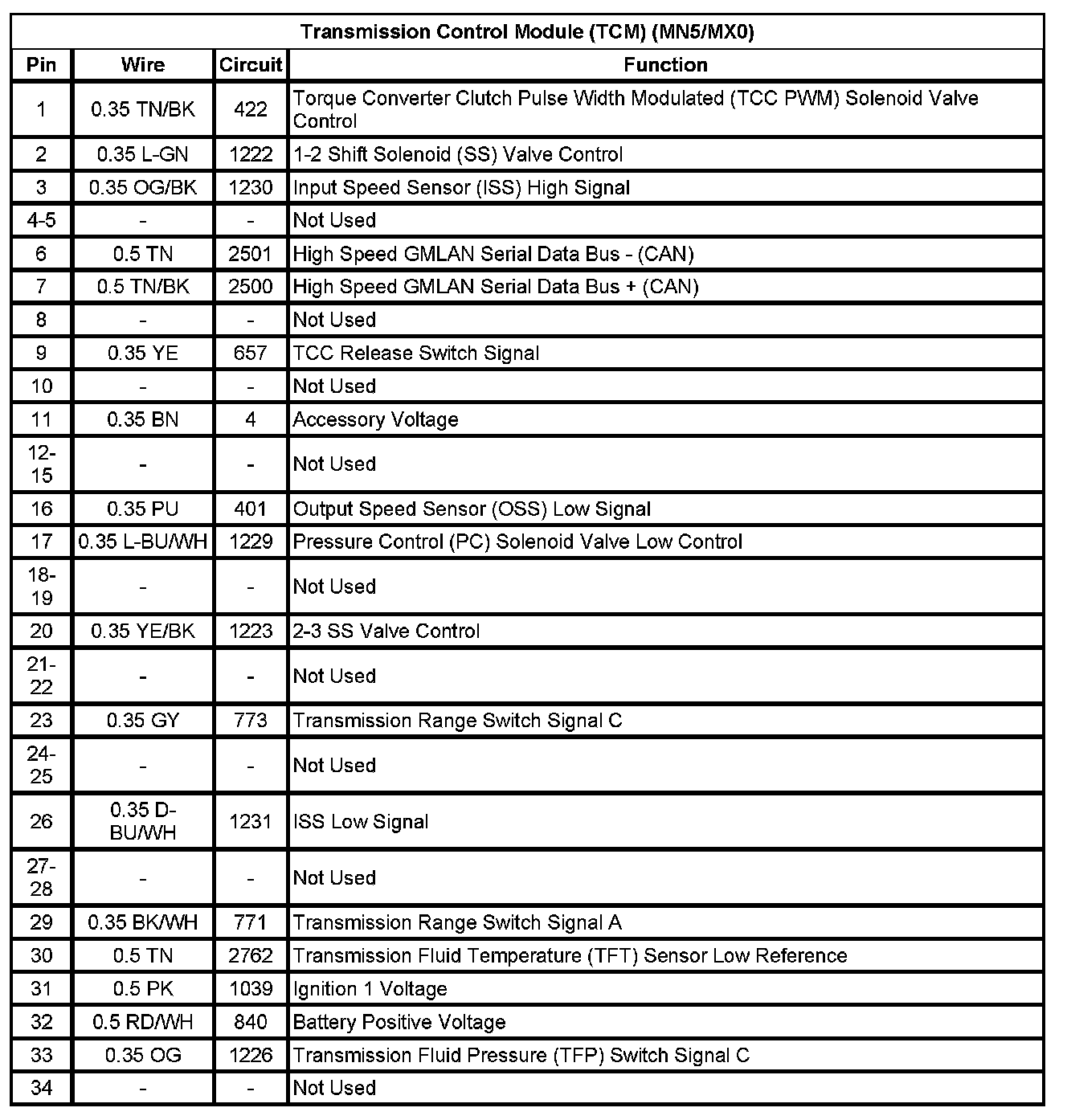

Transmission Control Module (TCM) (MN5/MX0) (Pin 1 To 34):

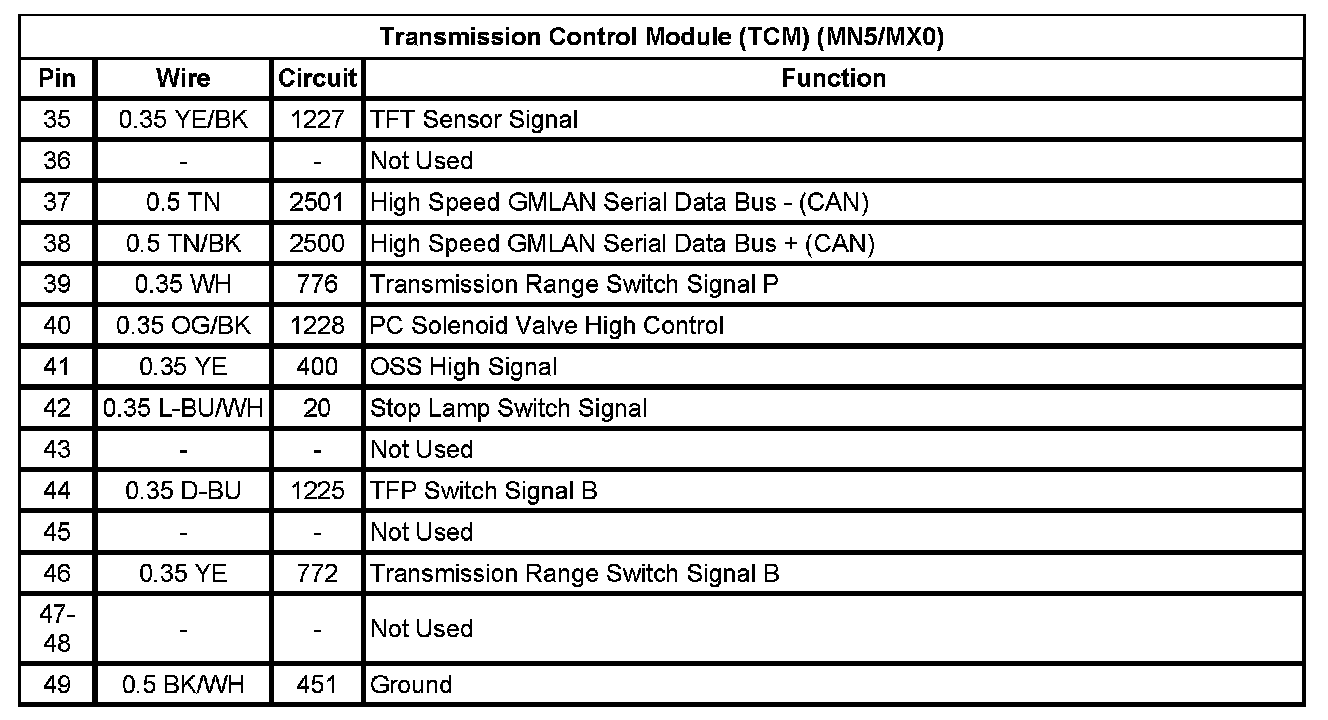

Transmission Control Module (TCM) (MN5/MX0) (Pin 35 To 49):
