Accelerator Pedal Position Sensor: Locations

Passenger Compartment/Roof Component Views

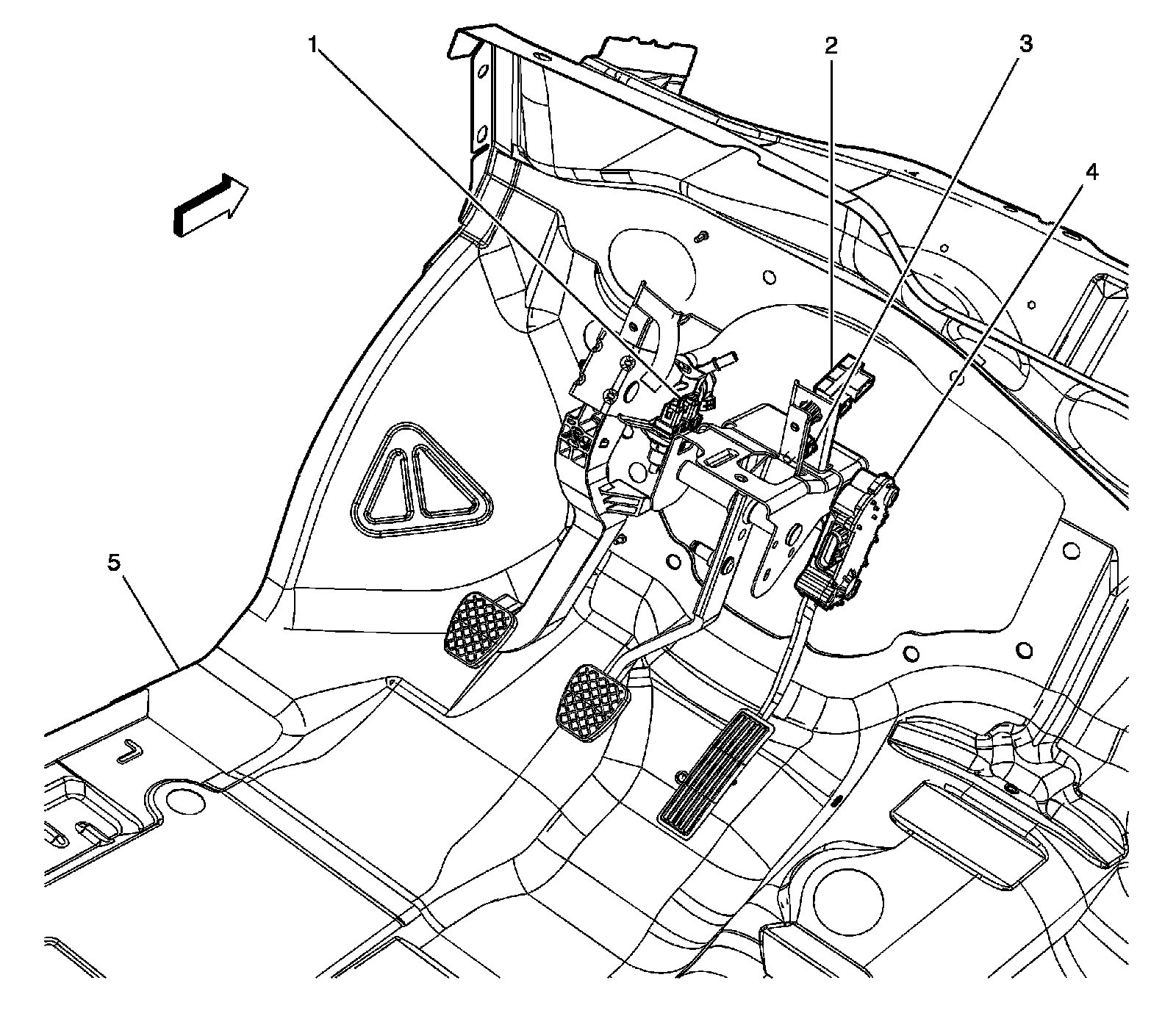

Pedal Components




1 - Clutch Pedal Position (CCP) Sensor (M86/MU3)
2 - Brake Pedal Position Sensor
3 - Cruise Control Cancel Switch
4 - Accelerator Pedal Position (APP) Sensor
5 - Floor Pan
