Connector Views
Component Connector End Views - Continued

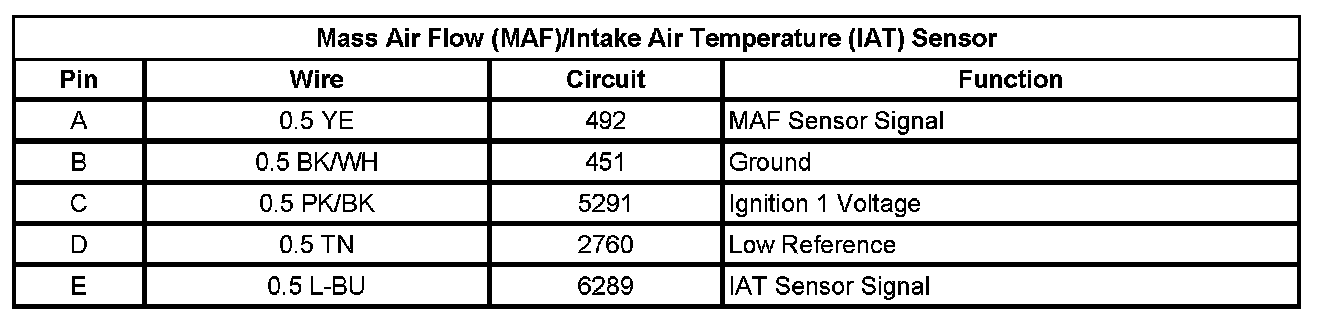

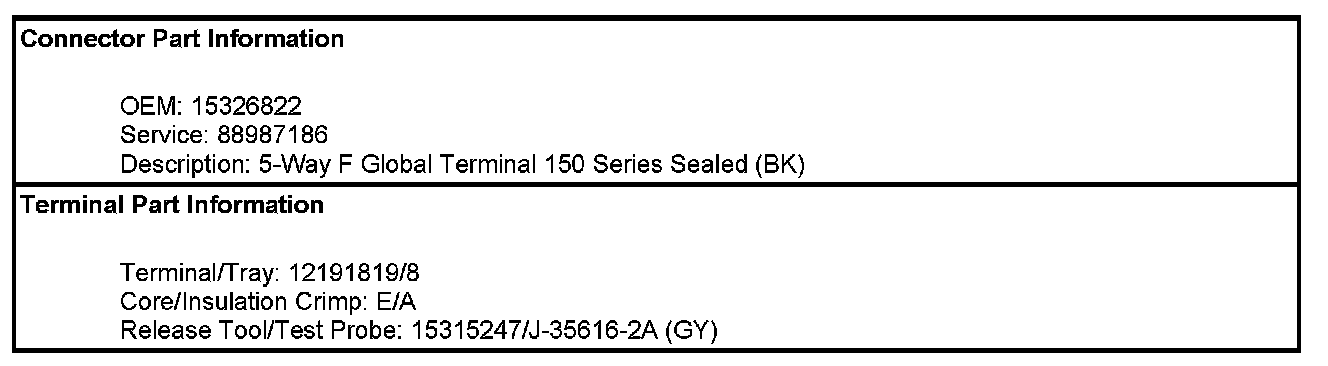

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
