Body Control Module: Diagrams
Component Connector End Views

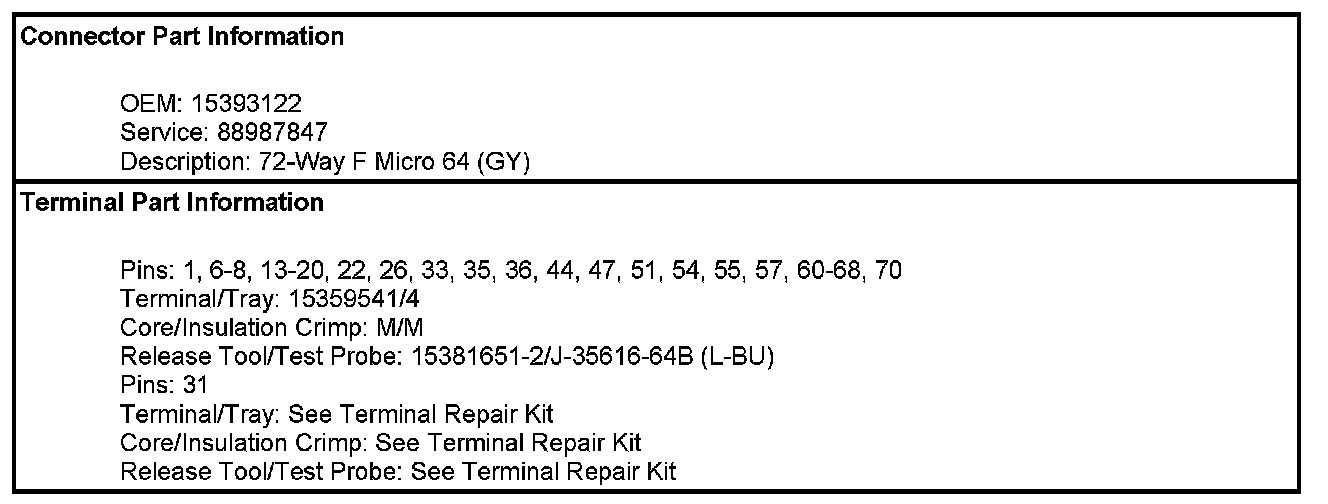

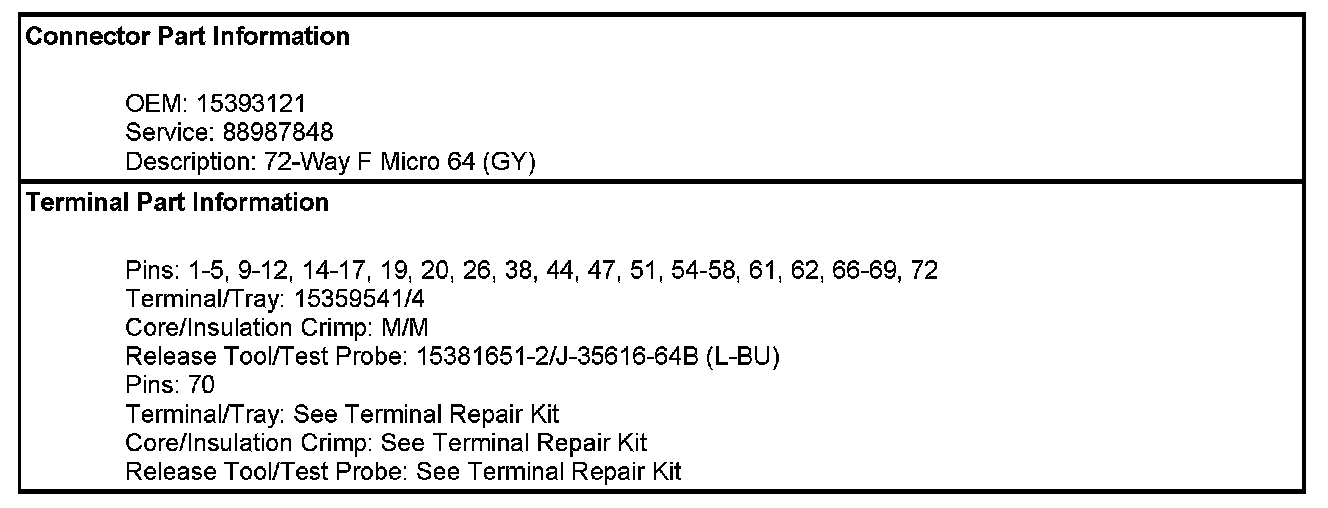

Body Control Module (BCM) X1

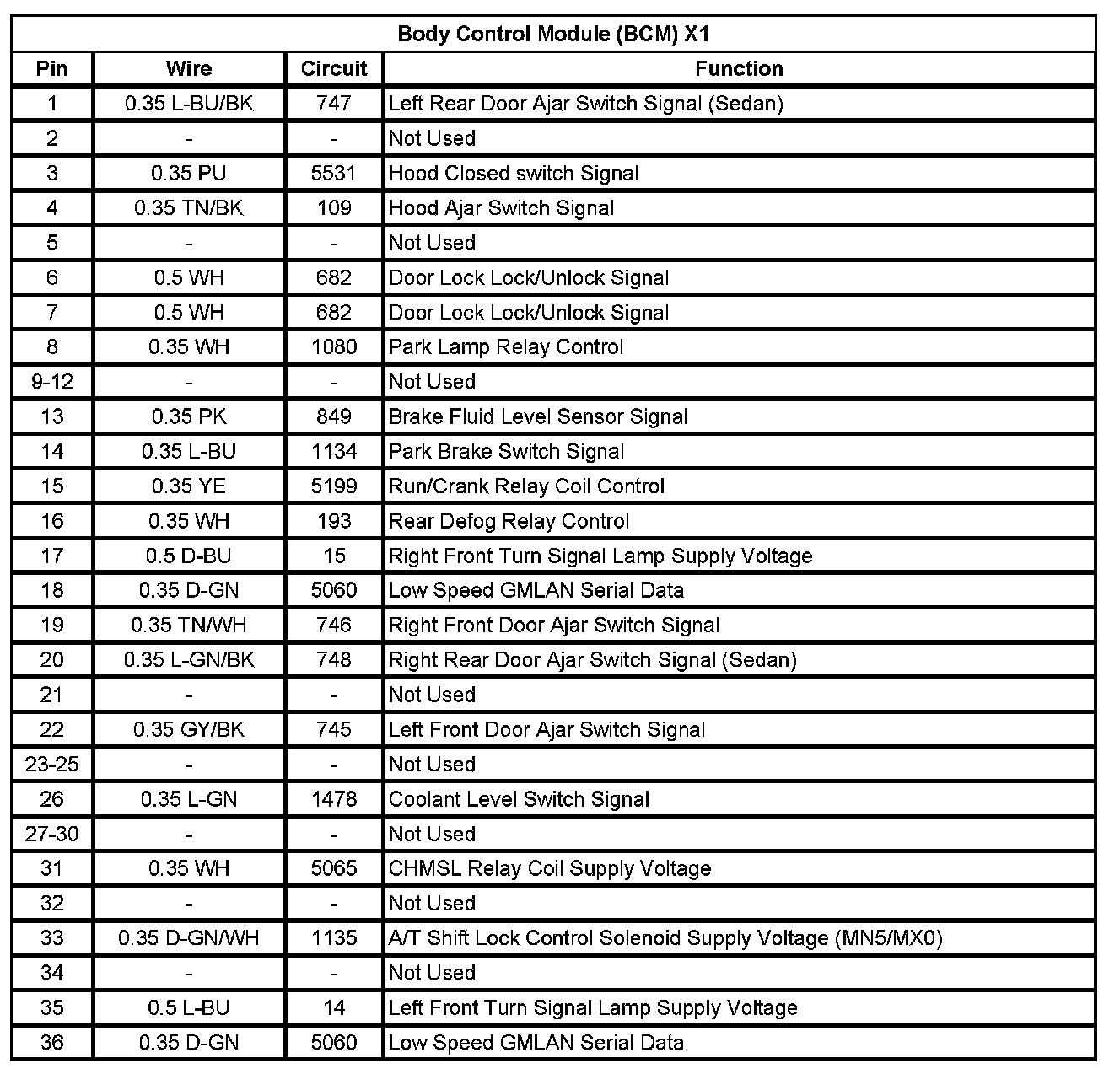

Body Control Module (BCM) X1 (Pin 1 To 36):

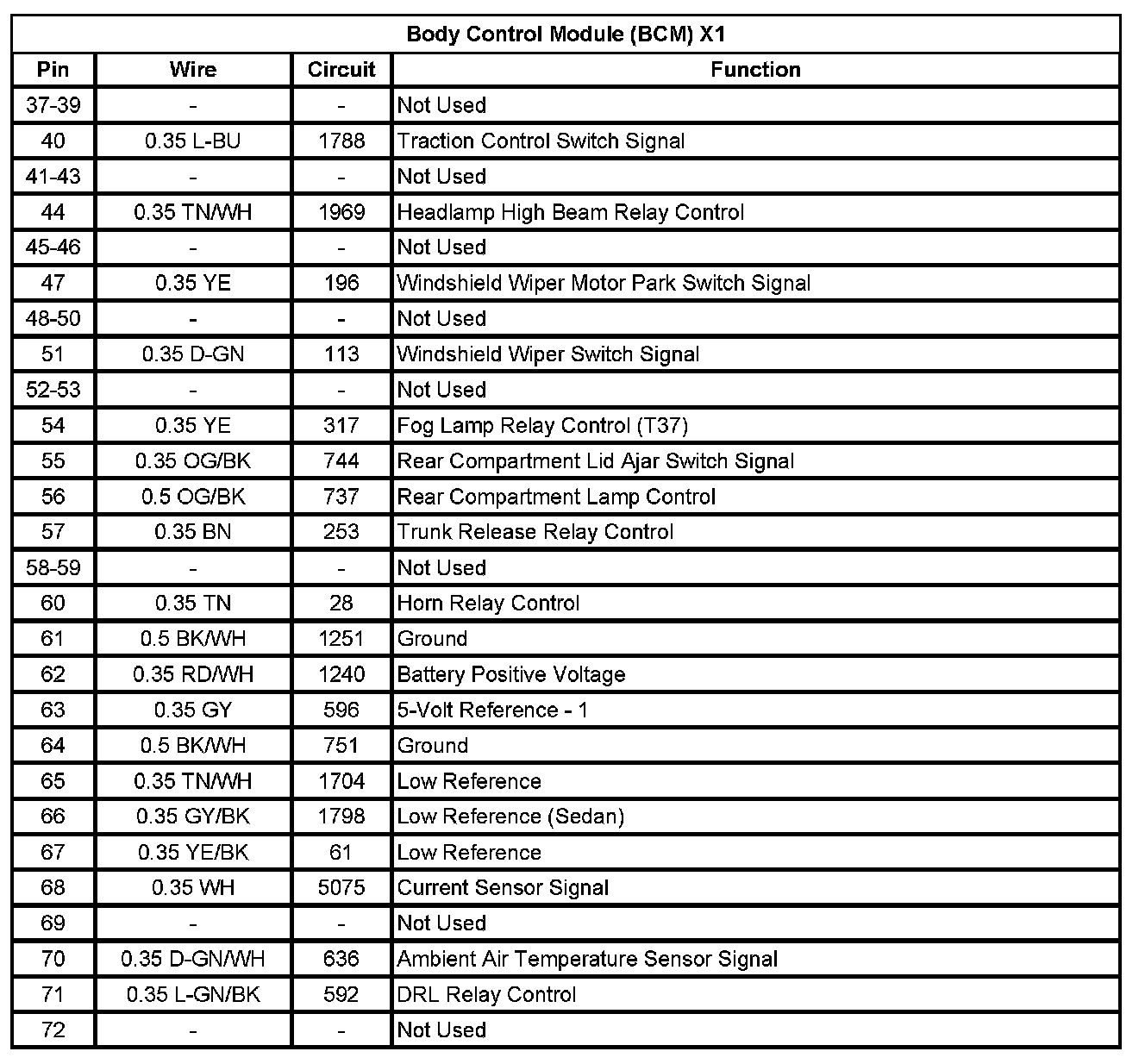

Body Control Module (BCM) X1 (Pin 37 To 72):

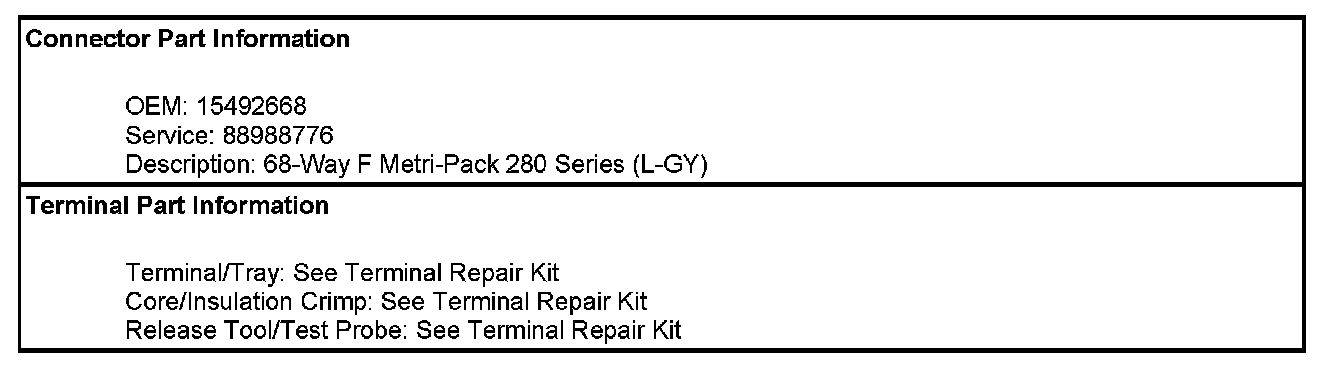

Body Control Module (BCM) X2

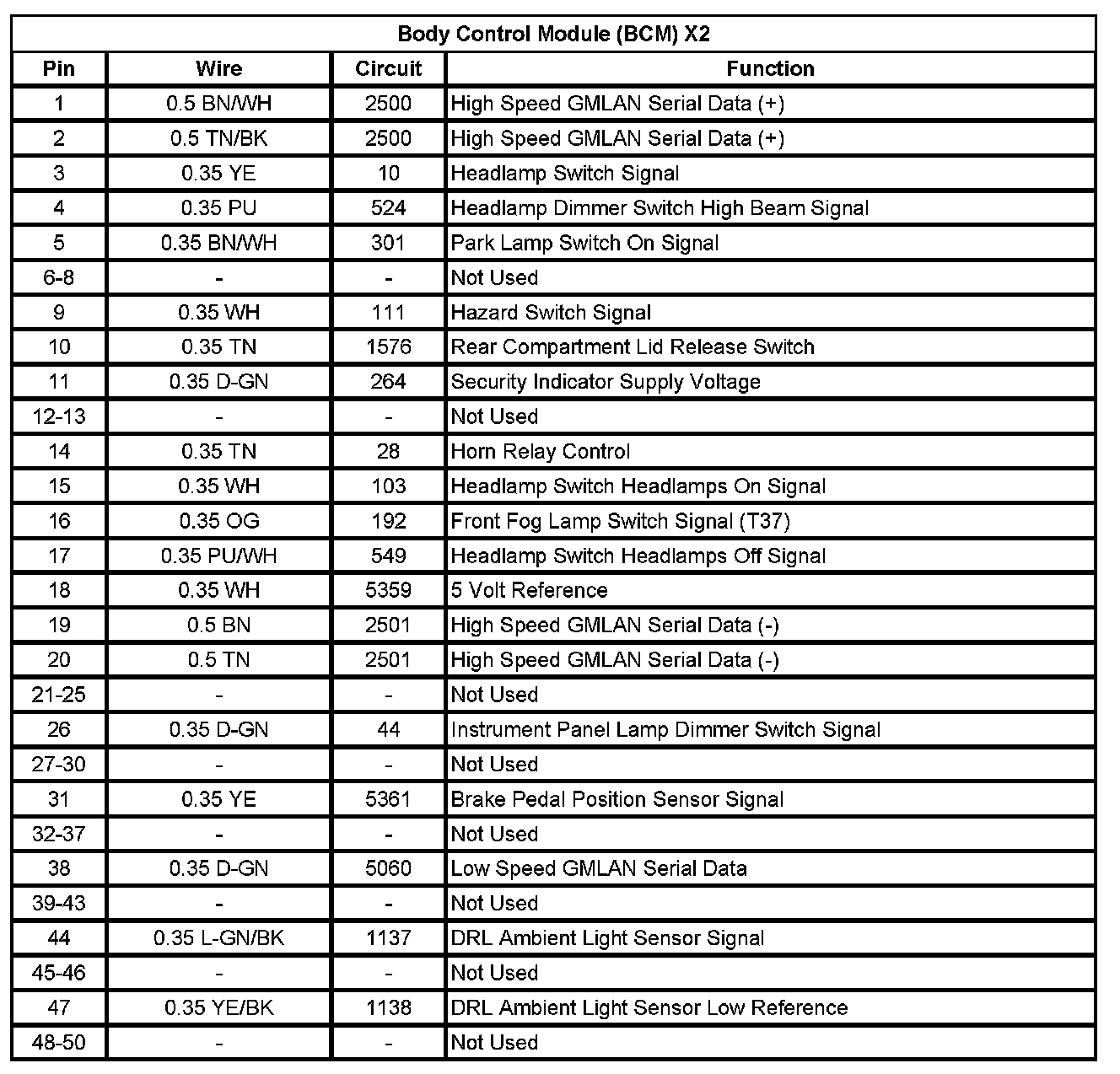

Body Control Module (BCM) X2 (Pin 1 To 50):

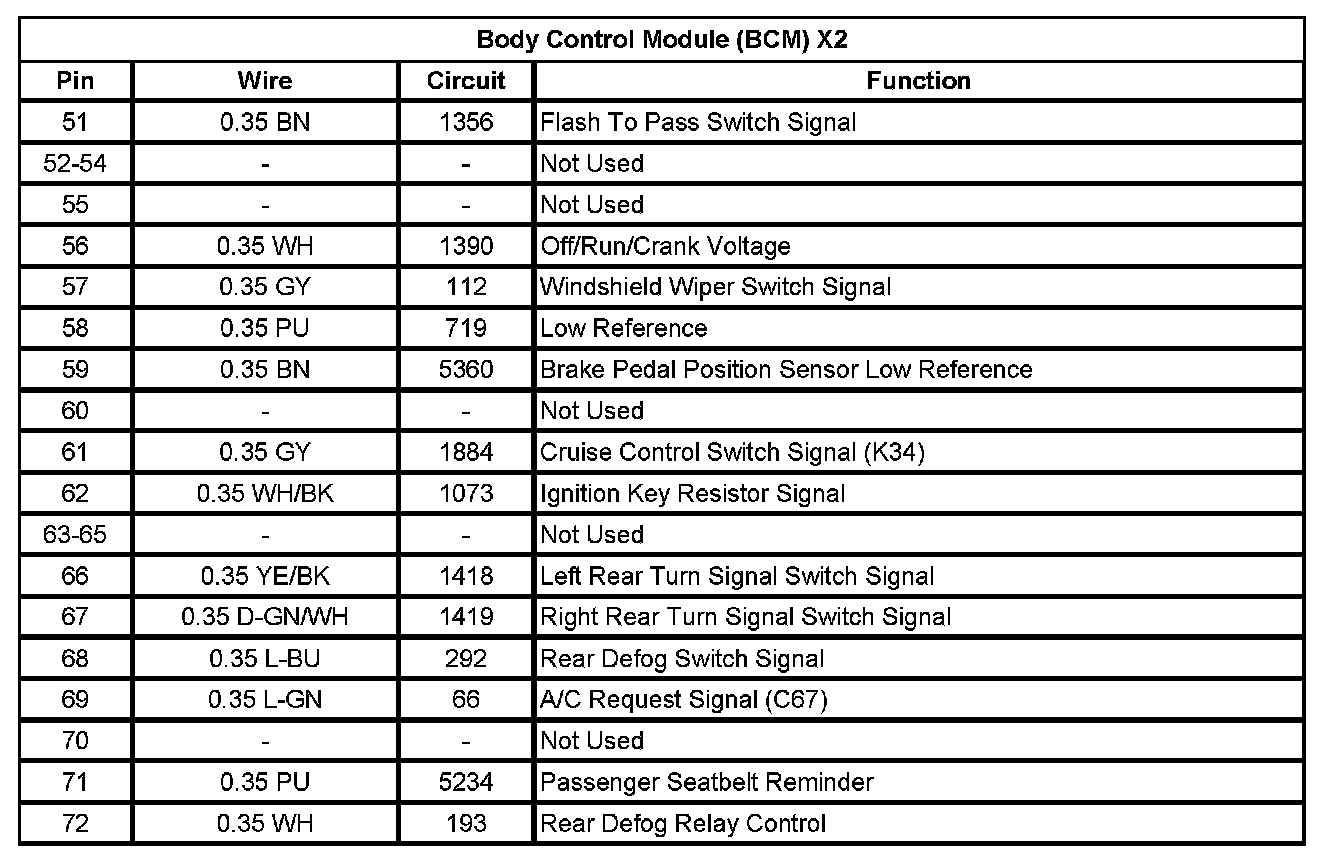

Body Control Module (BCM) X2 (Pin 51 To 72):

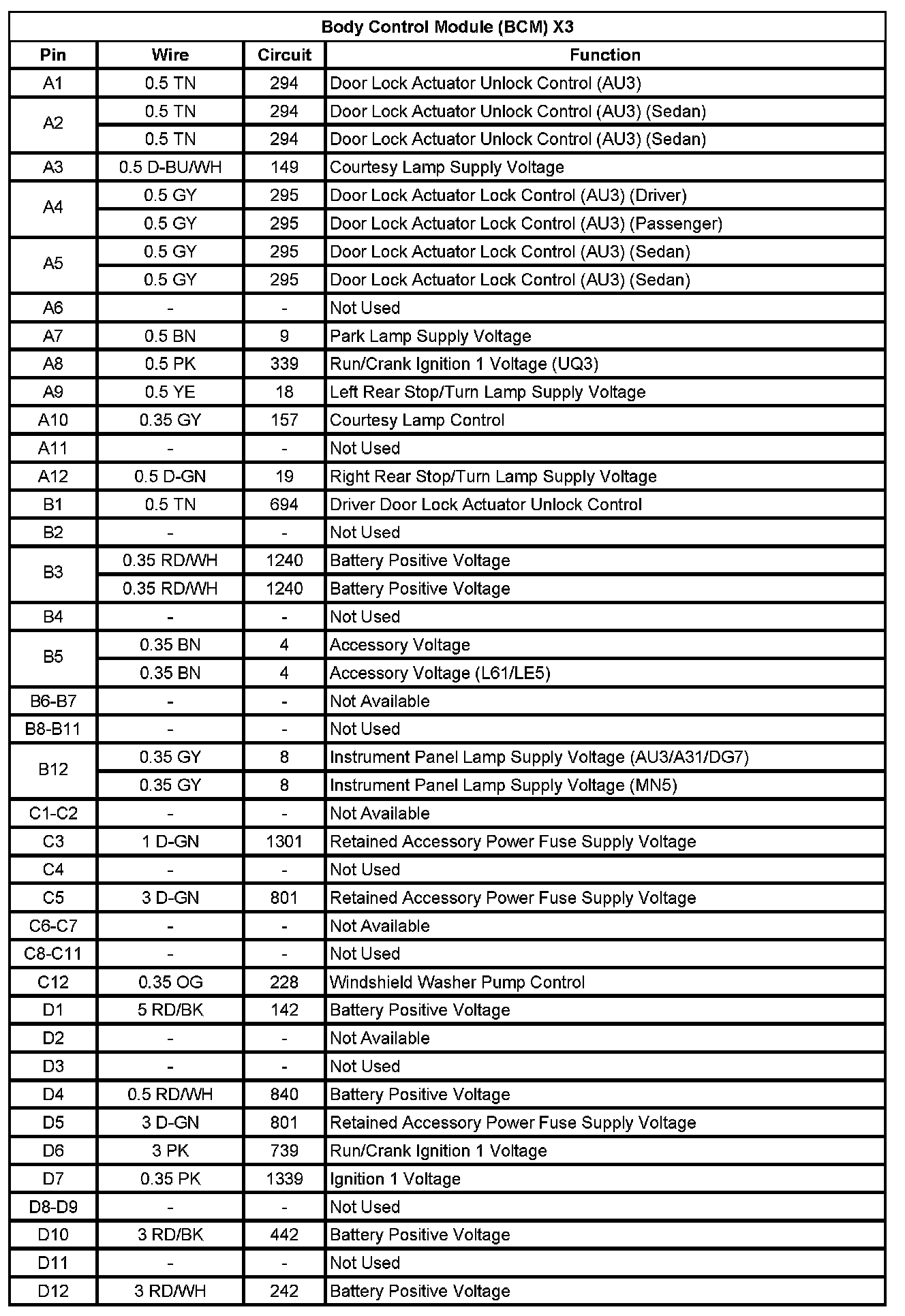

Body Control Module (BCM) X3

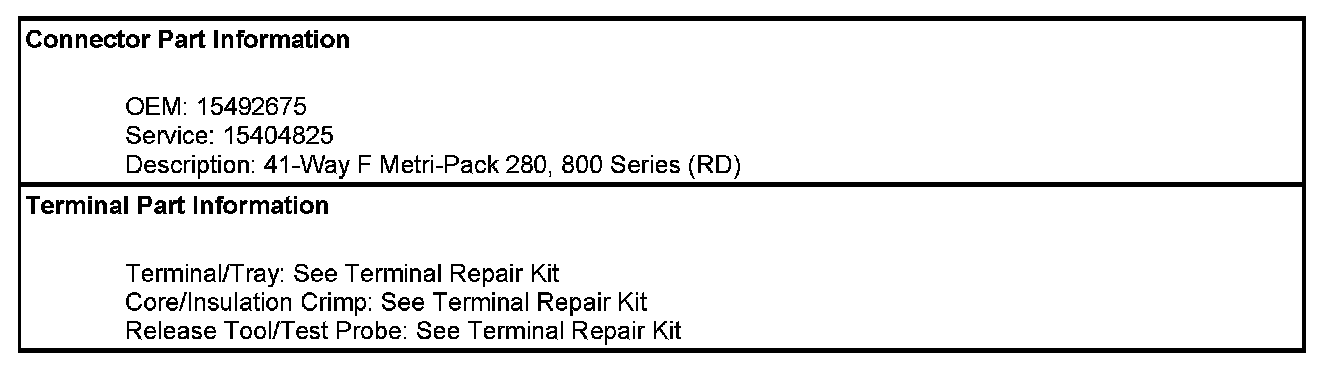

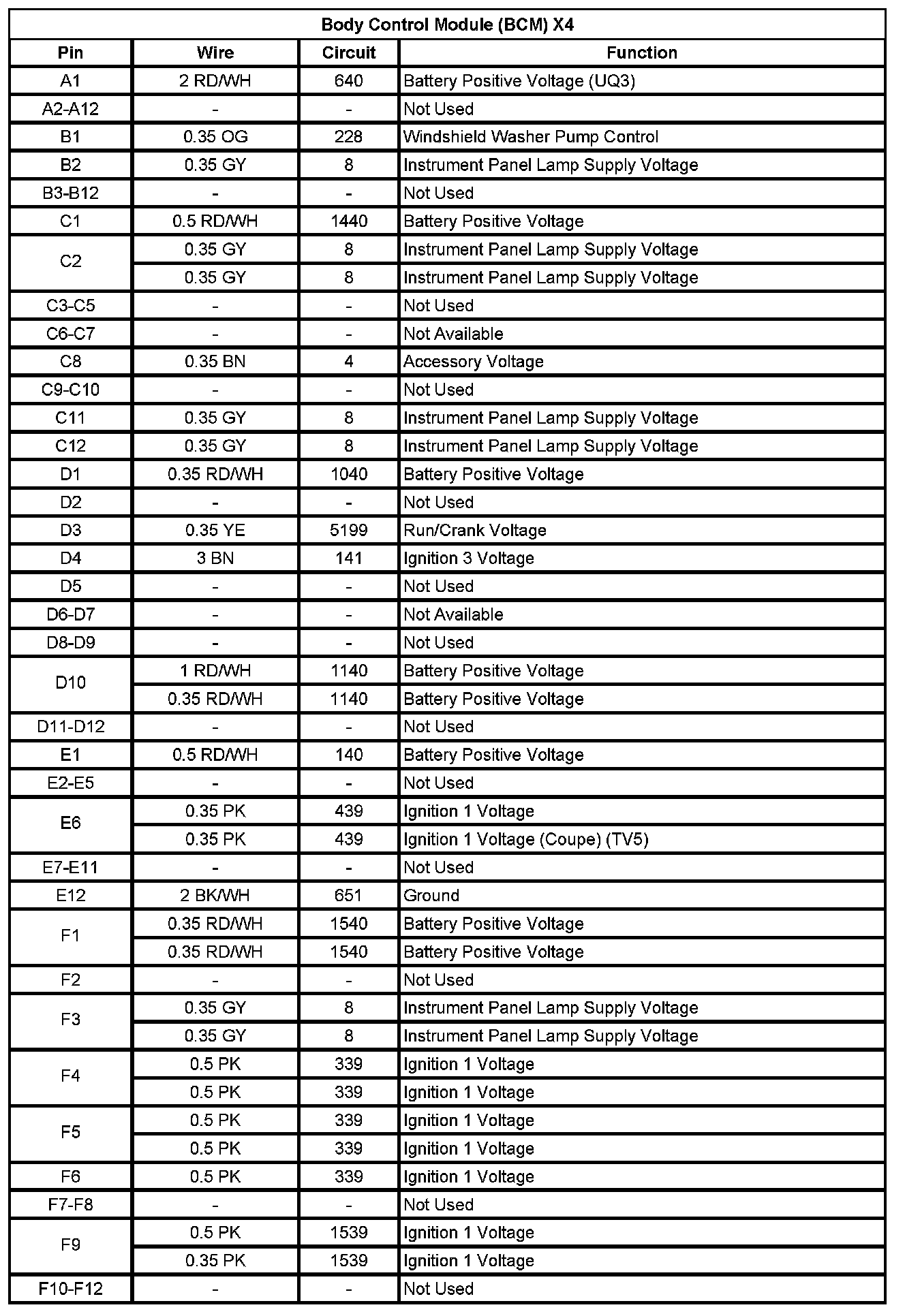

Body Control Module (BCM) X4
