Connector Views
Component Connector End Views

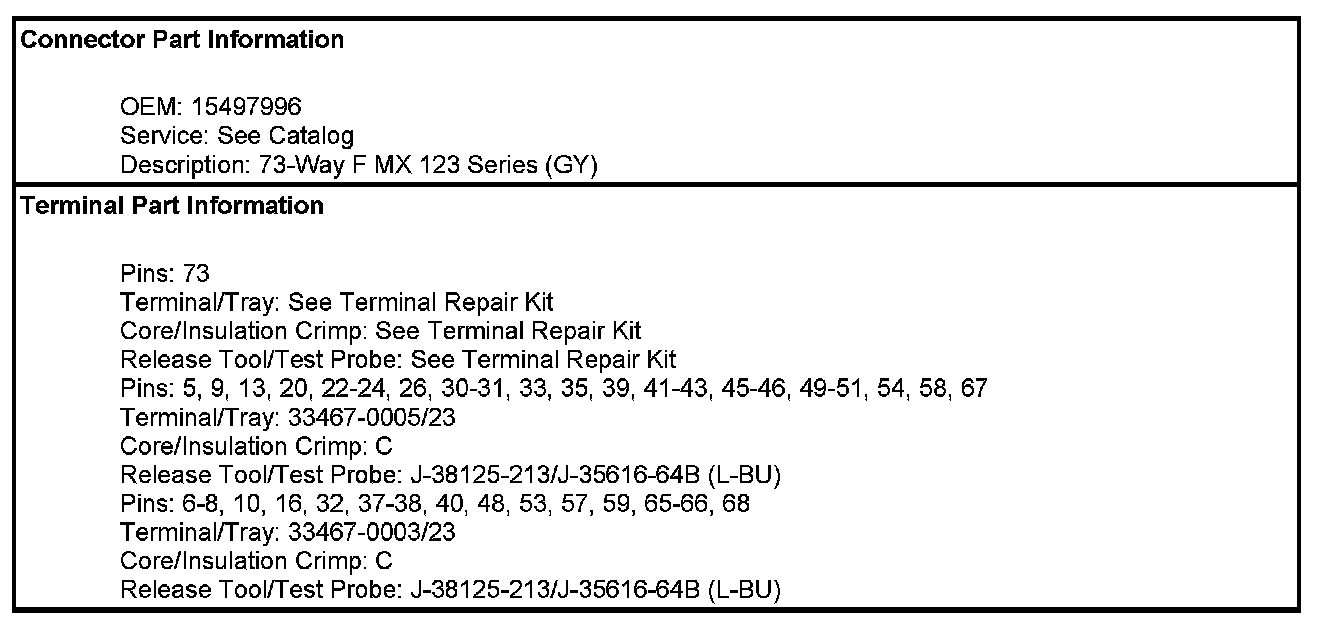

Engine Control Module (ECM) X1 (L61/LE5)

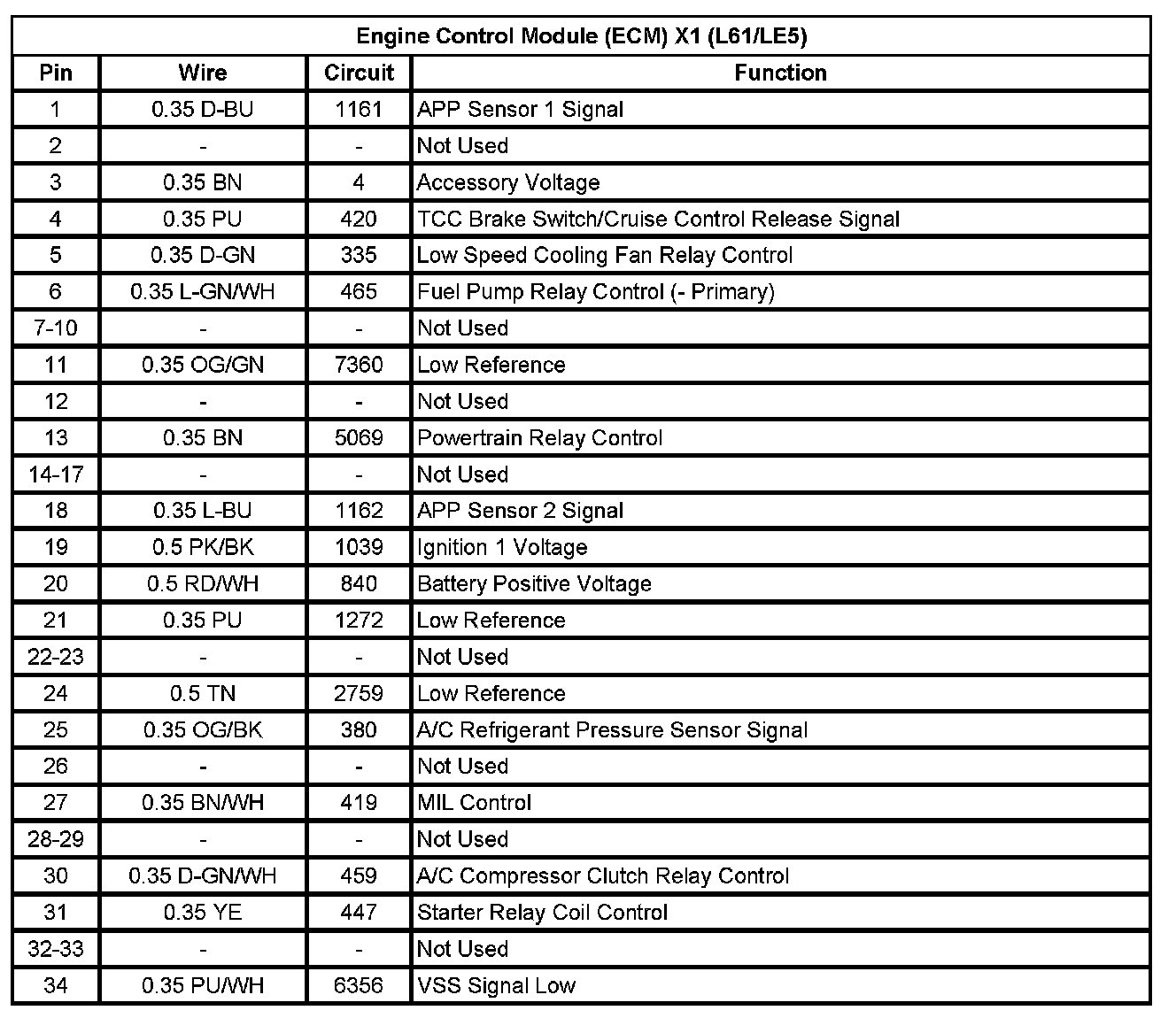

Engine Control Module (ECM) X1 (L61/LE5) (Pin 1 To 34):

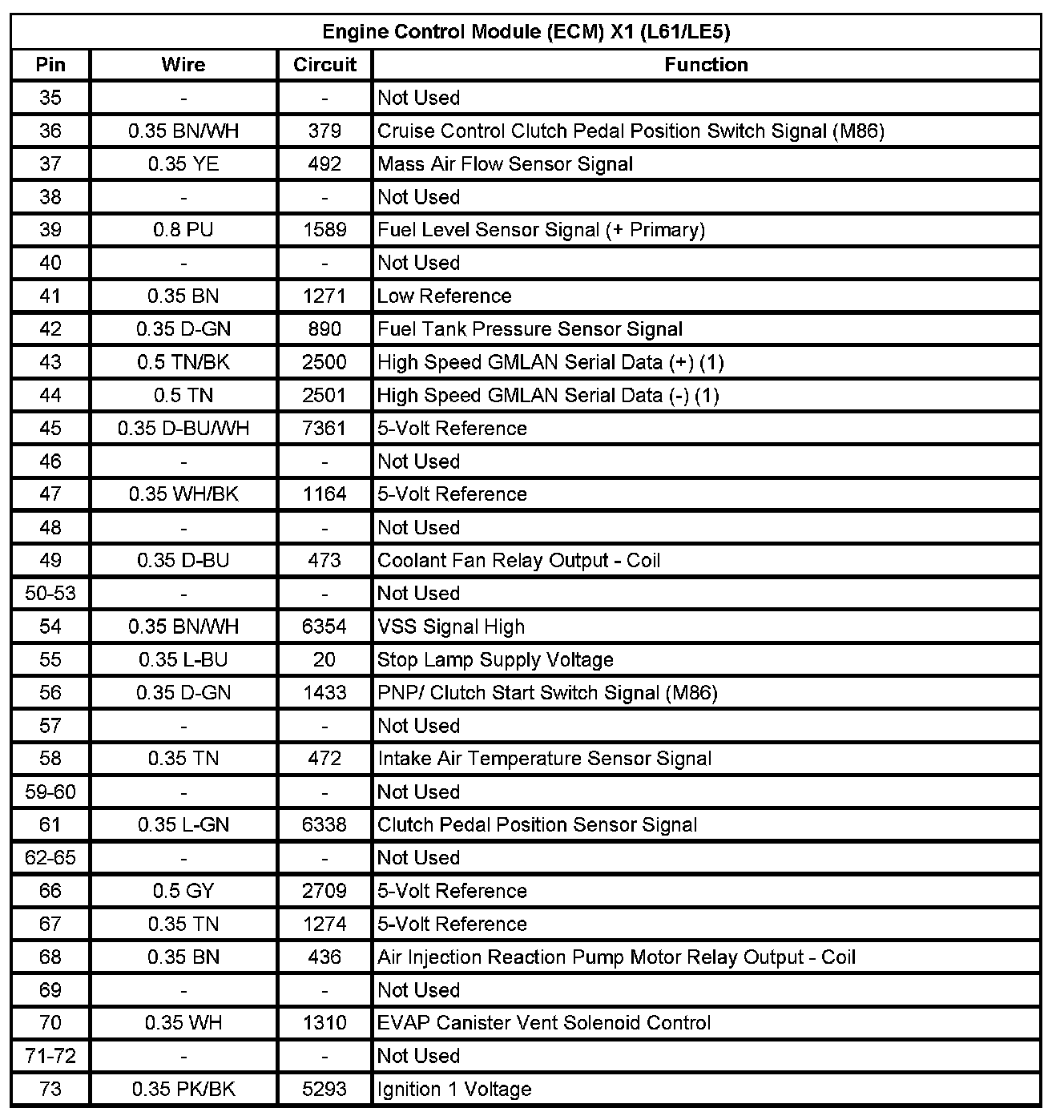

Engine Control Module (ECM) X1 (L61/LE5) (Pin 35 To 73):

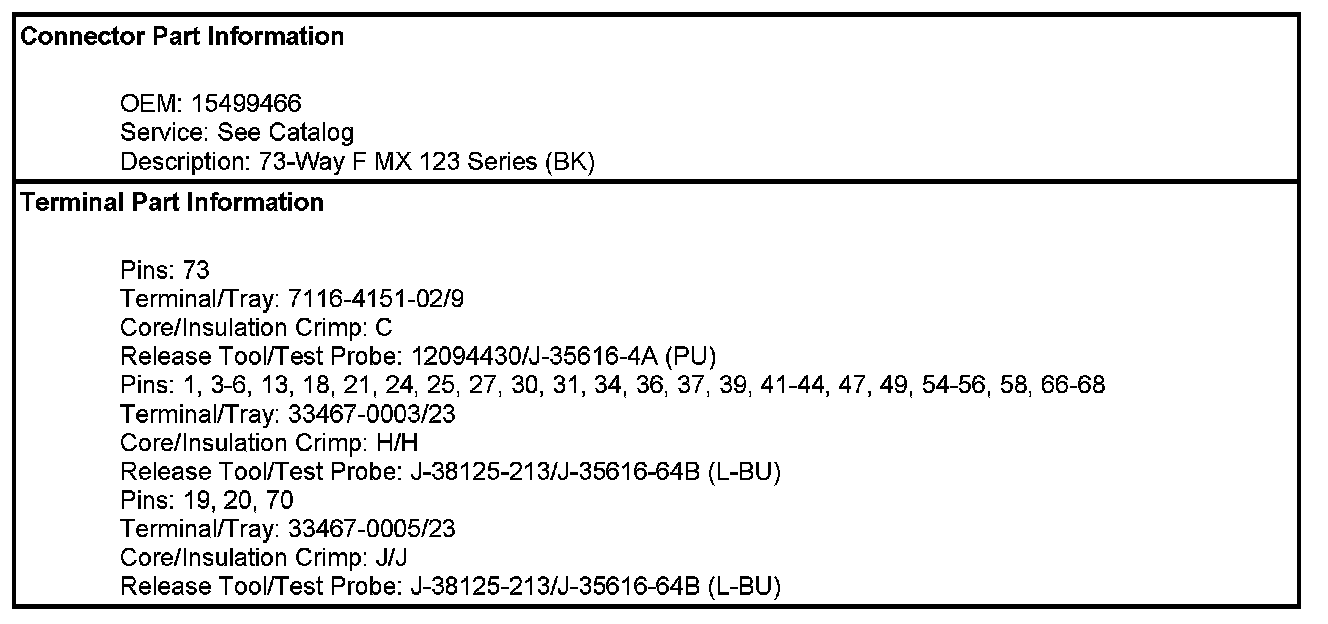

Engine Control Module (ECM) X2 (L61/LE5)

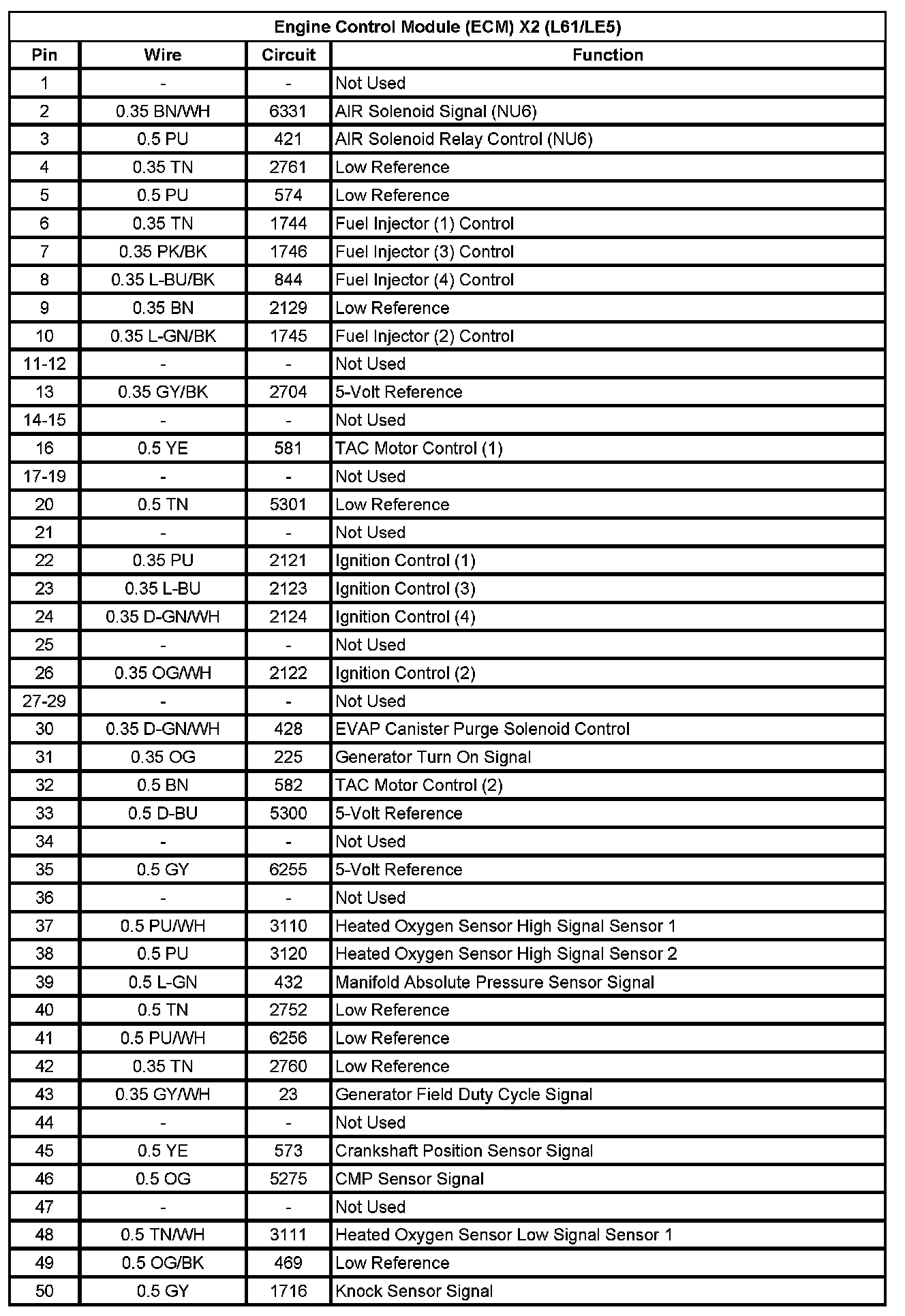

Engine Control Module (ECM) X2 (L61/LE5) (Pin 1 To 50):

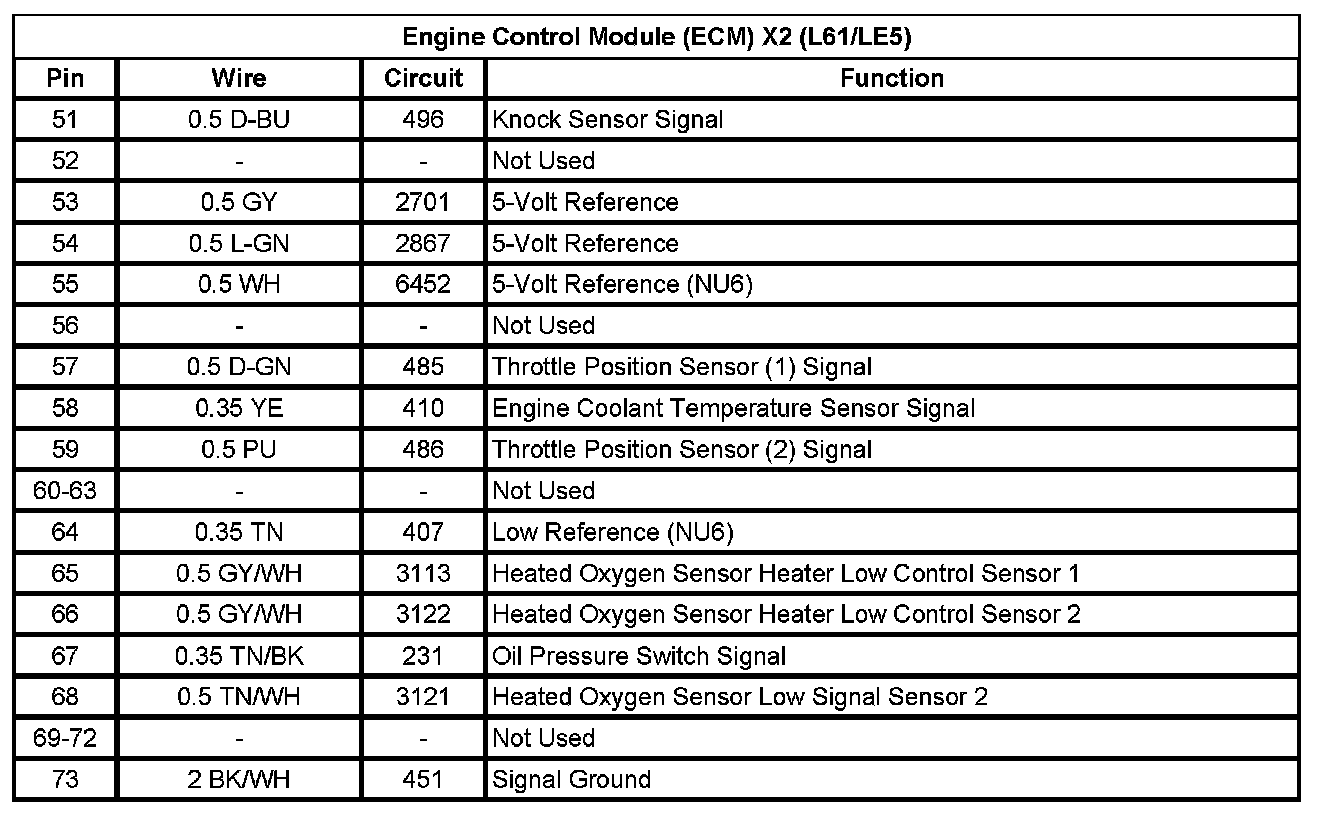

Engine Control Module (ECM) X2 (L61/LE5) (Pin 51 To 73):
