Transmission Position Sensor/Switch: Diagrams

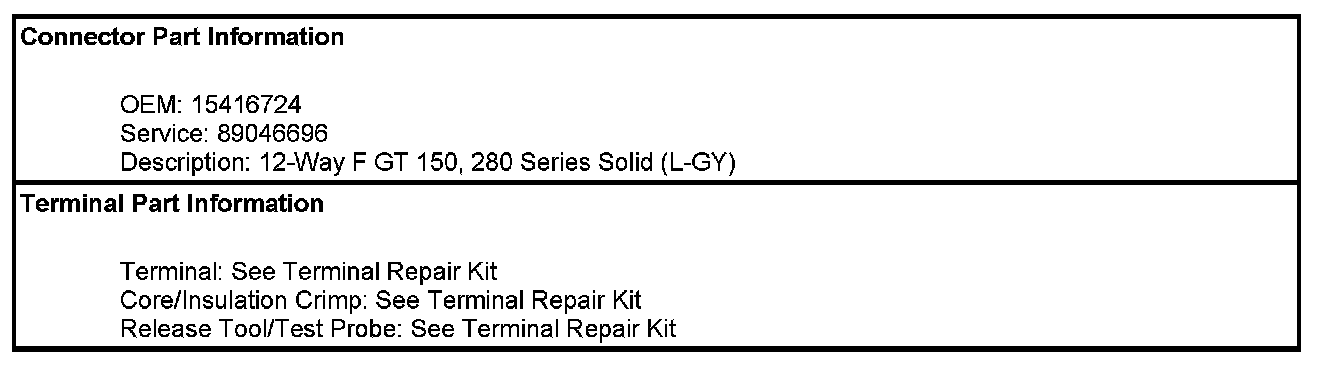

Component Connector End Views - Continued

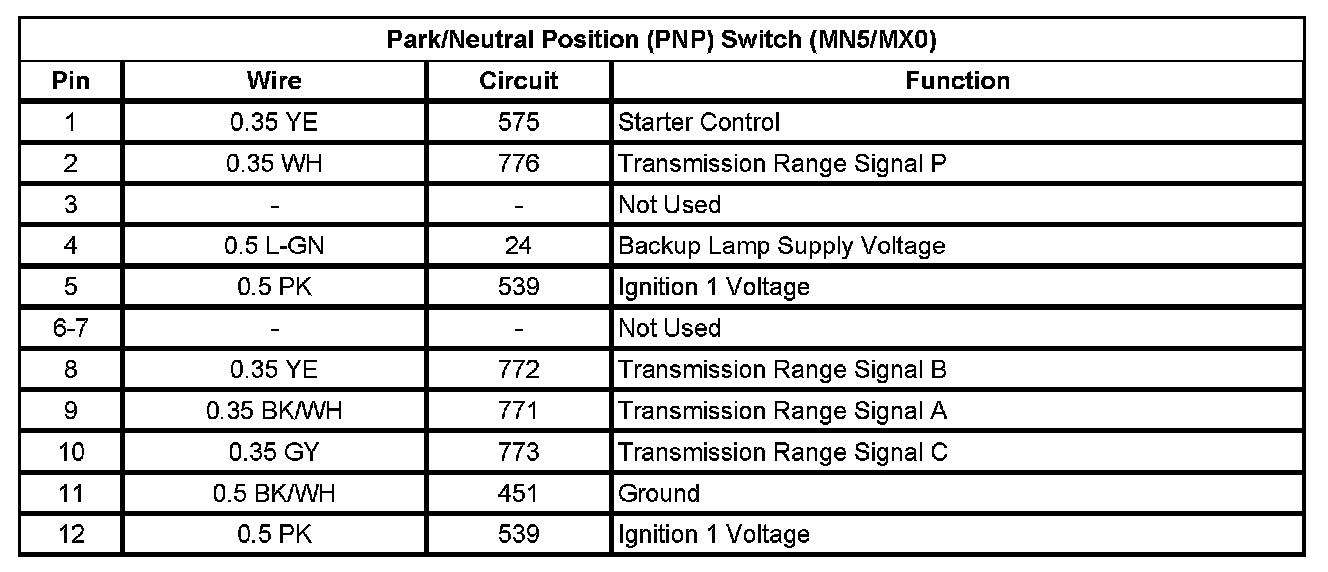

Park/Neutral Position (PNP) Switch (MN5/MX0)
