Air Bag Control Module

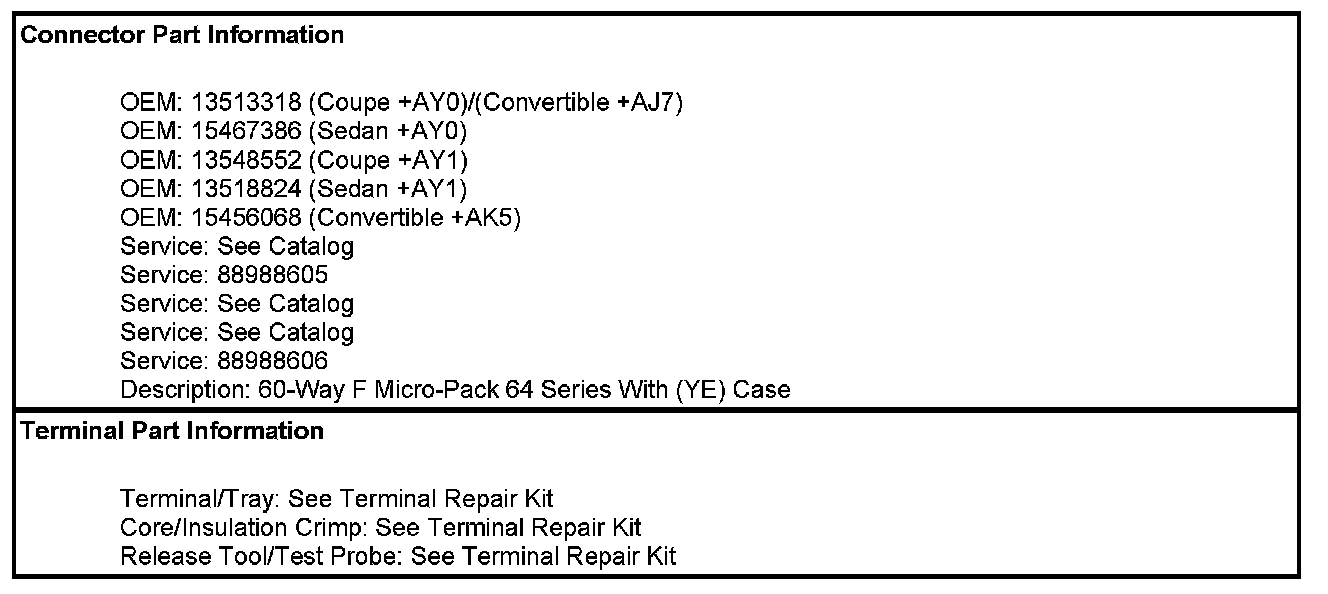

Component Connector End Views - Continued
Inflatable Restraint Sensing and Diagnostic Module (SDM)

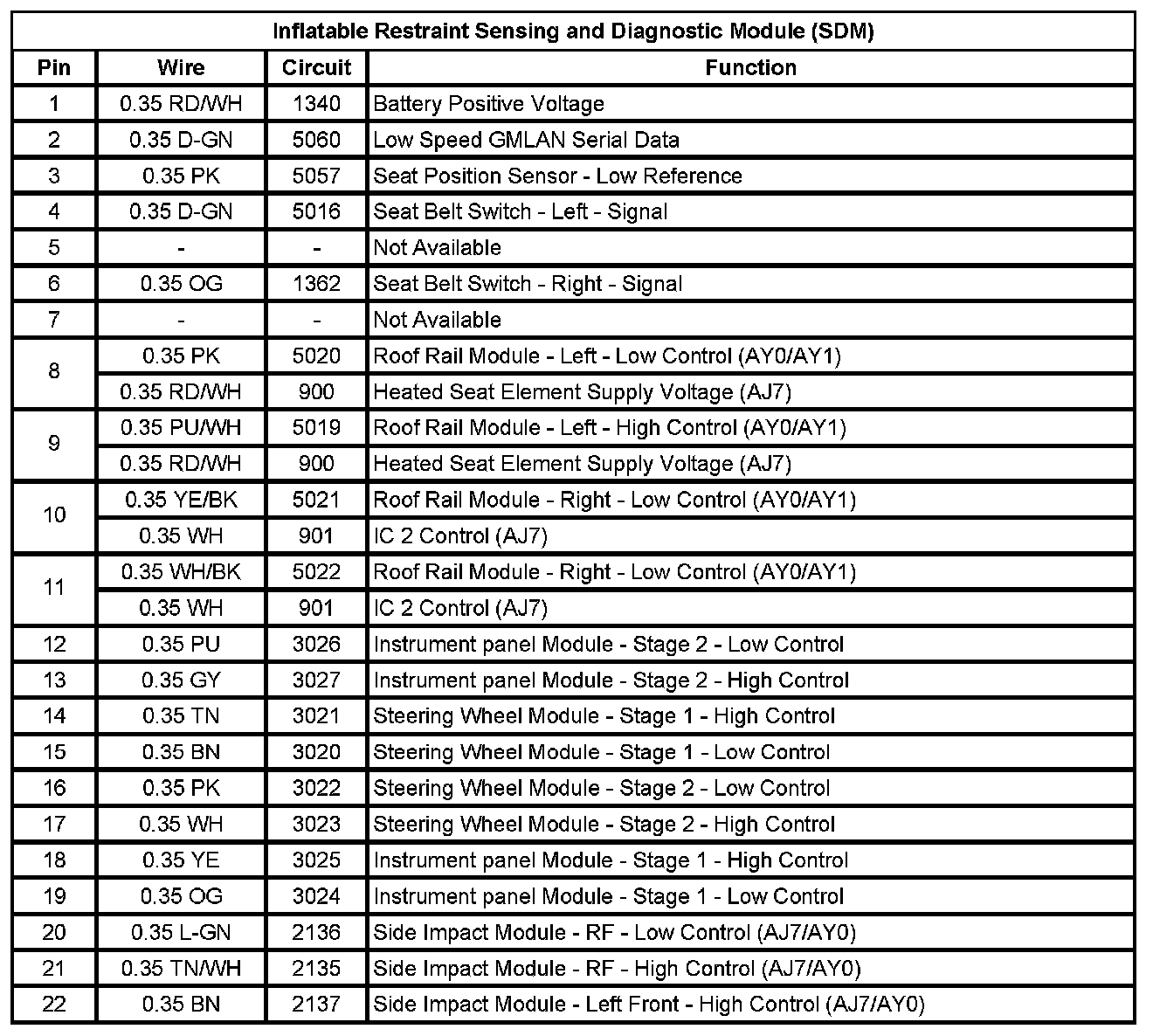

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 22):

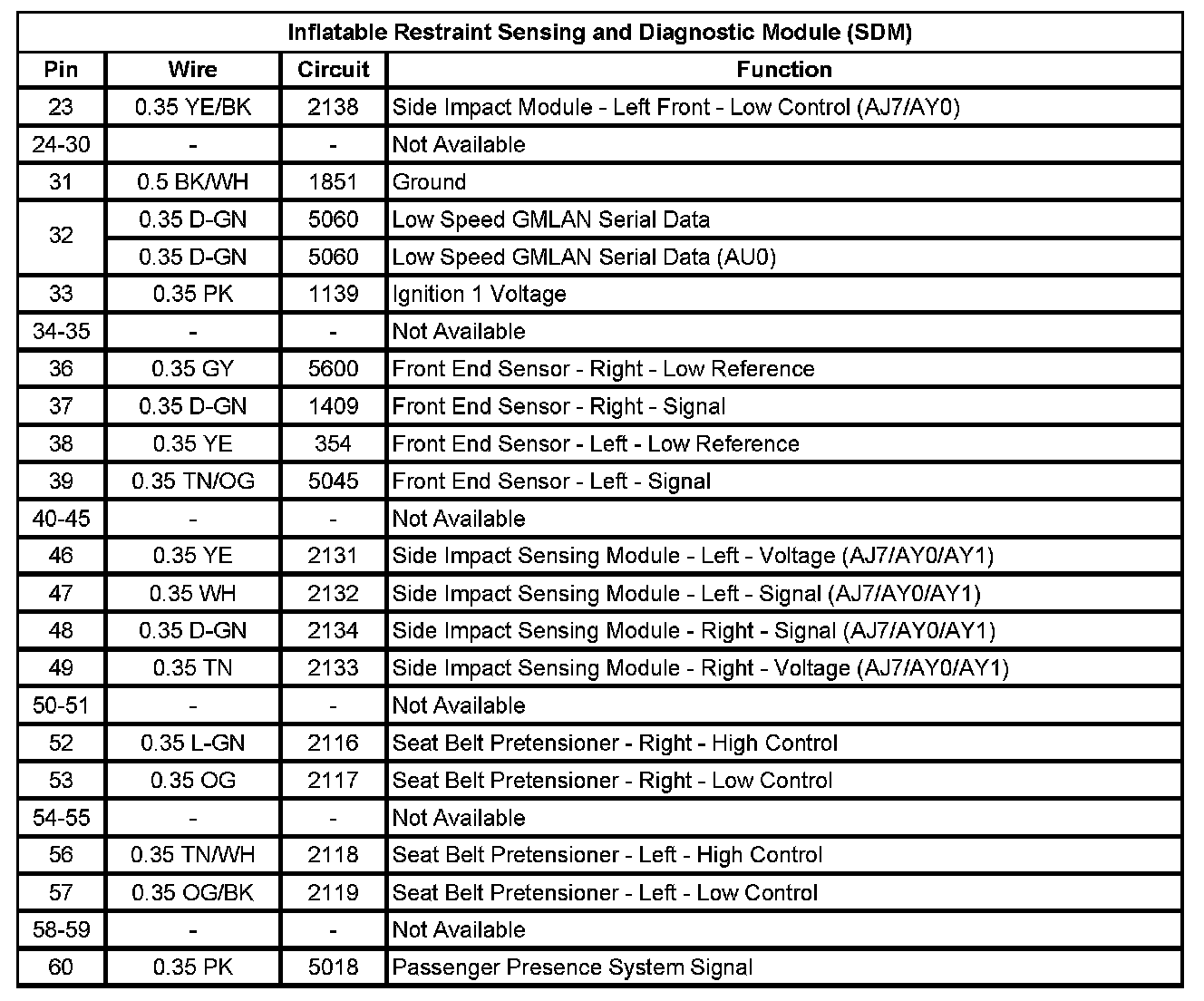

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 23 To 60):
