Antenna Control Module

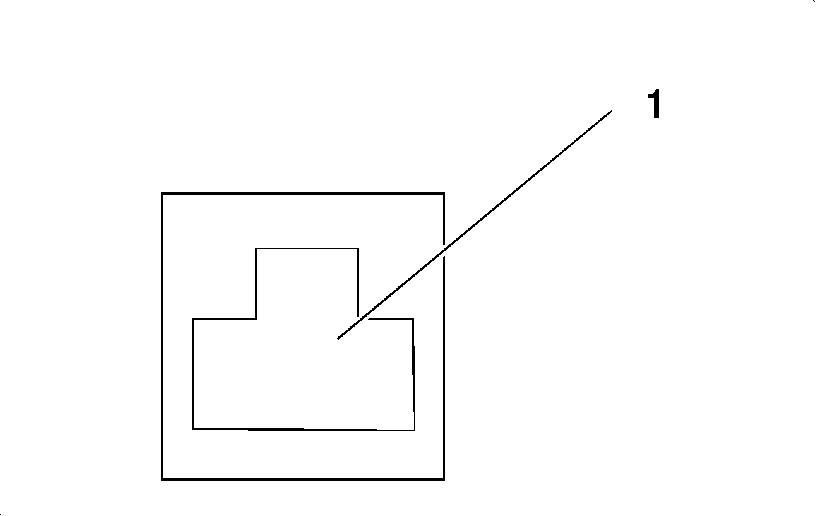

Component Connector End Views

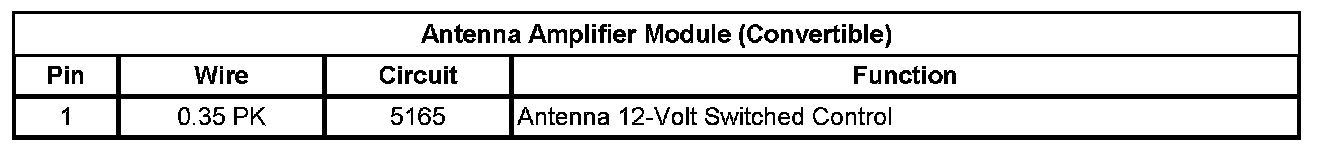

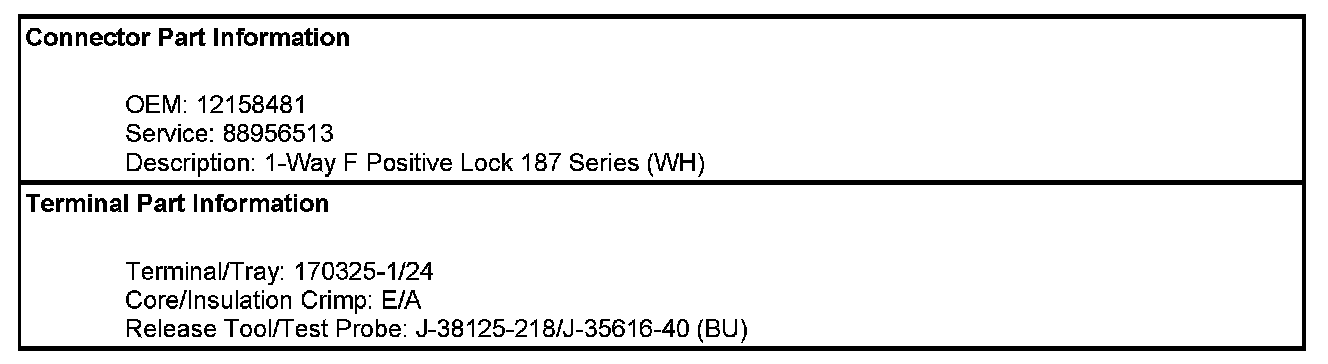

Antenna Amplifier Module (Convertible)

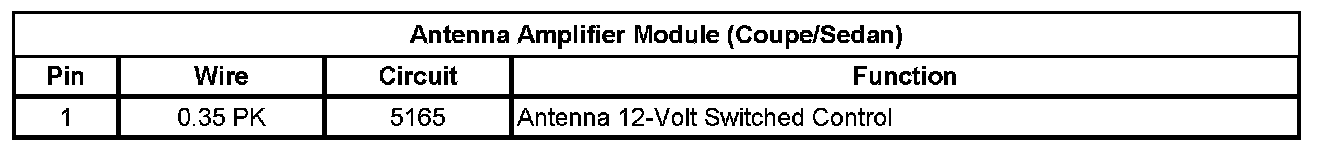

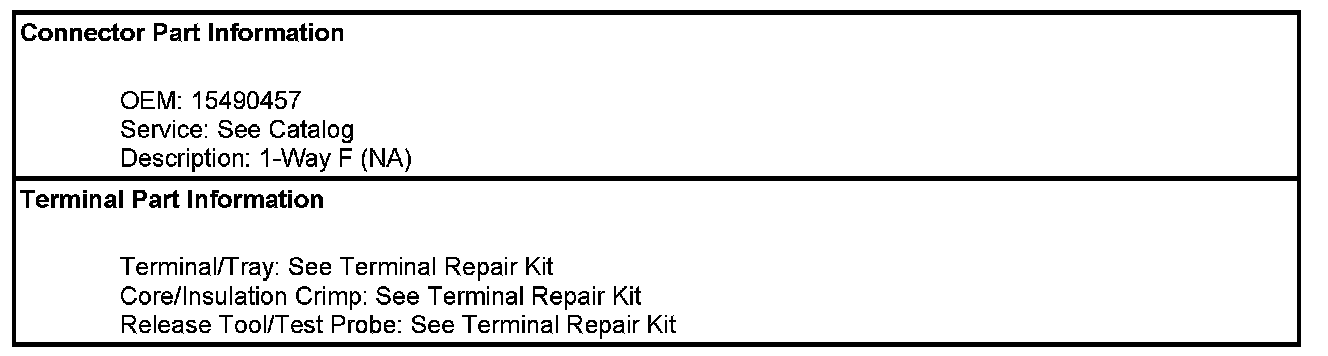

Antenna Amplifier Module (Coupe/Sedan)
