Central Control Module



Component Connector End Views - Continued

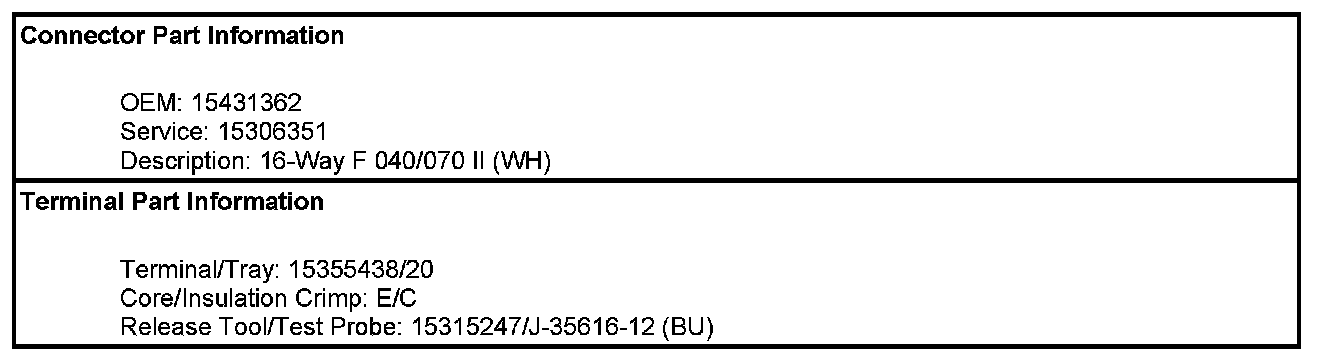

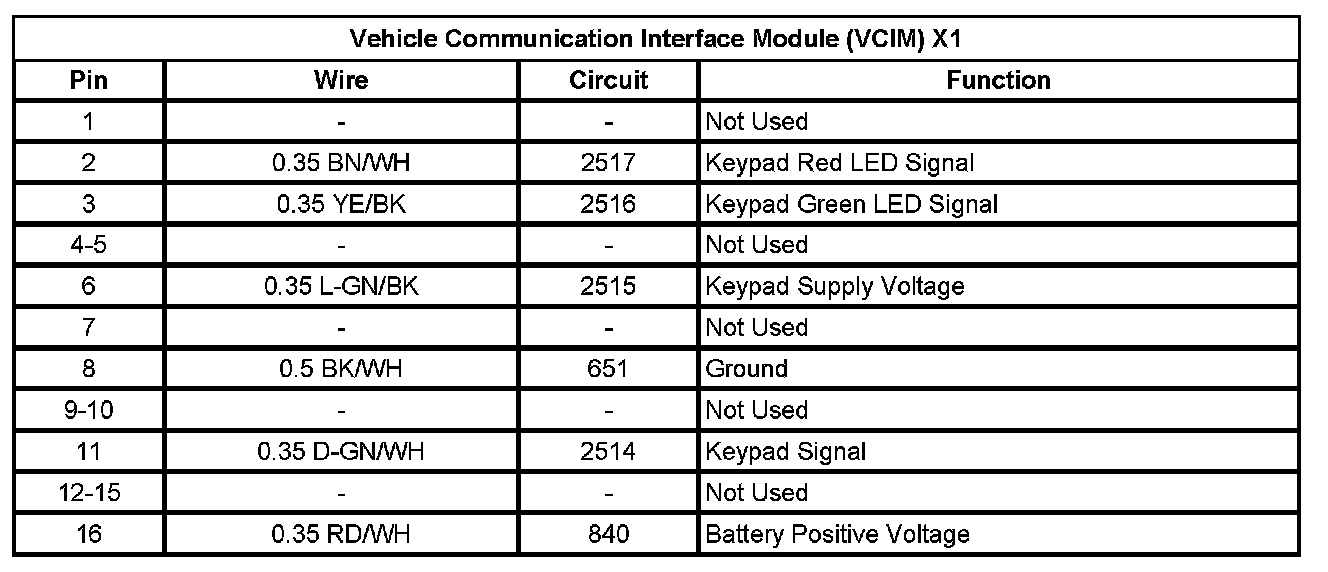

Vehicle Communication Interface Module (VCIM) X1

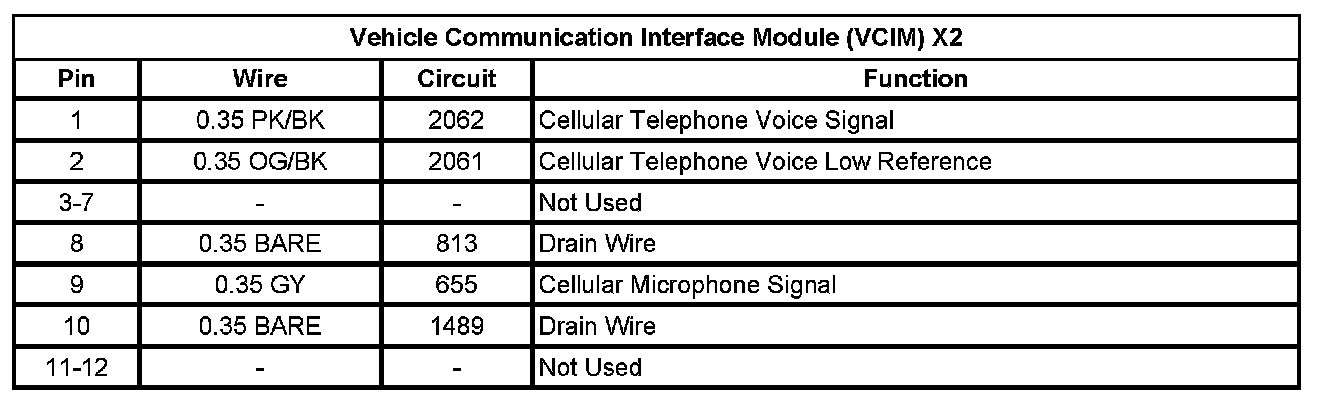

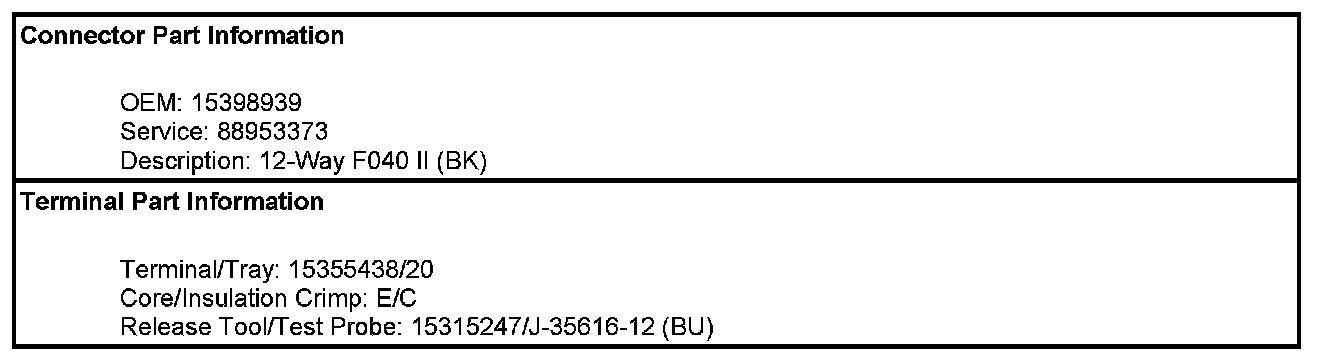

Vehicle Communication Interface Module (VCIM) X2

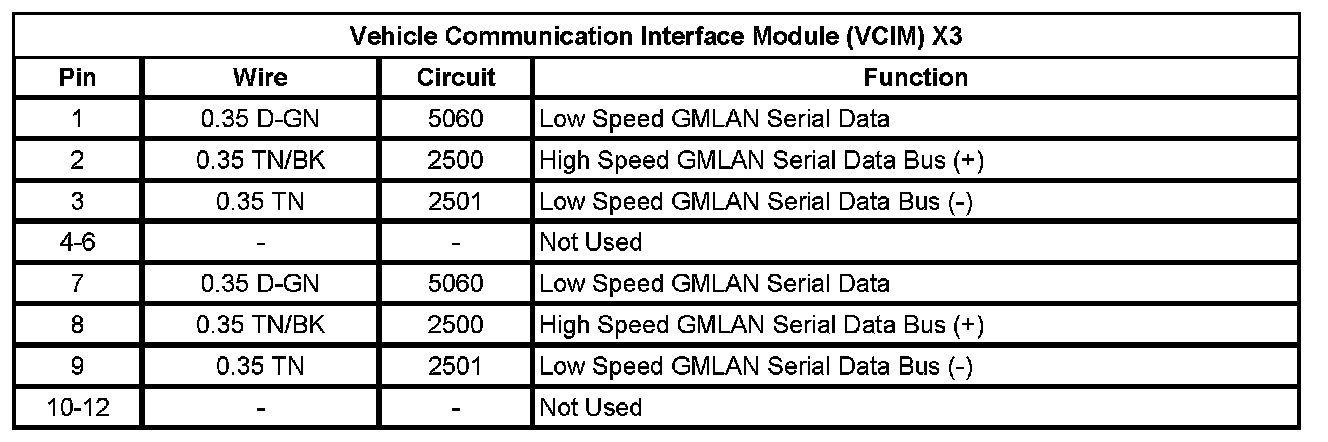

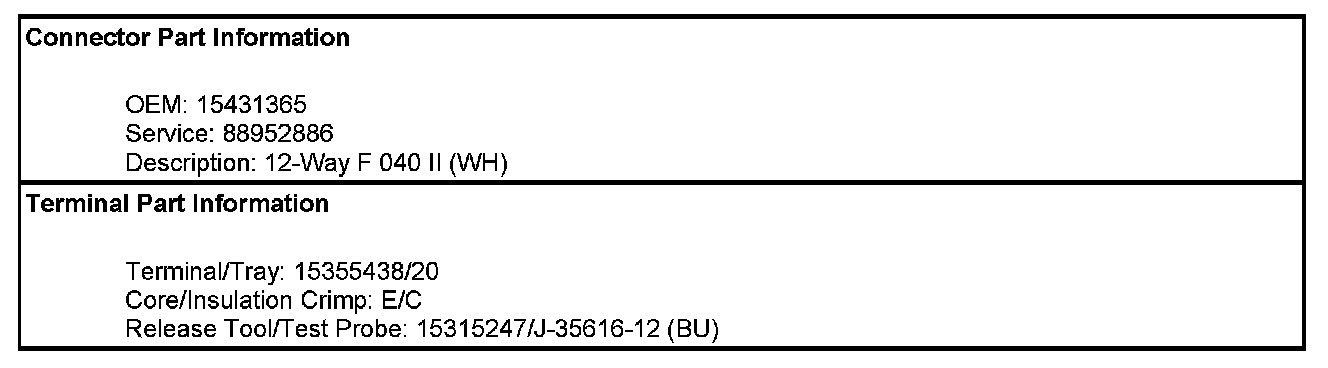

Vehicle Communication Interface Module (VCIM) X3
