Combination Switch



Component Connector End Views - Continued

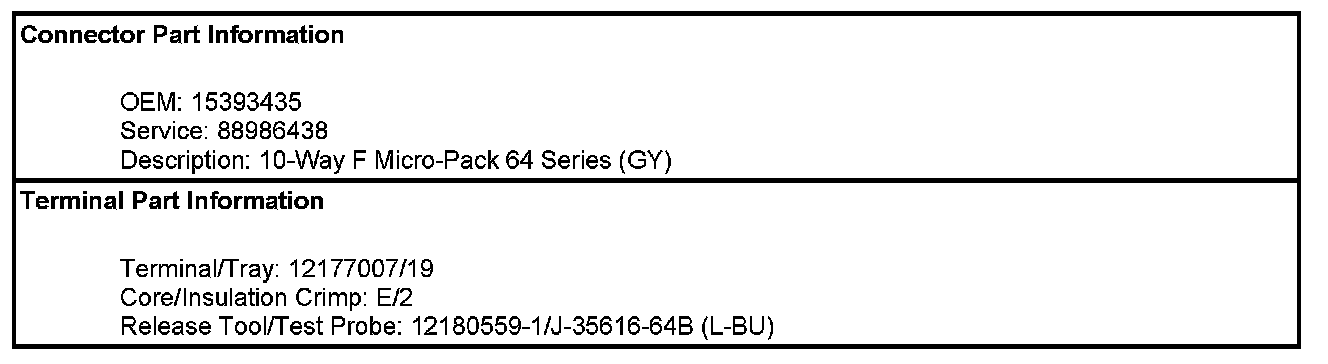

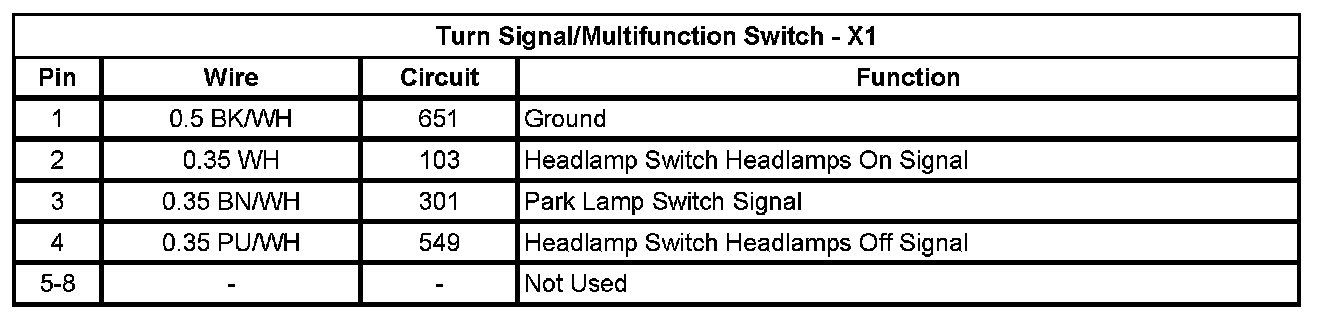

Turn Signal/Multifunction Switch - X1

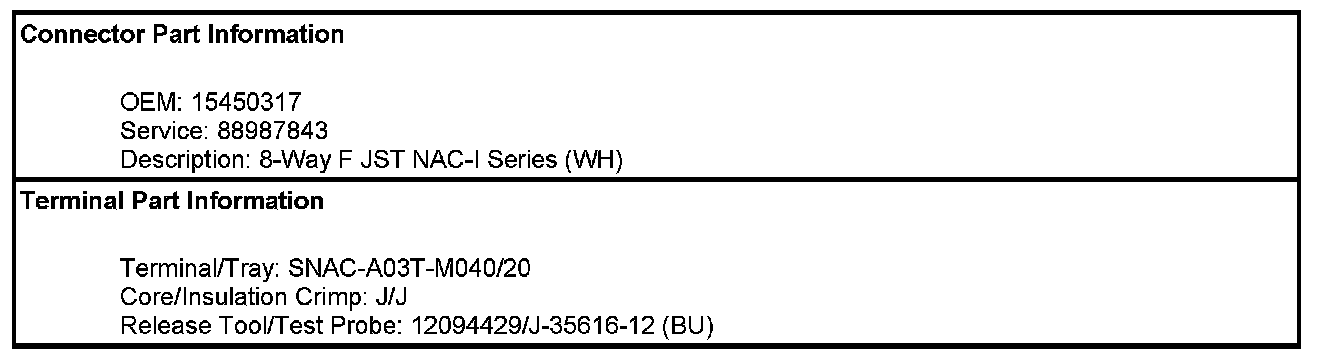

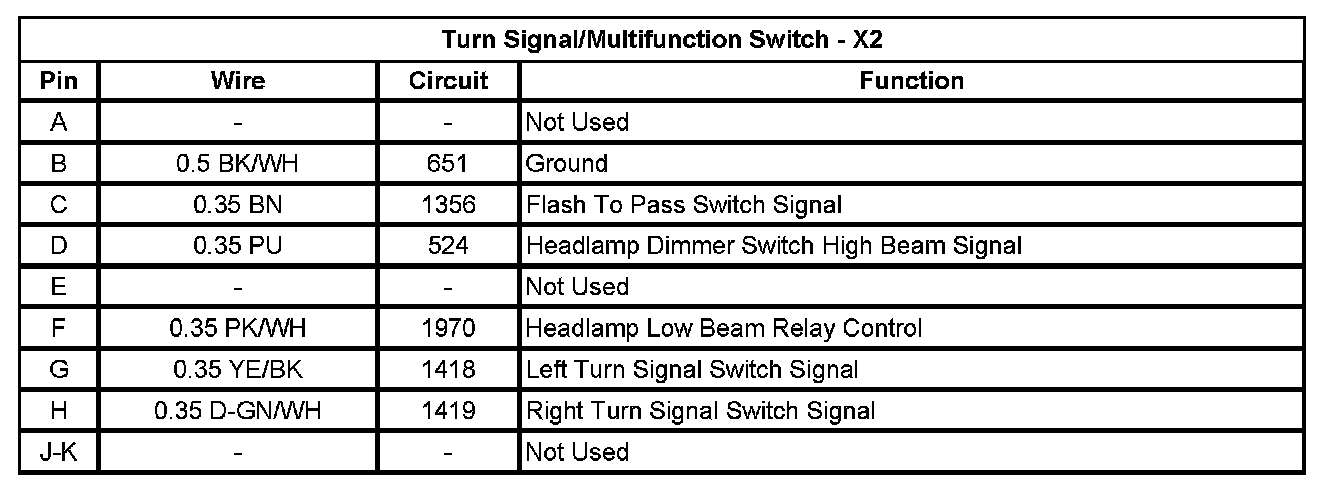

Turn Signal/Multifunction Switch - X2
