Control Module, A/T
Component Connector End Views - Continued

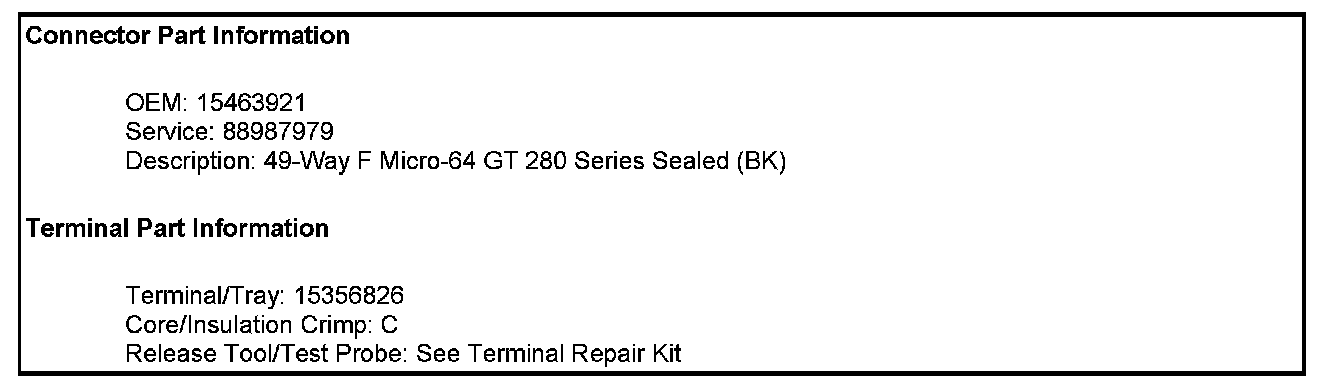

Transmission Control Module (TCM) (M15)

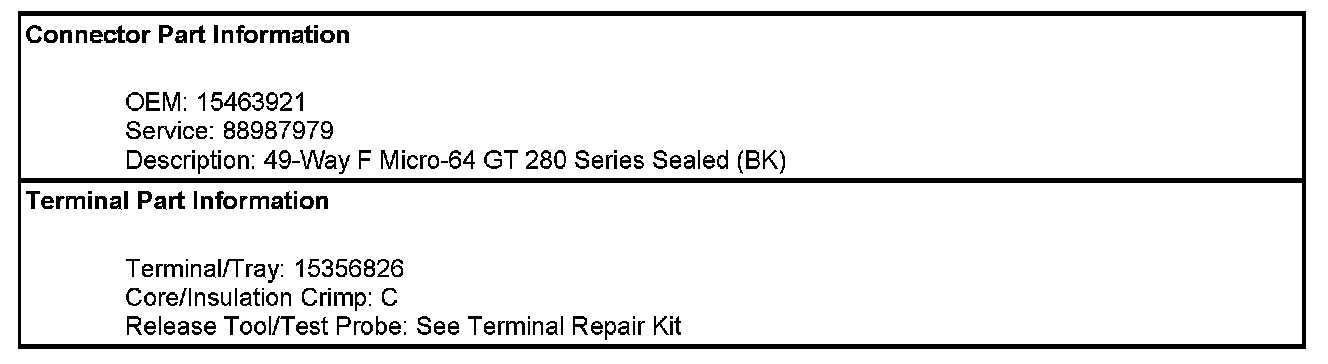

Transmission Control Module (TCM) (MH2)

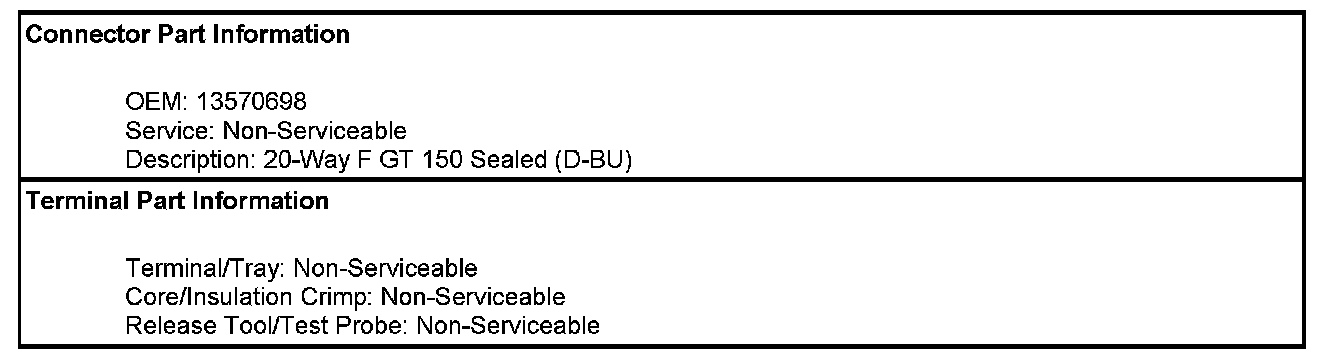

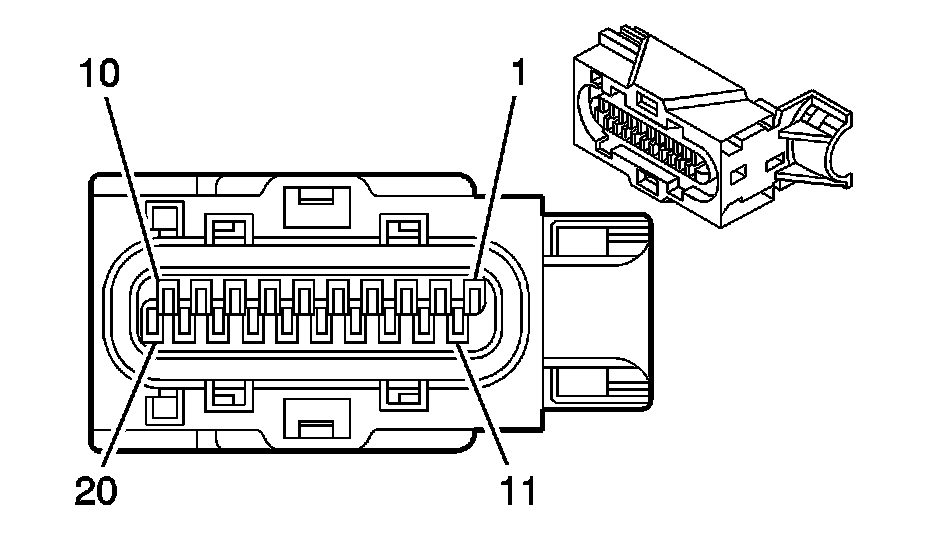

Transmission Control Module (TCM) (MN5)

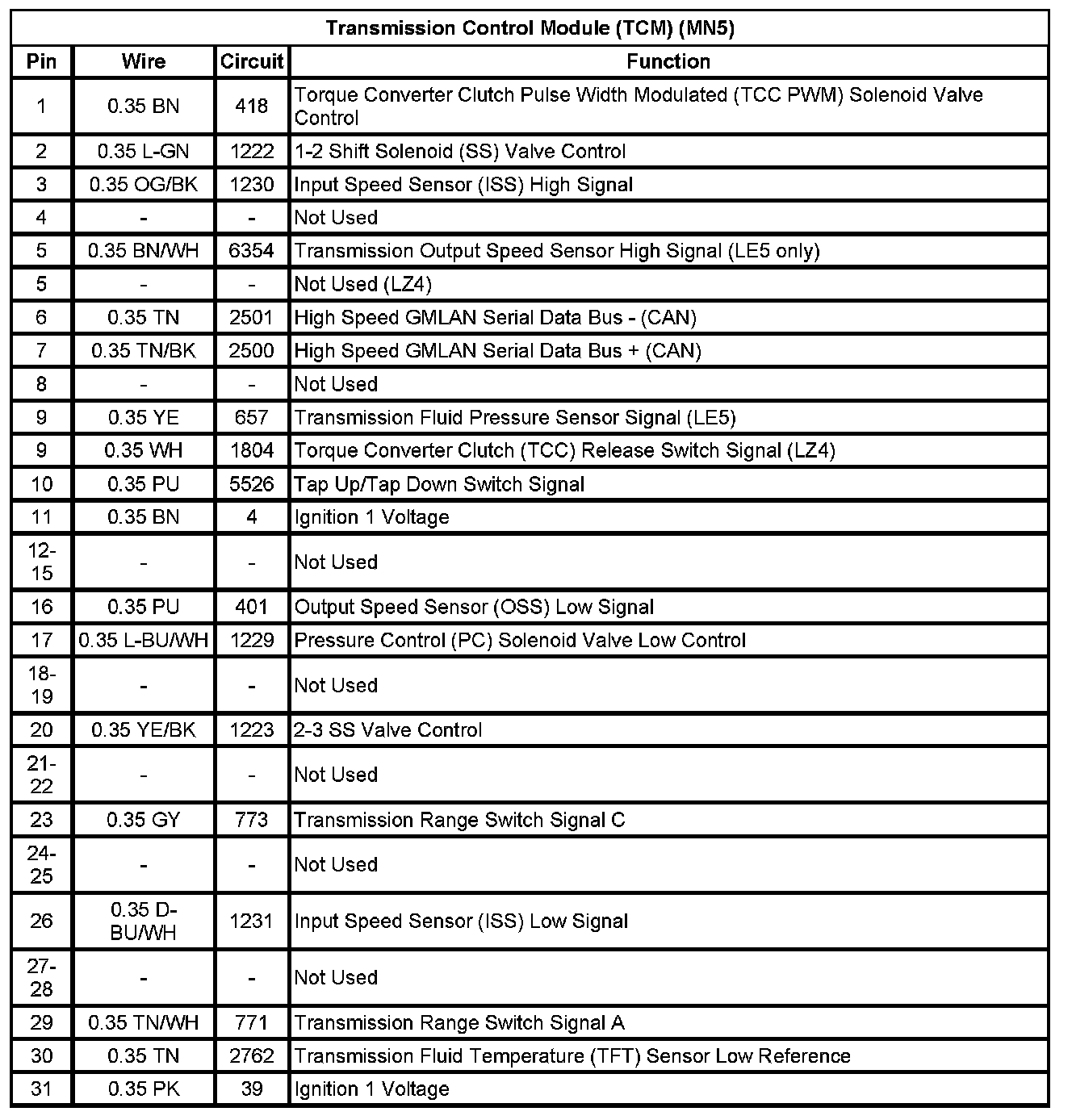

Transmission Control Module (TCM) (MN5) (Pin 1 To 31):

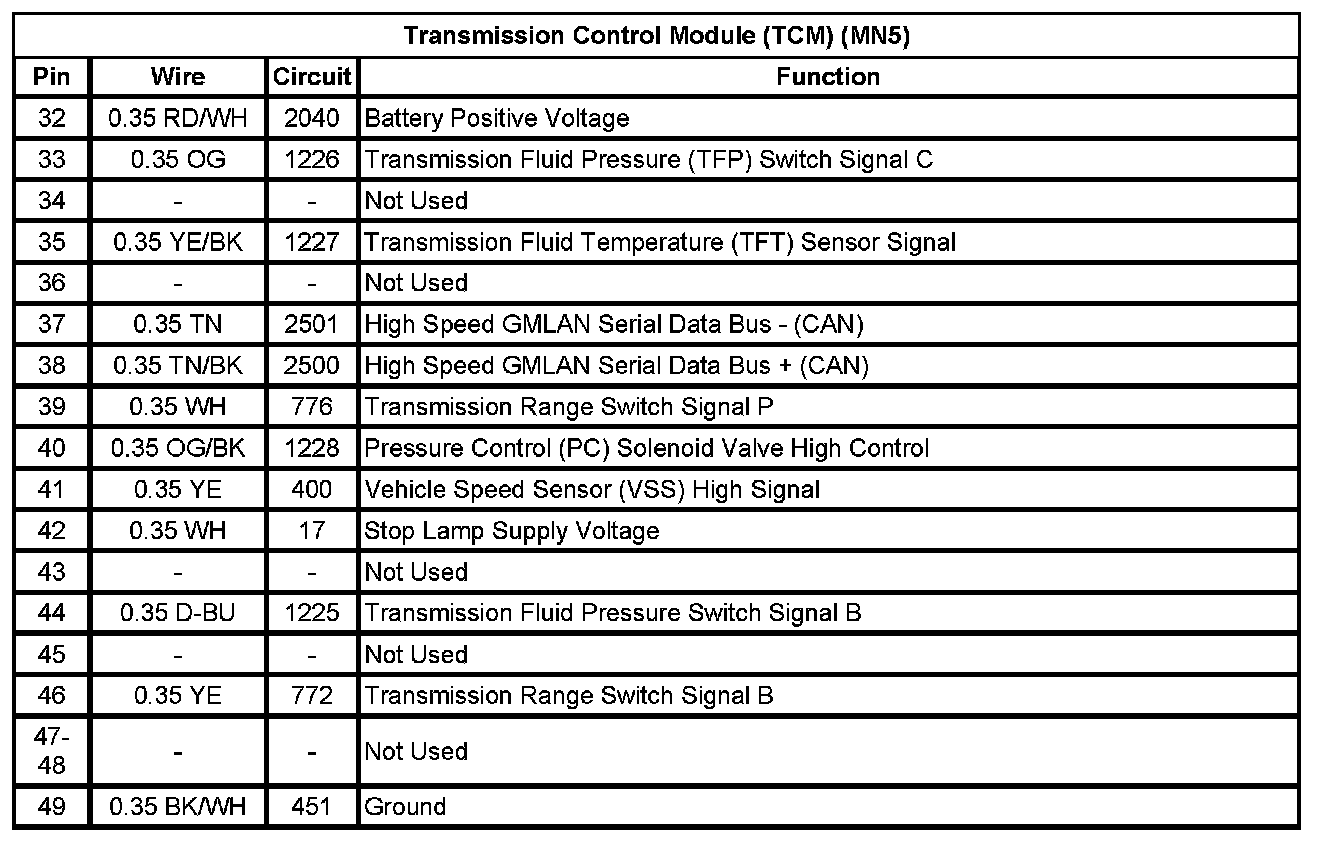

Transmission Control Module (TCM) (MN5) (Pin 32 To 49):
