Convertible Top Control Module

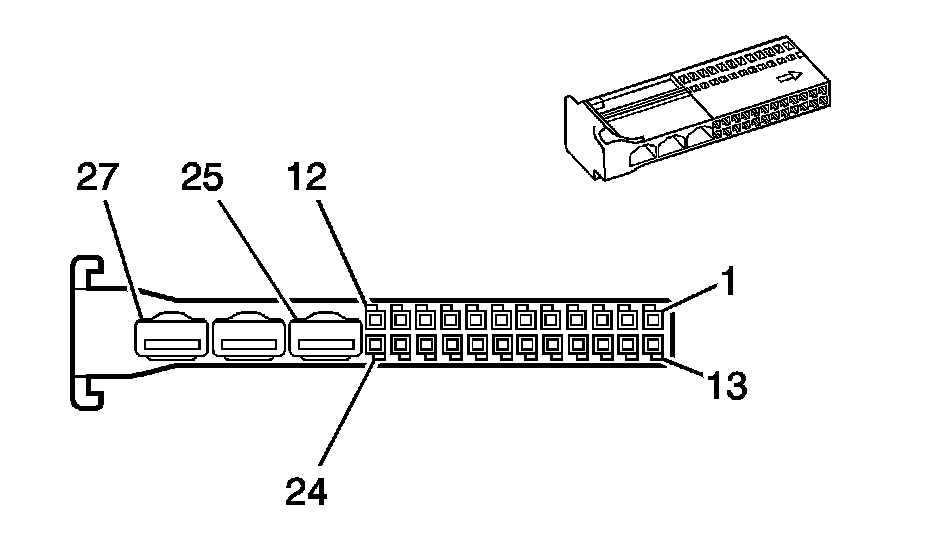

Component Connector End Views

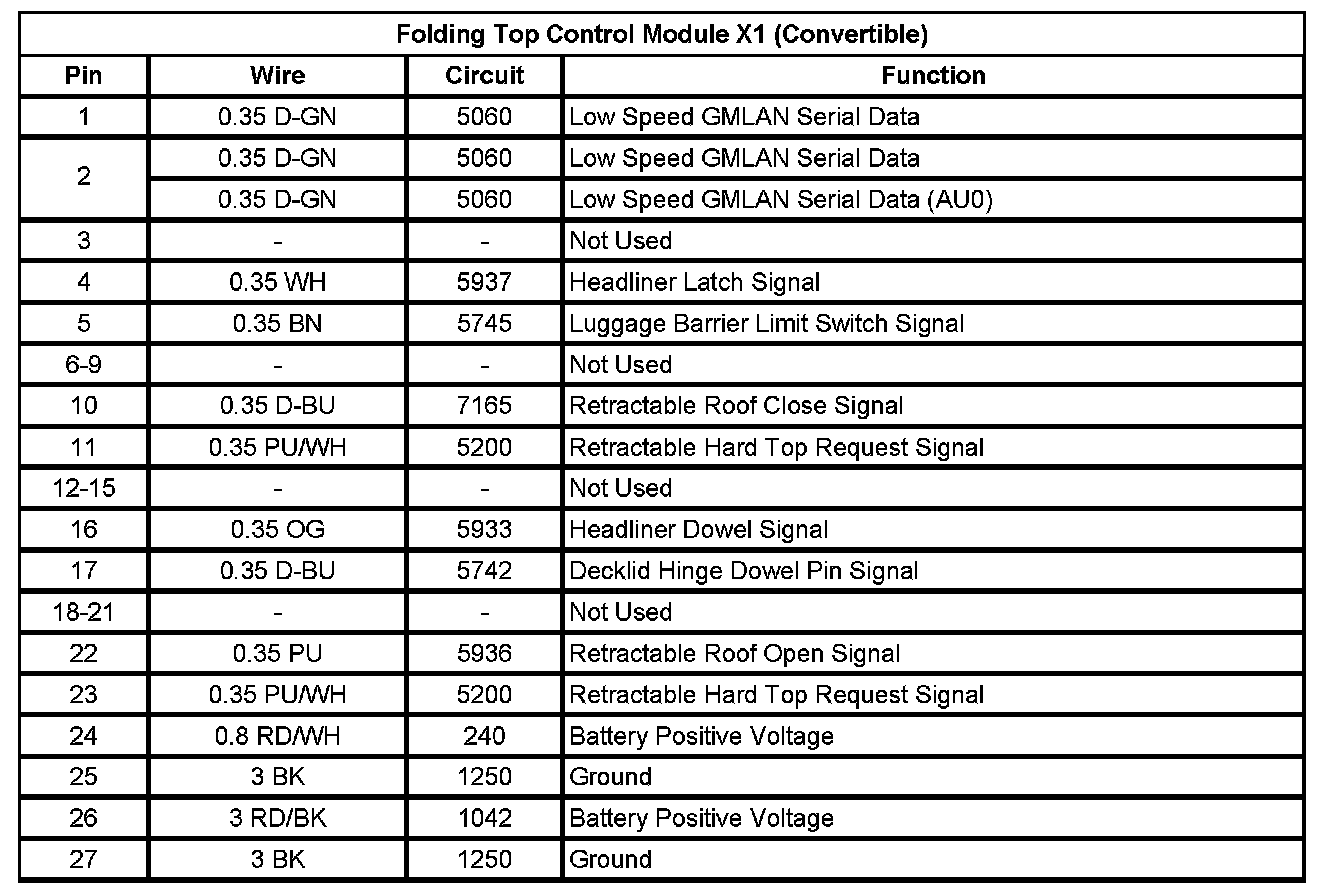

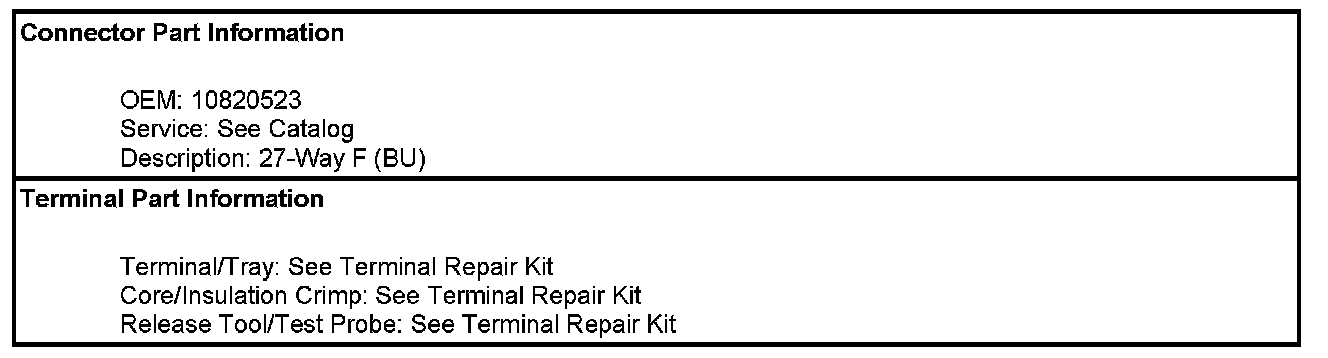

Folding Top Control Module X1 (Convertible)

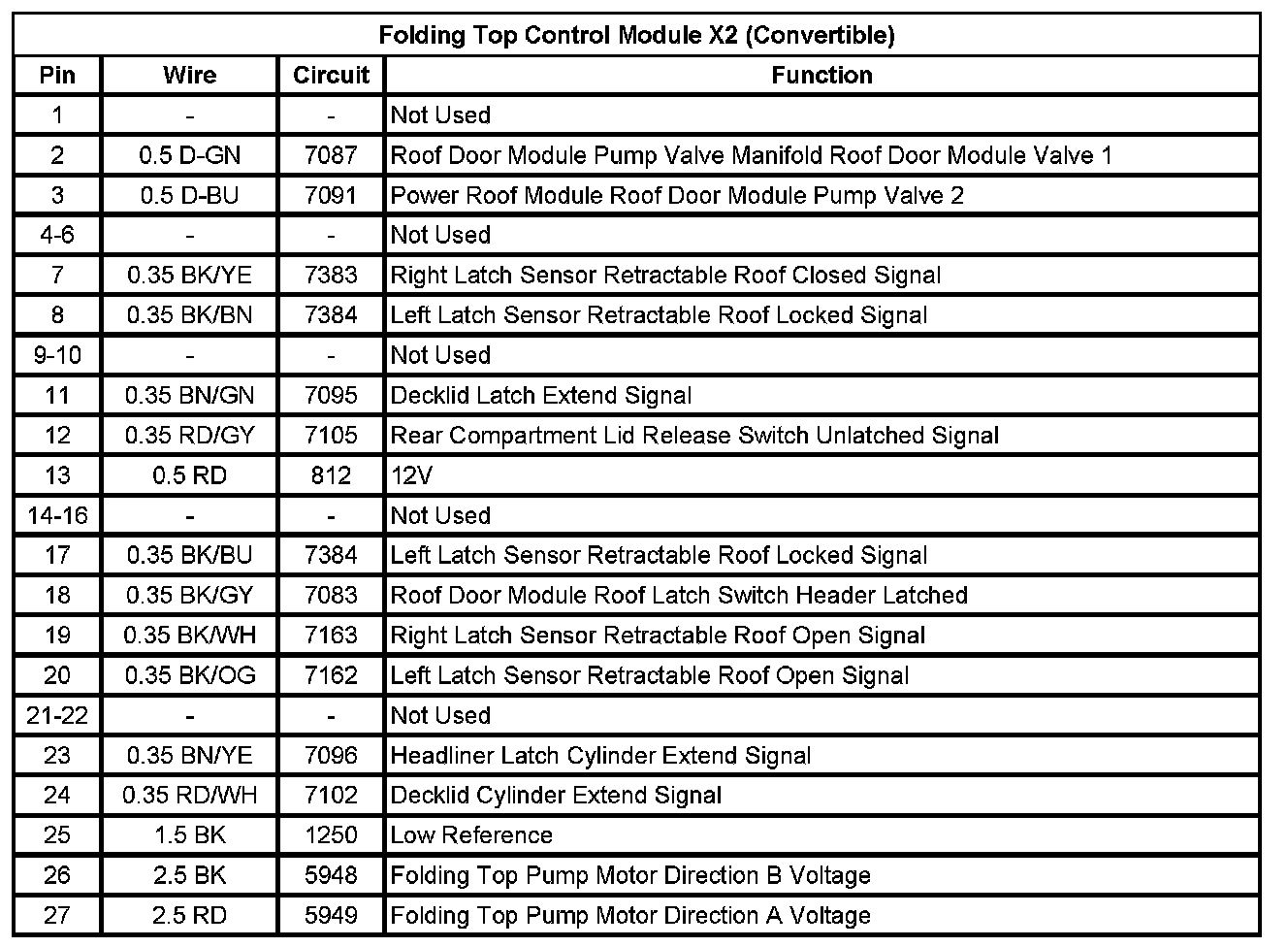

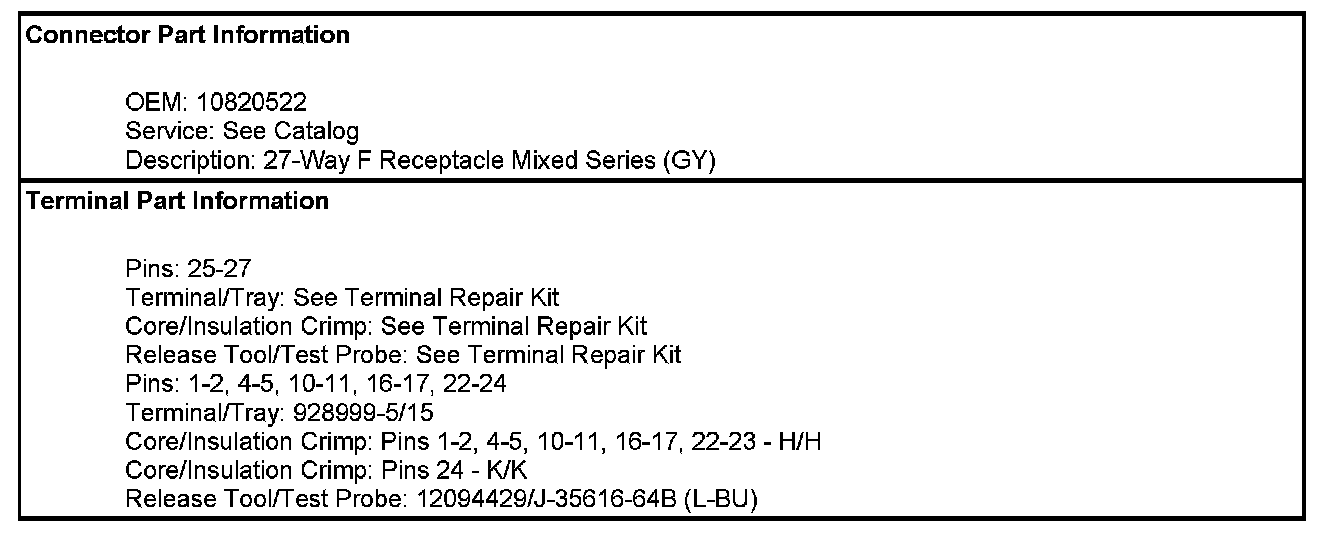

Folding Top Control Module X2 (Convertible)
