Impact Sensor



Component Connector End Views - Continued

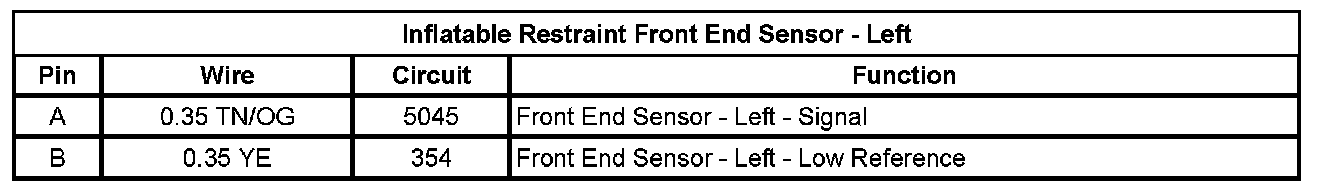

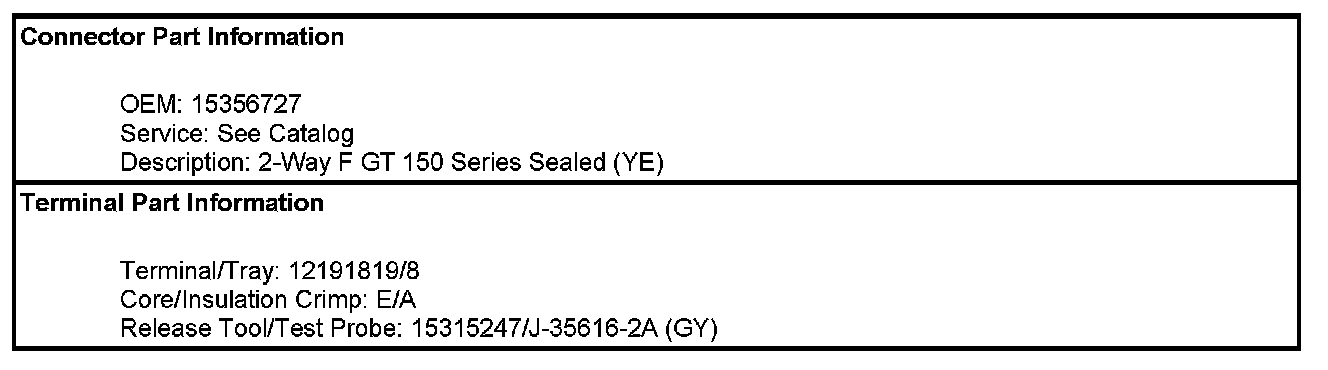

Inflatable Restraint Front End Sensor - Left

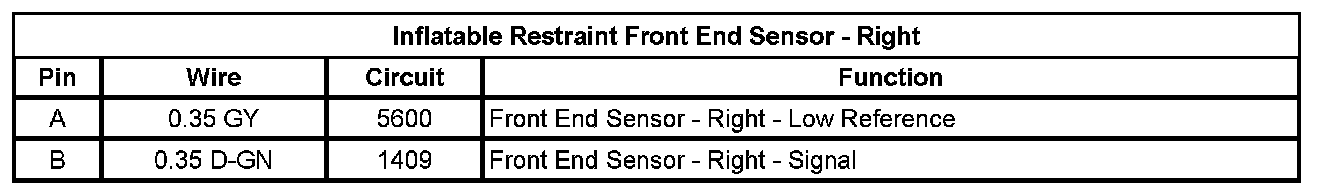

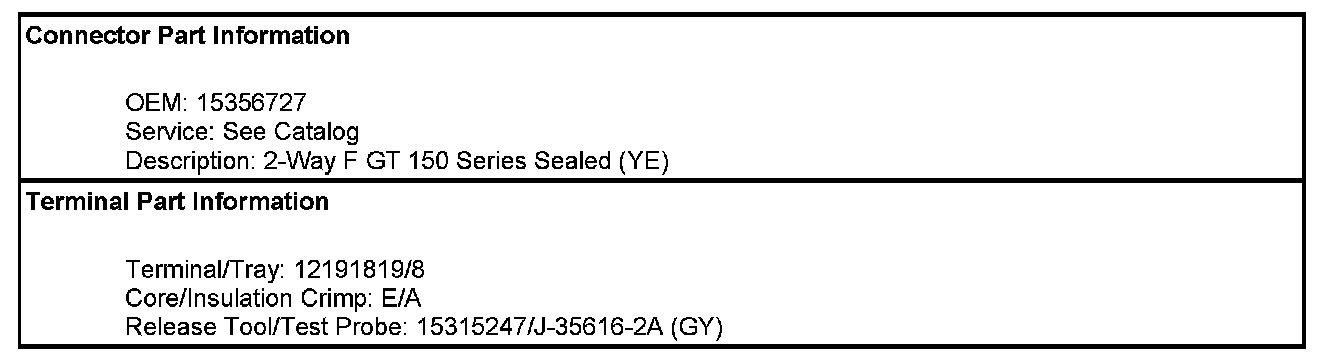

Inflatable Restraint Front End Sensor - Right

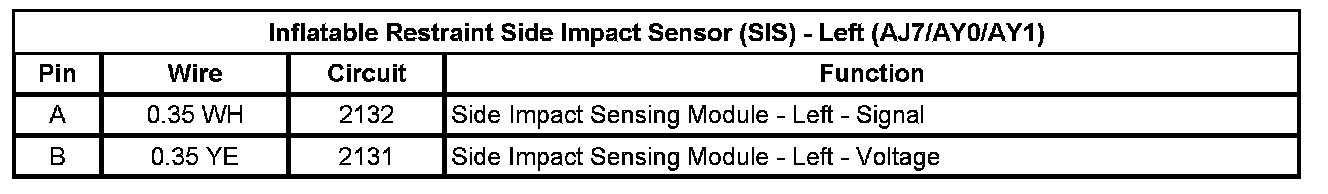

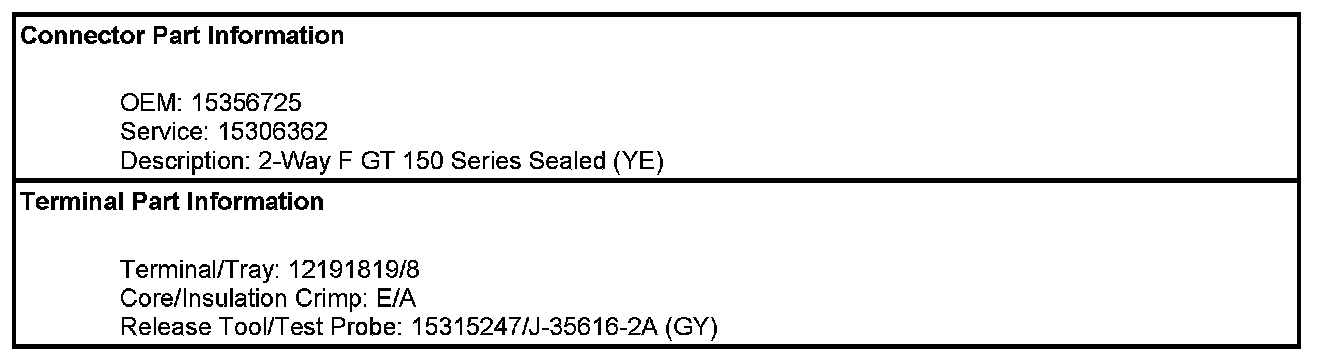

Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7/AY0/AY1)

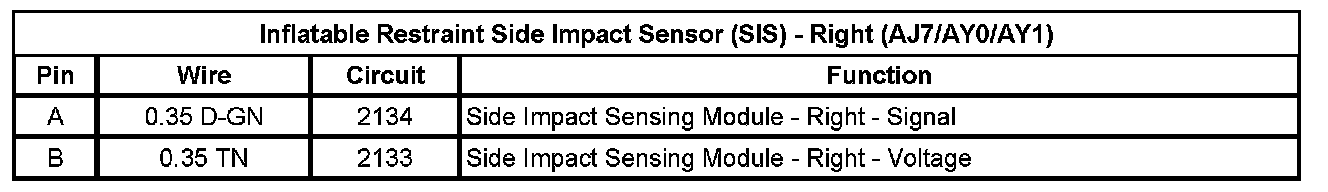

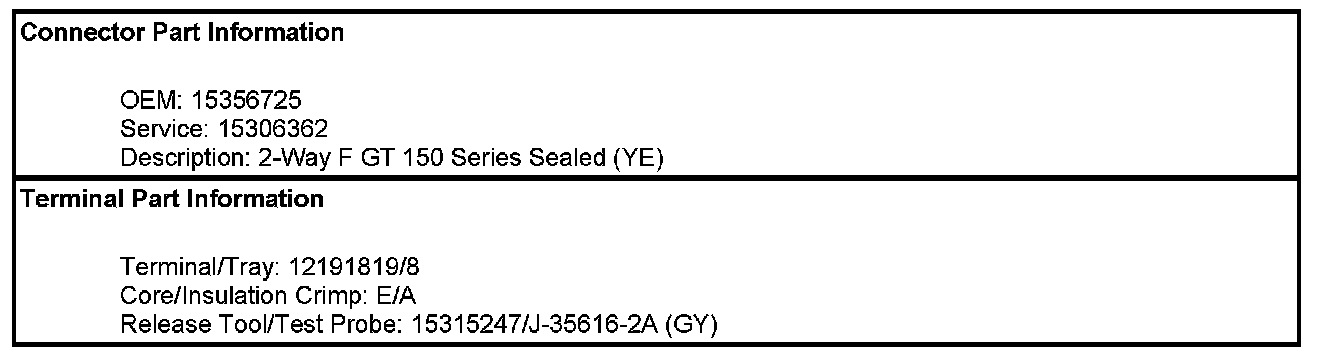

Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7/AY0/AY1)
