Body Control Systems

Body Control System Schematics

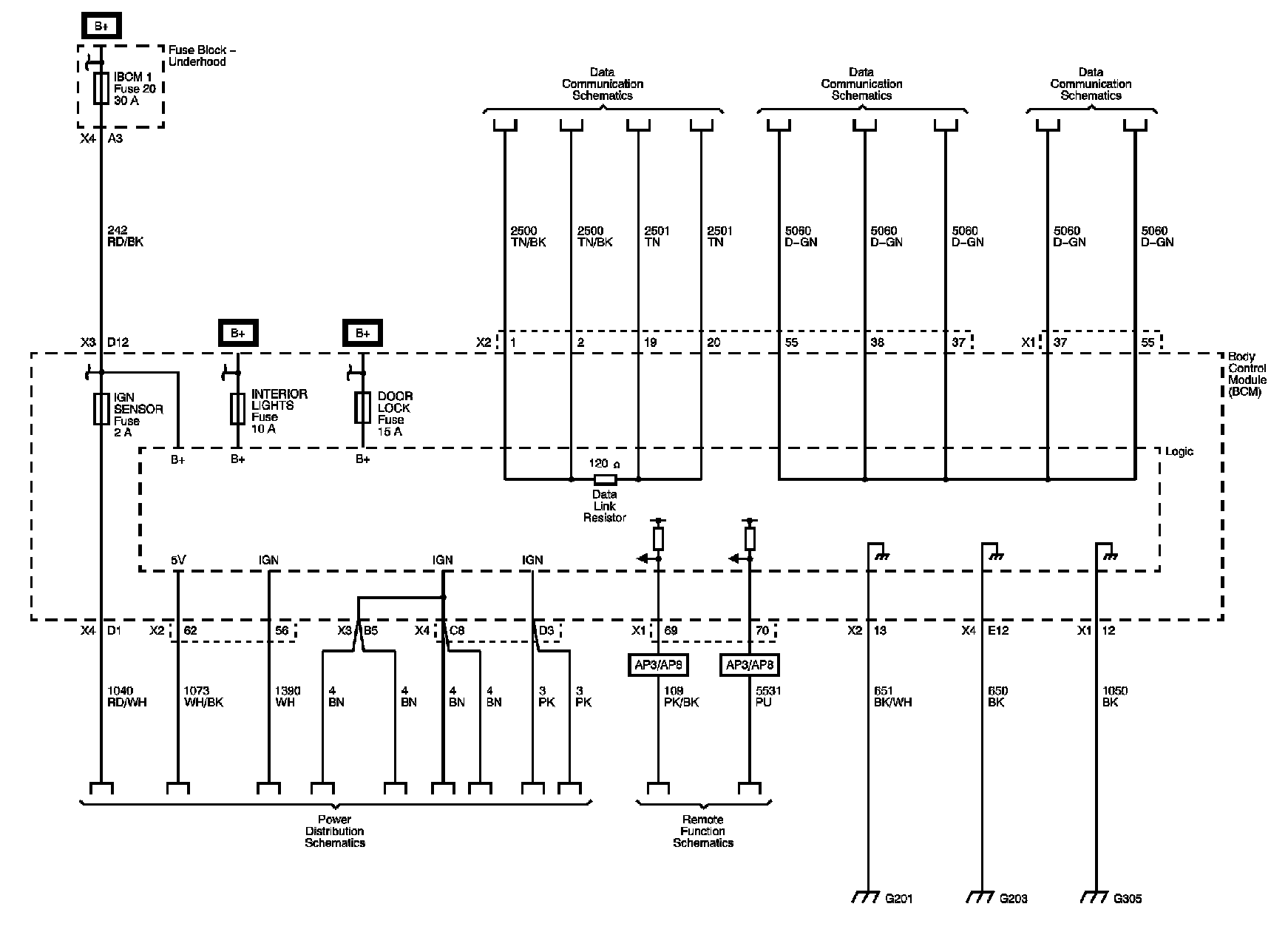

Power, Ground, and DLC






ACCESSORY, HVAC BLOWER HIGH and RUN Relays

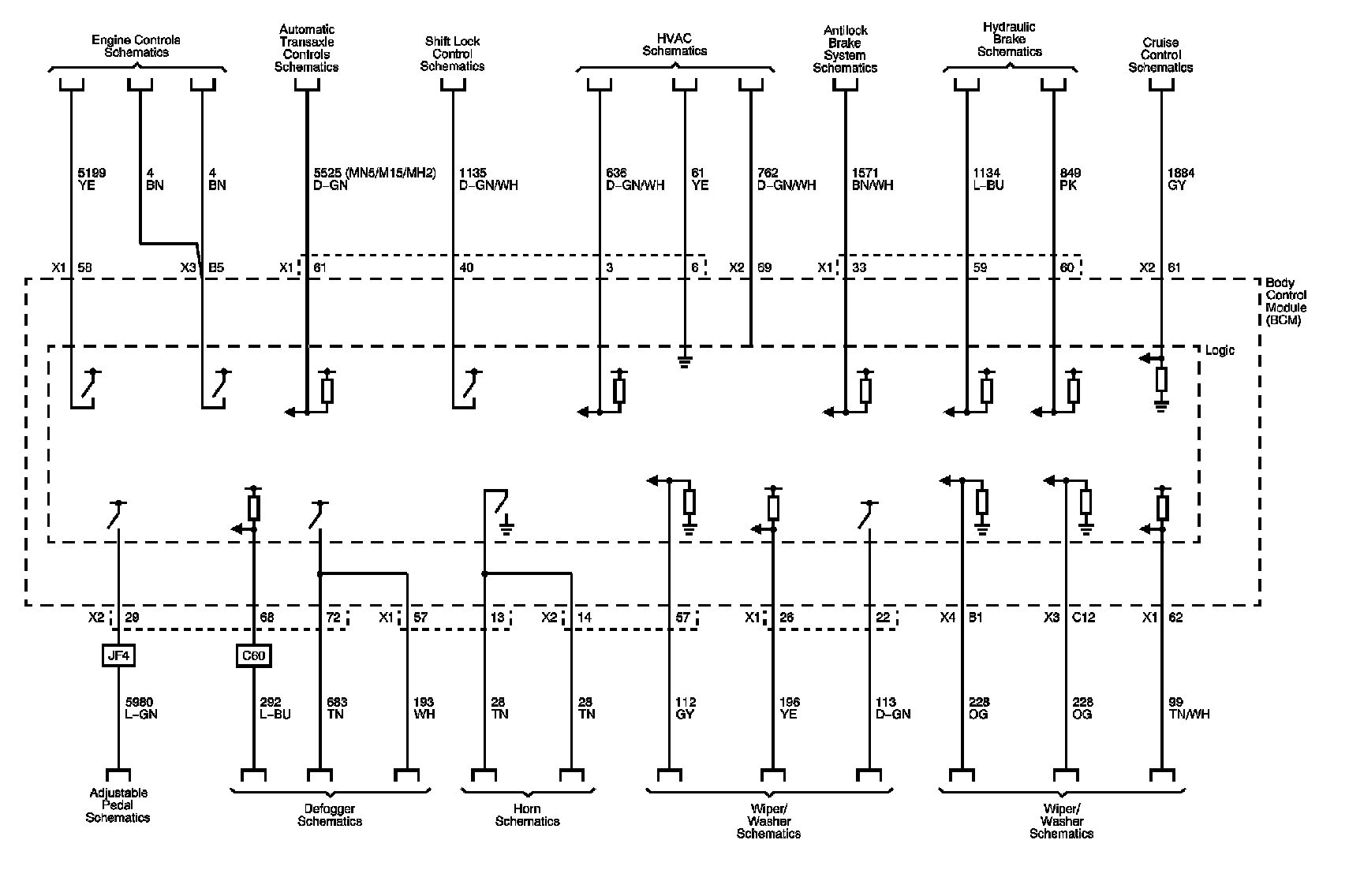

Controlled/Monitored Subsystem References (1 of 3)

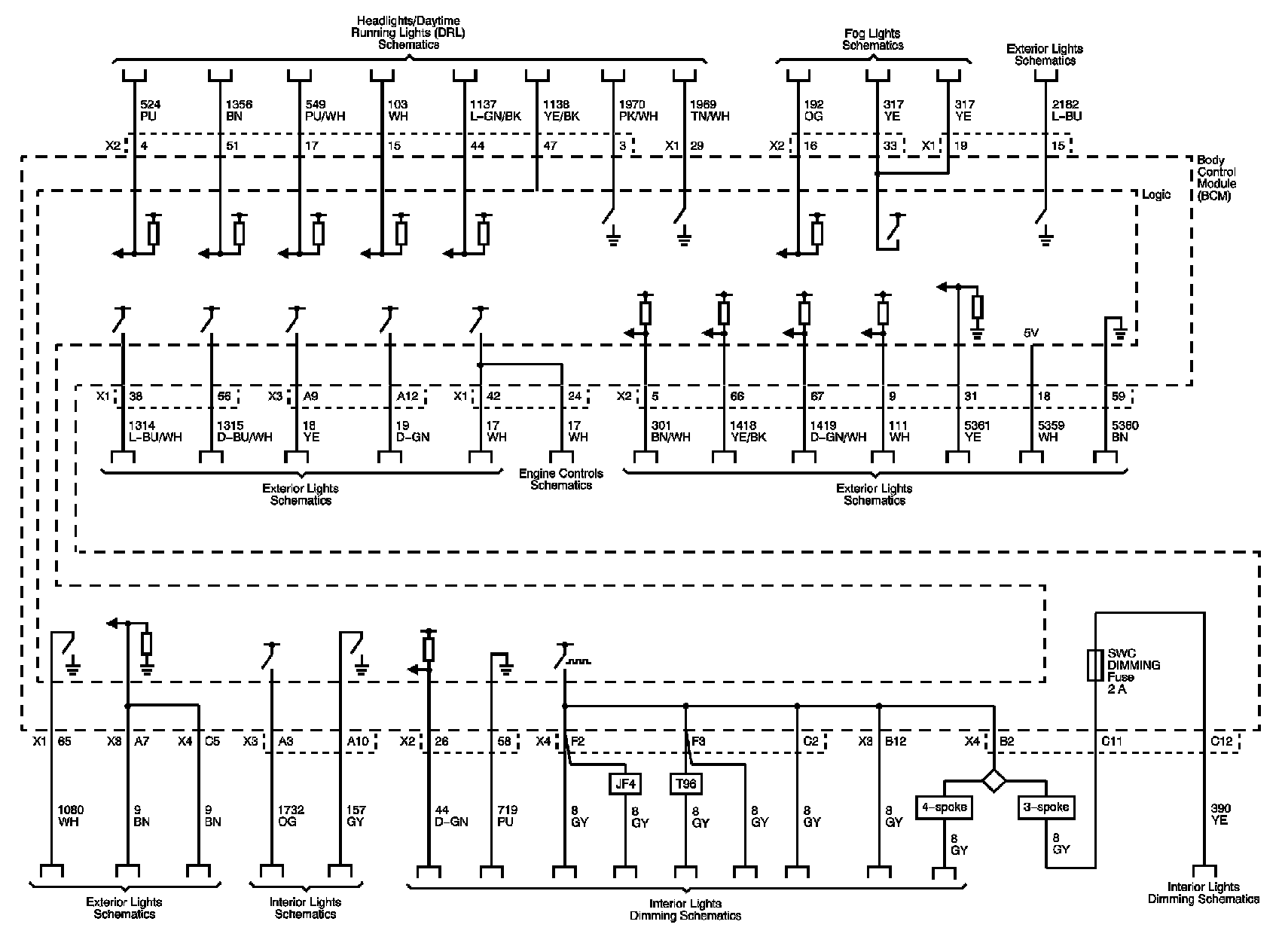

Controlled/Monitored Subsystem References (2 of 3)






Controlled/Monitored Subsystem References (3 of 3)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
