Installation Procedure - Left

    CAUTION: Refer to Safety Glasses Caution .
    CAUTION: Refer to Vehicle Lifting Caution .
    CAUTION: Refer to Brake Dust Caution .

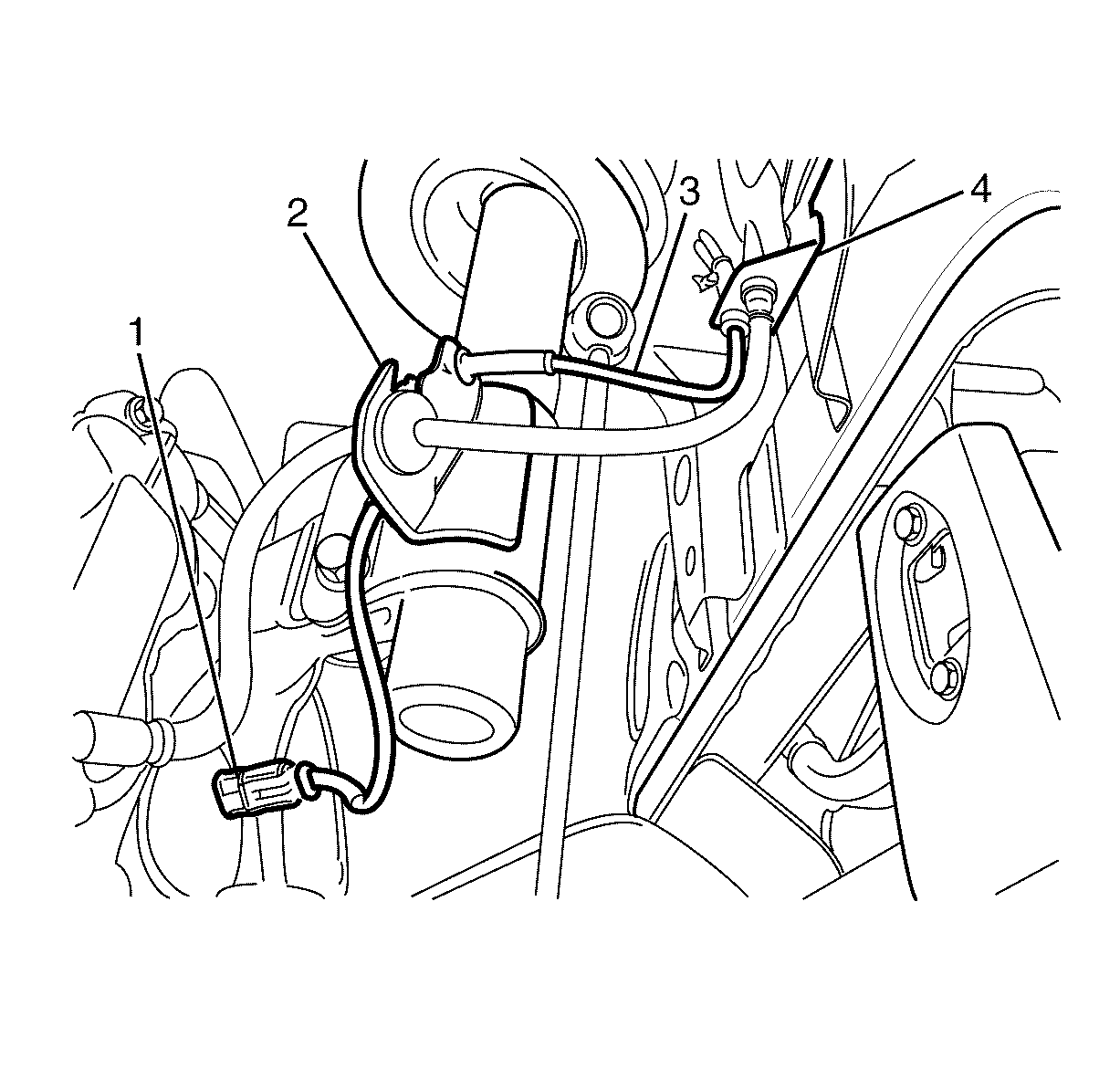

    Fig 1: Identifying Wheel Speed Sensor Jumper Harness & Electrical Connector
    GM1943670Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the routing of the wheel speed sensor jumper harness (2) is secured and routed in its original location.
  1. Install the wheel speed sensor jumper harness (3) to the vehicle.
  2. Attach the wheel speed sensor jumper harness (3) from the front strut mounting bracket (2).
  3. Attach the wheel speed sensor jumper harness (3) to the brake hose/wheel speed sensor jumper harness bracket (4).
  4. Connect the wheel speed sensor jumper harness electrical connector (1).
  5. Install the left hand front wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.

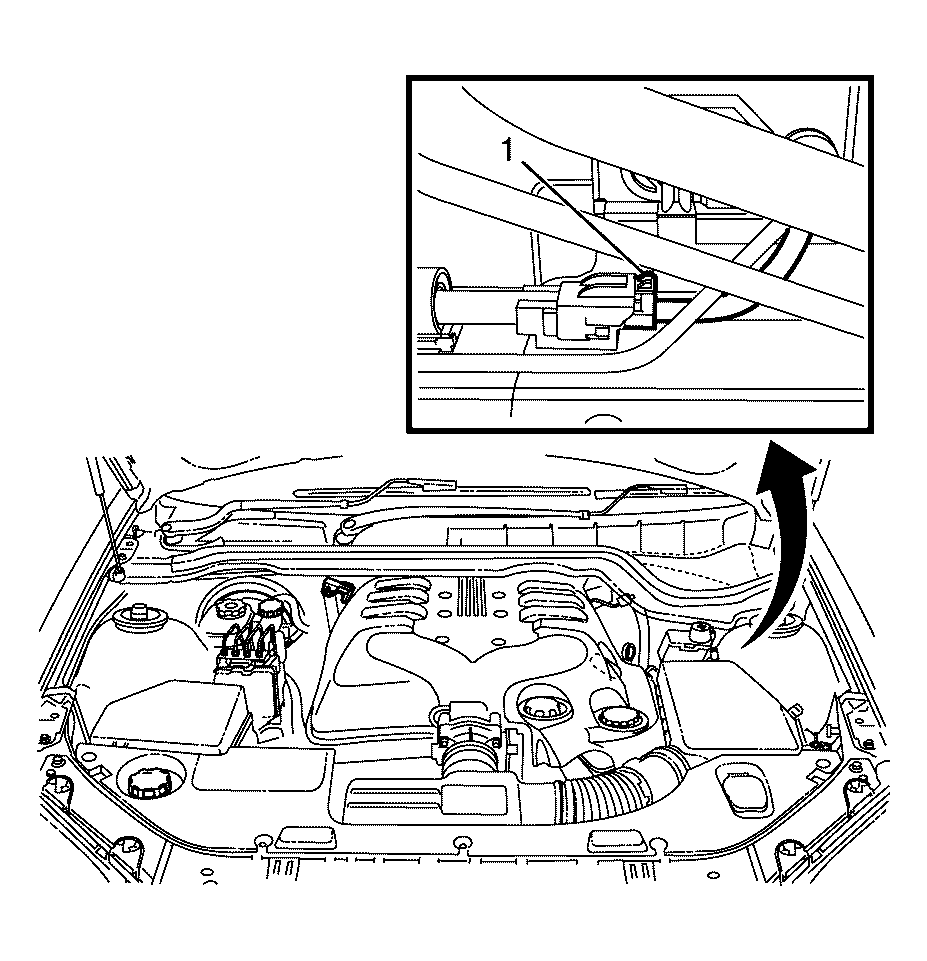

    7. Fig 2: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector
    GM1986529Courtesy of GENERAL MOTORS CORP.
  7. Connect the wheel speed sensor jumper harness electrical connector (1).
  8. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement , or Air Cleaner Assembly Replacement .
  9. Use the scan tool in order to clear any DTCs.
  10. Perform the System Check-Vehicle. Refer to Diagnostic System Check - Vehicle .
