Installation Procedure

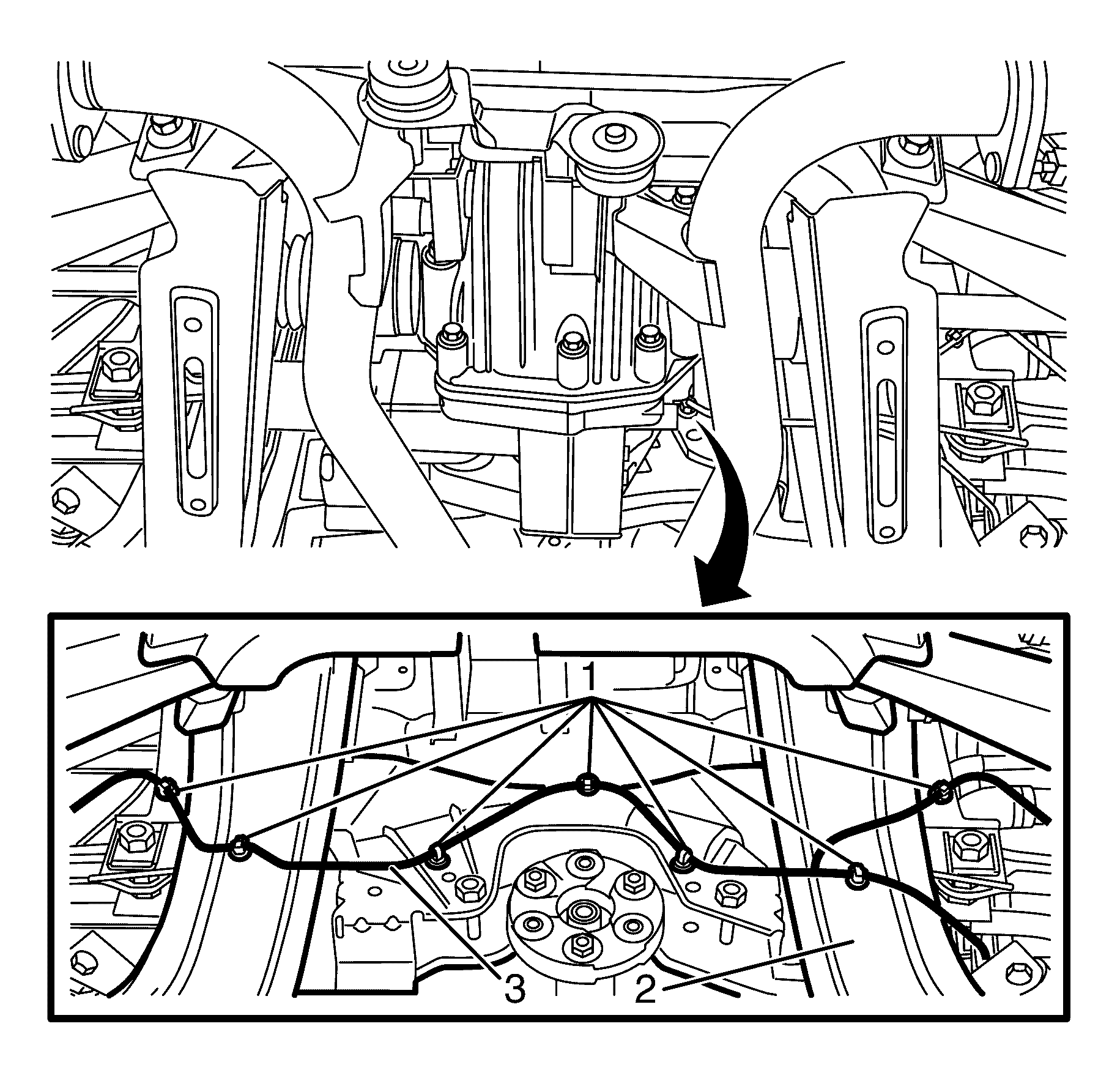

    Fig 1: Identifying Wheel Speed Sensor Wiring Harness Mounting Clips & Rear Suspension Subframe
    GM1943683Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Safety Glasses Caution .
    CAUTION: Refer to Vehicle Lifting Caution .
    CAUTION: Refer to Brake Dust Caution .
    IMPORTANT: Make sure the routing of the wheel speed sensor jumper harness (3) is routed in its original location.
  1. Install the wheel speed sensor jumper harness (3) to the vehicle.
  2. Attach the wheel speed sensor wiring harness mounting clips (1) to the rear suspension subframe (2).

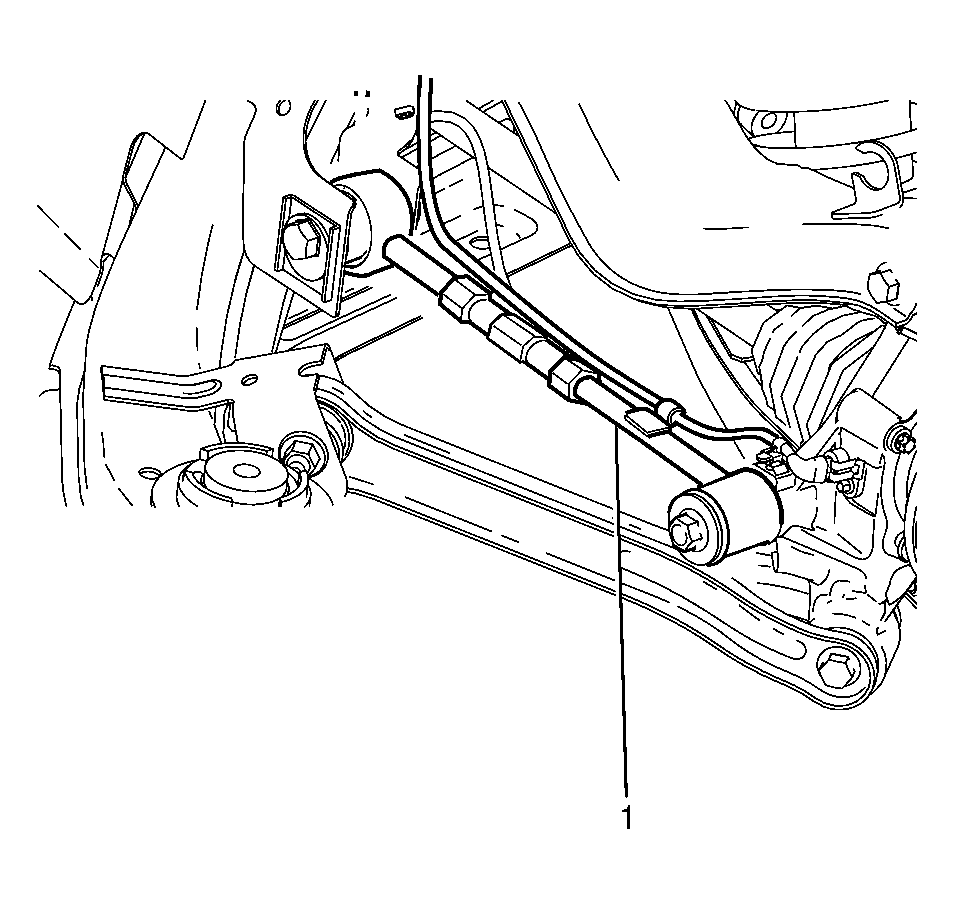

    3. Fig 2: Identifying Wheel Speed Sensor Wiring Harness Mounting Clip
    GM1943685Courtesy of GENERAL MOTORS CORP.
  3. Attach the wheel speed sensor wiring harness mounting clip (1).

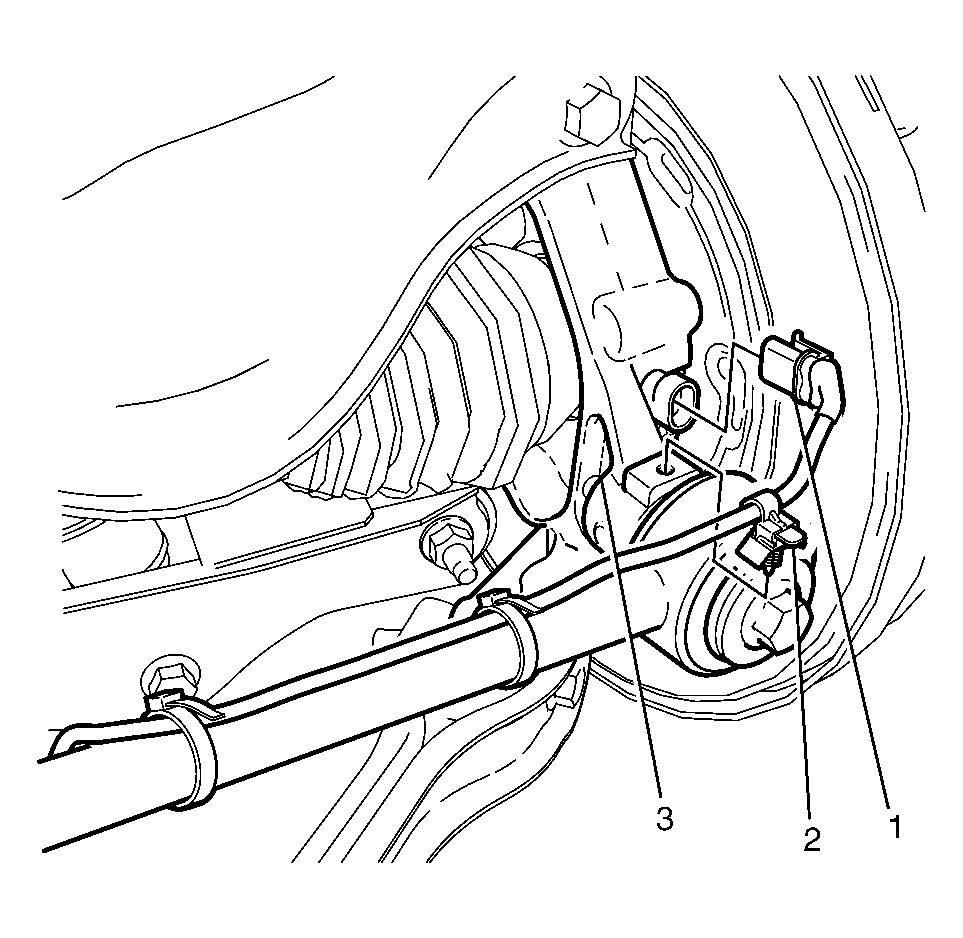

    4. Fig 3: Identifying Left Rear & Right Rear Wheel Speed Sensor Electrical Connectors
    GM1939426Courtesy of GENERAL MOTORS CORP.
  4. Connect the left rear and right rear wheel speed sensor electrical connectors (1).
  5. Attach the wheel speed sensor wiring harness mounting clip (2) to the left rear and right rear knuckles (3).

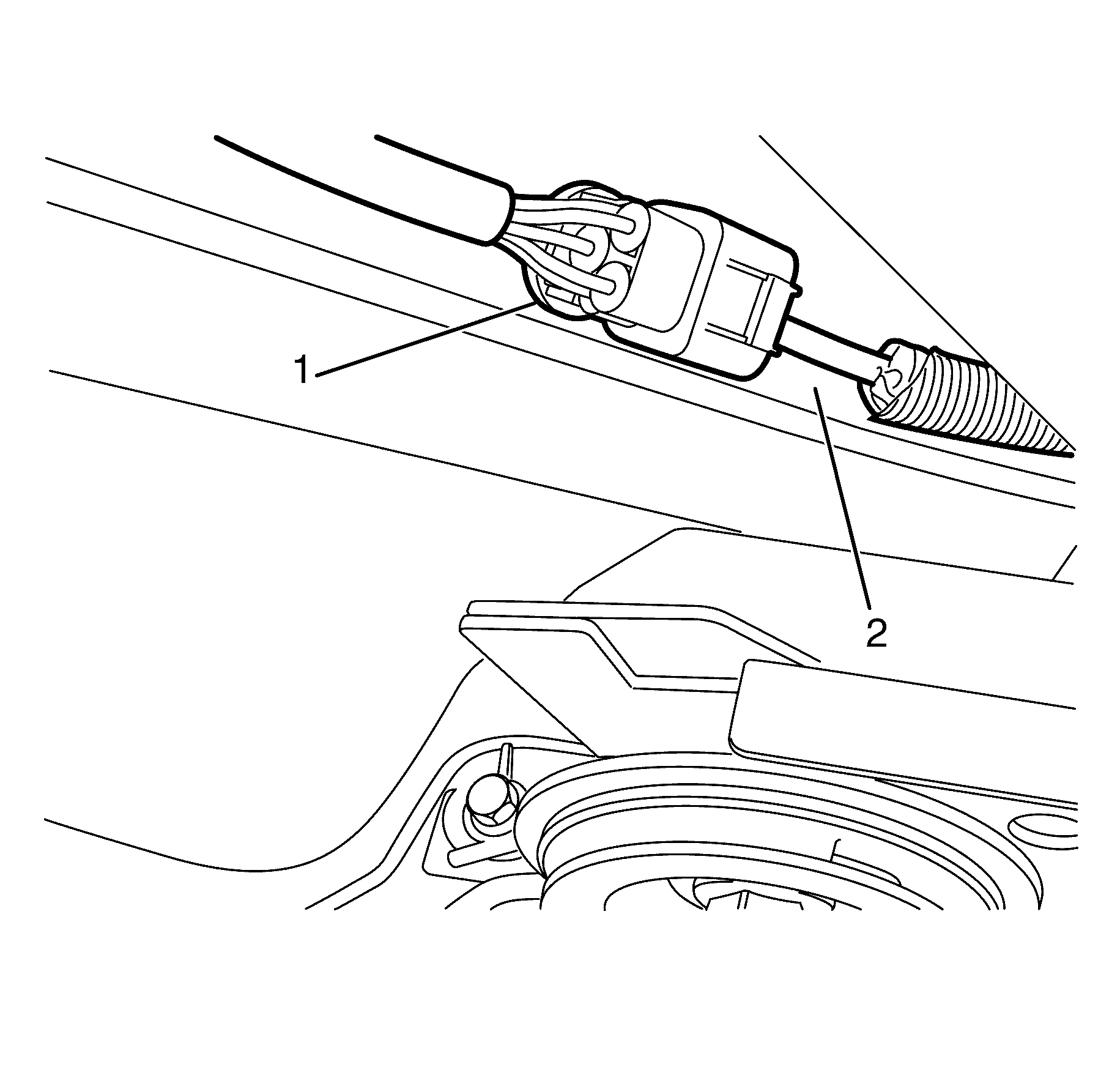

    6. Fig 4: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector & Right Hand Rail
    GM1943714Courtesy of GENERAL MOTORS CORP.
  6. Attach the electrical connector (1) to the right hand rail (2).
  7. Connect the wheel speed sensor jumper harness electrical connector (1).
  8. Install the rear wheels. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
  10. Use the scan tool in order to clear any DTCs.
  11. Perform the System Check-Vehicle. Refer to Diagnostic System Check - Vehicle .
