Power Steering Component Views

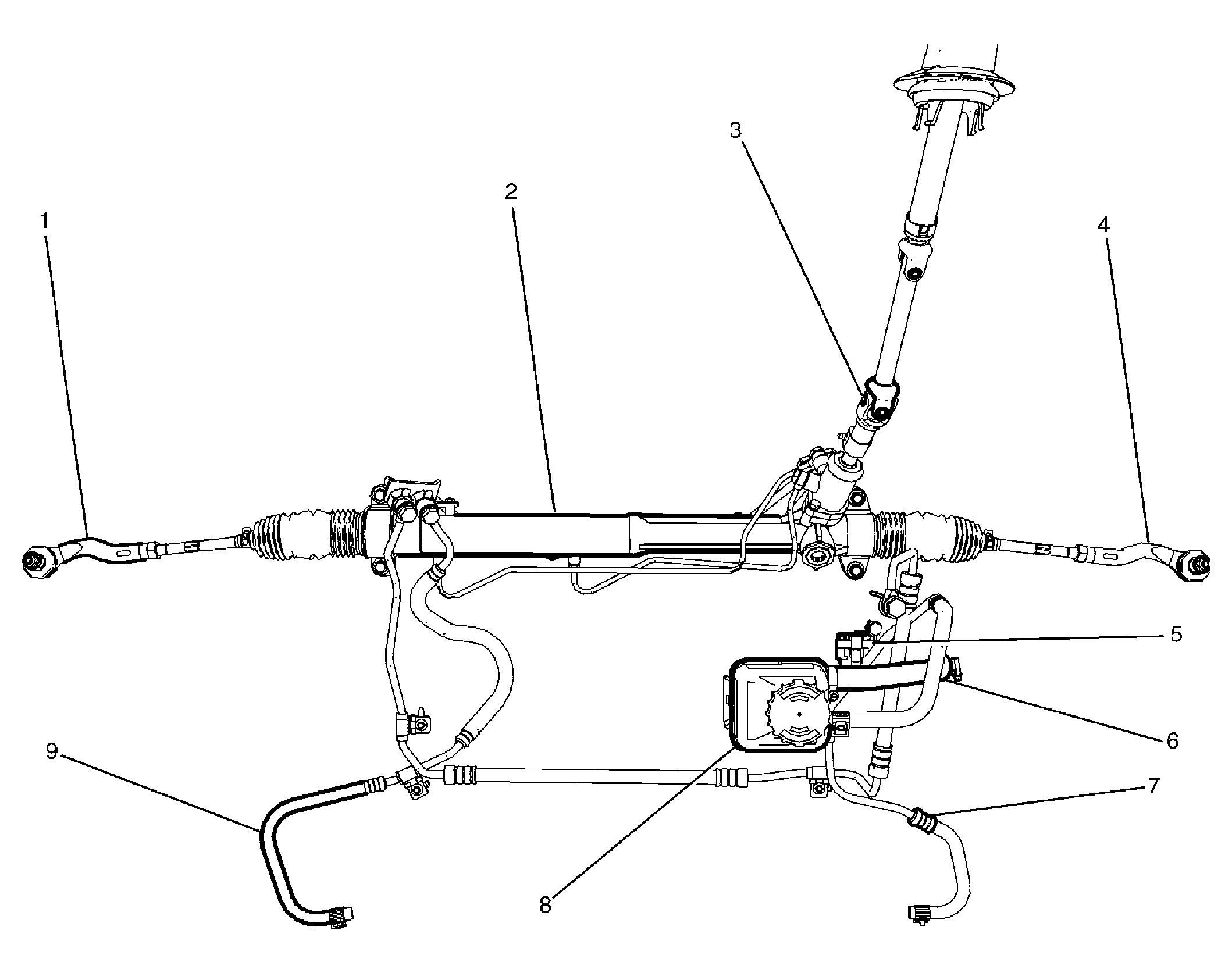

Fig 1: Power Steering Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Tie Rod End
2	Intermediate Steering Shaft
3	Power Steering Rack
4	Left Tie Rod End
5	Power Steering Pump
6	Fluid Reservoir Outlet Pipe/Hose
7	Fluid Reservoir Inlet Pipe/Hose
8	Fluid Reservoir
9	Power Steering Gear Outlet Pipe/Hose
