Checking and Adding Power Steering Fluid

NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.

IMPORTANT: When checking the fluid level after servicing the steering system, bleed the air from the system. Refer to Power Steering System Bleeding .

Remove the engine dress cover. Refer to Engine Cover Replacement , or Engine Cover Replacement
Clean the area surrounding the power steering fluid reservoir cap and level indicators.

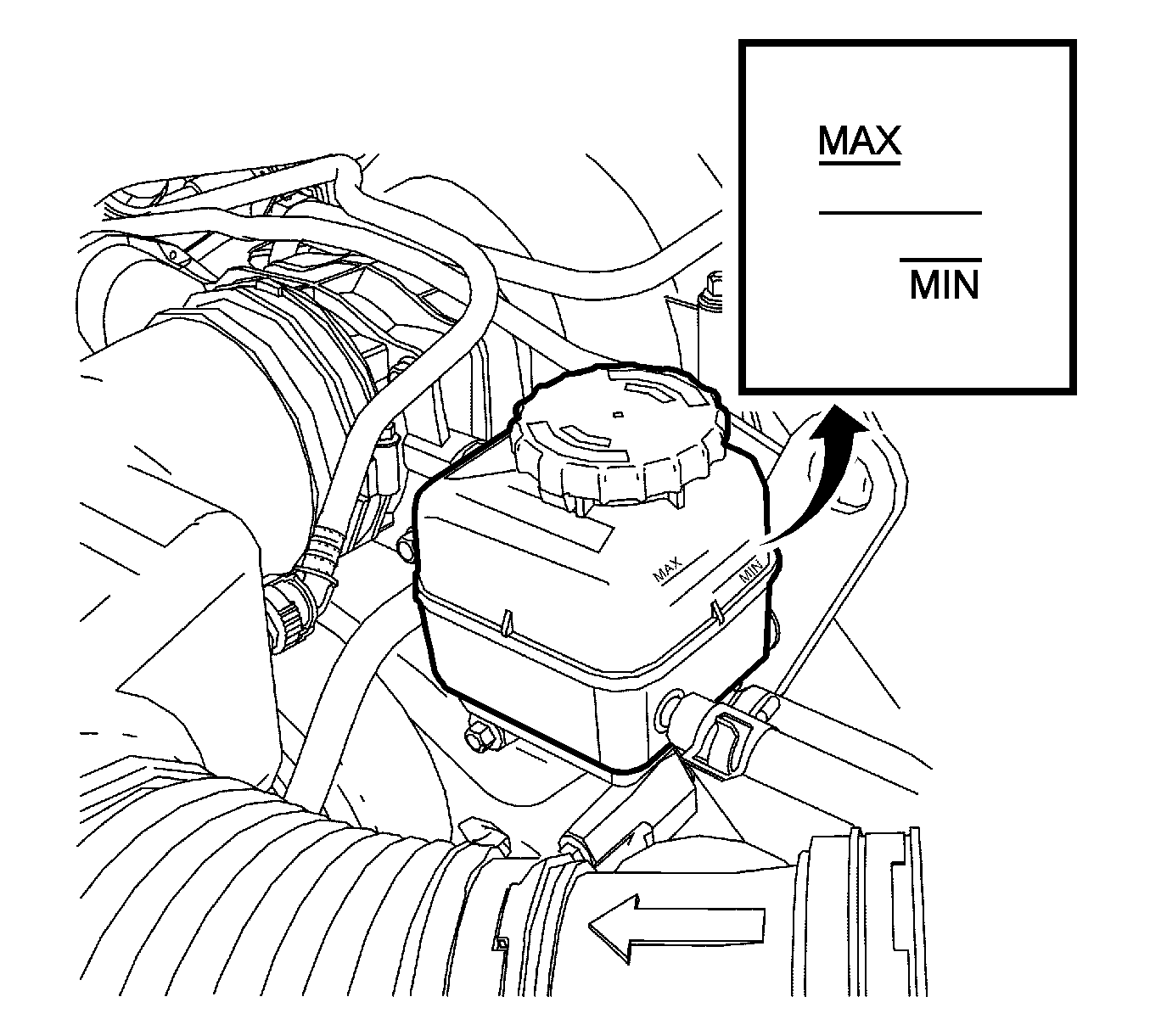

Fig 1: Identifying Fluid Level

Courtesy of GENERAL MOTORS CORP.

Make sure that the fluid level is at the correct level mark on the power steering fluid reservoir.
- If fluid is hot, the fluid level should be at the MAX level mark on the reservoir.
- If fluid is cold, the fluid level should be at the MIN level mark on the reservoir.
Remove the power steering fluid reservoir cap.

IMPORTANT: Use approved new power steering fluid from a sealed container. For fluid specifications refer to Fluid and Lubricant Recommendations .

Add power steering fluid as required, until the correct fluid level is obtained.
Install the power steering fluid reservoir cap.
