Installation procedure

    Fig 1: Identifying Tap Shift Switches
    GM1228531Courtesy of GENERAL MOTORS CORP.
  1. Install the A/T tap shift switches (2).
  2. Connect the electrical connectors.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screws (1) to the tap shift switches.

    Tighten:  Tighten the screws to 3.5 N.m (31 lb in).

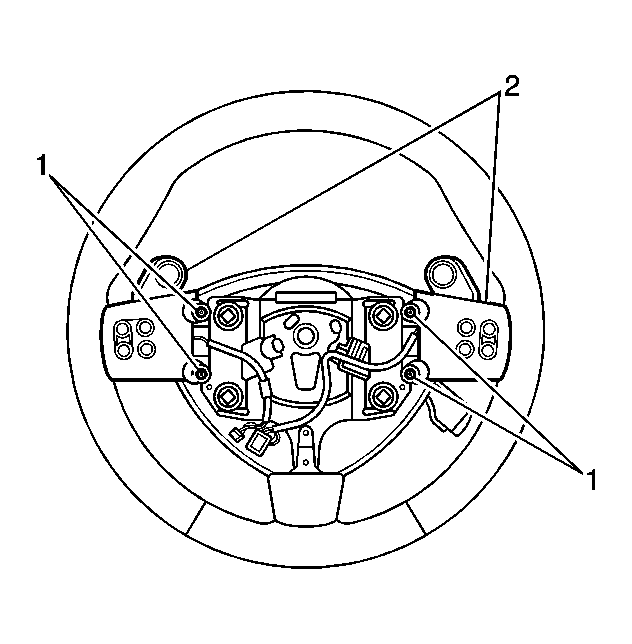

    4. Fig 2: View Of Steering Wheel Electrical Connectors & Control Switches
    GM1228526Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connectors to the radio control switches.
  5. Install the steering wheel radio controls (2) to the steering wheel cover.
  6. Position the steering wheel cover to the steering wheel. Install the bolts (1) to the steering wheel cover.

    Tighten:  Tighten the bolts to 3.5 N.m (31 lb in).

  7. Install the steering wheel inflatable restraint module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
  8. Enable the SIR System. Refer to SIR Disabling and Enabling .
