Installation Procedure

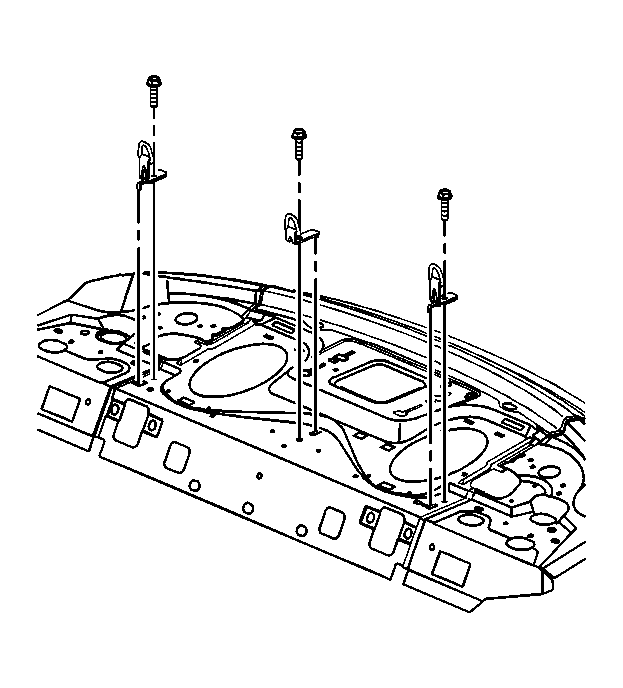

    Fig 1: Child Seat Tether Brackets
    GM596225Courtesy of GENERAL MOTORS CORP.
  1. Position the child seat tether brackets to the slot in the rear shelf.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the child seat tether brackets.

    Tighten:  Tighten the screws to the child seat tether brackets to 20 N.m (15 lb ft).

  3. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
