Steering Wheel Control Switch Assembly Replacement

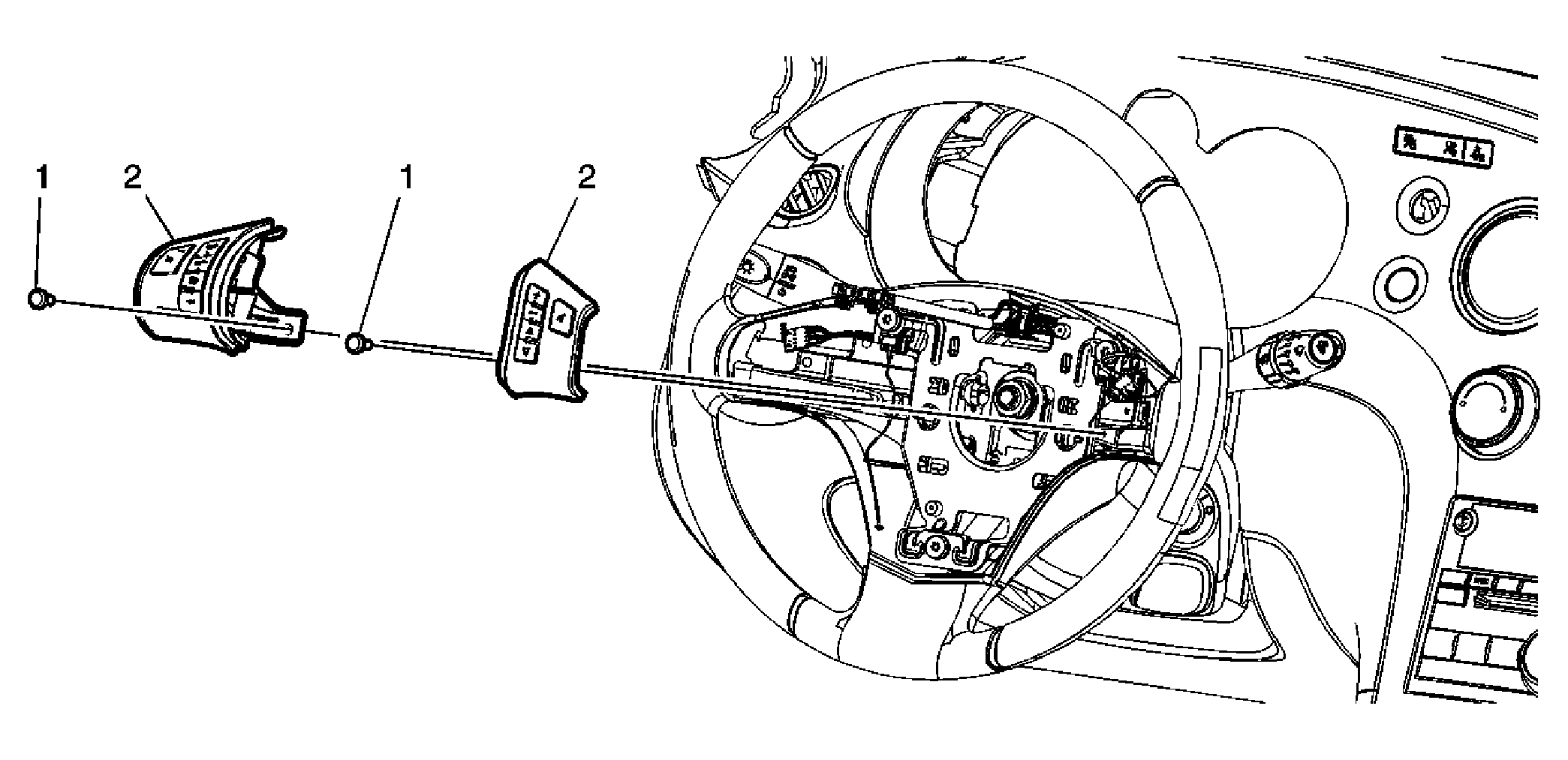

Fig 1: View Of Steering Wheel Control Switch Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Screw, Steering Wheel Control Assembly Tighten:  2 N.m (18 lb in)
2	Control Assembly, Steering Wheel
